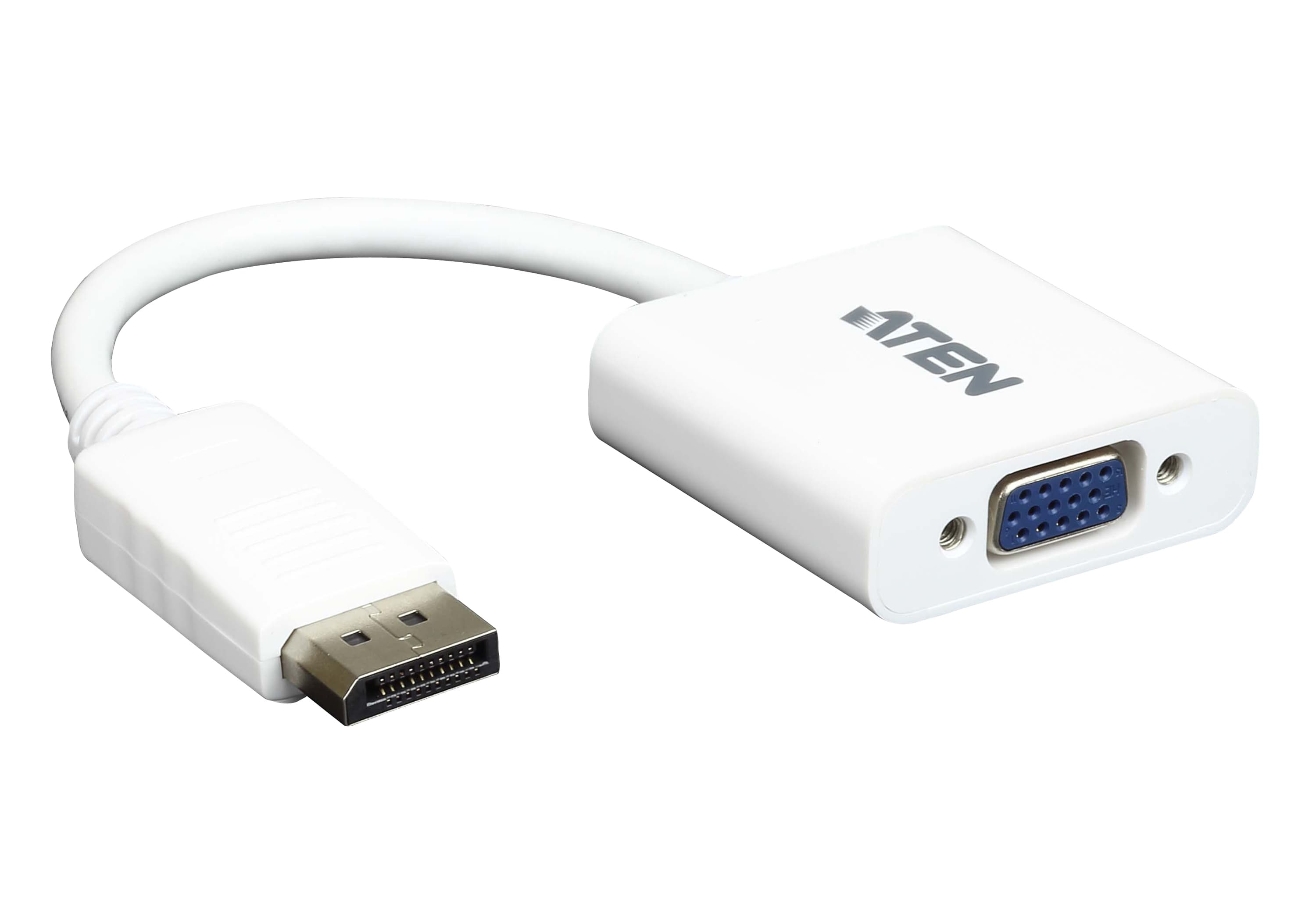

Adapter that converts a DisplayPort output to VGA at up to 1920 x 1200 for driving legacy analogue displays; no software or driver installation required.
Features
- Converts DisplayPort signals to VGA output
- DisplayPort 1.2 compliant
- Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1920x1200 (PC) / 1080p (HDTV)
- No software or driver installation required
Video Input
- Interfaces
- 1 x DisplayPort Male (White)
Video Output
- Interfaces
- 1 x HDB-15 Female (Blue)
Video
- Max. Pixel Clock
- 165 MHz
- Max. Resolution
- Input up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200
- Compliance
- DP1.2
Environmental
- Operating Temperature
- 0 - 50 ºC
- Storage Temperature
- -20 - 60 ºC
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.04 kg ( 0.1 lb )
- Dimensions (L x W x H)
- 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.)
- Carton Lot
- 40 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
