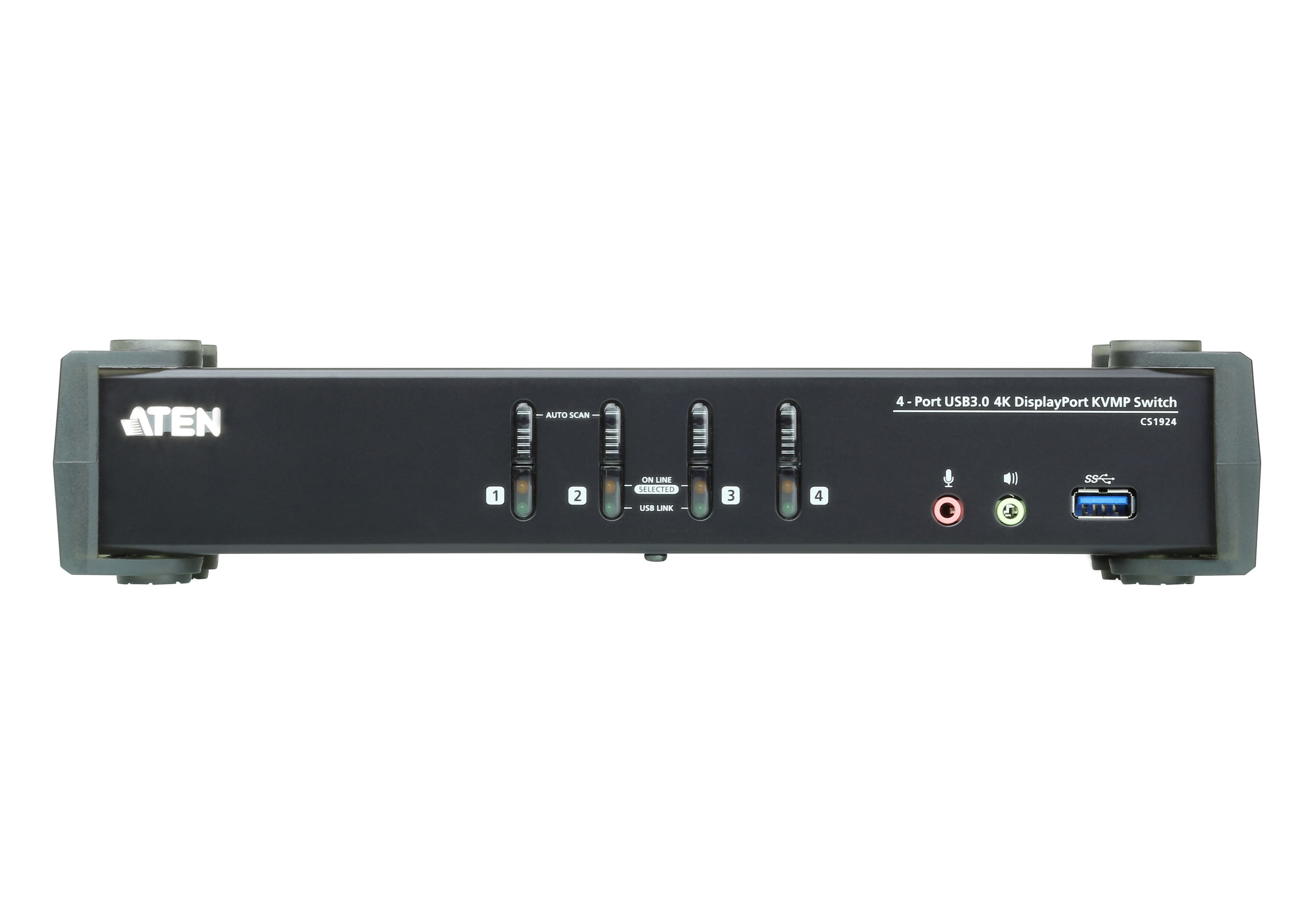

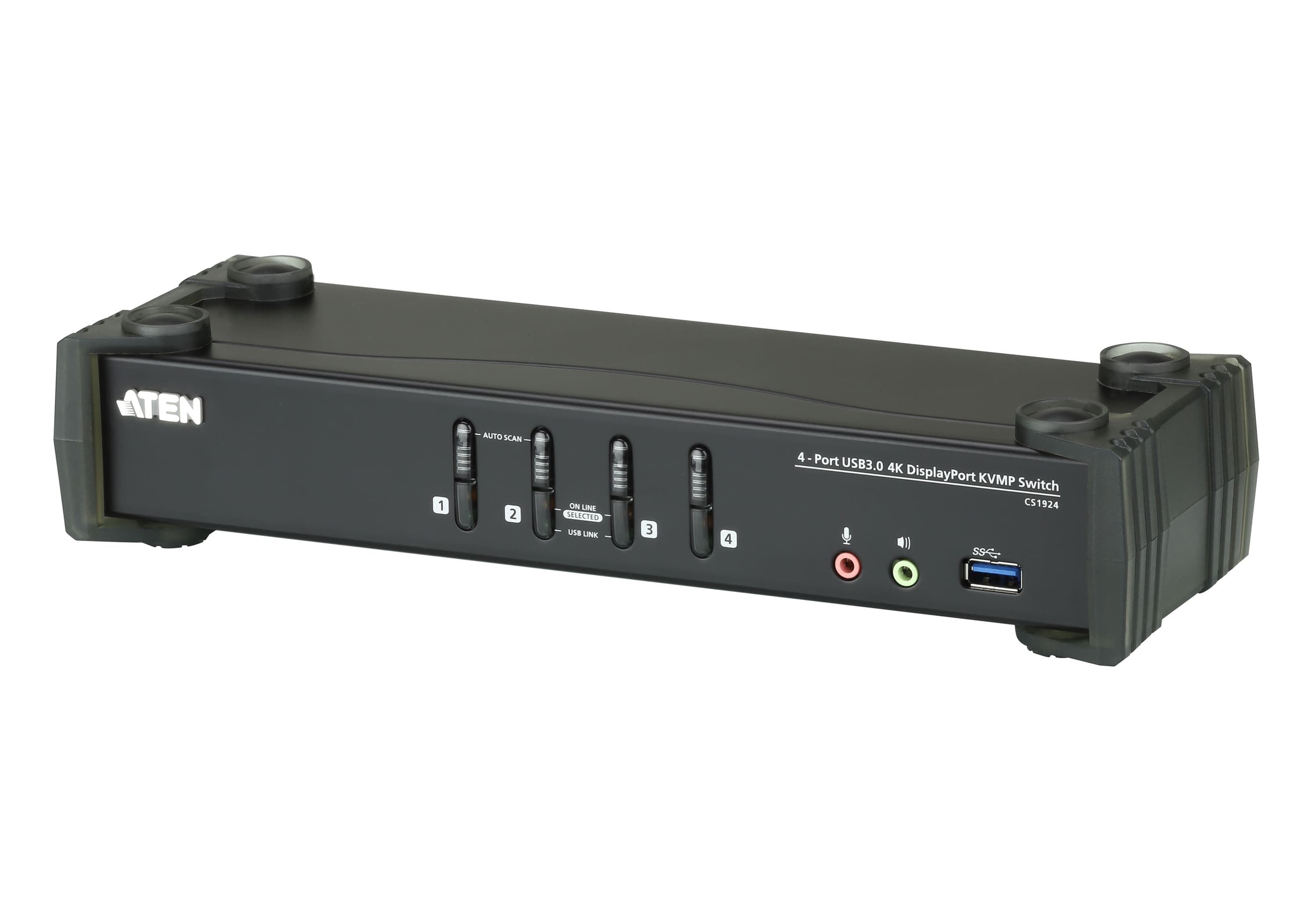

4-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)
CS1924

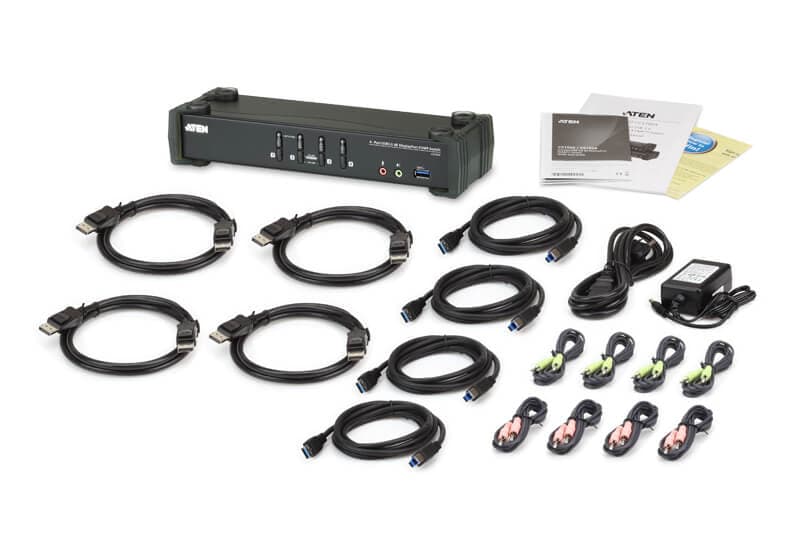

KVM превключвател за 4 компютъра с 4K DisplayPort, USB 3.1 Gen 1 hub и 2.1-канално аудио; споделя две USB периферии. Кабелите са в комплекта.
Характеристики
- 4-port DisplayPort KVMP™ Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio
- One USB console controls 4 computers and 2 USB peripherals
- Computer selection via front panel pushbuttons, hotkeys and mouse1
- Independent switching of KVM, USB, and Audio focus
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- DisplayPort 1.2 compliant, HDCP compliant2
- Supports HD audio through DisplayPort3
- Full bass response for high-quality 2.1 channel surround sound systems
- Power On Detection – if a computer is powered off, the CS1924 automatically switches to the next powered-on computer
- Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector4
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter5
- Hot pluggable – add or remove computers without powering down the switch
- Keyboard emulation/bypass feature supports most gaming keyboard
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows, Mac and Linux
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
- Mac keyboard support and emulation6
- Auto Scan Mode for monitoring all computers
- Firmware upgradeable Note: 1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. 2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 3. HD audio through DisplayPort cannot be switched independently. 4. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant. 5. DisplayPort Dual – Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility. 6. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, Pushbutton, Mouse

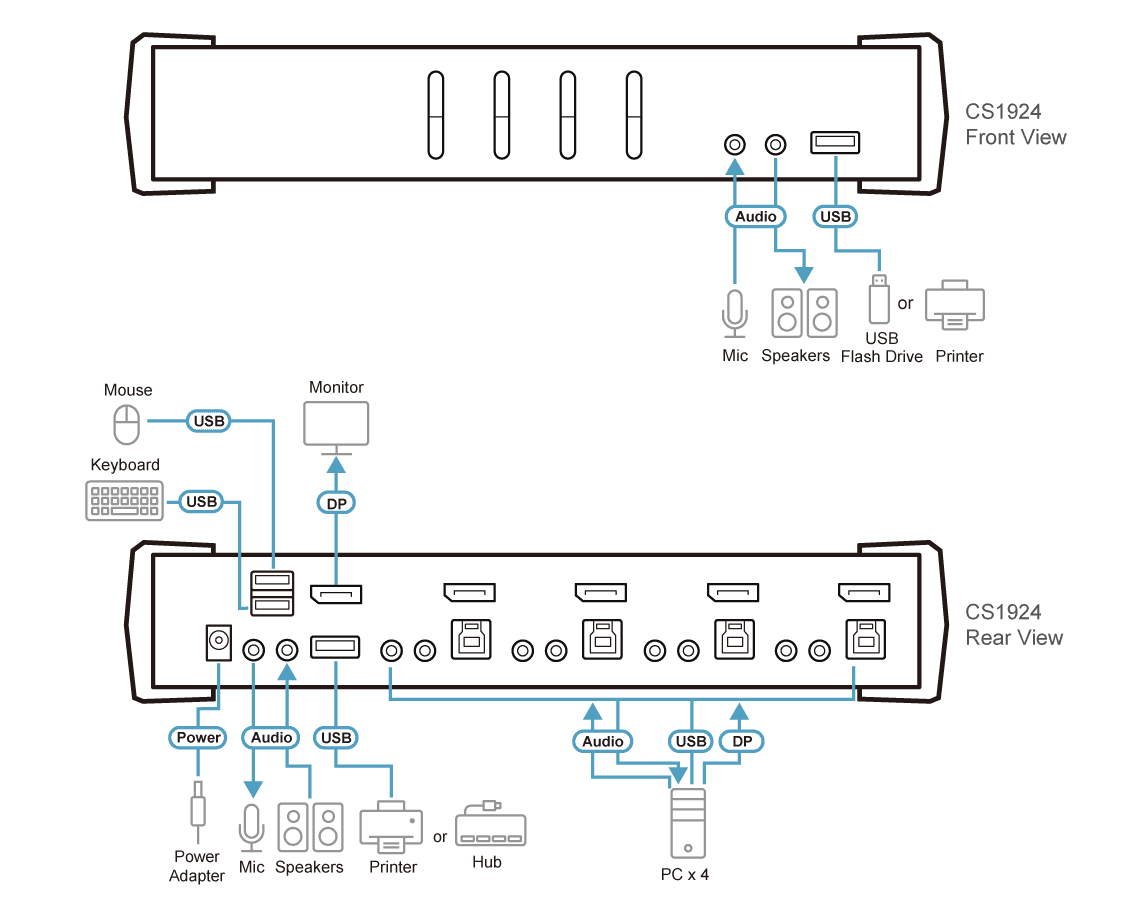

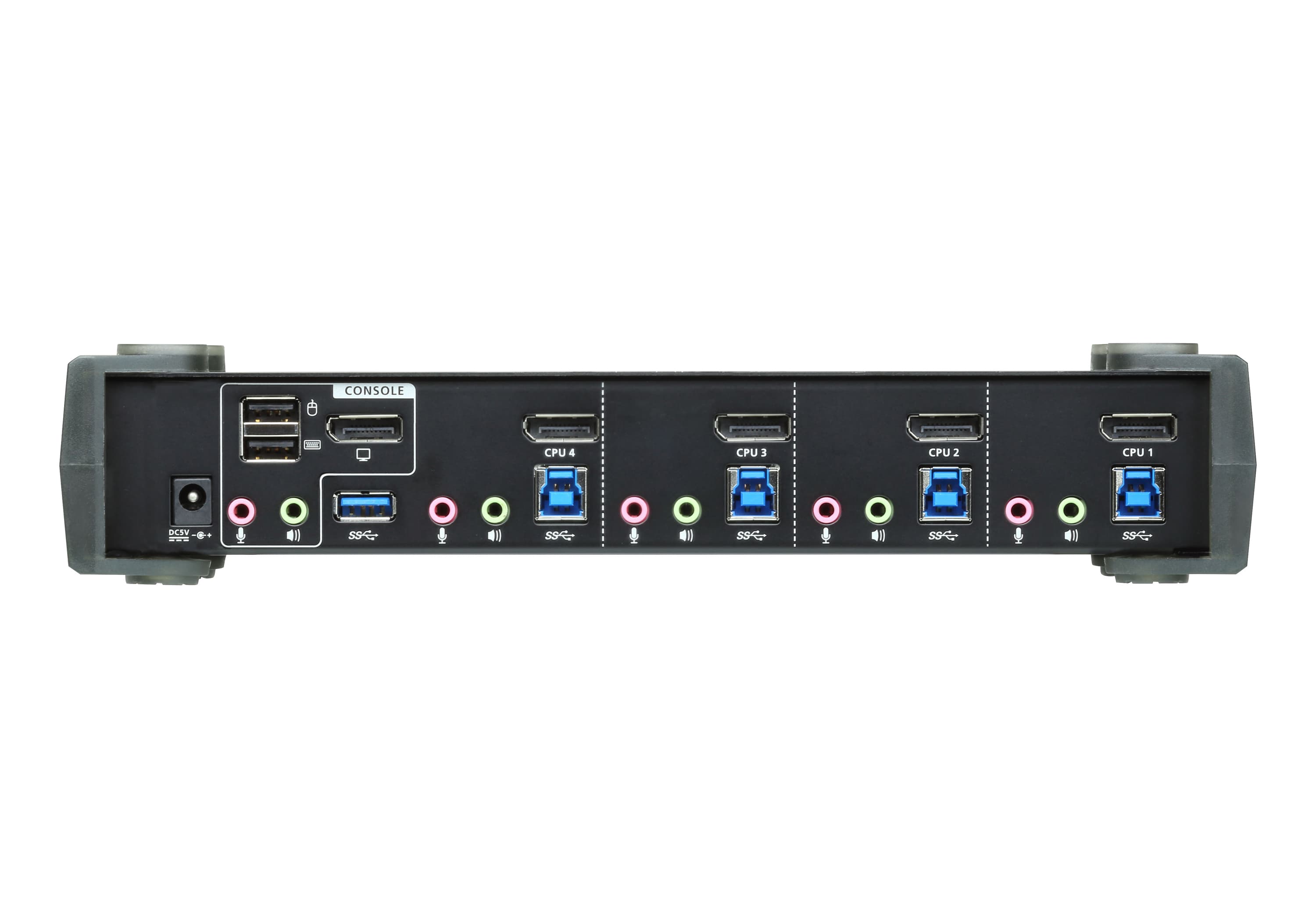

Конектори
- Конзолни портове
- 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
- KVM портове (компютри)
- 4 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Бутони и превключватели
- Избран
- 4 x Pushbutton
Индикатори
- Онлайн / избран
- 4 (Orange)
- USB връзка
- 4 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Интервал на сканиране
- 1-99 Seconds (Default: 5 sec.)
- Консумация
- DC5V:2.99W:57BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal, Plastic
- Тегло
- 0.91 kg ( 2 lb )
- Размери (Д x Ш x В)
- 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
