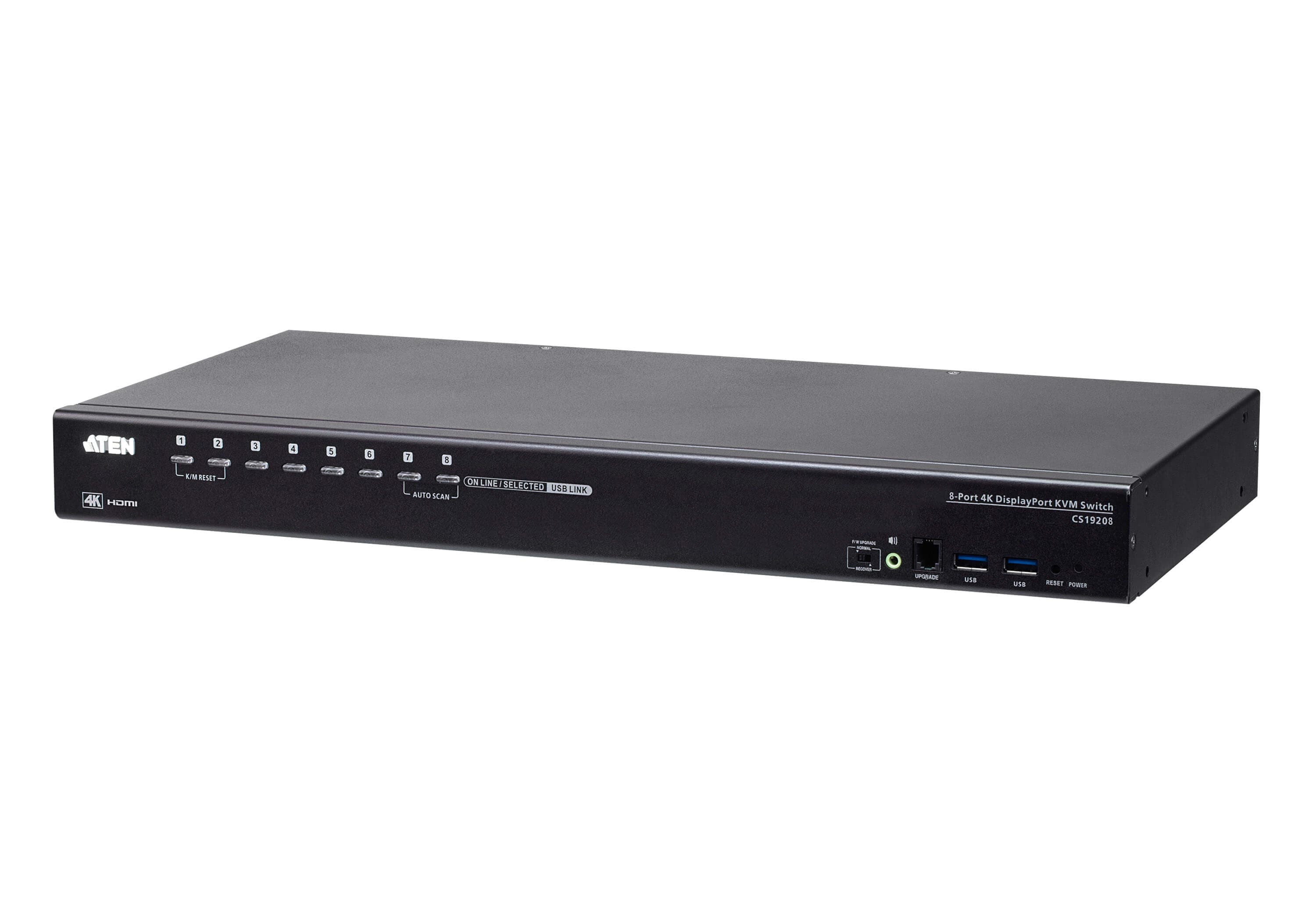

8-Port USB 3.0 4K DisplayPort KVM Switch
CS19208
KVM превключвател за управление на 8 компютъра с DisplayPort до 4K от една конзола, с каскадиране до 128 машини. Два USB 3.0 порта осигуряват споделена периферия.
Характеристики
- One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
- Cascadable to two levels – controls up to 128 computers1
- Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
- Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
- Supports HD audio2
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
- Independent switching of KVM and USB peripheral focus3
- Two-level (administrator/user) password authorization for enhanced security protection
- Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
- Auto Scan Mode for monitoring all computers
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
- Mac/Sun keyboard support and emulation4
- Supports hot-plugging
- DisplayPort 1.2 compliant; HDCP 2.2 compliant
- Multiplatform support – Windows, Linux, Mac, and Sun
- Firmware upgradable
- Supports multimedia, wireless keyboards and mouse Note: 1. Cascading between CS19208 and CS19216 is available. 2. HD audio through HDMI and DisplayPort channel cannot be switched independently. 3. Independent switching is only supported under mouse emulation mode. 4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
Връзки към компютри
- Директно
- 8
- Максимум
- 128 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton, RS-232 Commands

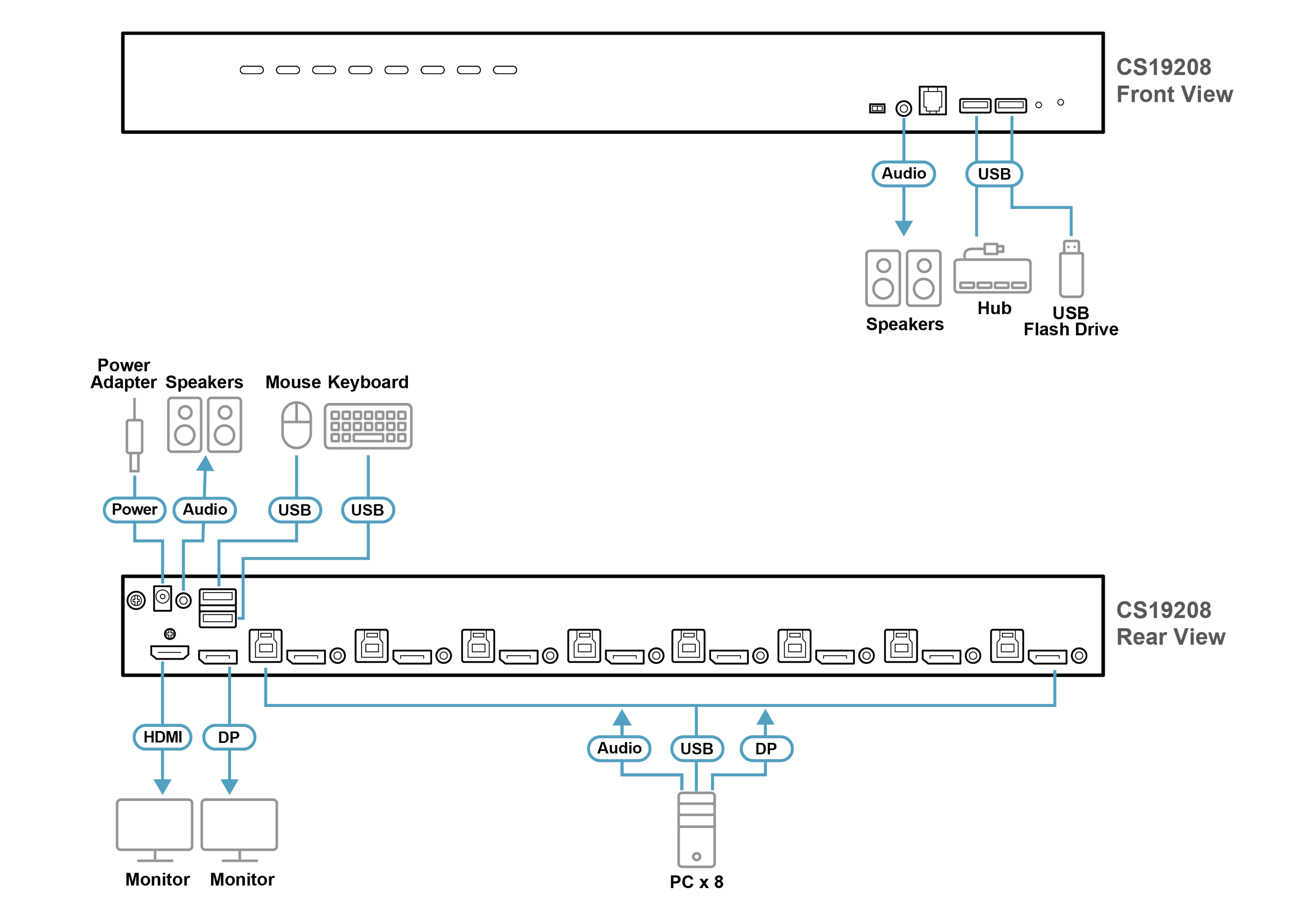

Конектори

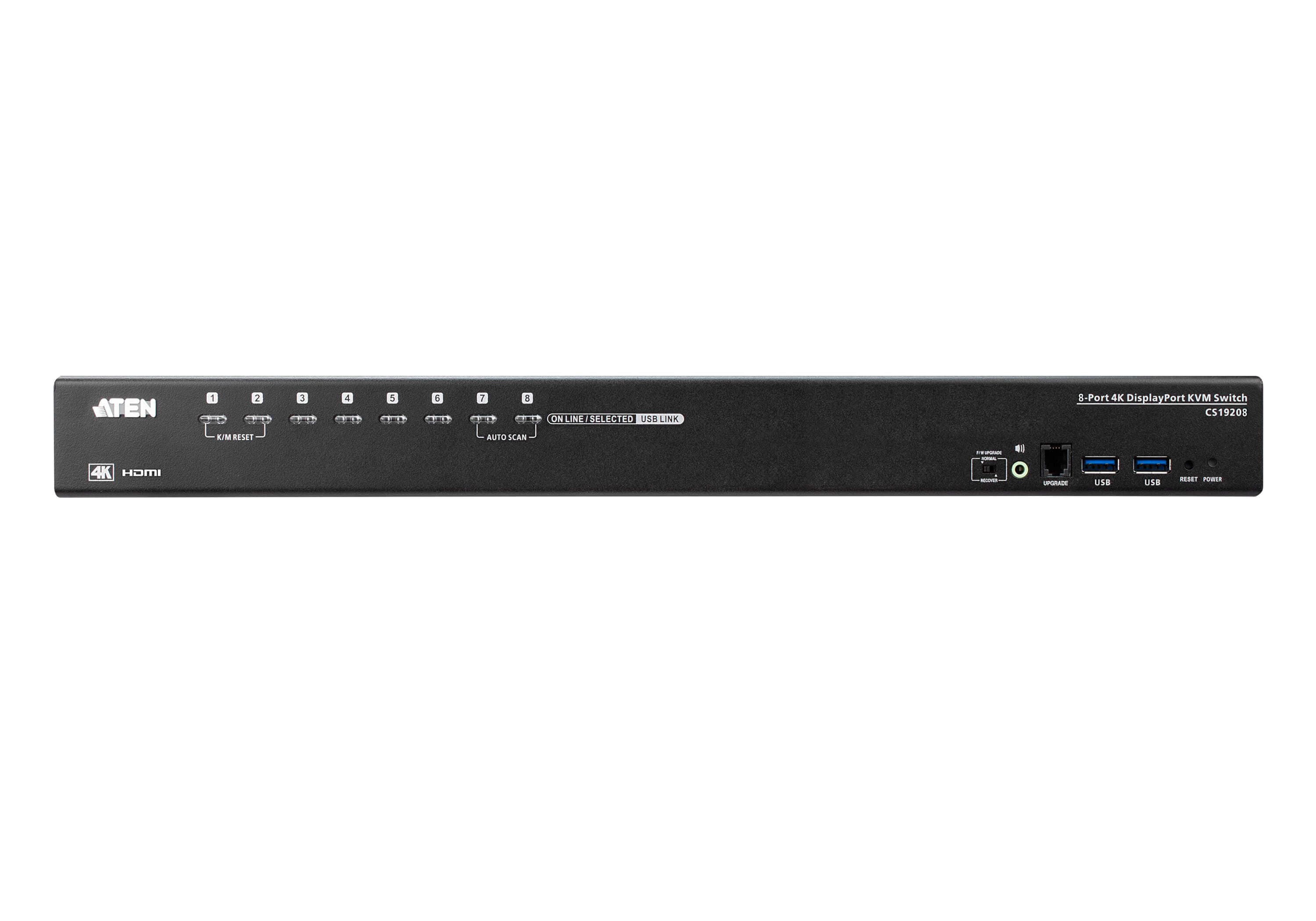

- Конзолни портове
- 1 x DisplayPort Female 1 x HDMI Female (Black) 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

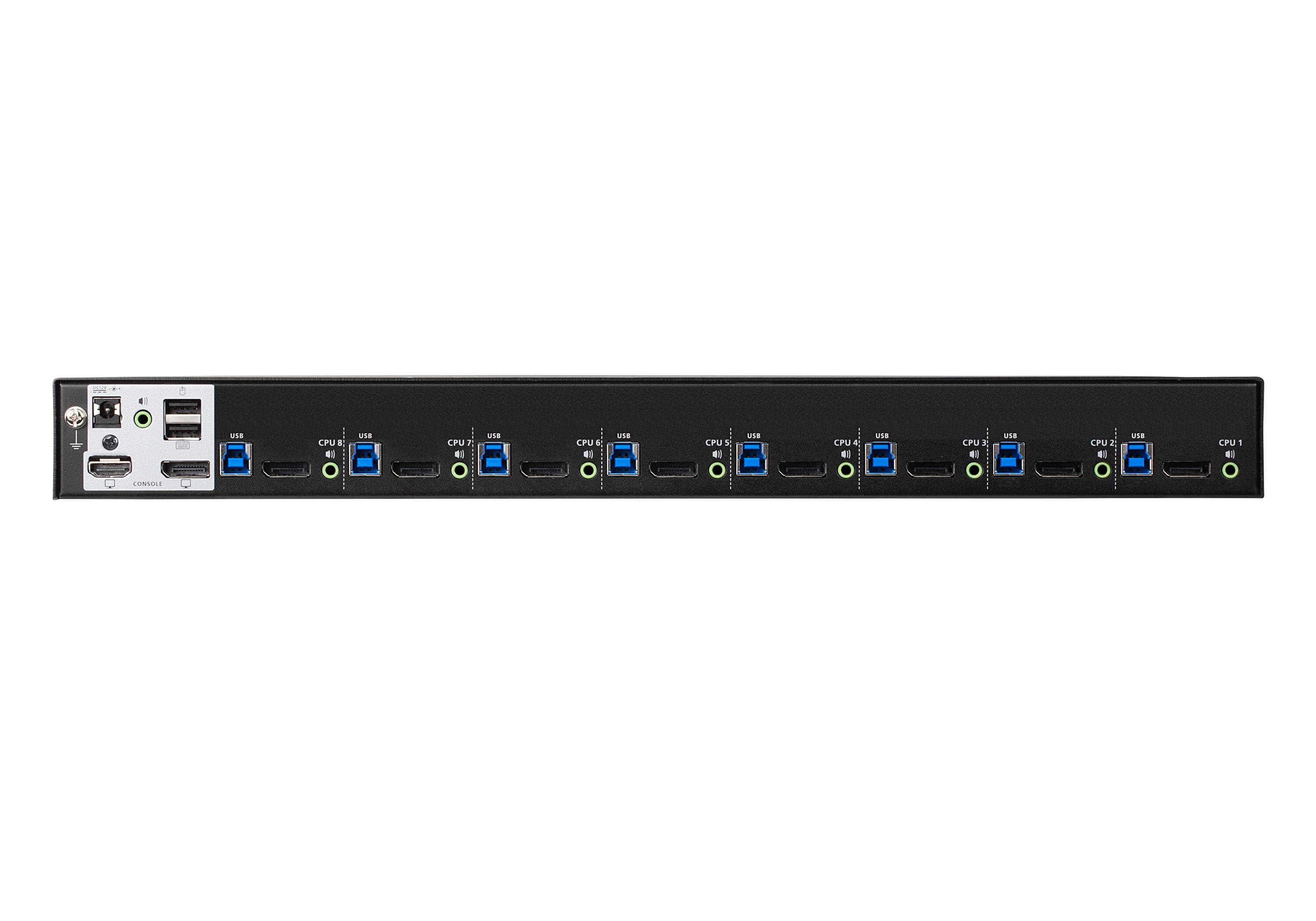

- KVM портове
- 8 x DisplayPort Female 8 x USB3.1 Gen1 Type B Female (Blue) 8 x 3.5mm Audio Jack Female (Green)
- Обновяване на фърмуера
- 1 x RJ11 Female (Black)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front)
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Възстановяване на фърмуера
- 1 x Slide Switch
Индикатори
- Онлайн / избран
- 8 (Orange)
- Захранване
- 1 (Green)
- USB връзка
- 8 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- DisplayPort: 4096 x 2160 @ 60Hz; HDMI: 4096 x 2160 @ 60Hz
- Интервал на сканиране
- 0 – 255 seconds (default: 5 secs.)
- Консумация
- DC12V:18.44W:136BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 40°C
- Температура на съхранение
- -20 – 60°C
- Влажност
- 0 – 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.11 kg ( 6.85 lb )
- Размери (Д x Ш x В)
- 43.24 x 21.43 x 4.40 cm (17.02 x 8.44 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
