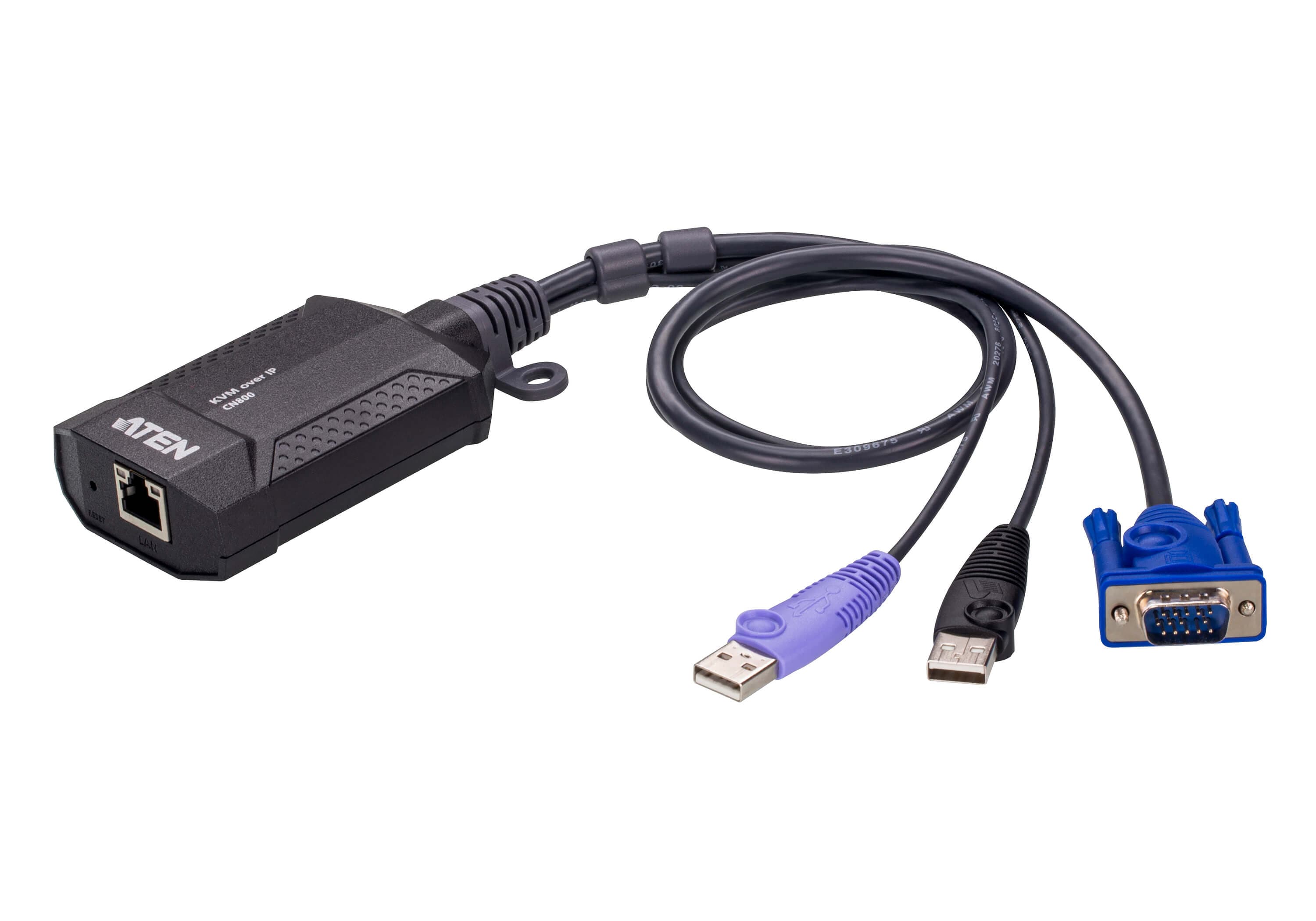

USB VGA KVM over IP Mini

Name: USB VGA KVM over IP Mini
Brand: ATEN
SKU: CN800

CN800

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Компактен модул, който добавя Over-IP отдалечен достъп към KVM комутатори без вградена такава функция, през USB и VGA. Поддържа до 1920 x 1200 @ 60 Hz и Virtual Media.

Характеристики

Provides over-IP capability to KVM switches that do not have built in over-IP functionality
Supports multi-platform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Enhanced FPS (frames per second) throughput for crisp responsive video display
Bus-powered – no external power adapter required
Up to 64 user accounts
Up to 32 users concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Supports instant notification of critical system events via email, SNMP trap, and Syslog
Remote firmware upgradable
Multi-user Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Centralized Management Software
Integration with ATEN CCVSR Video Session Recording Software
DDNS (Dynamic Domain Name System)
Enable / disable browser operation
IPv6 capable
Browser-based and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multi-platform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser supports (Chrome, Firefox, Safari, Opera)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop
External authentication supports: RADIUS, LDAP, LDAPS, and MS Active Directory
TLS 1.2 encryption to protect password when users log in
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or systemgenerated random selection for independent keyboard / mouse, video, and virtual media data encryption
Supports for IP / MAC Filter
Supports password protection
Private CA
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient to use without virtual media cable
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multi-language support
Mouse Dynasync
Exit Macros support
BIOS-level access

Конектори

KVM портове (компютри): 1 x USB Type A Male (Purple) 1 x USB Type A Male (Black) 1 x VGA Male (Blue)

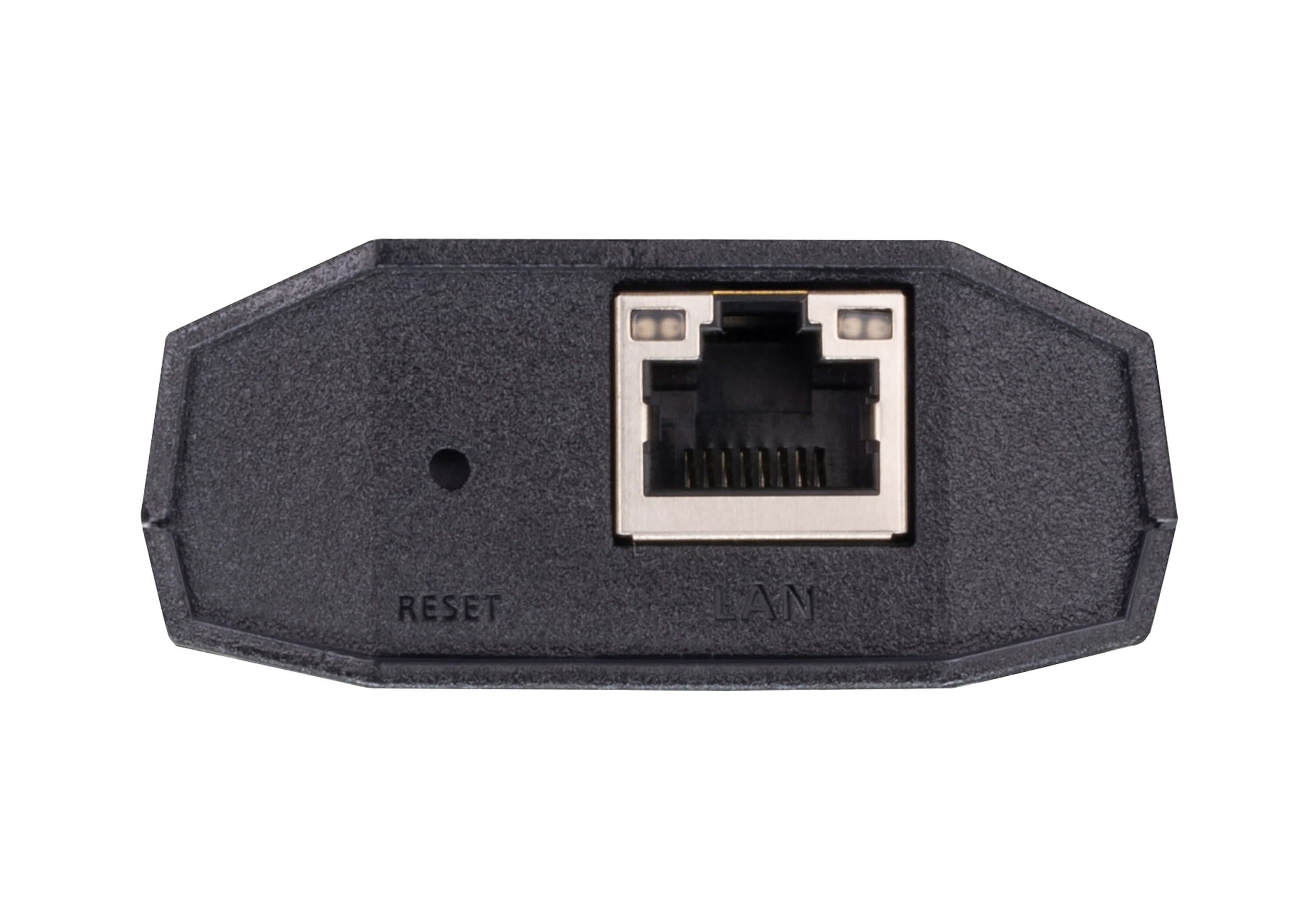

LAN портове: 1 x RJ-45 Female

Бутони и превключватели

Нулиране: 1 x Semi-recessed Pushbutton

Индикатори

Захранване: 1 (Green)
Връзка: 1 x Link (Orange / Green) 1 x Active (Green)

Емулация

Клавиатура / мишка: USB
Видео: 1920 x 1200
Консумация: DC5V:3.47W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Plastic
Тегло: 0.17 kg ( 0.37 lb )
Размери (Д x Ш x В): 9.32 x 5.66 x 2.44 cm (3.67 x 2.23 x 0.96 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
