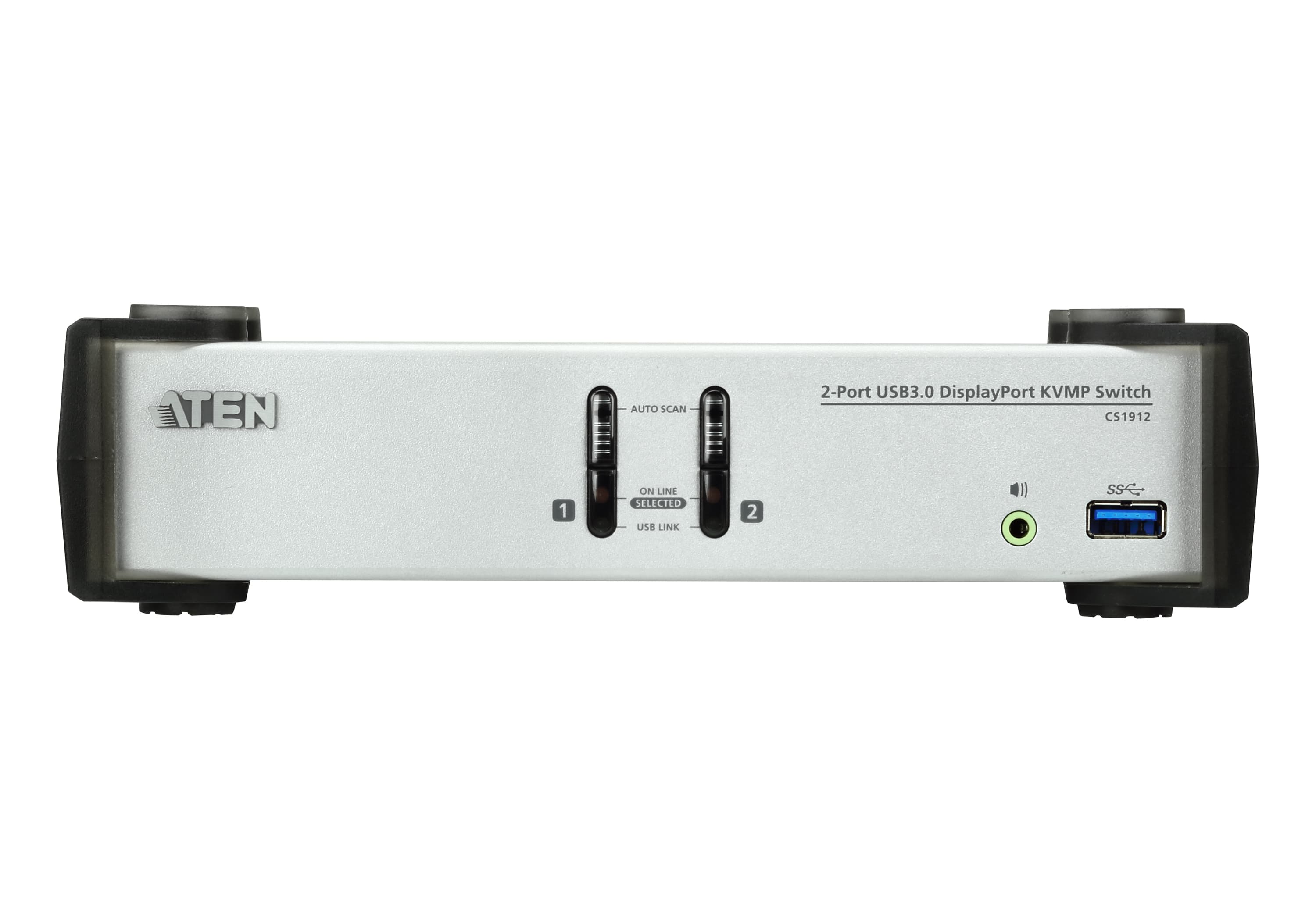

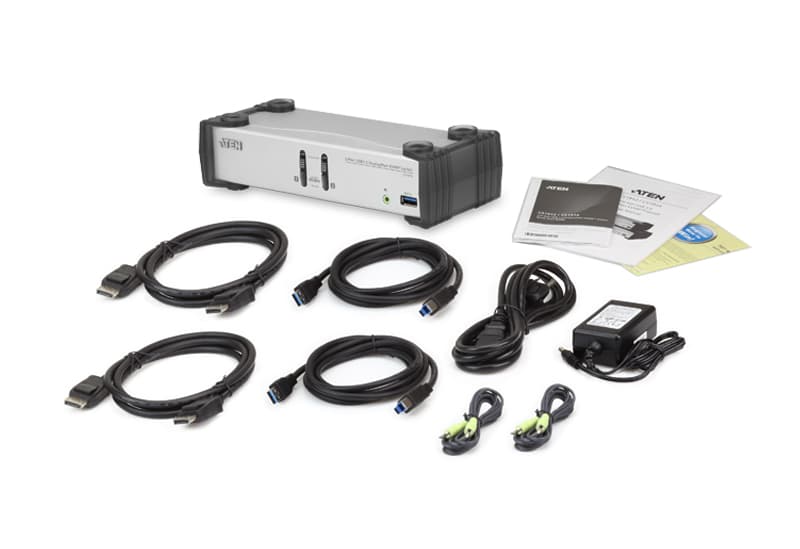

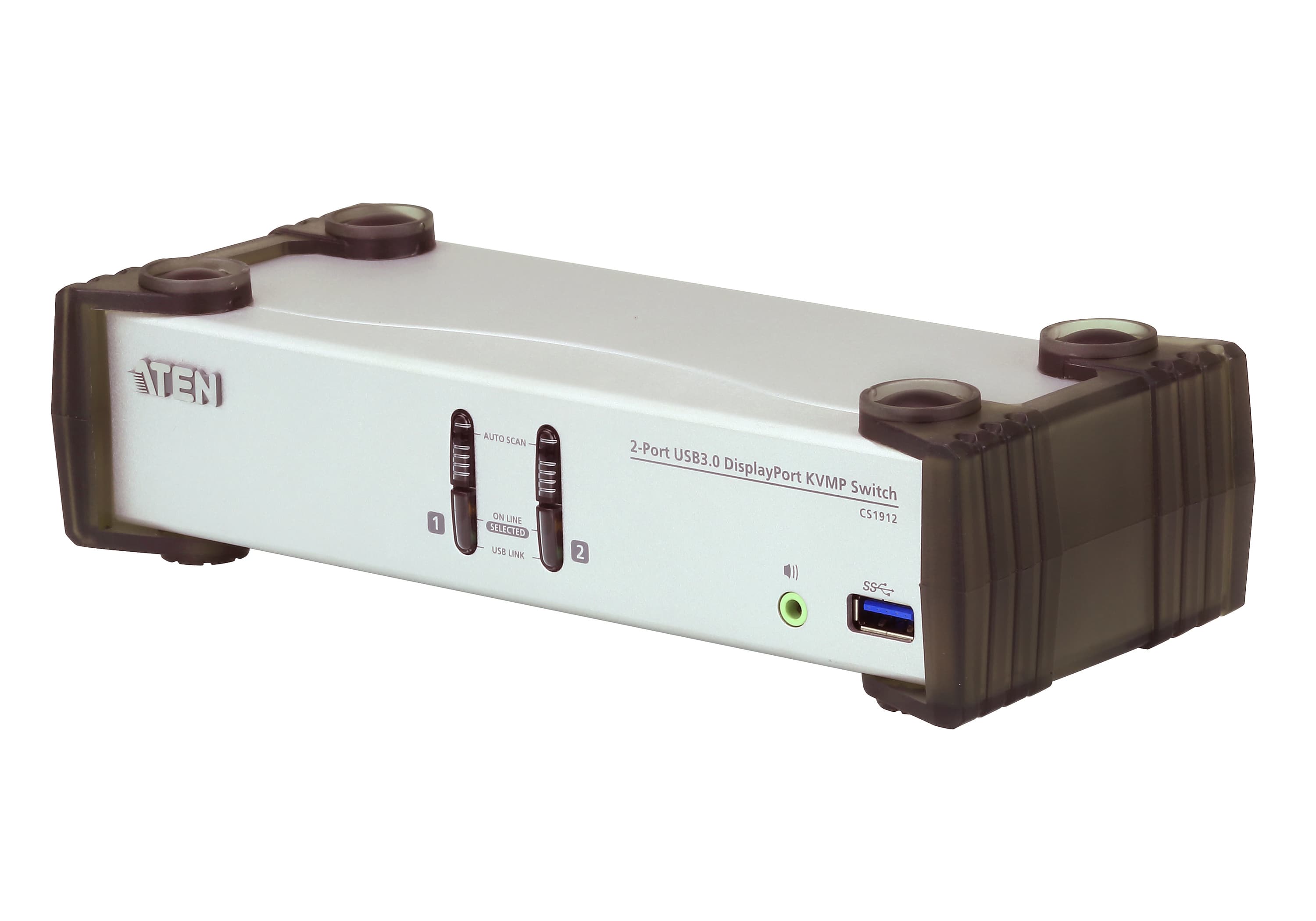

2-Port USB 3.0 DisplayPort KVMP™ Switch (Cables included)
CS1912
KVM превключвател за 2 компютъра с DisplayPort, с USB 3.1 Gen 1 hub и 2.1-канално аудио; споделя две USB периферии. Превключване с бутони на предния панел, клавишни комбинации или мишка; кабелите са в комплекта.
Характеристики
- 2-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
- One USB console controls 2 computers and 2 USB peripherals
- Computer selection via front panel pushbuttons, hotkeys and mouse1
- Independent switching of KVM, USB, and Audio focus
- Superior video quality – up to 3840 x 2160 @ 30 Hz
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
- DisplayPort 1.1 compliant, HDCP compliant2
- Supports HD audio through DisplayPort3
- Full bass response for high-quality 2.1 channel surround sound systems
- Power On Detection – if a computer is powered off, the CS1912 automatically switches to the next powered-on computer
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
- Hot pluggable – add or remove computers without powering down the switch
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
- Mac keyboard support and emulation5
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton, Mouse
Конектори
- Конзолни портове

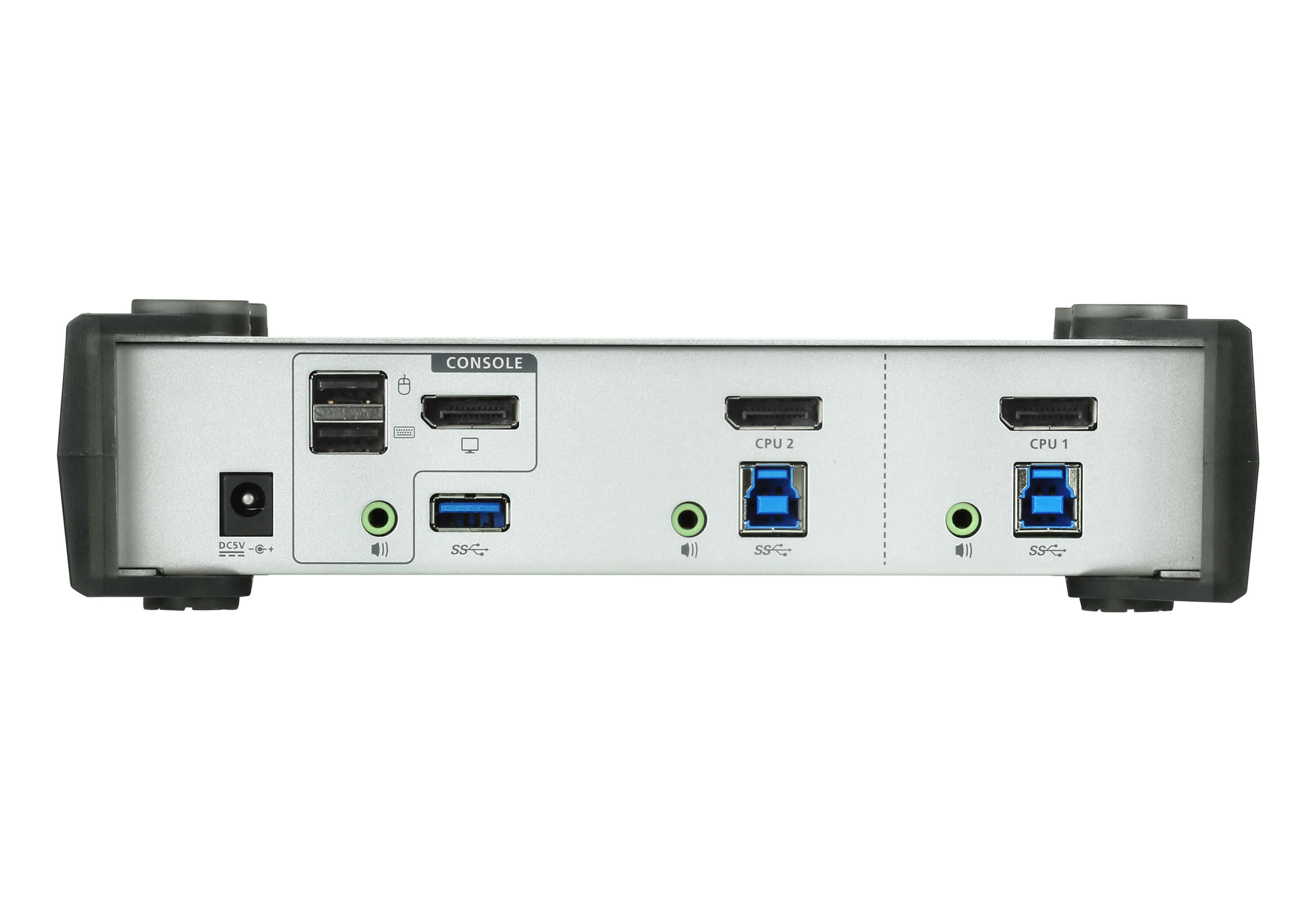

- 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM портове (компютри)
- 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Бутони и превключватели
- Избран
- 2 x Pushbutton
Индикатори
- Онлайн / избран
- 2 (Orange)
- USB връзка
- 2 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 3840 x 2160 @ 30Hz
- Интервал на сканиране
- 1-99 Seconds (Default: 5 sec.)
- Консумация
- DC5V:2.00W:52BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal, Plastic
- Тегло
- 0.73 kg ( 1.61 lb )
- Размери (Д x Ш x В)
- 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
