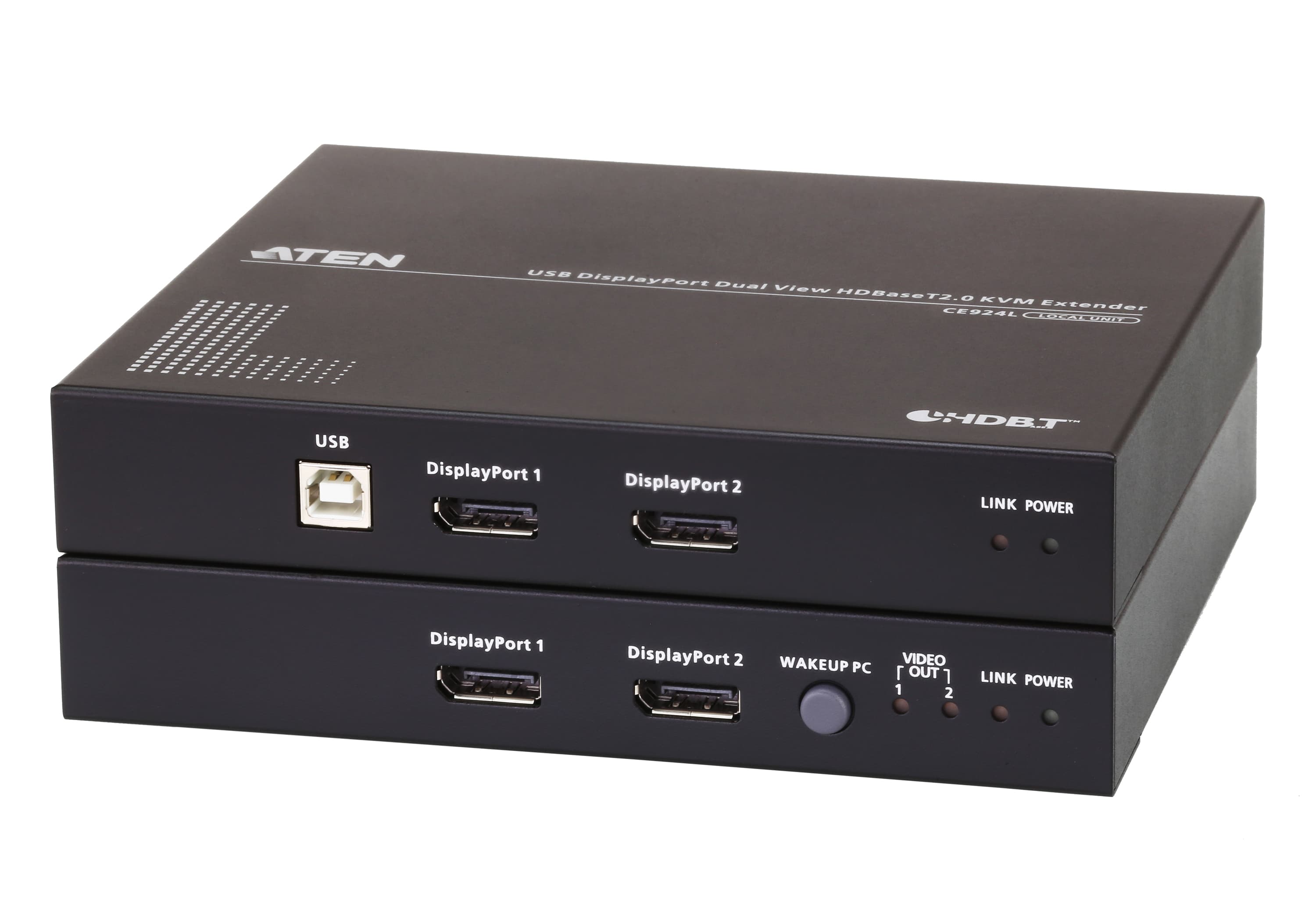

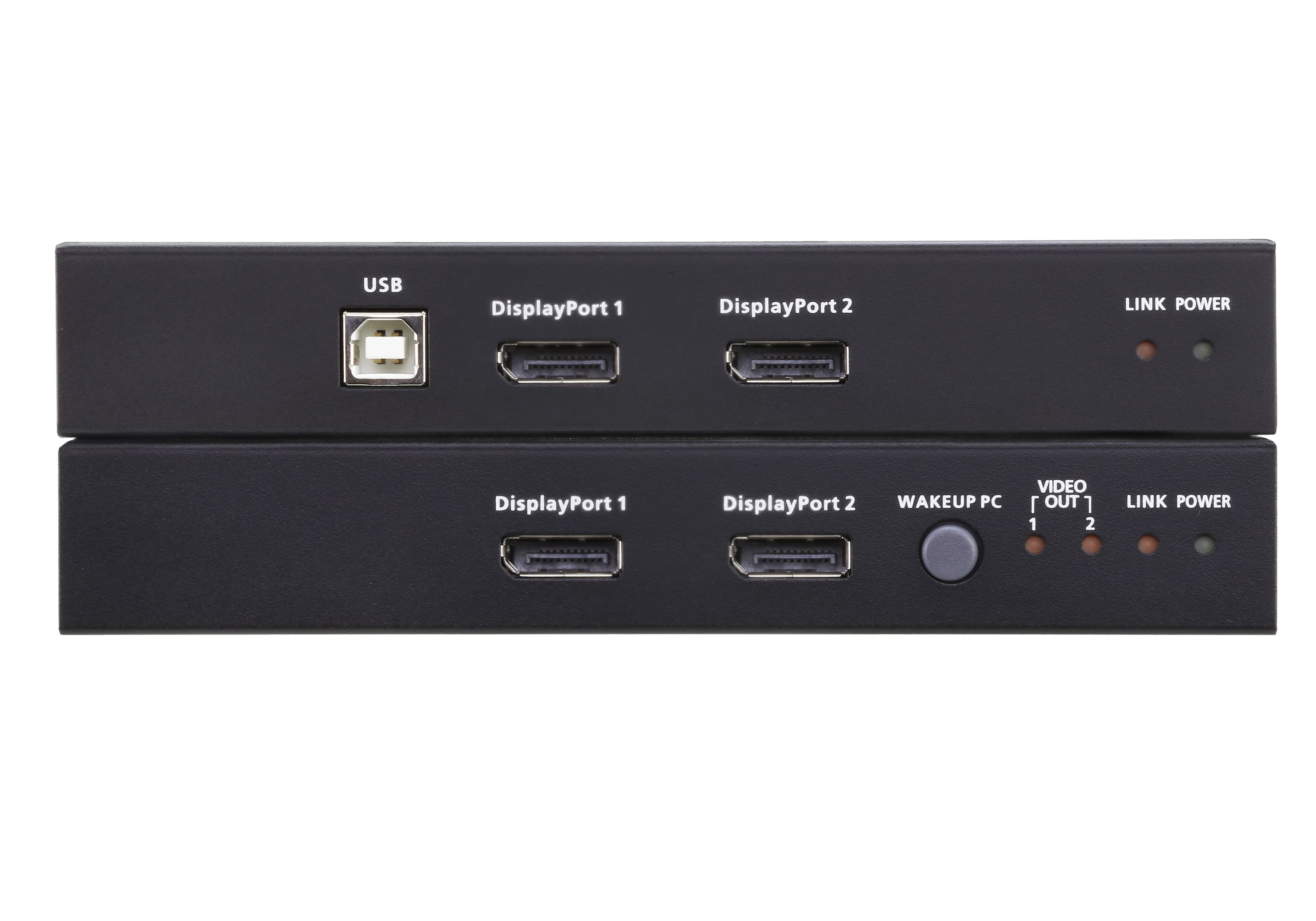

USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View)
CE924

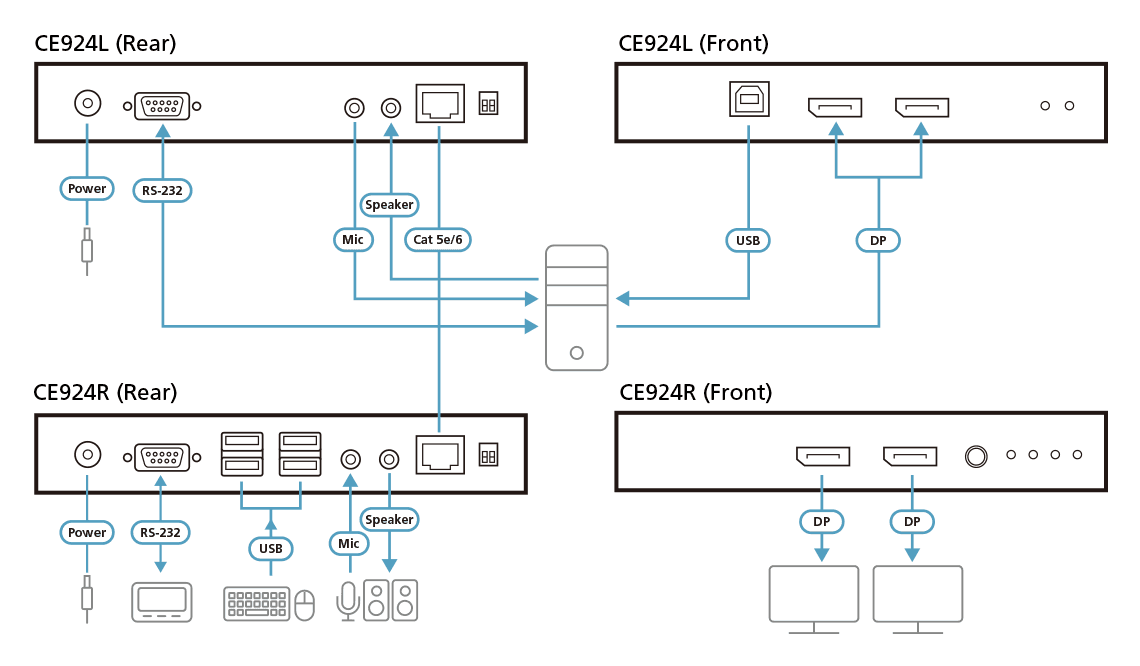

HDBaseT 2.0 KVM удължител с два DisplayPort изхода (Dual View): пренася видео, аудио, USB и RS-232 по един Cat 6/6a кабел — до 4K на 100 m при единичен дисплей; с EDID буфер.
Характеристики
- Allows dual view DisplayPort access to a computer and KVM control from a remote console
- Supports HDBaseT 2.0 technology - Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions - Status detection and LED indication for HDBaseT™ signal transmission on the remote unit
- EDID Buffer for smooth power-up and the highest quality display
- Single category cable to transmit AV and control signal - HDBaseT Standard mode up to 4K @ 100 m (via Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080p) - HDBaseT Long-Reach mode up to 1080P @ 150 m (single view only; dual-view resolution up to 720p)
- Supports 4 ports USB 2.0 full speed hub on the receiver – allowing to connect up to 4 various USB 2.0 peripheral
- HDCP Compatible
- Supports individual 2-channel stereo audio for high-quality audio applications
- Supports PC wakeup function via single pushbutton through RS-232 channel
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

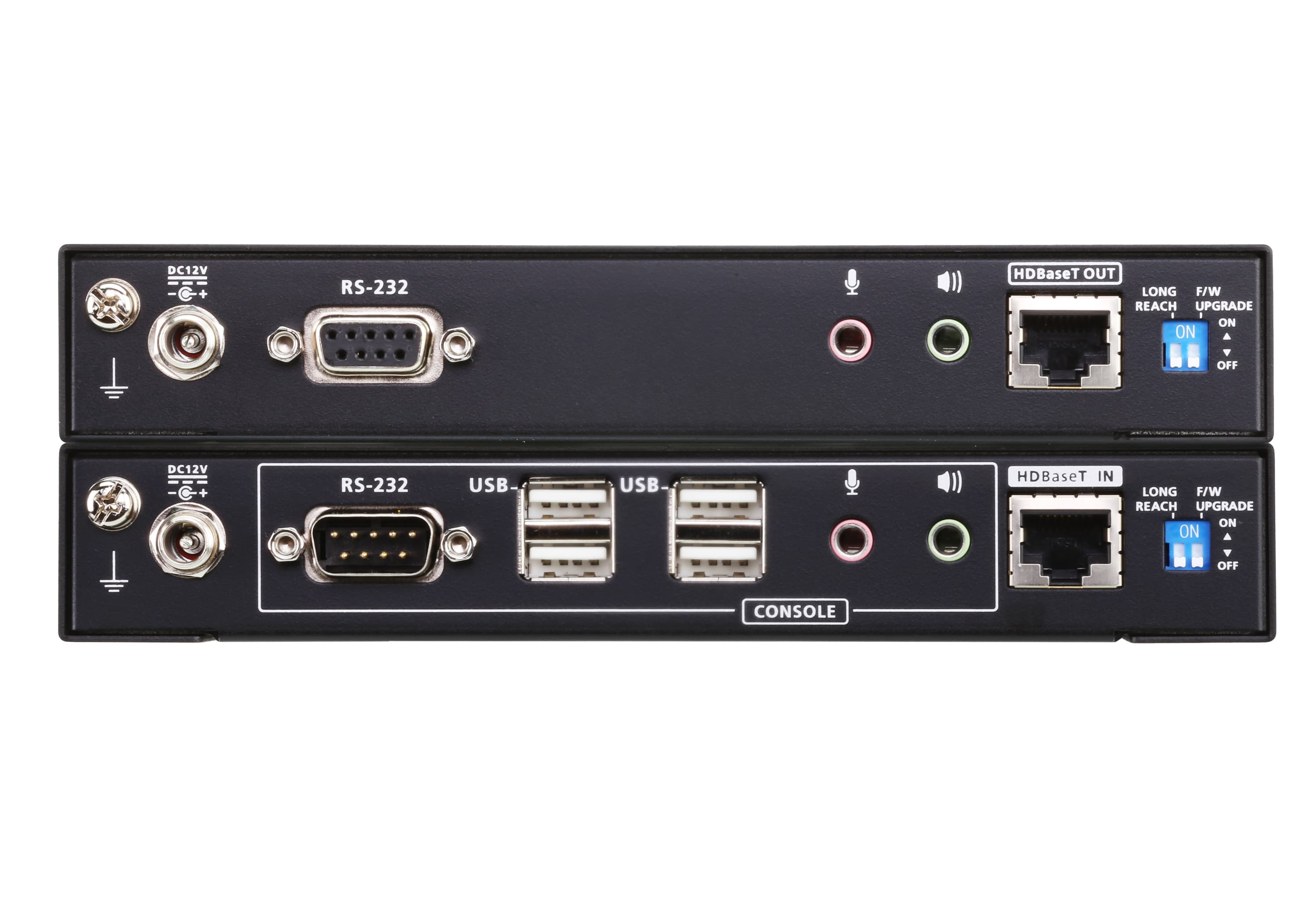

Конектори
- KVM портове

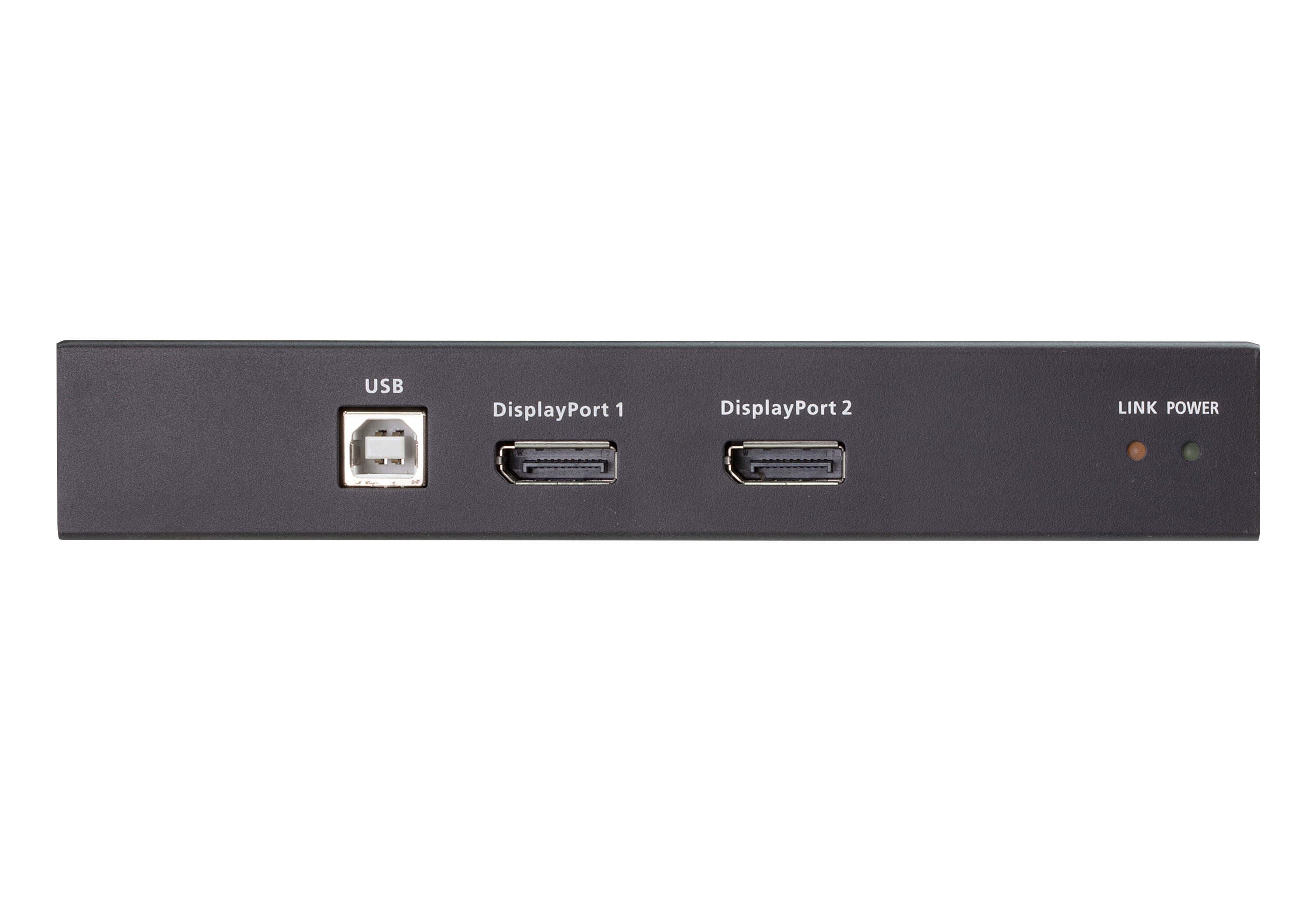

- 2 xDisplayPort Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- N/A
- Конзолни портове
- N/A
- Конзолни портове

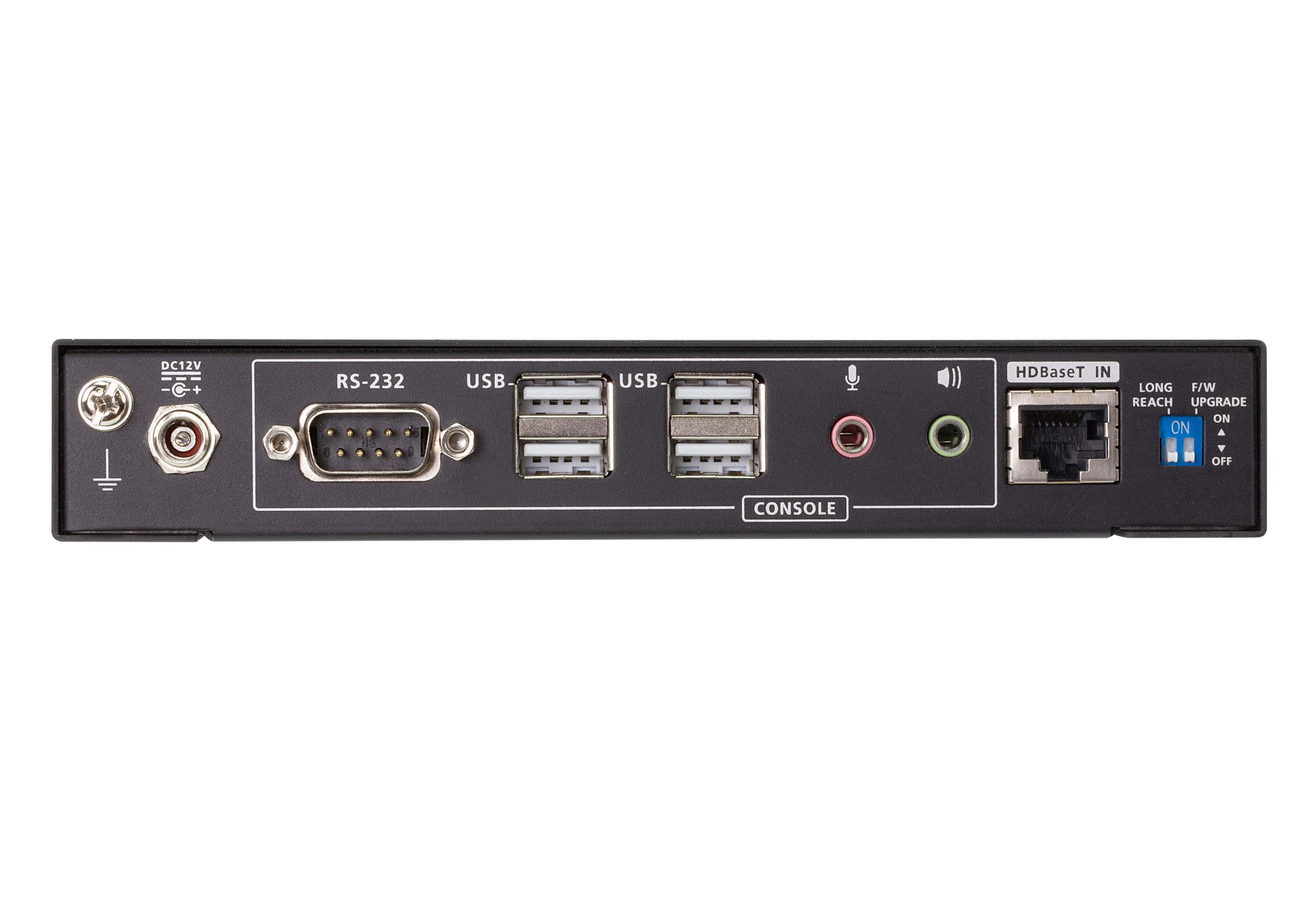

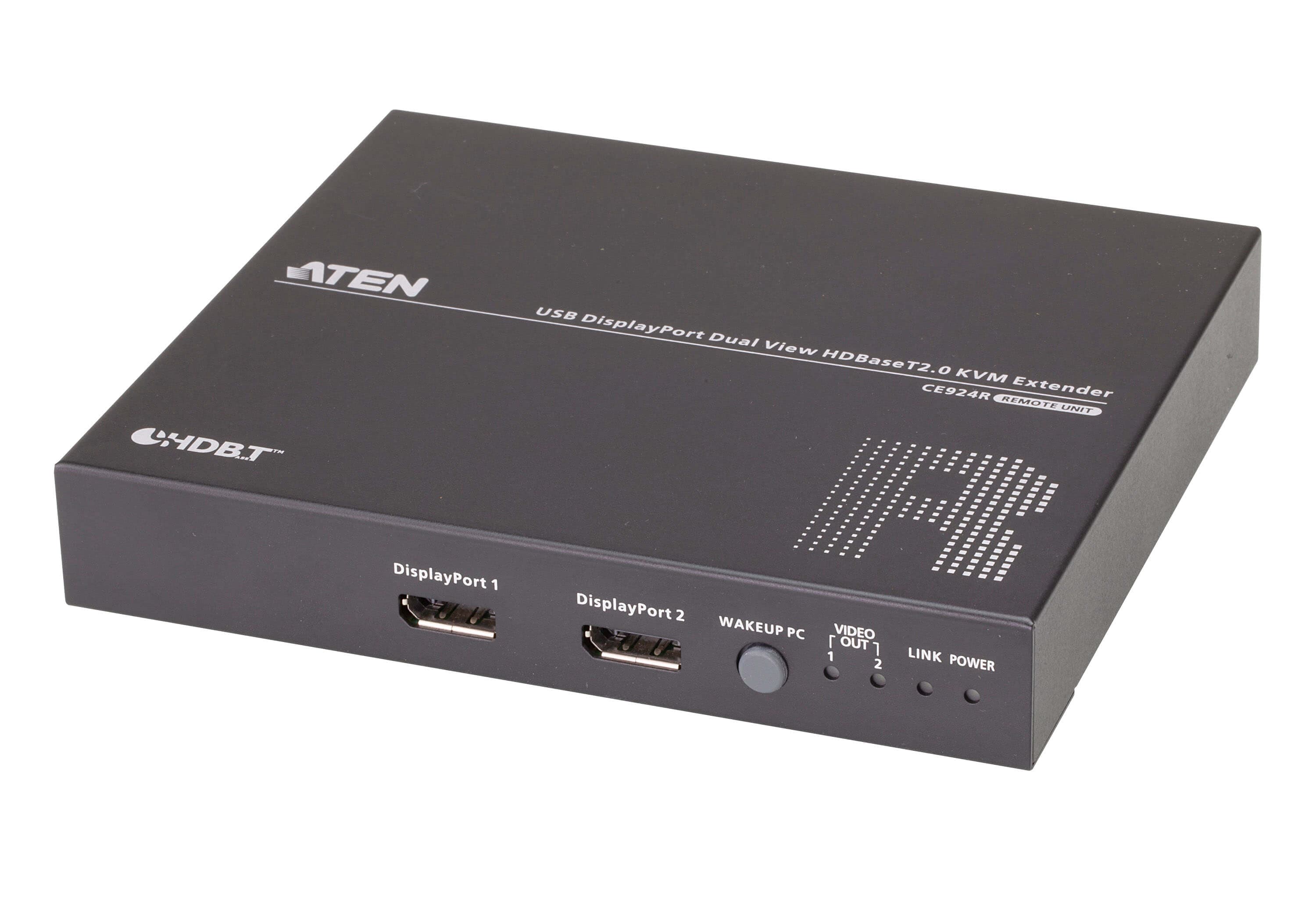

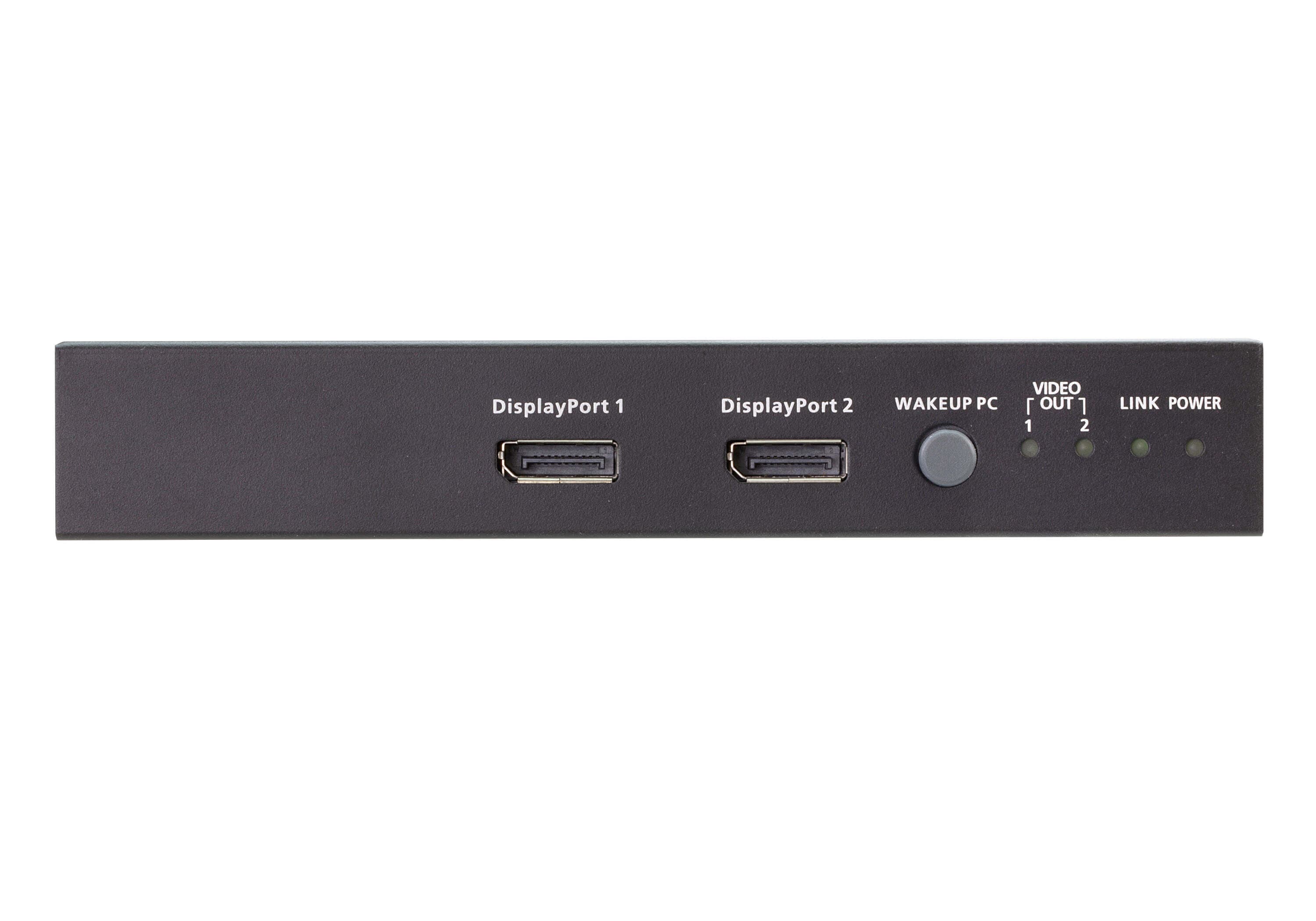

- 2 x DisplayPort Female (Black) 4 x USB Type A Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- RS-232
- 1 x DB-9 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack with locking
- Захранване
- 1 x DC Jack with locking
- Между устройства
- 1 x RJ-45 Female (Black)
- Между устройства
- 1 x RJ-45 Female (Black)
Индикатори
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)
- Връзка
- 1 (Orange)
- Връзка
- 1 (Orange)
- Видео изход
- N/A
- Видео изход
- 2 (Orange)
Бутони и превключватели
- Превключвател Long Reach
- 1 x Slide Switch
- Превключвател Long Reach
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
Бутони
- Бутон за събуждане
- N/A
- Бутон за събуждане
- 1 x Push button
- Видео
- Single view: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a/ATEN 2L-2910 Cat6) Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Видео
- Single view: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a/ATEN 2L-2910 Cat6) Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Консумация
- DC12V:7.03W:33BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC12V:9.92W:69BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.82 kg ( 1.81 lb )
- Тегло
- 0.85 kg ( 1.87 lb )
- Размери (Д x Ш x В)
- 17.42 x 15.41 x 2.88 cm (6.86 x 6.07 x 1.13 in.)
- Размери (Д x Ш x В)
- 17.42 x 15.57 x 2.88 cm (6.86 x 6.13 x 1.13 in.)
- Забележка
- DisplayPort support up to 4Kx2K @ 30Hz, not supports 4Kx2K @ 60Hz, 4:2:0; also not support MST mode.
- Забележка
- DisplayPort support up to 4Kx2K @ 30Hz, not supports 4Kx2K @ 60Hz, 4:2:0; also not support MST mode.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
