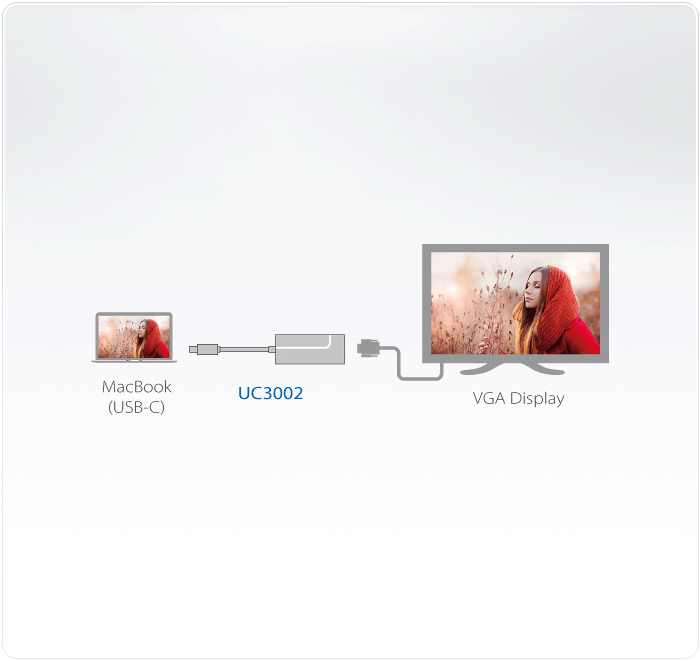

Адаптер от USB-C към VGA за свързване на лаптоп или таблет към дисплей или проектор; резолюции до 2048 x 1152 @ 60Hz, съвместим с DP Alt Mode и Thunderbolt 3.
Характеристики
- Transfer high-quality videos from a USB-C equipped laptop or tablet to a VGA display or projector
- Compatible with the latest USB-C equipped laptops and tablet computers including Apple MacBook, Chromebook Pixel™ and Thunderbolt™ 3 computers
- USB billboard feature proactively notifies users of alternate USB-C modes supported by the source device
- Premium manufacturing and high-quality design resists signal interference during video transmission
- Plug-and-Play – no software required
- Works with all major operating systems: Windows®, OS X®, and i-Pad Pro* *Support iPad Pro video output and USB keyboard only
Видео вход
- Интерфейси
- 1 x USB-C Male (White)
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Black)
Видео
- Макс. пикселна честота
- 200 MHz
- Макс. резолюция
- 2048*1152@60Hz
- Съответствие
- USB3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible), USB Billboard Device Class, HDCP 1.3
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.03 kg ( 0.07 lb )
- Размери (Д x Ш x В)
- 7.00 x 2.70 x 1.50 cm (2.76 x 1.06 x 0.59 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
