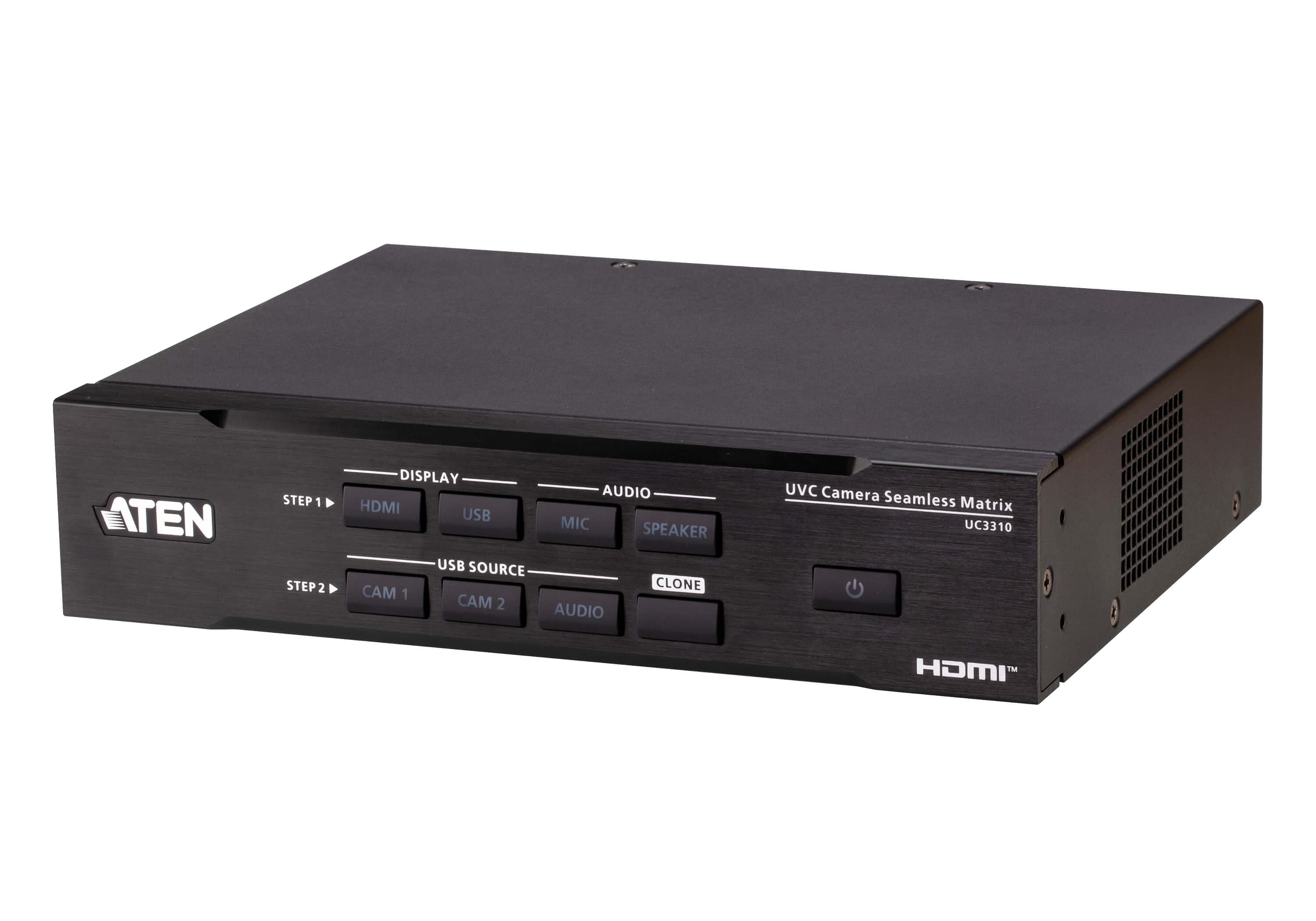

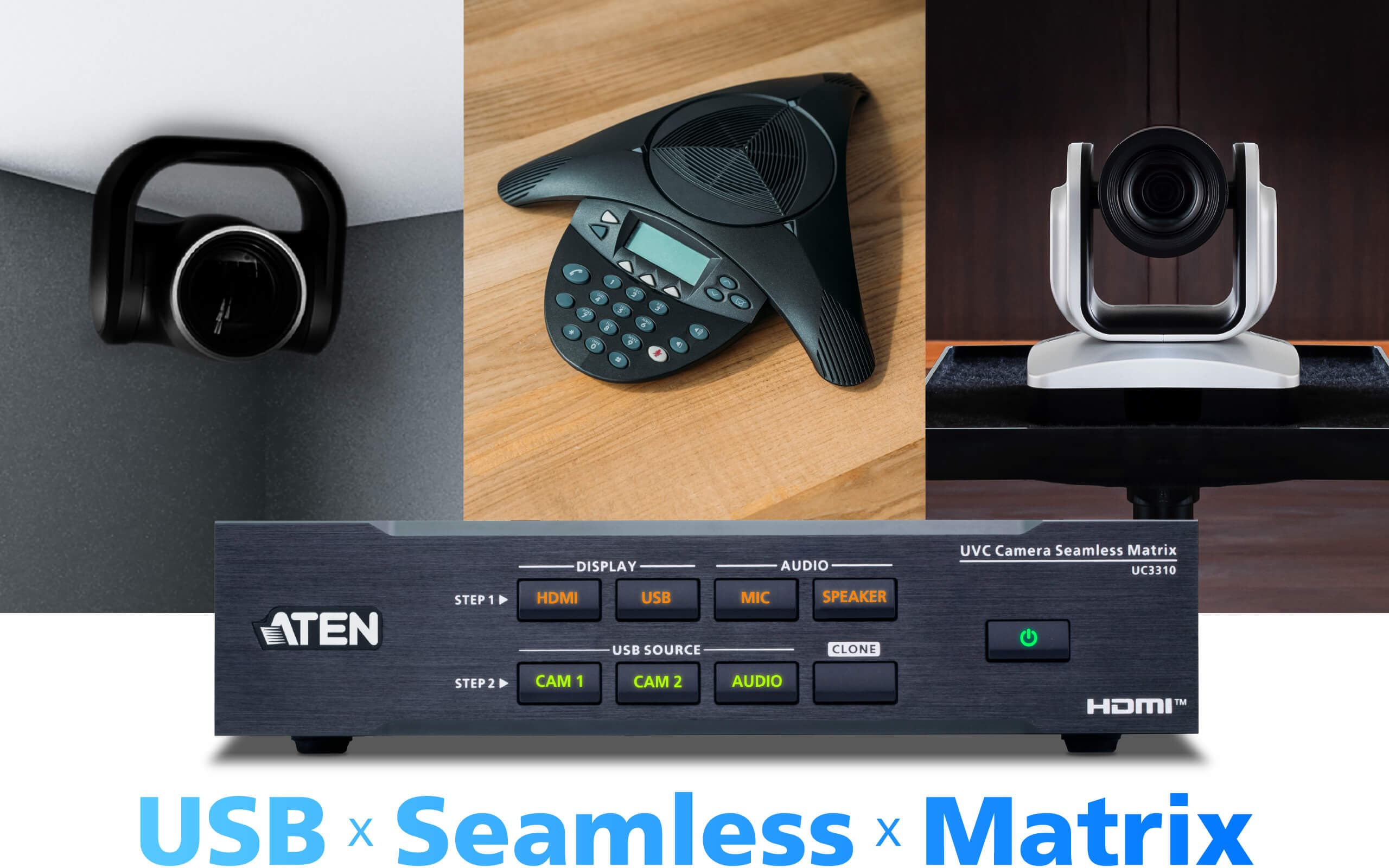

Матричен превключвател за USB (UVC) камери — превключва два входа до 4K@30 без прекъсване и подава сигнала едновременно към HDMI и като UVC изход за Teams, Zoom или OBS.
Характеристики
- Converts up to two 4K@30 USB camera inputs into one HDMI
- Supports USB audio in / out for matrix switching
- Support 4K @ 30 UVC output simultaneously for live broadcasting on popular streaming software (Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch)

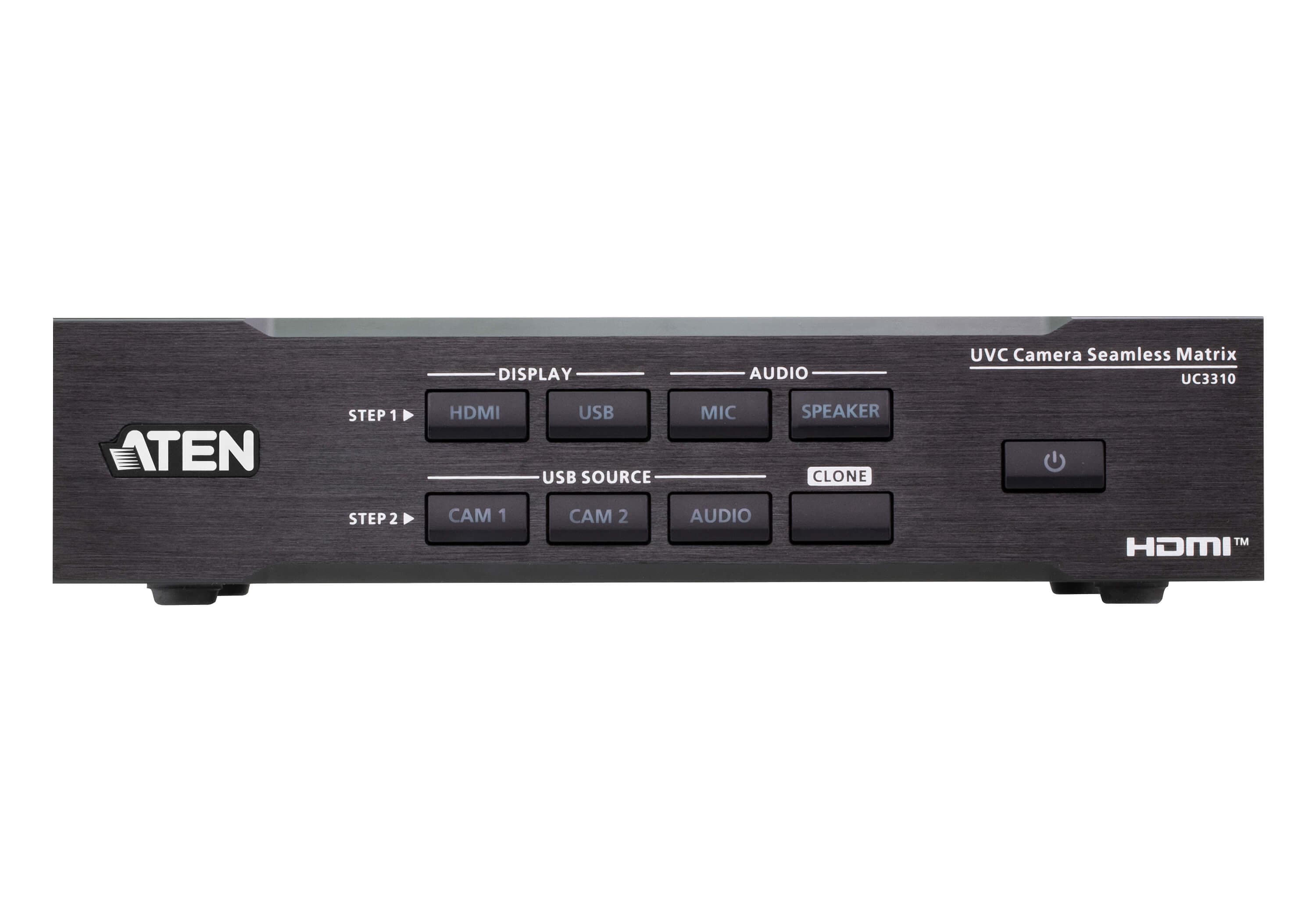

- Pushbuttons on the front panel allow quick and intuitive signal selection and assignment
- RS-232 connection enables integration with ATEN VK Control System
- Built-in RS-485 interface to support VISCA protocol for PTZ camera controller connection

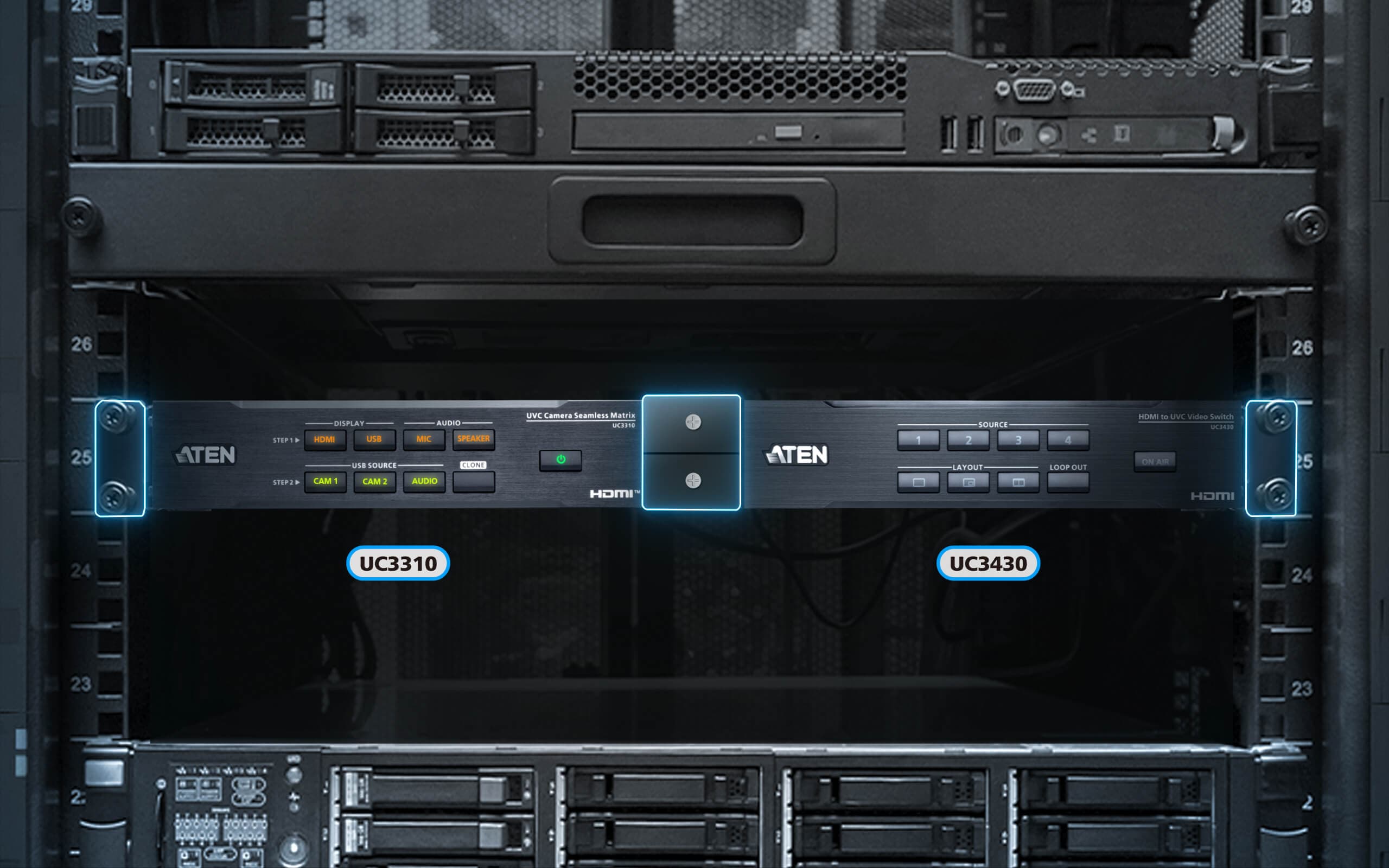

- Optional rack mount kit gives installation flexibility in media cabinets or DIT stations
- Plug-and-play convenience with no software drivers needed
- Supports all major operating systems including windows 10 and macOS 10.13

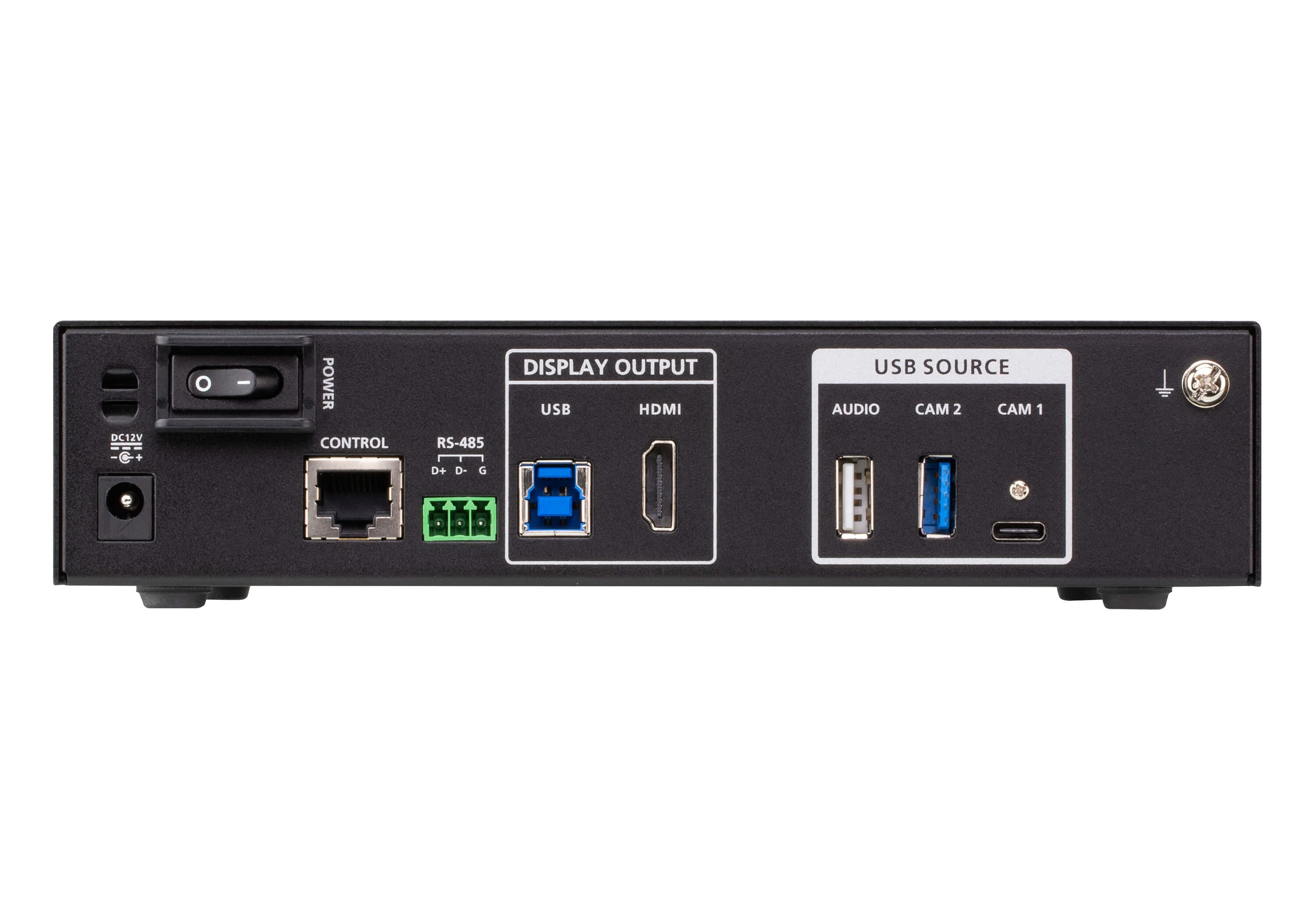

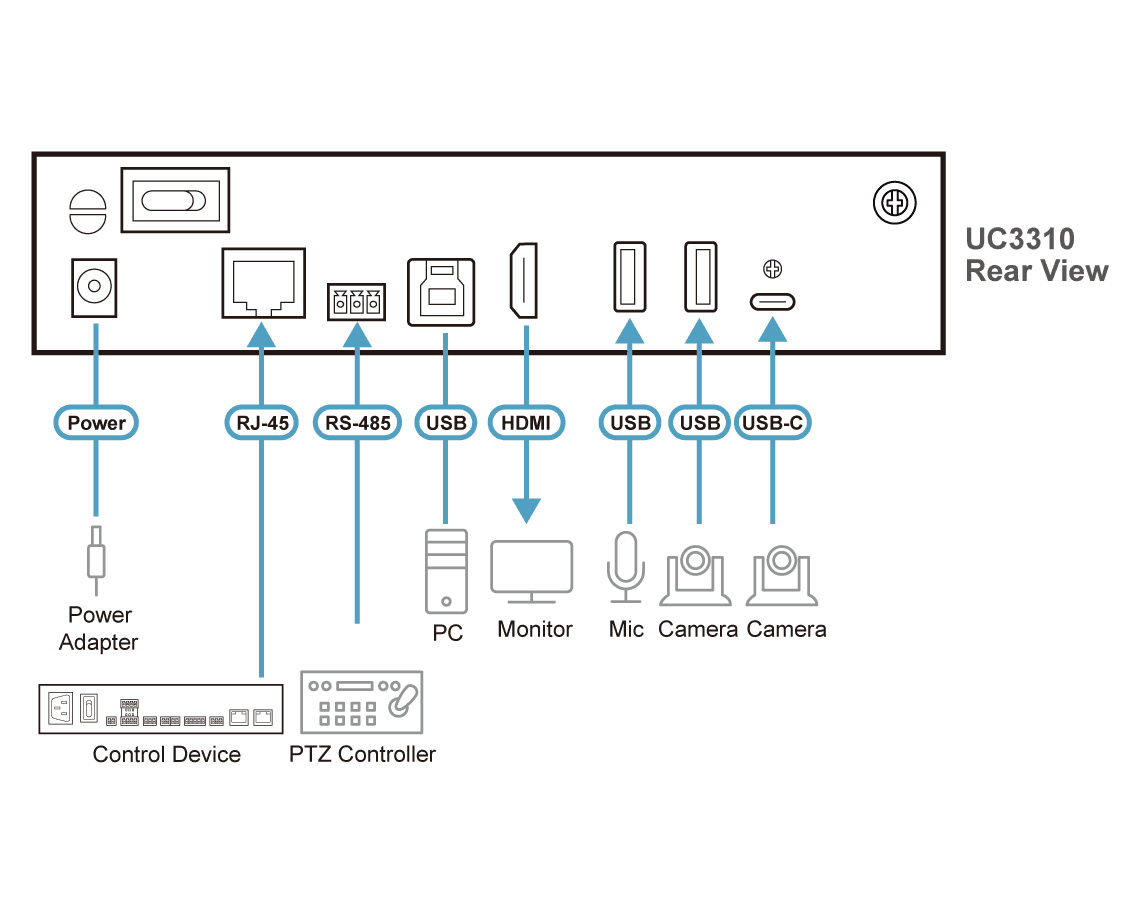

Конектори
- Видео вход
- 1 x USB3.2 Gen1 Type A Female (Blue) 1 x USB3.2 Gen1 Type C Female (Black)
- Аудио входове
- 1x USB2.0 Type A Female (White)
- Видео изход
- 1 x HDMI Type A Female (PGM Video, Black)
- USB порт
- USB 3.2 Gen1 Type-B Female (Blue) (USB-B to USB-A cable package included)
- Видео резолюция
- USB camera input: 720p24, 720p25, 720p30, 720p50, 720p60 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 2160p24, 2160p25, 2160p30 PGM HDMI output: HD Video Standards 720p24, 720p25, 720p30, 720p50, 720p60 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 Ultra HD Video Standards 2160p24, 2160p25, 2160p30 USB video output: 4Kp30 (MJPEG) 1080p30, 720p24, 720p25, 720p30 (MJPEG)
- Цветово пространство
- NV12
- Аудио дискретизация
- 16-bit PCM audio, 48KHz
Управление
- RS-232
- Interface : RJ-45 Bit rate : 50bps~921.6Kbps (Default: 9600bps) Stop bit : 1 stop bit Data bits: 8 bits Parity : no parity Signal : TxD, RxD, GND
- RS-485
- PTZ Control Support Protocol : VISCA Interface : Terminal block Flow Control N/A FIFO 64 bytes Bit rate : 50bps~115200bps (Default: 9600bps) Stop bit : 1 stop bit Data bits: 8 bits Parity: none Signal : Data+(B), Data-(A), GND Protection IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power1 kV Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 – 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
- Минимални хардуерни изисквания
- PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more 1 x USB-A interface
- Поддържани ОС
- Windows 10 and above Mac OS 12 and above
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.98 kg ( 2.16 lb )
- Размери (Д x Ш x В)
- 16.46 x 20.00 x 4.40 cm (6.48 x 7.87 x 1.73 in.)
Захранващи входове
- Захранващ адаптер
- DC power adapter with Power cable IEC C13, 100-240 Vac
- Консумация
- DC12V:6.50W:92BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
