6-канален аудио миксер за подкастинг с AI обработка на микрофонния звук, DSP и семплиране 24-bit/96kHz. Захранва се по USB-C и включва джингъл падове с до 8 семпъла и 24 програми с гласови ефекти.
Характеристики
- All-in-one design simplifies audio mixing workflow for podcasting – offers up to 6-channel audio inputs, DSP and AD / DA converter, and adds audio up to 24-bit / 96 kHz to any USB-C-enabled laptop or tablet

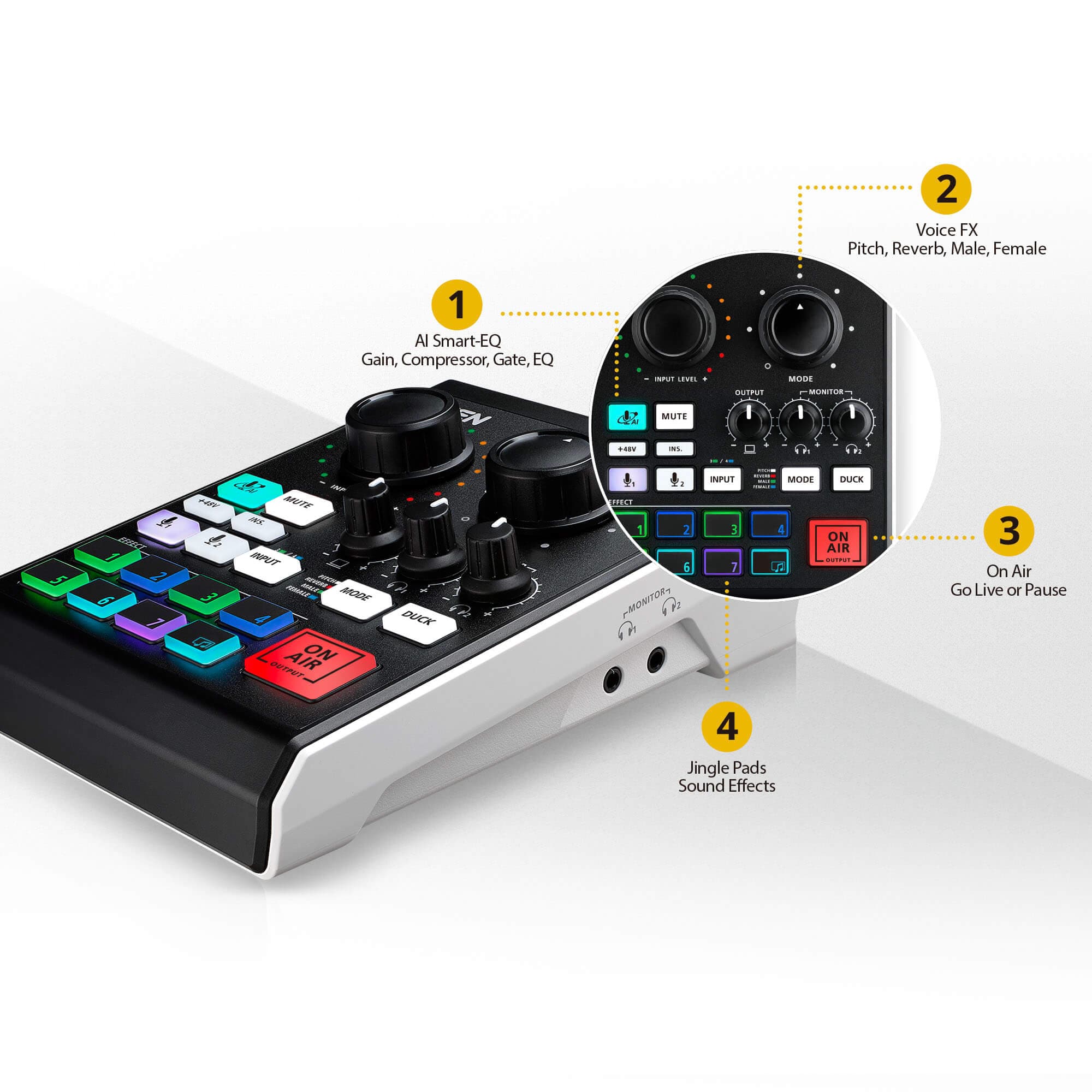

- The industry’s first AI-optimized audio mixer – enhances microphone audio quality with enhanced acoustic models, SmartEQ, so anyone can have a real-time, high-quality recording
- Jingle pads save up to 8 sound samples that can be customized from audio sources from a computer, microphone, and other audio inputs for a professional radio programming experience
- Contains 24 Voice FX programs, including 6 adjustments in reverb effect, 6 in pitch effect, and 12 in gender effect
- Audio routing and multichannel audio mixing – allow for mixing audio input signals and routing it to any of the available output interfaces
- Advanced reverb effects – enhance your vocals, instruments, and the entire mix for professional broadcast and post-production
- The auto ducking function lowers background music anytime one speaks, ensuring the speaker’s voice is always heard, loud and clear, during broadcasting

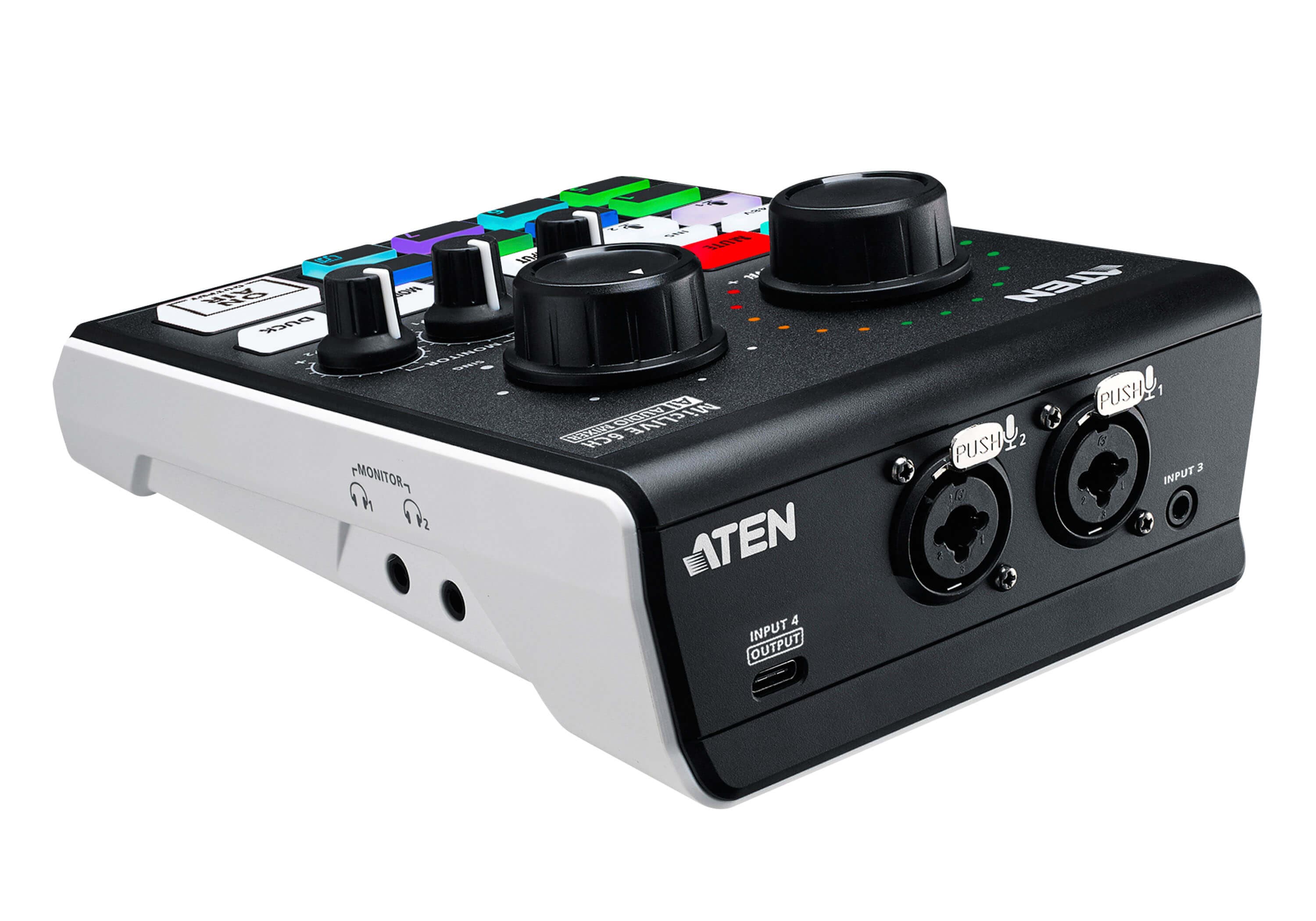

- Diversified input interface options – supports audio media from professional XLR combo microphones, musical instruments, USB audio sources, and phone-in for mixing
- Built-in preamp that provides gain for instruments and the microphone’s signal, and a phantom power supply that delivers reliable +48V phantom power for condenser microphones

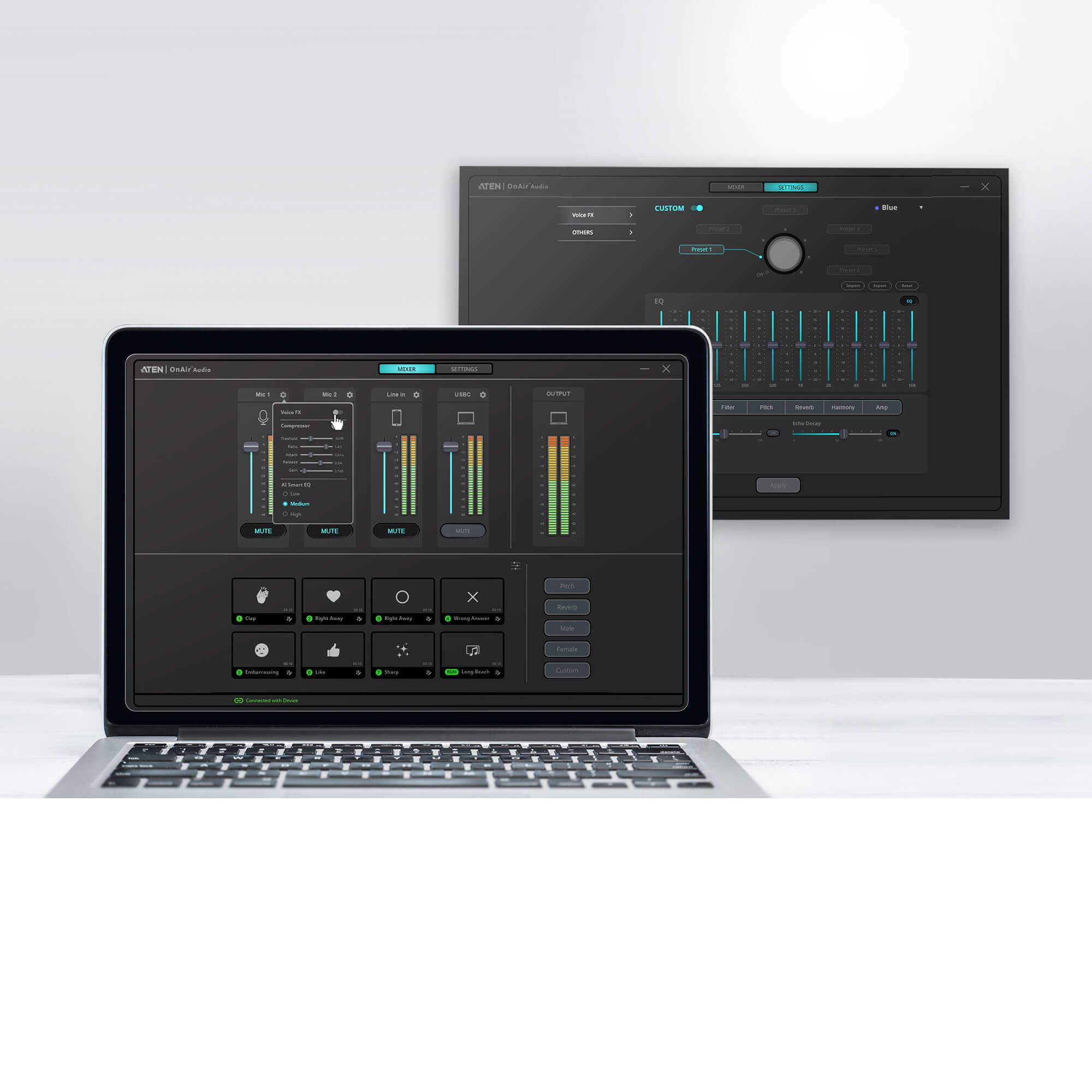

- Supporting Windows and Mac OS, the OnAir Audio software gives users complete control over every parameter while allowing them to simply assign audio samples from their computers through an intuitive interface
Аудио входове
- Интерфейси

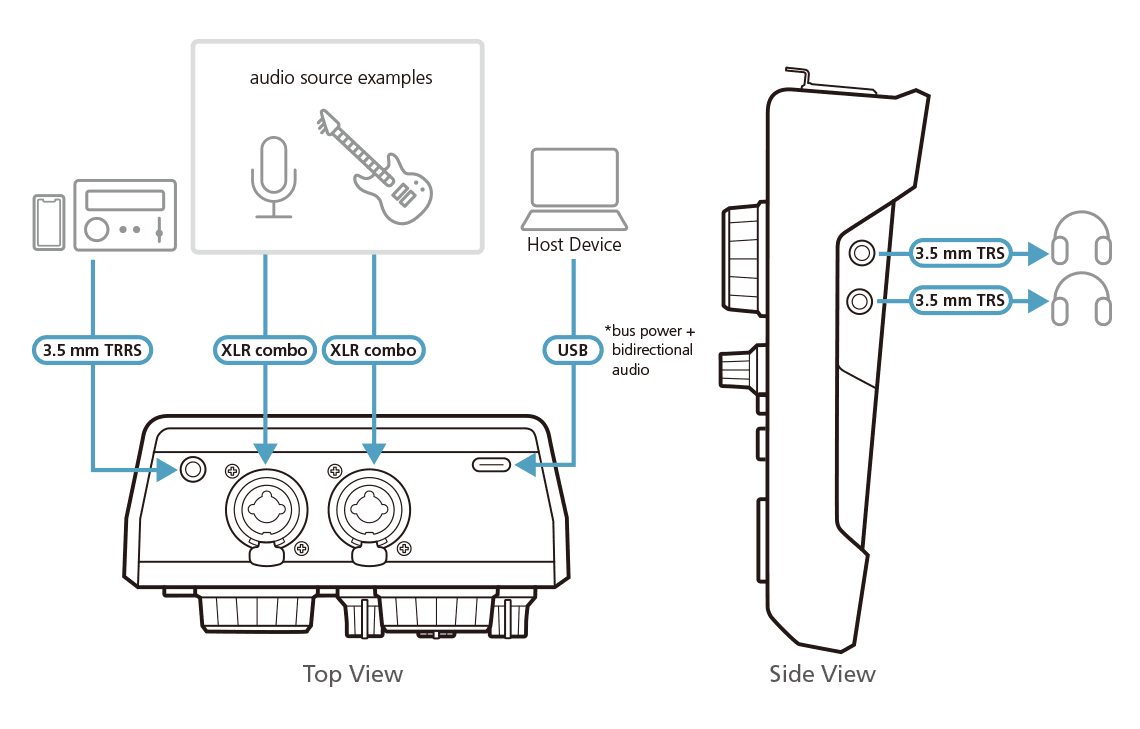

- XLR Combo: 2x XLR-3-31(1:GND, 2:HOT, 3:COLD) or 6.3mm (1/4") standard TRS jack ( T:HOT, R: COLD, S:GND ) Line-in: via 1/8” 4-pole TRRS phone female( T: Left, R: Right, R: GND, S: MIC. CTIA standard ) USB Audio-in: via USB TYPE-C
Аудио изходи
- Интерфейси
- Line-out: via 1/8” 4-pole TRRS phone female ( T: Left, R: Right, R: GND, S: MIC. CTIA standard ) USB Audio-out: via USB TYPE-C Headphone Monitoring: 2x 1/8" TRS phone female
- Аудио дискретизация
- 24-bit/96kHz
- Връзки
- 1x USB TYPE-C female , USB bus-powered
Микрофонни входове
- Честотна характеристика
- 20Hz - 20kHz
- Динамичен обхват
- 90dB
- THD+N
- -82dB
- Макс. входно ниво
- 12.5mVrms
- Диапазон на усилване
- 40dB (For Dynamic Microphone), 30dB (For Condenser Microphone )
- Импеданс
- 3KΩ (Typ)
- Фантомно захранване
- +48VDC
- Шум (EIN)
- -128dBu or less
Инструментални входове
- Честотна характеристика
- 20Hz - 20kHz
- Динамичен обхват
- 82dB
- THD+N
- -80dB
- Макс. входно ниво
- 440mVrms
- Импеданс
- 1MΩ
Линейни входове
- Честотна характеристика
- 20Hz - 20kHz
- Динамичен обхват
- 95dB
- THD+N
- -90dB
- Макс. входно ниво
- 1Vrms
- Импеданс
- 2.5KΩ (Typ)
Линейни изходи
- Честотна характеристика
- 20Hz - 20kHz
- Макс. изходно ниво
- 1Vrms
- Импеданс
- 200Ω
Изходи за слушалки
- Честотна характеристика
- 20 Hz - 20 kHz
- Макс. изходно ниво
- 2Vrms
- Импеданс
- 10Ω
Цифрово аудио
- Динамичен обхват на ADC
- 92dB
- Динамичен обхват на DAC
- 95dB
- Макс. входно ниво
- +4 dBu
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Поддържани ОС
- System requirements for PC and Mac: • Intel i3-series 2 GHz multicore processor (or AMD , Apple M1 equivalent) or faster • 2 GB RAM (8 GB or more recommended) • USB-C™ interface with USB 3.0 or higher compatibility • Windows 10 or higher , Mac OS® 10.11 or higher System requirements for iPads: • iPad Pro (3rd gen or later) • iPad Air (4th gen or later) iPad Mini (6th gen or later)with USB-C™ interface • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen) • iPad Mini (5th gen) with phone Jack or adatper OnAir-Audio Software: -Windows 10 or higher, 64-bit -Mac OS 10.13 or higher, 64-bit
- Консумация
- DC5V:2.55W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.42 kg ( 0.93 lb )
- Размери (Д x Ш x В)
- 13.05 x 18.09 x 6.27 cm (5.14 x 7.12 x 2.47 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
