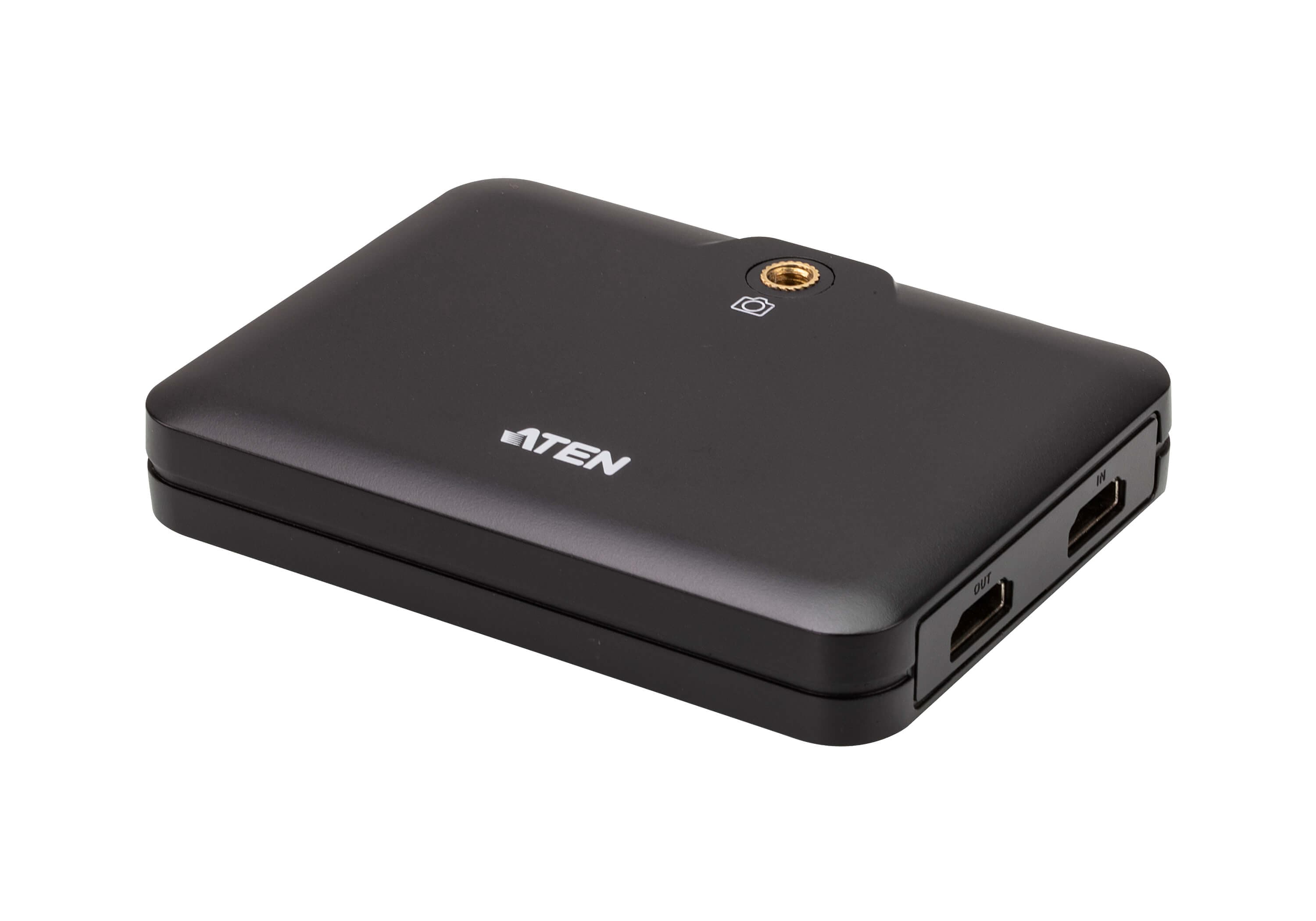

CAMLIVE™+(HDMI to USB-C UVC Video Capture with PD3.0 Power Pass-Through)
UC3021Снет от производство
Захваща HDMI сигнал до 4K и го извежда като некомпресиран 1080p60 UVC поток по USB-C, с HDMI loop-out за преглед в реално време и PD 3.0 зареждане на лаптопа до 60W.
Характеристики
- Supports unencrypted 4K video input for 1080P capture
- Software free –plug & play designed for PC, Mac and Android platform

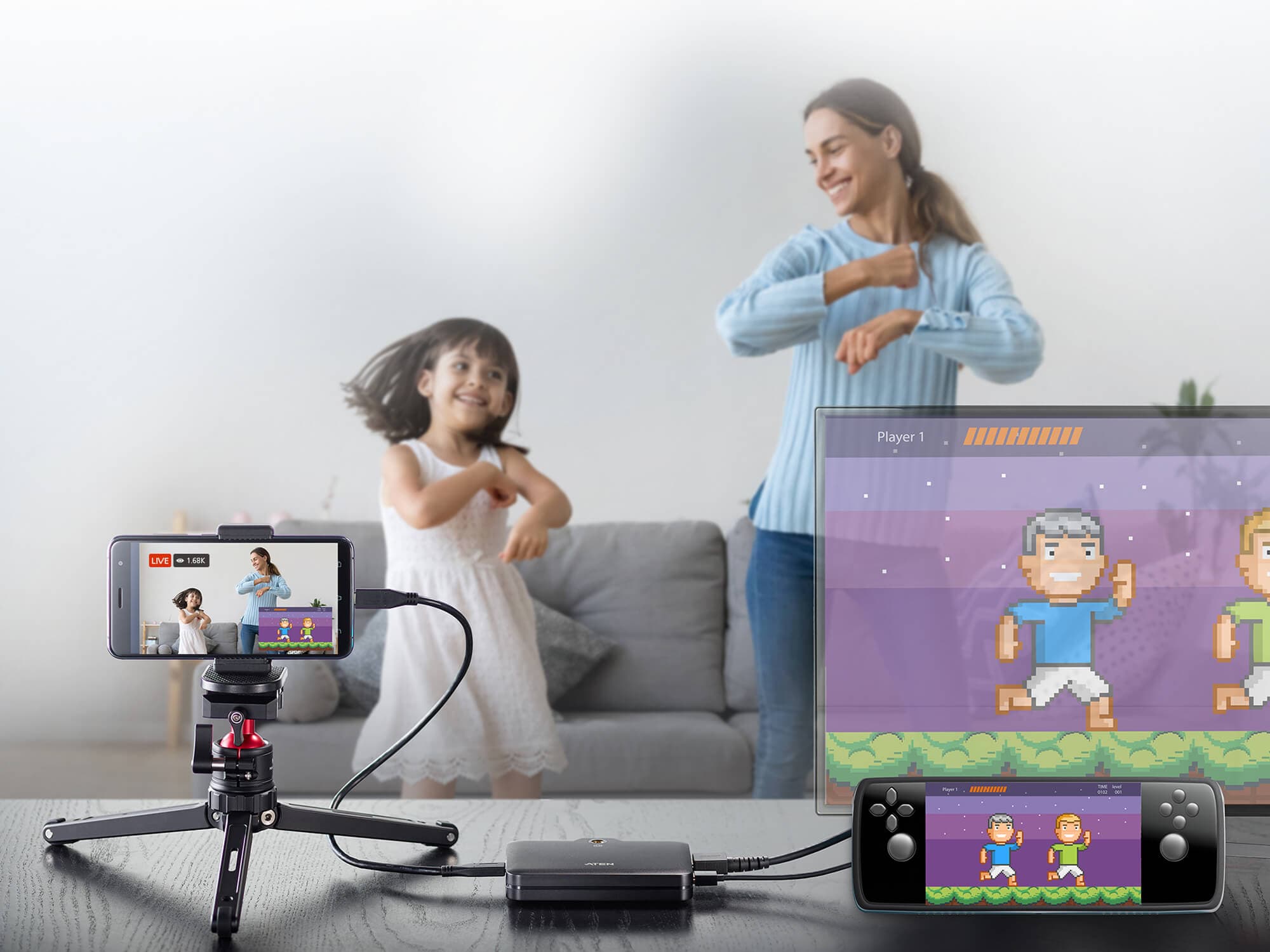

- HDMI loop-out –supports real-time HDMI video preview

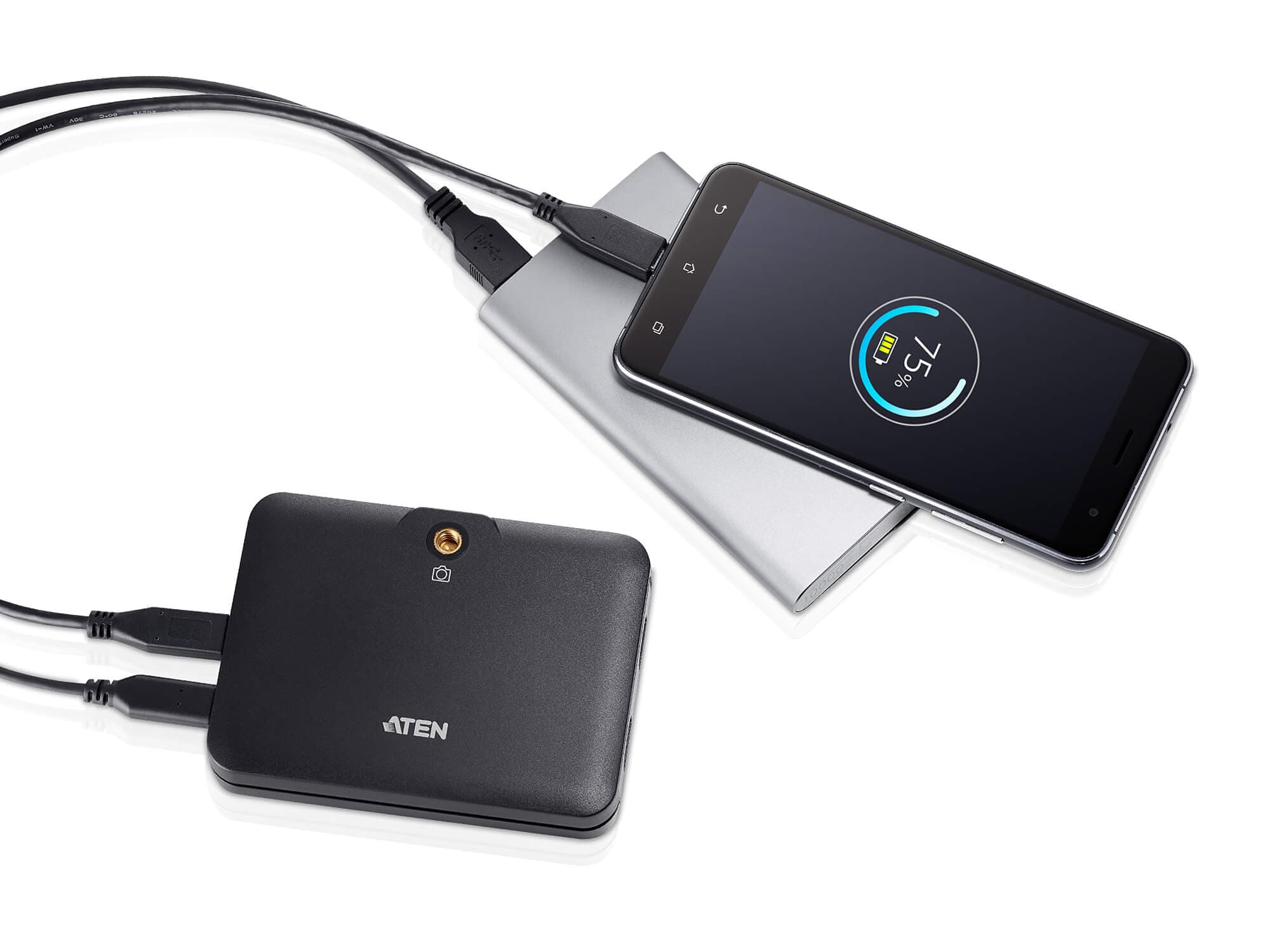

- Up to 60W power charging capability for laptop or Android phone – supports USB-C PD3.0 power profi le include 5V/9V/15V/20V (additional USB-C power adapter is needed)

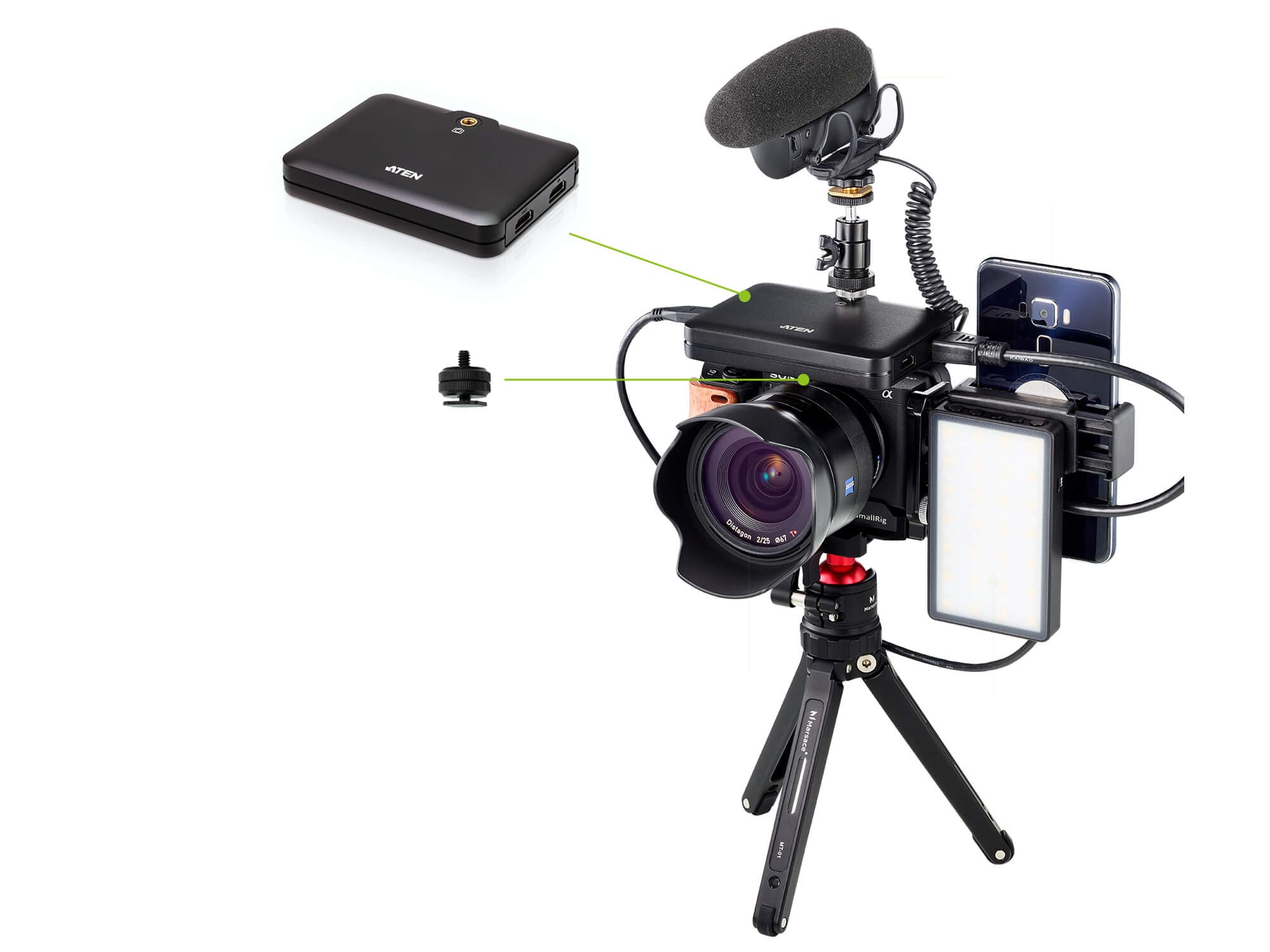

- Camera mount adapter makes the installation easier and stable
- Compatible with USB & Thunderbolt 3 (USB-C) specification

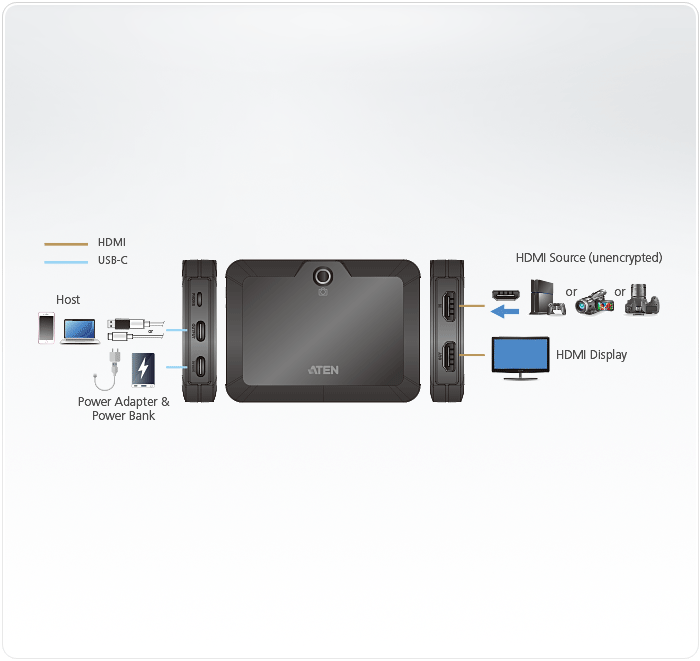

Конектори

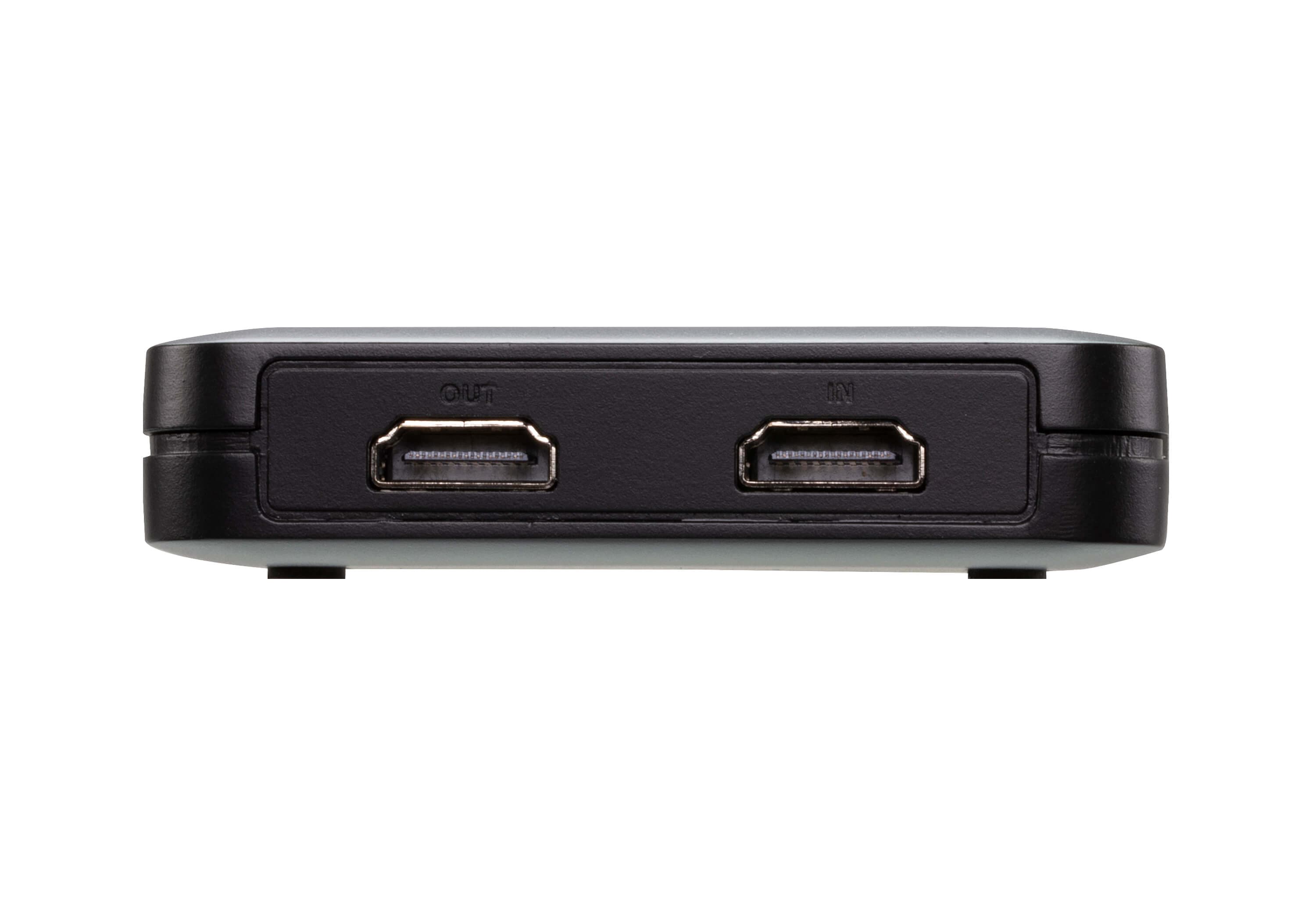

- Видео вход
- 1 x HDMI Type A Female (Black)
- Видео изход
- 1 x HDMI Type A Female (Video Loop-out , Black)

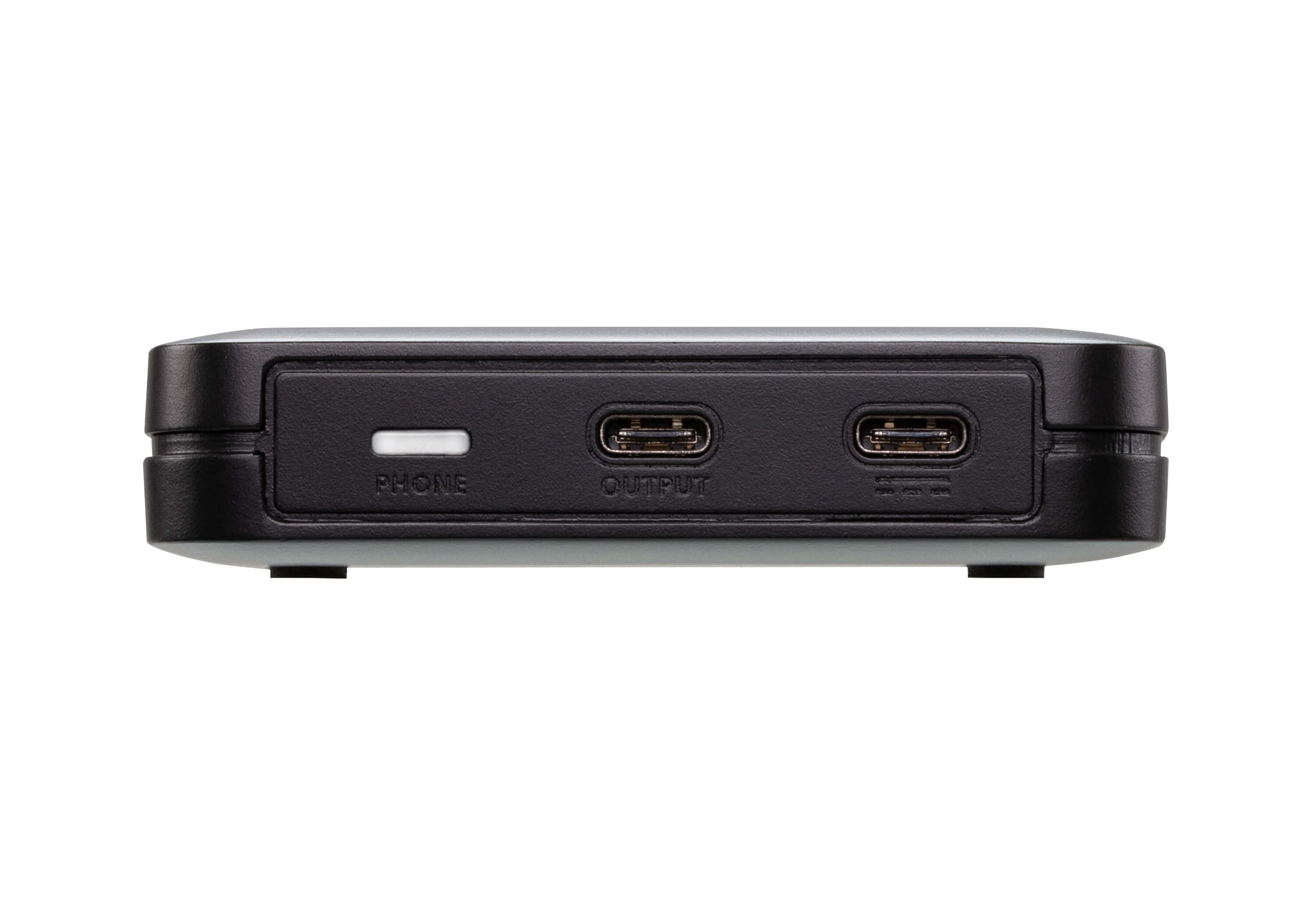

- USB порт
- USB 3.2 Gen1 Type-C Female (Black) (USB-C to USB-C and USB-C to USB-A Cable package included)
- Захранване (опция)
- 1 x USB-C Female Support Power Delivery 3.0 for laptop charging up to 60W, power profiles include 5V, 9V, 12V, 15V, 20V (additional USB-C power adapter needed)* *For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter is recommended.
- Видео резолюция
- Video input: 2160p60, 1080p60, 720p60 and 480p60, HDMI 2.0 support (unencrypted) Video Loop-out: 2160p60, 1080p60, 720p60 and 480p60, HDMI 2.0 support (unencrypted)
- Аудио дискретизация
- 16-bit PCM audio, 44.1KHz and 48KHz
- Изход
- Uncompressed 1080p60, 720Pp60 & 480p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
- Консумация
- 5V:3WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Минимални хардуерни изисквания
- PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: Android device with UVC support and USB-C interface* *For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
- Поддържани ОС
- Windows 10 and above Mac OS X 10.13 and above Android 5.0.1 and above with UVC support
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 – 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.09 kg ( 0.2 lb )
- Размери (Д x Ш x В)
- 11.49 x 8.49 x 2.00 cm (4.52 x 3.34 x 0.79 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
