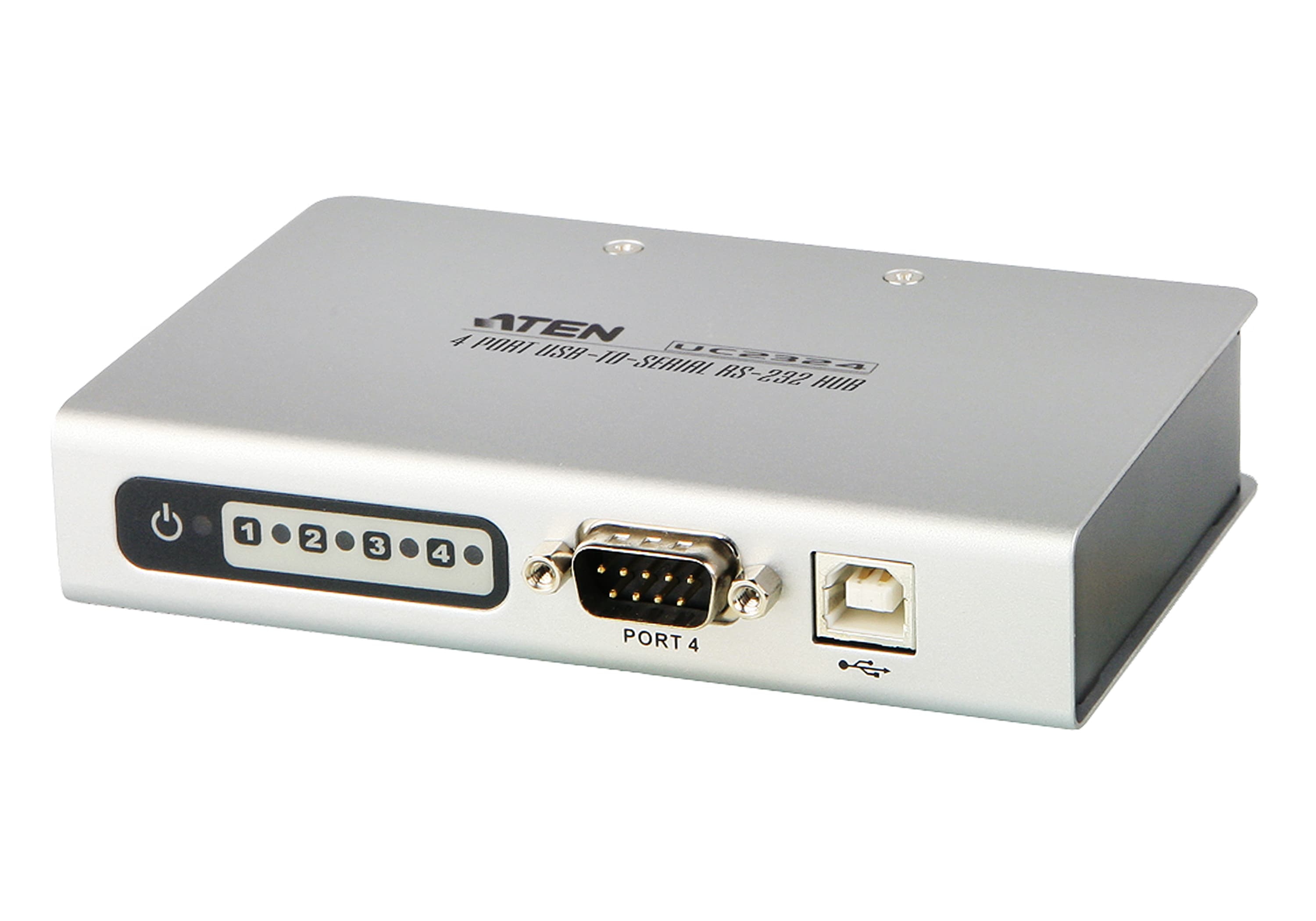

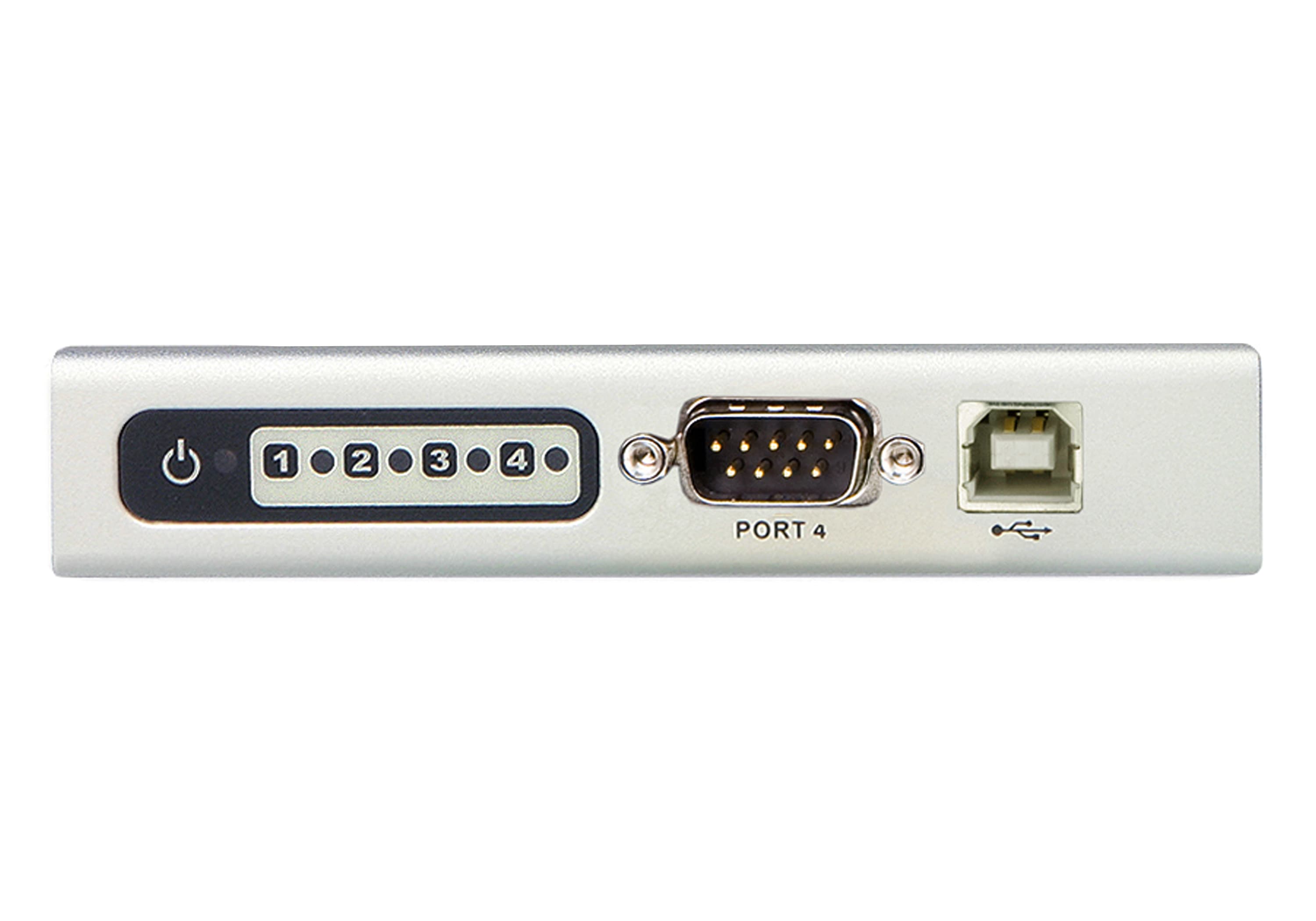

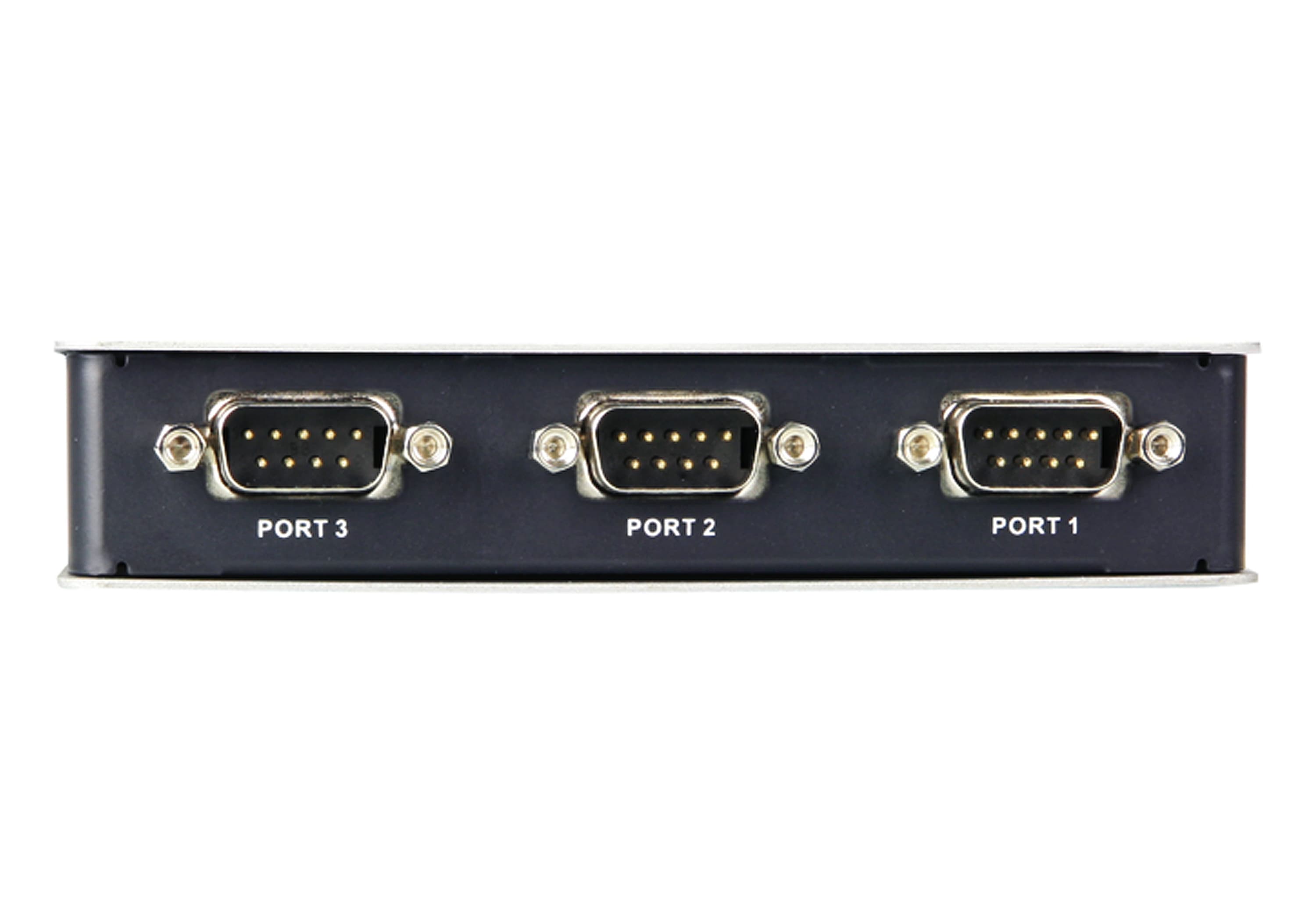

4-Port USB to RS-232 Hub

Name: 4-Port USB to RS-232 Hub
Brand: ATEN
SKU: UC2324

UC2324

Хъб, който добавя 4 серийни RS-232 порта (DB-9) към компютър през един USB порт. Plug-and-play устройство, съвместимо с USB 1.1 и USB 2.0.

Характеристики

Easy way to add 4 RS-232 serial ports
Fully compliant with USB 1.1; USB 2.0 compatible
Supports RS-232 serial interface
Supports automatic handshake mode
Up to 921.6 Kbps data transfer rate for each serial port*
Dual data buffers for each upstream and downstream data transfer
No IRQ, DMA, I/O address resources required
Supports hot-swapping and plug-and-play
Built-in 16KV ESD protection
Supports both bus power and external power

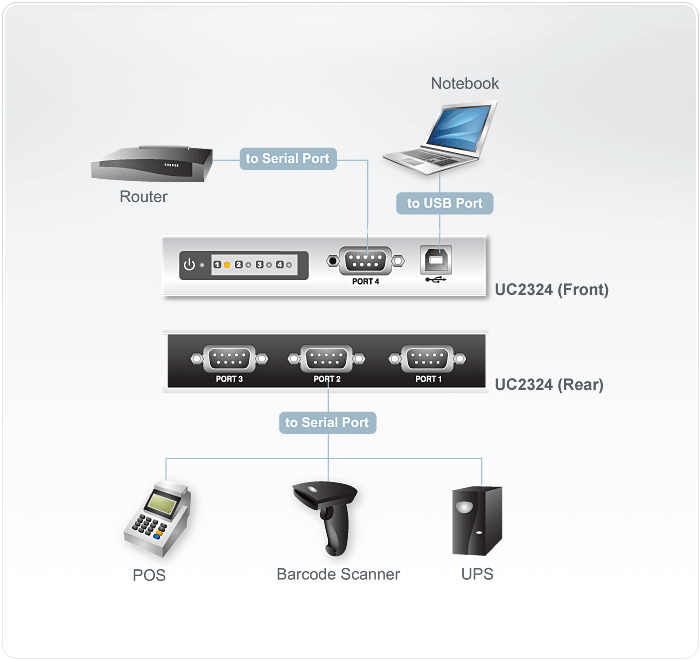

Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
OS support - Windows 2000/2003/XP/NT Note: For products manufactured before 2023, the data transfer rate (baud rate) is limited to 115.2 Kbps.

Портове: 4 (Green)
Захранване: 1 (Orange)
Скорост на данните: 921.6 Kbps (max.) Note: For products manufactured before 2023, the data transfer rate (baud rate) is limited to 115.2 Kbps.
USB спецификация: USB 1.1 Compliant; USB 2.0 Compatible
Режим на захранване: Bus Powered; use of Power Adapter is optional
Консумация: DC5V:0.4W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.32 kg ( 0.7 lb )
Размери (Д x Ш x В): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
