CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture)
UC3022
Устройство за видеозахват с два HDMI входа, което миксира и подава картината като UVC поток 1080p60 по USB 3.2 Gen1. Приема 4K източници, има XLR и RCA аудио входове и се управлява от мобилно приложение.
Характеристики
- Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition

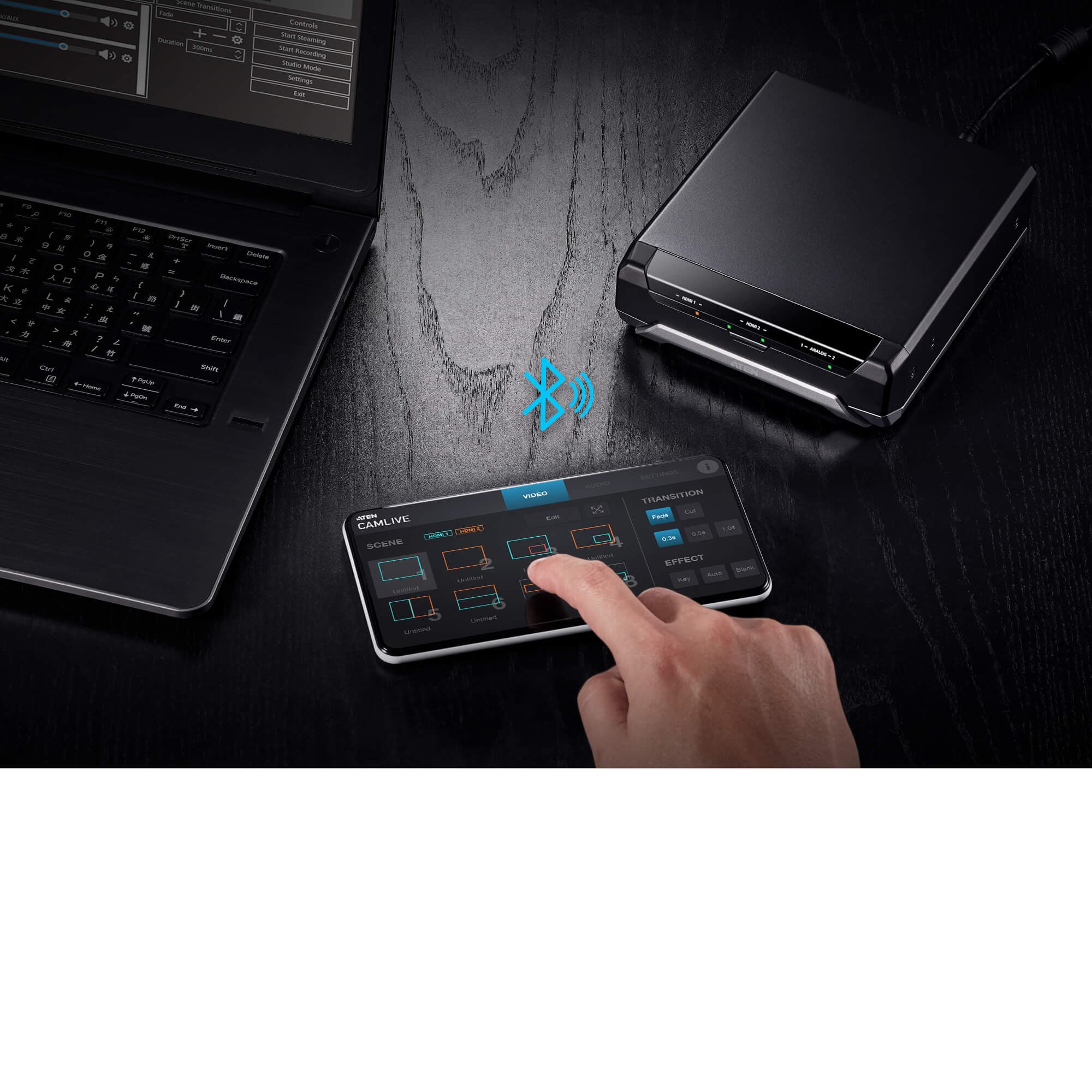

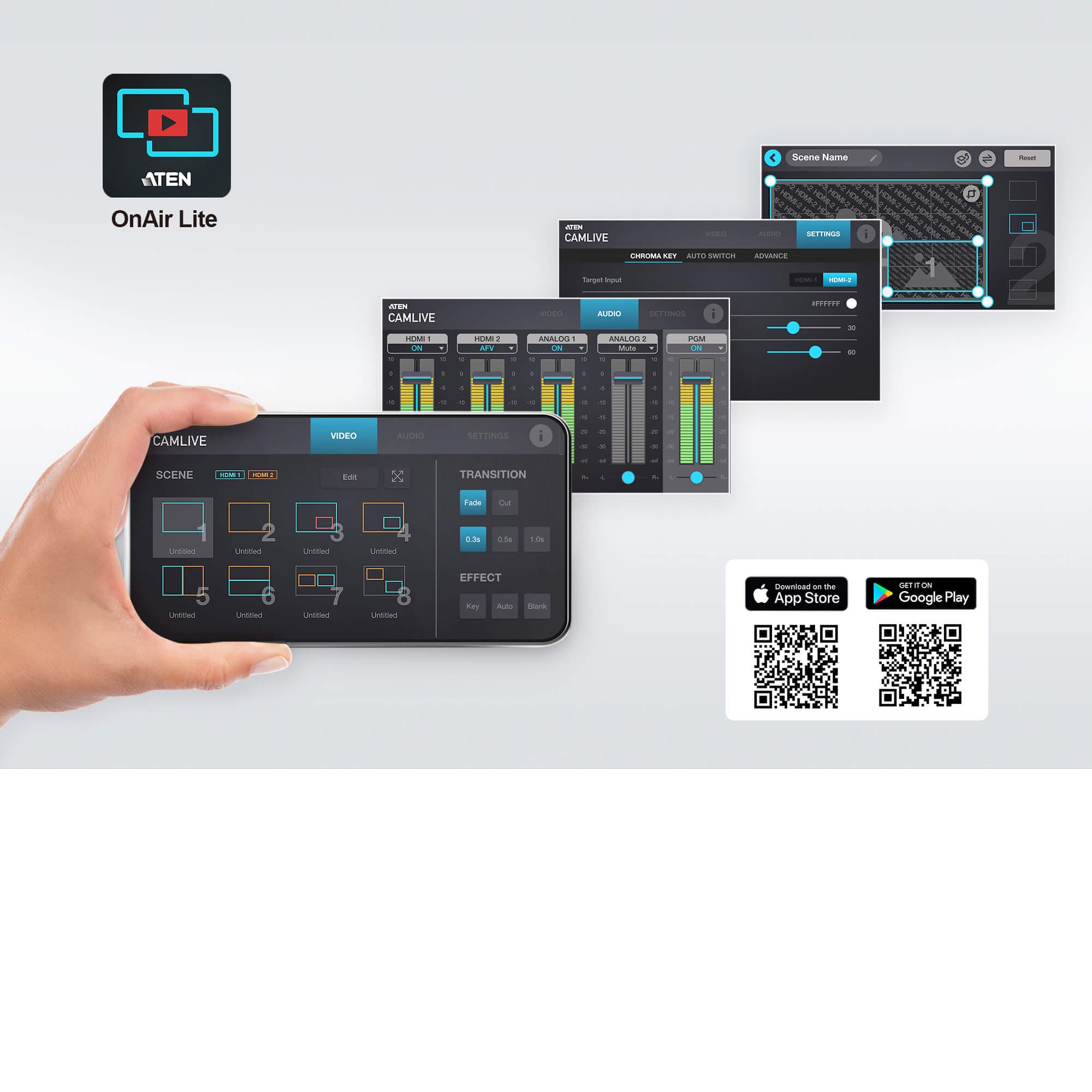

- Intuitive Android / iOS App control – - set up your camera gear and direct your show from anywhere - Multi-Crop function with 4K resolution input capability, users can crop multiple images from the connected HDMI inputs, resize and insert them into different scenes - Remote Deck function customize up to 18 hotkey buttons to fully control the OBS or other streaming software installed on the host device
- Supports real-time HDMI program video preview
- Easily identifi able chroma keys – allows users to appear anywhere they want by changing the background
- Provides audio mixer with additional dual analog audio inputs
- Supports protected video switching mode for regular event usage
- Compatible with USB & Thunderbolt 3 (USB-C) specification specification

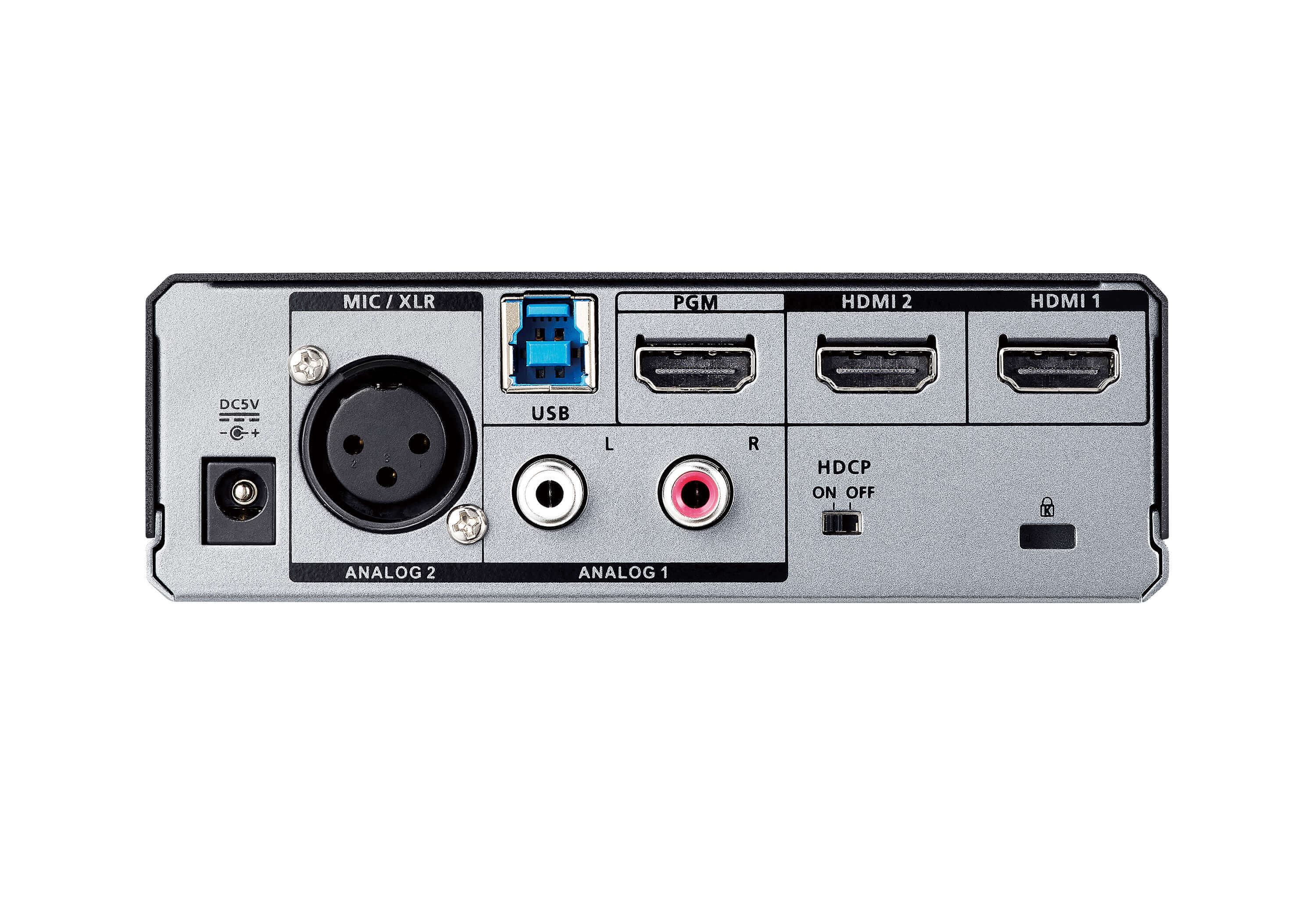

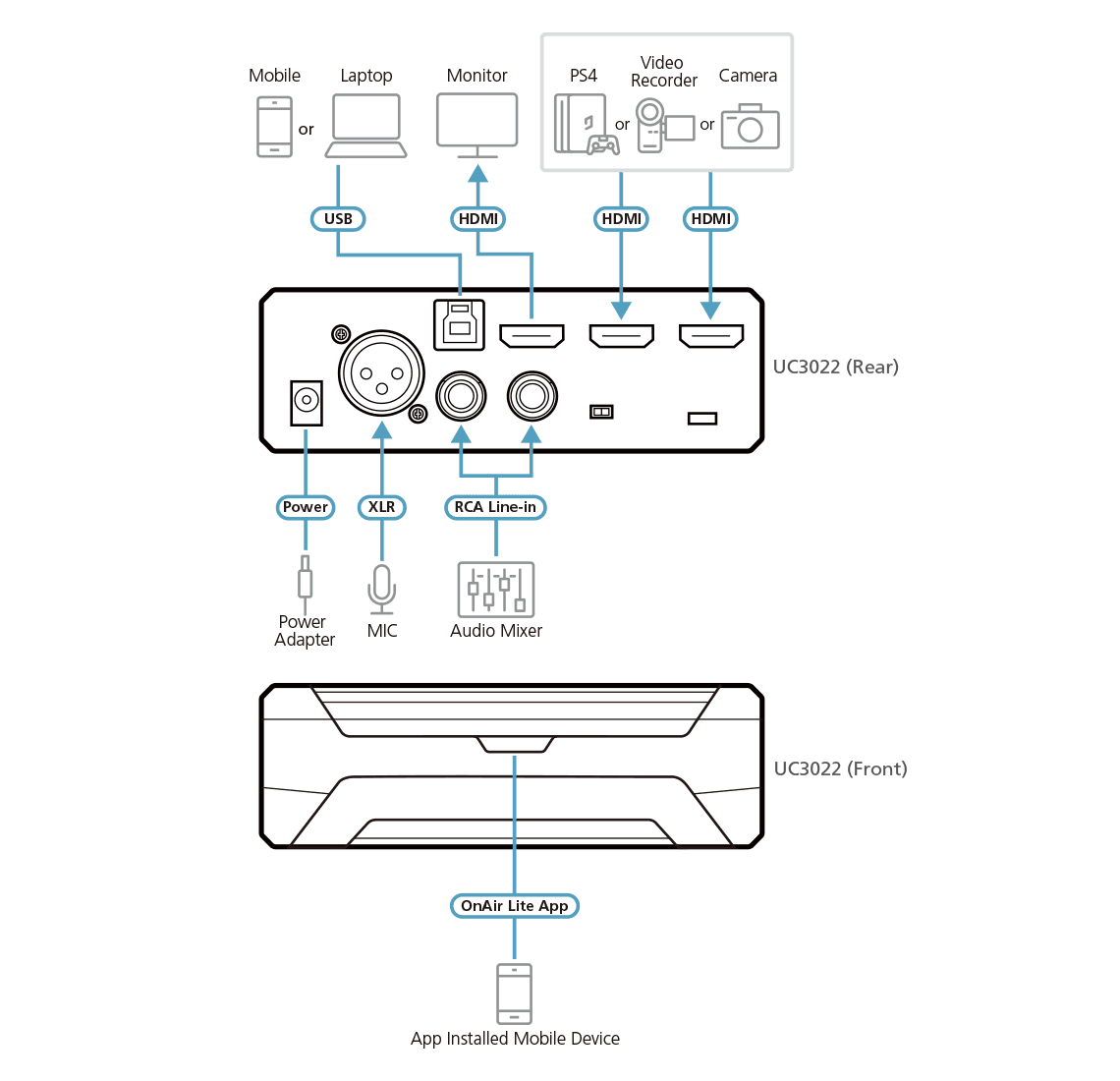

Конектори
- Видео вход
- 2 x HDMI Type A Female (Black)
- USB порт
- USB 3.2 Gen1 Type-B Male (Blue) (USB-B to USB-C and USB-B to USB-A cable package included)
- Видео изход
- 1 x HDMI Type A Female (PGM Video, Black)
- Аудио входове
- 1x balanced analog audio via XLR connectors 1x unbalanced audio via RCA connectors.
- Видео резолюция
- Video input: 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 , HDMI unencrypted PGM video out: 1080p60/50/30/25/24, 720p60/50, HDMI unencrypted (Support encrypted PGM output at 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 with UVC capture disabled)
- Аудио дискретизация
- 16-bit PCM audio, 44.1KHz and 48KHz
- Изход
- Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 – 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
- Минимални хардуерни изисквания
- PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: Android device with UVC support and USB-C interface* *For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
- Връзки
- Bluetooth Low Energy(BLE) technology
- Поддържани ОС
- Windows 10 and above * Mac OS X 10.13 and above Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE) *Window 7 requires driver installation
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.68 kg ( 1.5 lb )
- Размери (Д x Ш x В)
- 13.00 x 15.18 x 4.25 cm (5.12 x 5.98 x 1.67 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
