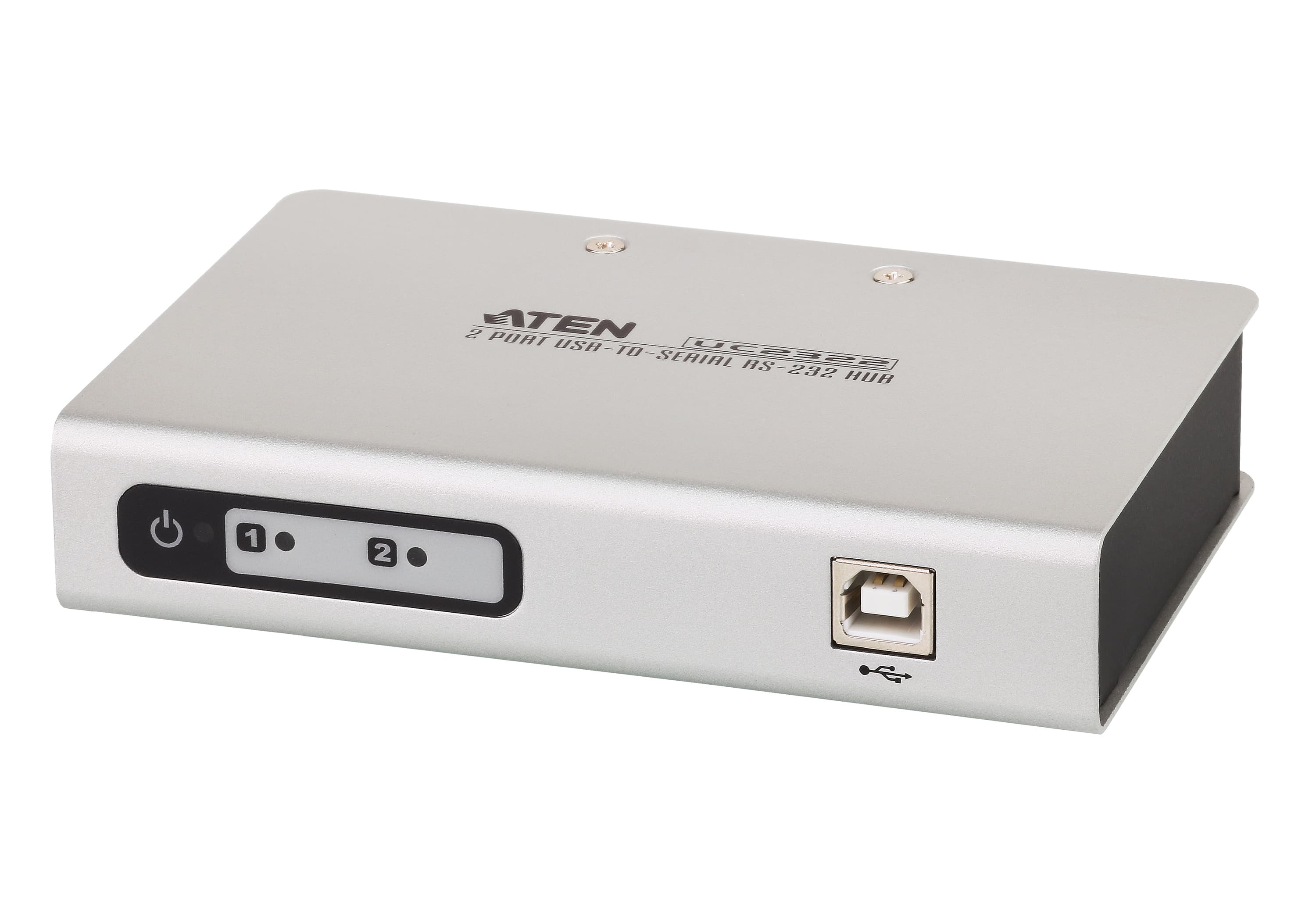

Конвертор от USB към 2 серийни RS-232 порта с DB-9 конектори; plug-and-play връзка за компютри и лаптопи, съвместим с USB 1.1 и 2.0.
Характеристики
- Easy way to add 2 RS-232 serial ports
- Fully compliant with USB 1.1; USB 2.0 compatible
- Supports RS-232 serial interface
- Supports automatic handshake mode
- Up to 115.2 Kbps data transfer rate for each serial port
- Dual data buffers for each upstream and downstream data transfer
- No IRQ, DMA, I/O address resources required
- Supports hot-swapping and plug-and-play
- Built-in 16KV ESD protection
- Supports both bus power and external power
- Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
- OS support - Windows 2000/2003/XP/NT
Спецификация
- Връзки към устройства
- 2
Конектори
- USB порт
- 1 x USB Type B Female (White)
- Захранване
- 1 x DC Jack
- Сериен

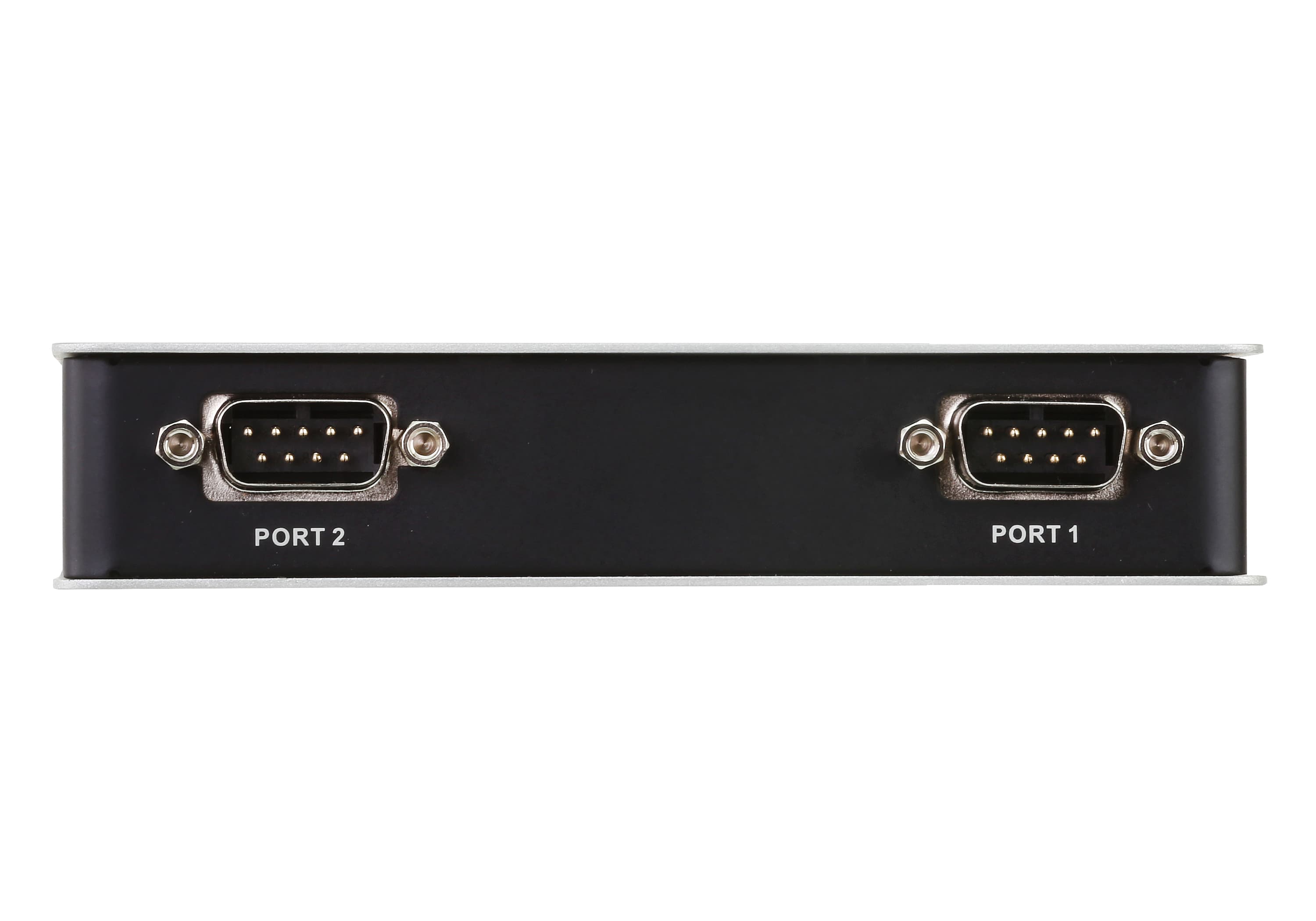

- 2 x DB-9 Male (Black)

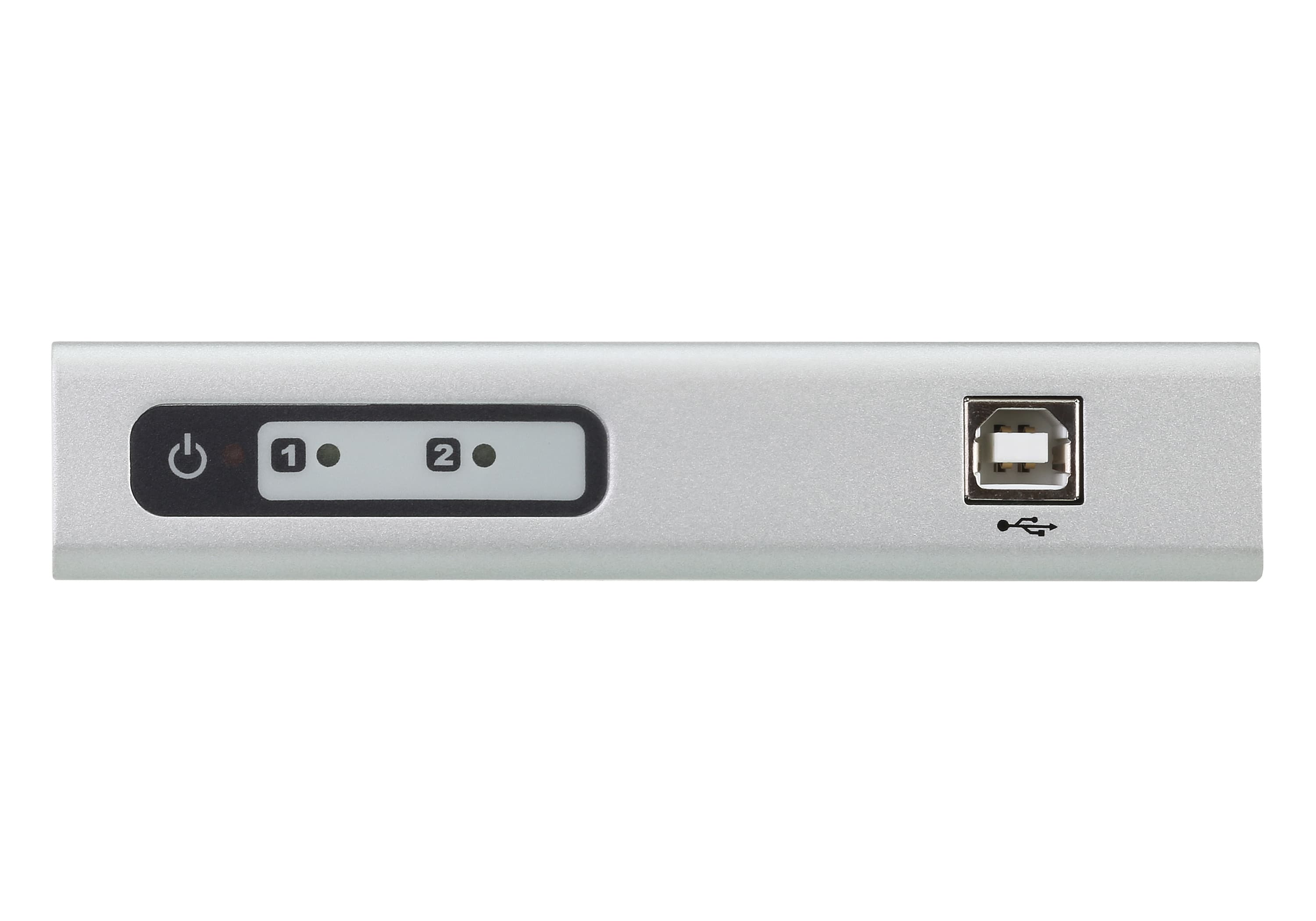

Индикатори
- Портове
- 2 (Green)
- Захранване
- 1 (Orange)
- Скорост на данните
- 115.2 Kbps (max.)
- USB спецификация
- USB 1.1 Compliant; USB 2.0 Compatible
- Режим на захранване
- Bus Powered; use of Power Adapter is optional
- Консумация
- DC5V:0.46W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50˚C
- Температура на съхранение
- -20–60˚C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.30 kg ( 0.66 lb )
- Размери (Д x Ш x В)
- 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
