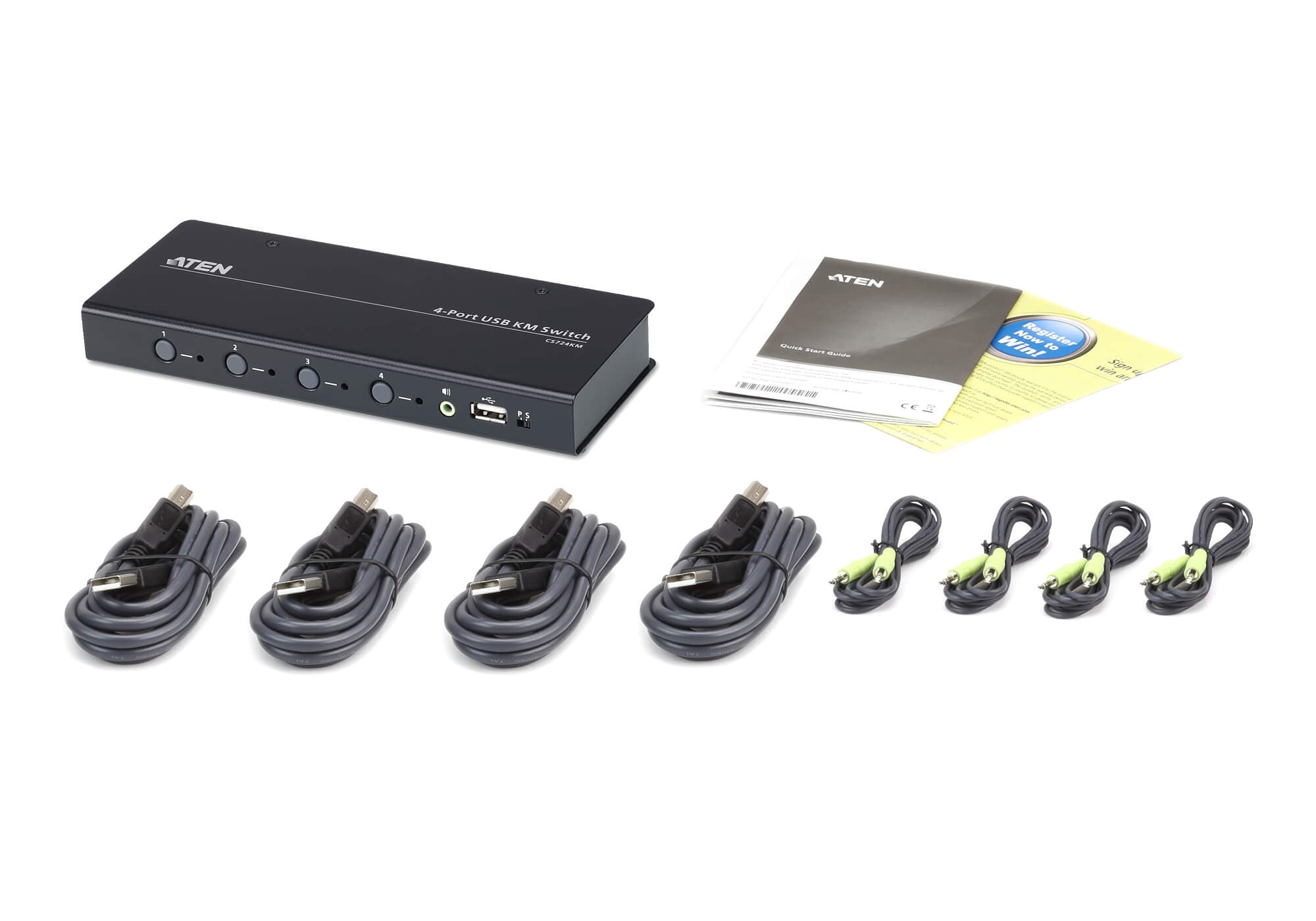

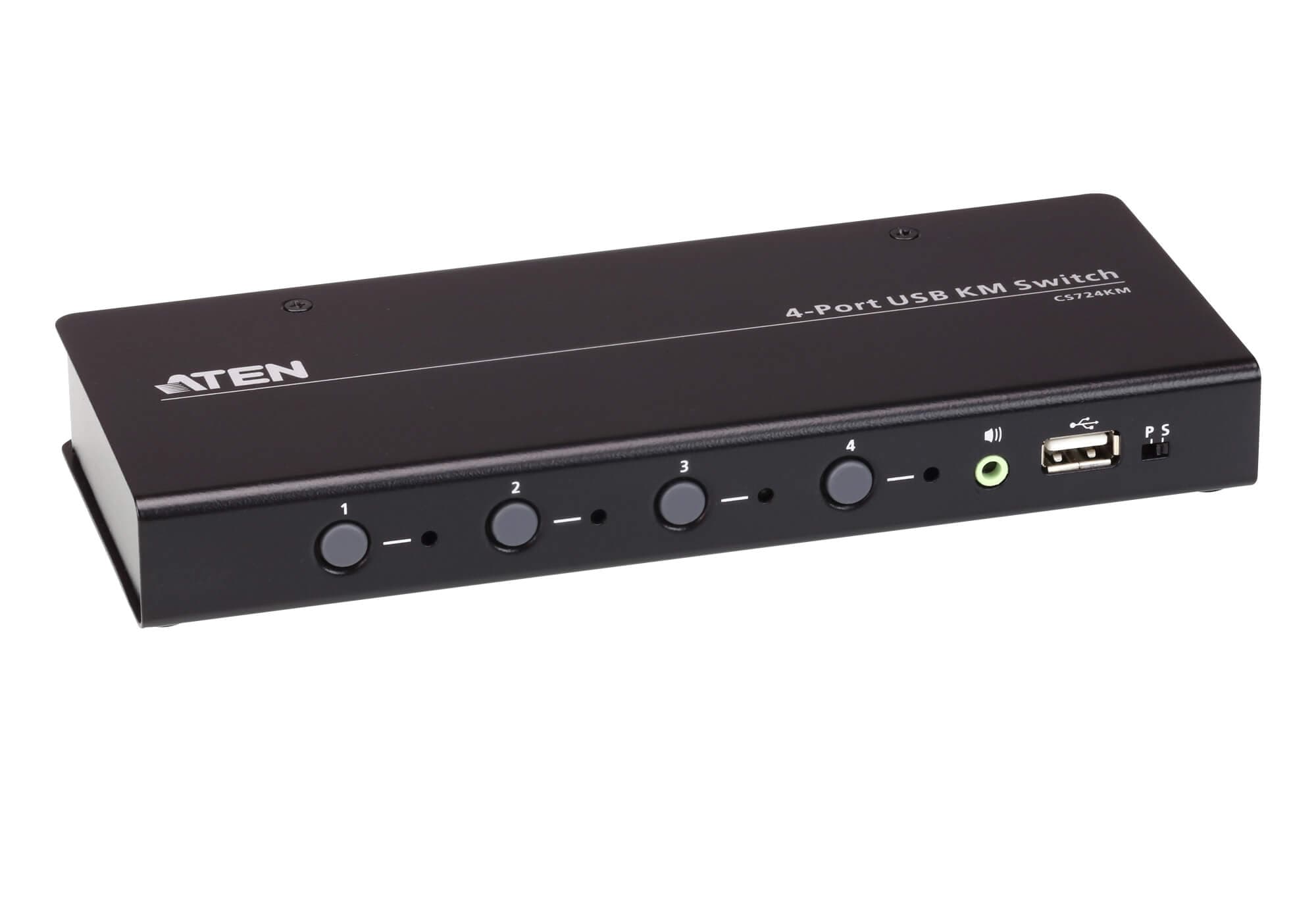

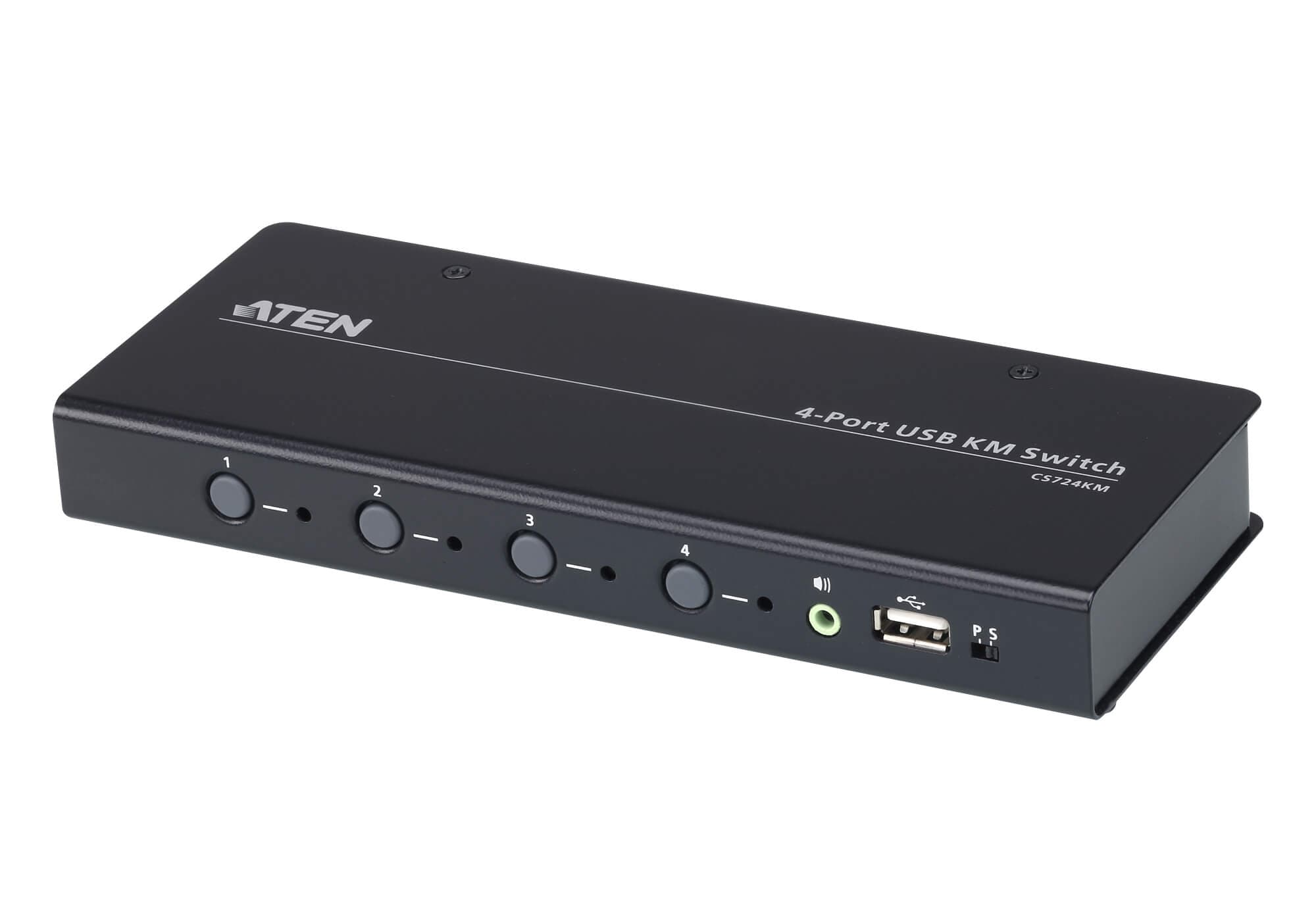

4-port USB Boundless KM Switch (Cables included)

Name: 4-port USB Boundless KM Switch (Cables included)
Brand: ATEN
SKU: CS724KM

CS724KM

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KM превключвател: една USB клавиатура и мишка управляват до 4 компютъра, при верижно свързване на две устройства — до 8. Boundless Switching превключва с преместване на курсора между екраните; кабелите са включени.

Характеристики

Single USB keyboard and mouse control up to 4 computers

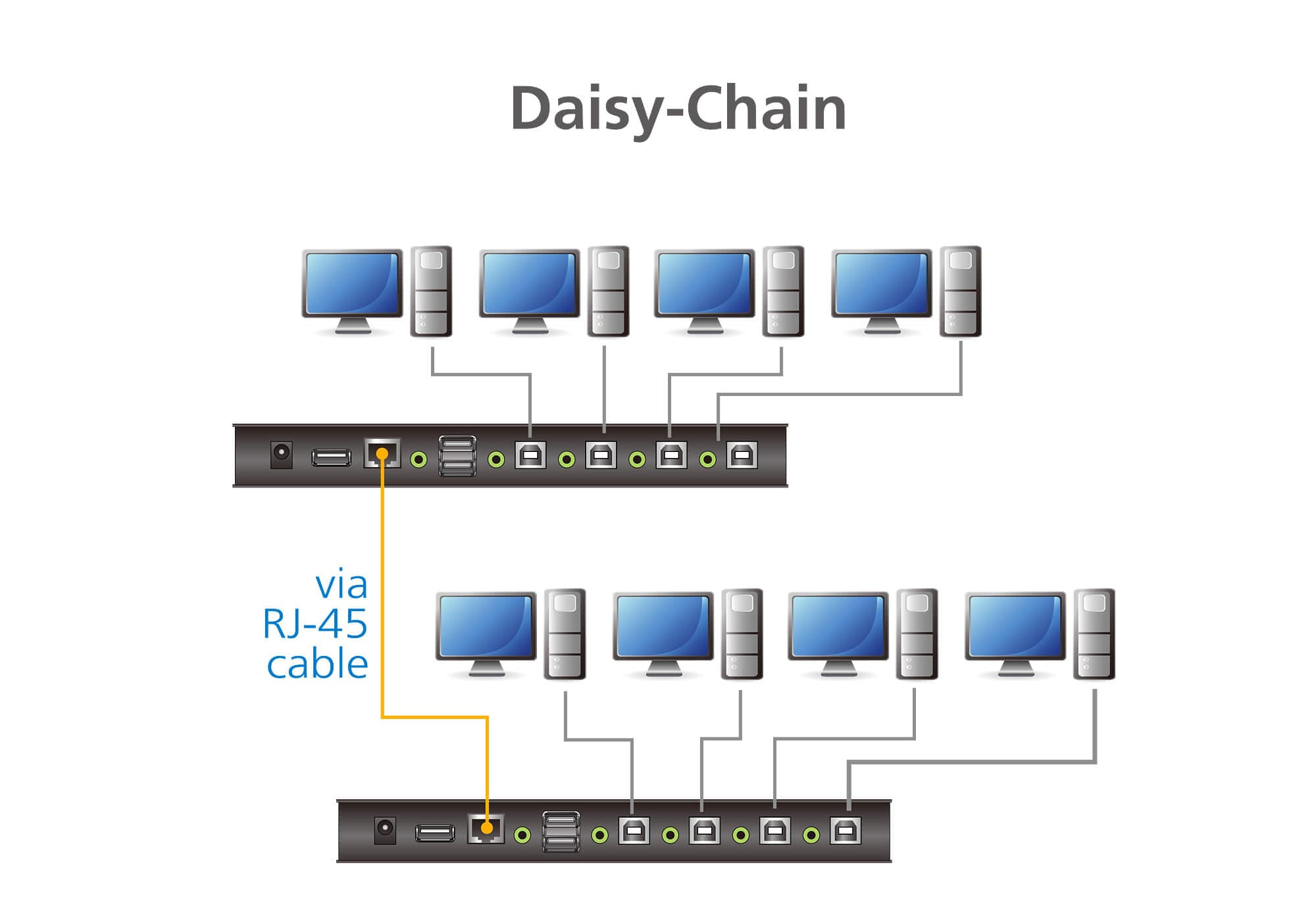

Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
Boundless Switching Configuration Utility1 – an intuitive GUI tool that enables users to customize monitor layouts
Boundless Switching Focus 2 – a window frame to indicate which computer that it currently has the focus

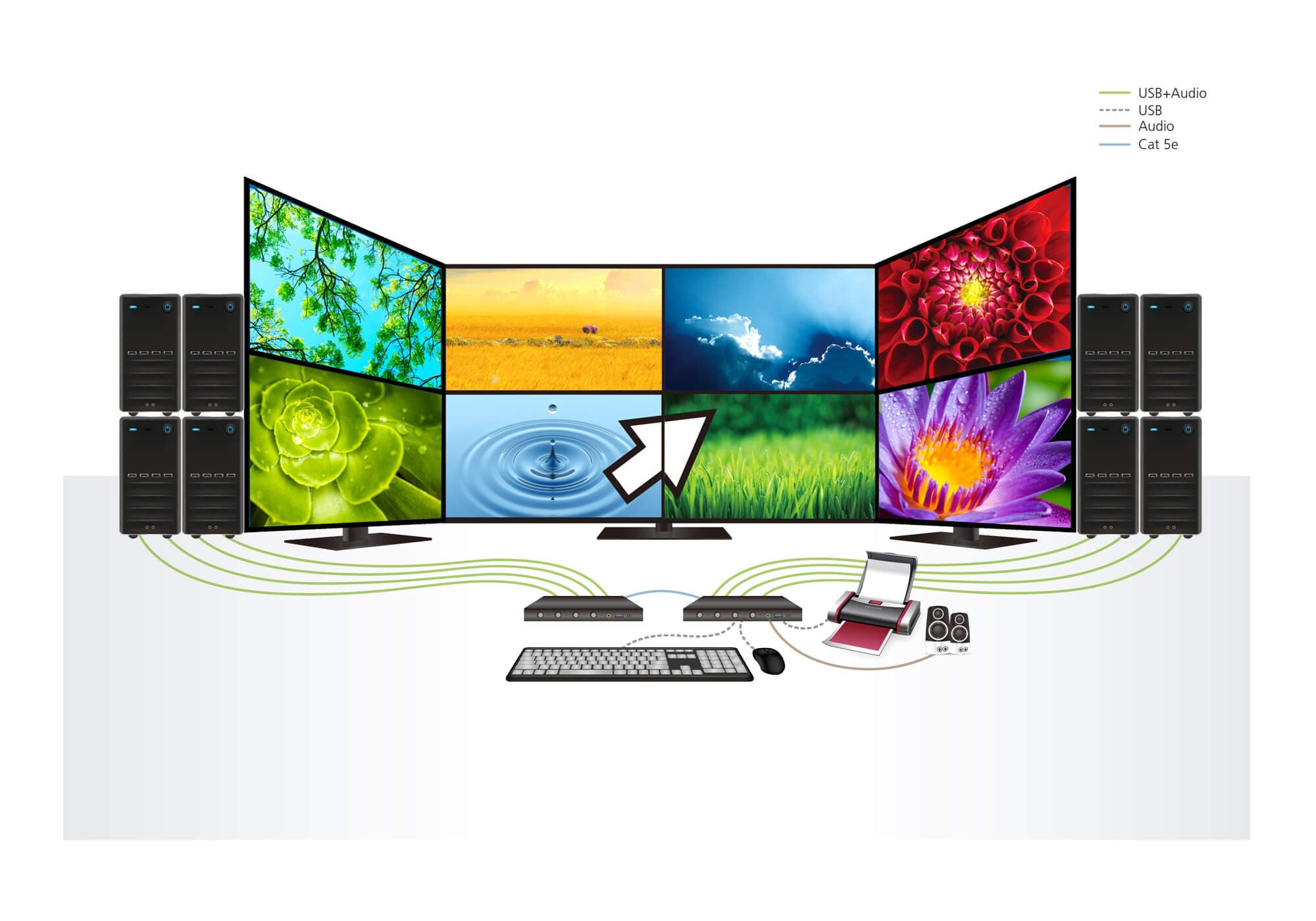

Extended Desktops Boundless Switching up to 16 monitors3
Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel4, and RS-232 commands
Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
Supports RS-232 serial commands
Supports Windows and Linux operating systems5
No software required6
Bus-powered – no external power adapter required7 Note: 1. The utility can be installed on a separate management PC or under the CS724KM. 2. It is required to upgrade the CS724KM firmware and Driver AP software for Boundless Switching Focus to work. Please refer to the user manual for software and firmware versions. 3. It is required to upgrade the CS724KM firmware, the Boundless Switching Configuration Utility, and the Driver AP software. Please refer to the user manual for software and firmware versions. 4. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. 5. It is required to upgrade CS724KM firmware and the Driver AP software to work on a Linux operating system. Please refer to the user manual for software and firmware versions. 6. It is required to download and install the Driver AP software on the connected computers for extended desktops boundless switching to work. 7. The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to at least two computers to get sufficient power supply.

Спецификация

Връзки към компютри: 4
Избор на порт: Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands

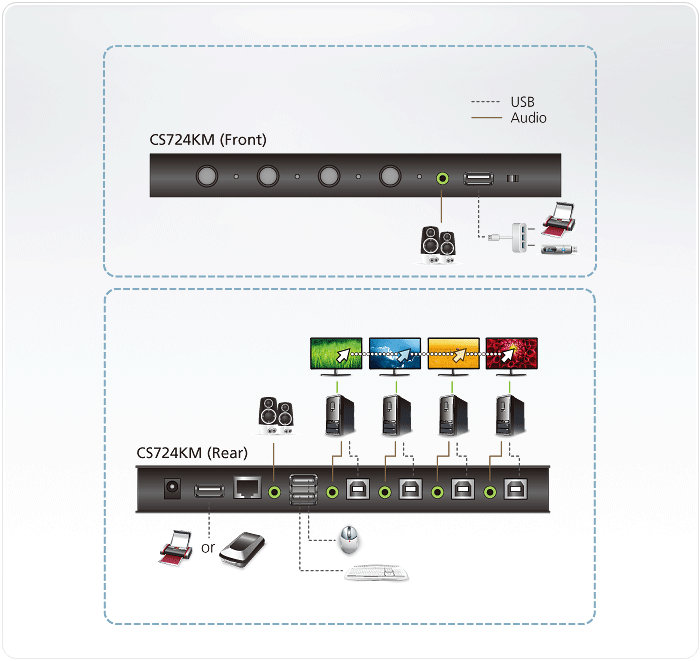

Конектори

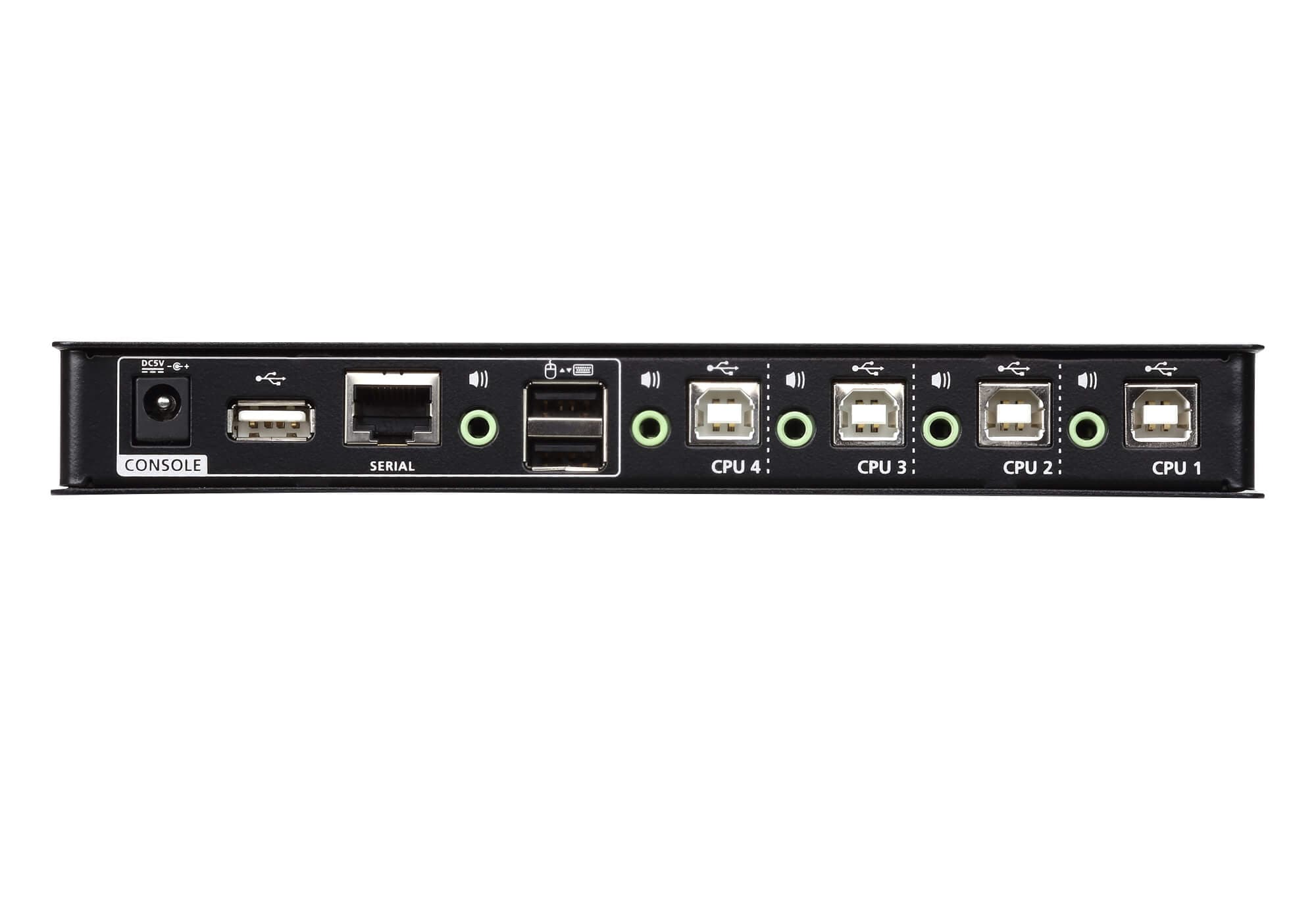

Конзолни портове: 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 1 x RJ-45
KVM портове (компютри): 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green)
Захранване: 1 x DC Jack
USB хъб: 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)

Бутони и превключватели

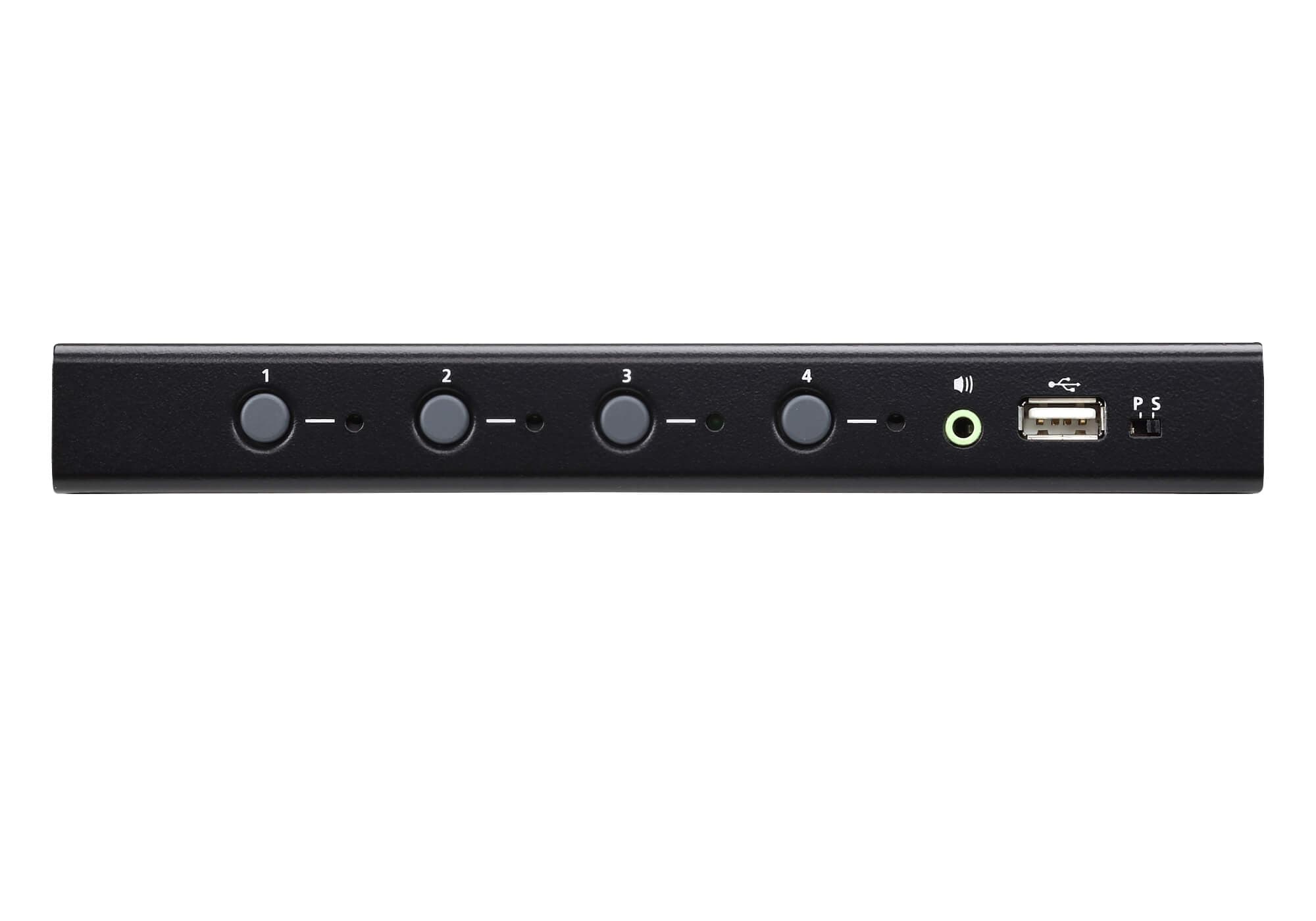

Избор на порт: 4 x Pushbutton
Избор на станция: 1 x Slide Switch

Индикатори

Избран: 4 (Green)

Емулация

Клавиатура / мишка: USB
Консумация: DC5V:1.69W:33BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-50°C
Температура на съхранение: -20-60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal, Plastic
Тегло: 0.50 kg ( 1.1 lb )
Размери (Д x Ш x В): 20.00 x 8.06 x 2.50 cm (7.87 x 3.17 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
