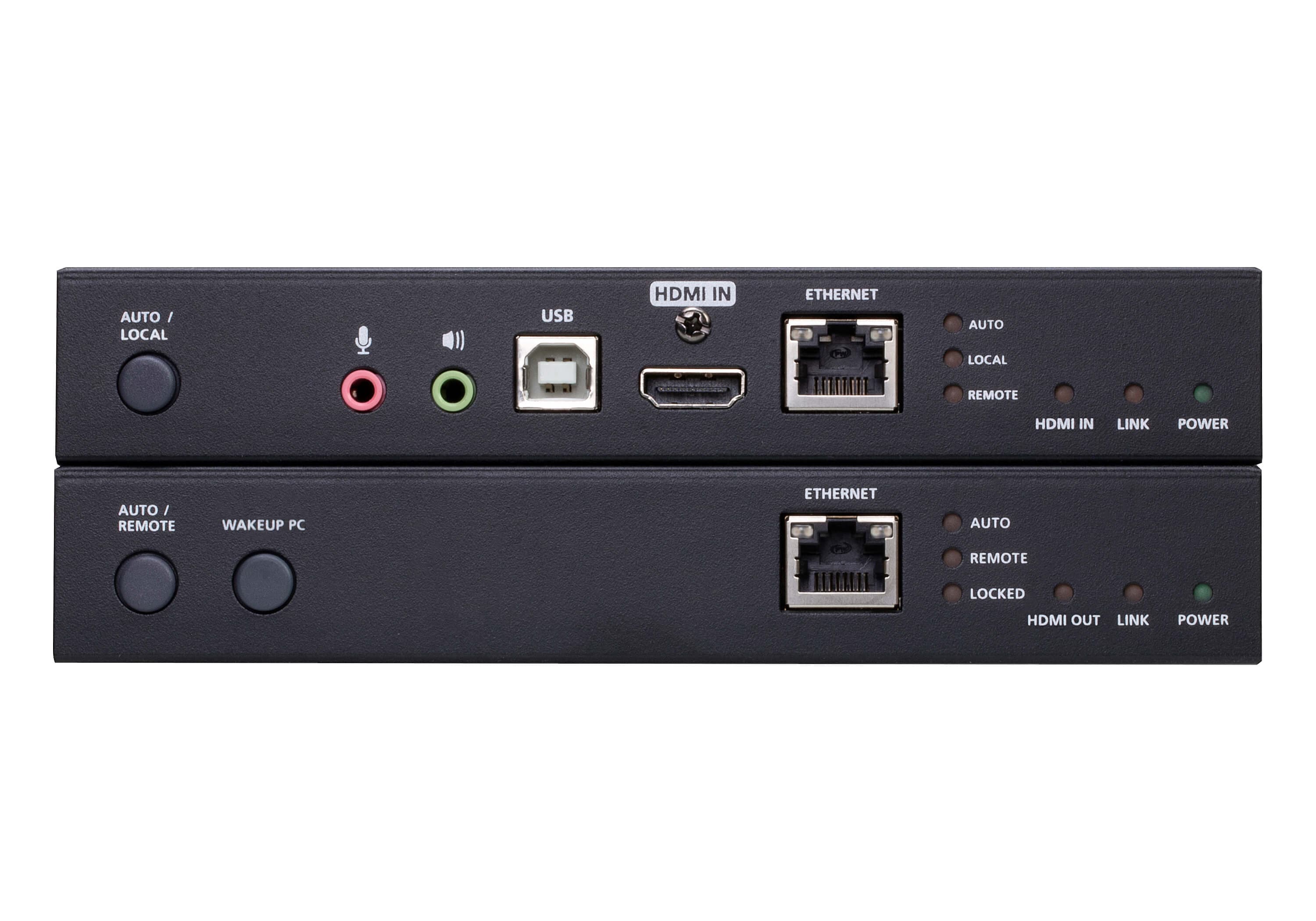

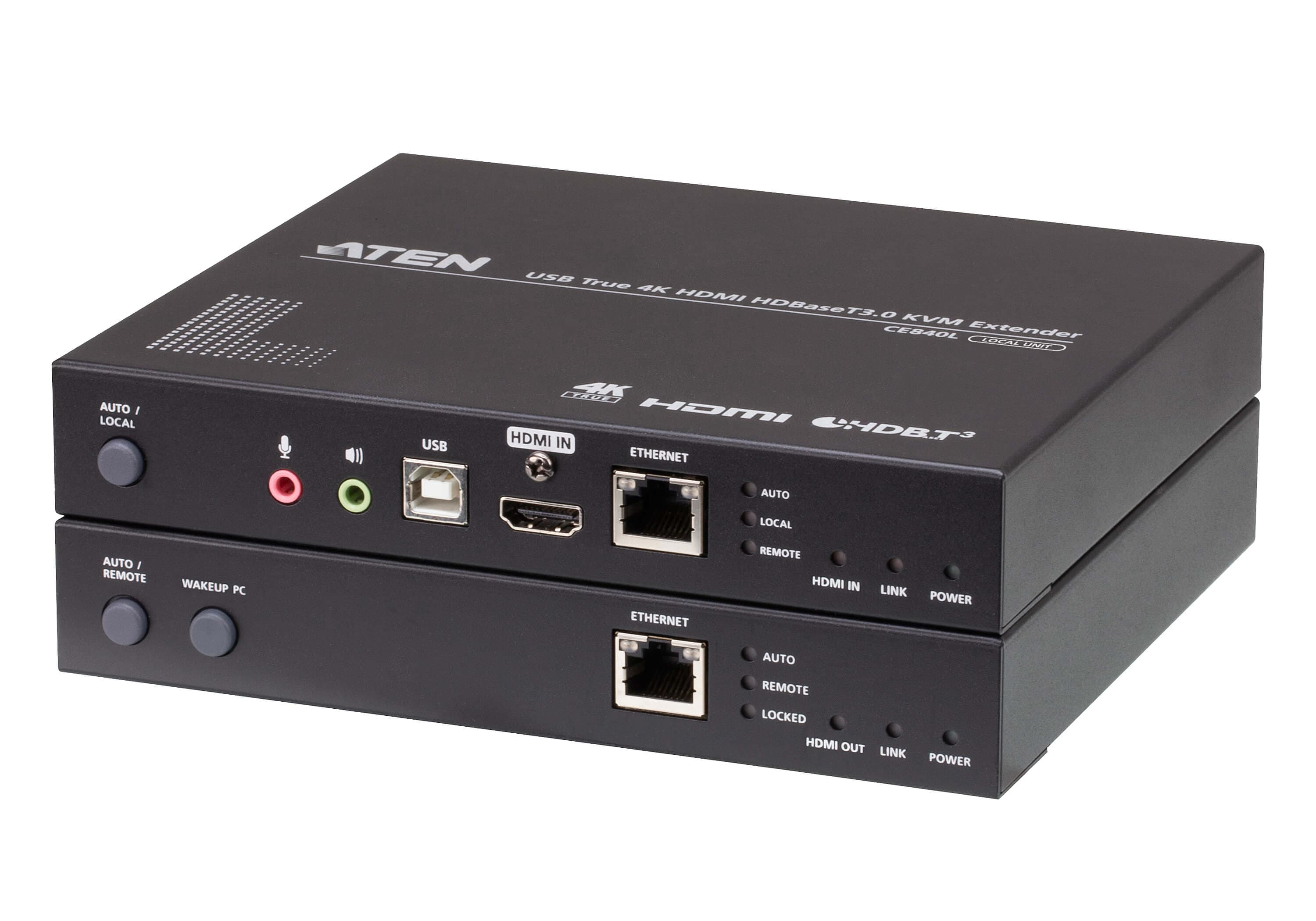

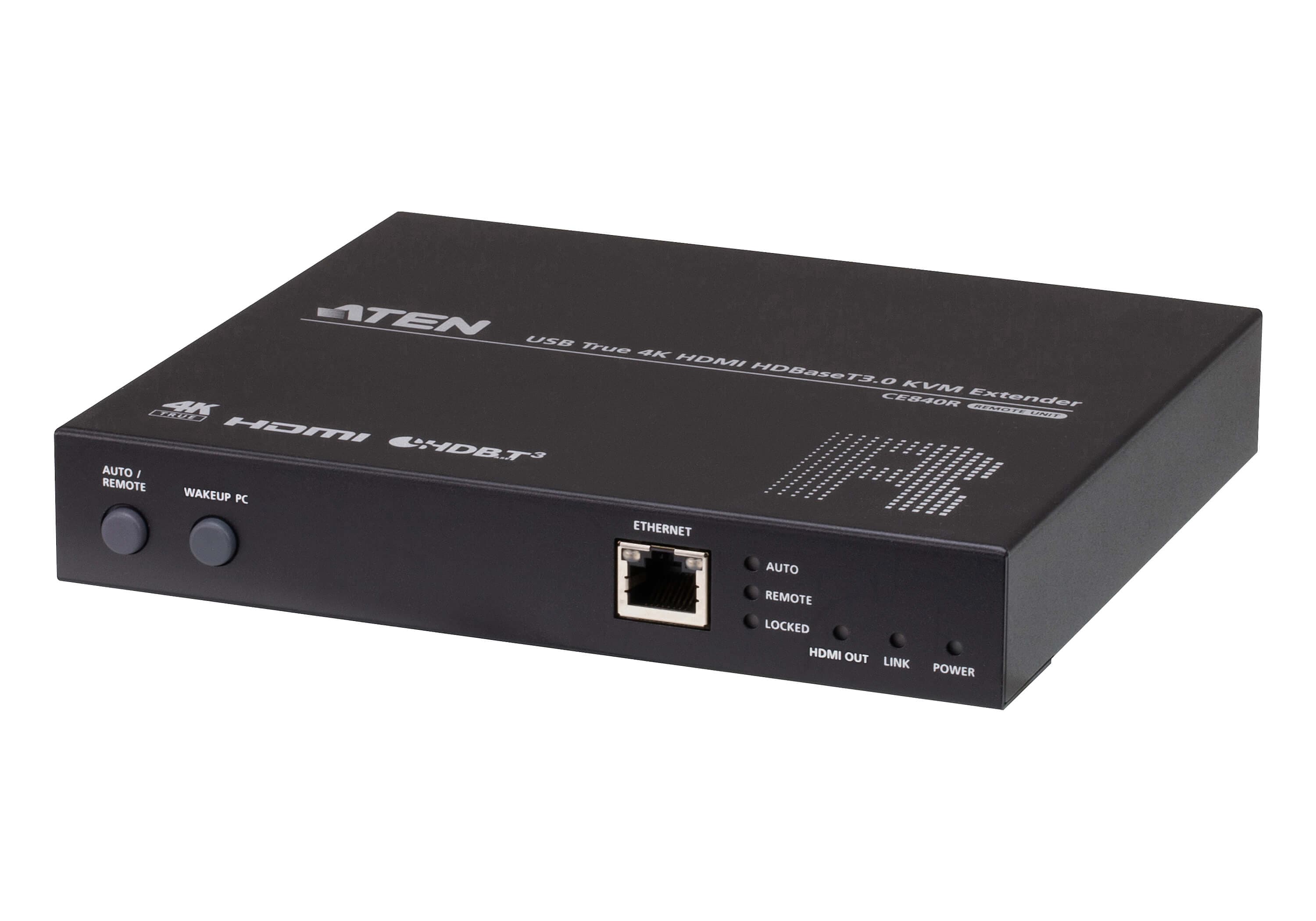

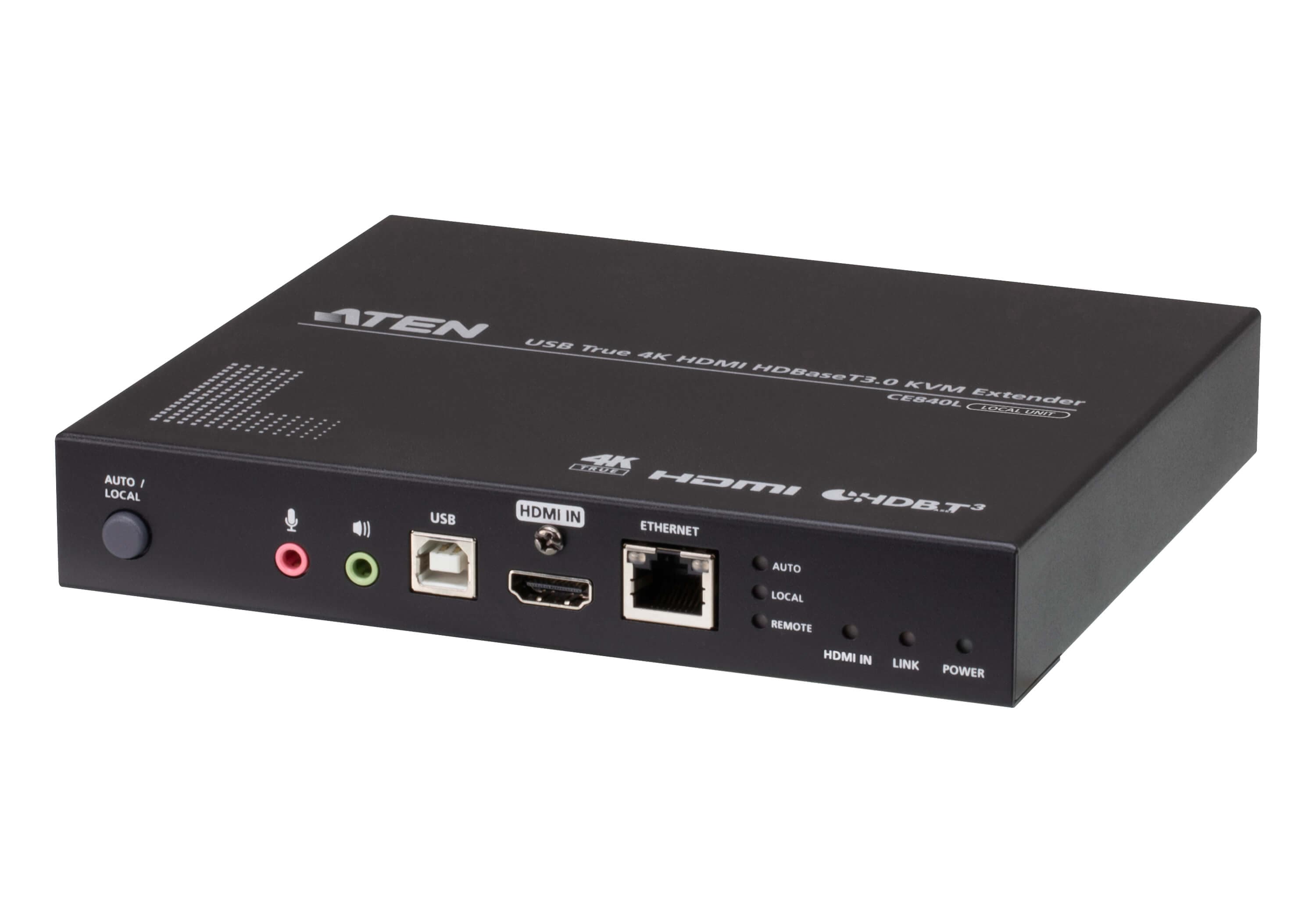

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m)
CE840
KVM удължител с HDBaseT 3.0 — пренася True 4K HDMI, USB, аудио, RS-232 и Ethernet до 100 m по един Cat 6 кабел, а в Long Reach режим 1080p до 150 m. Поддържа HDR10+.
Характеристики
- HDBaseT 3.0 – supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-29330 Cat 6A Cable recommended) or above with no compression and zero latency
- Superior video quality – supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
- HDBaseT™ long reach mode up to 1080P over 150 m*
- Long reach mode switch – switches between HDBaseT™ Standard and long reach modes in a snap*

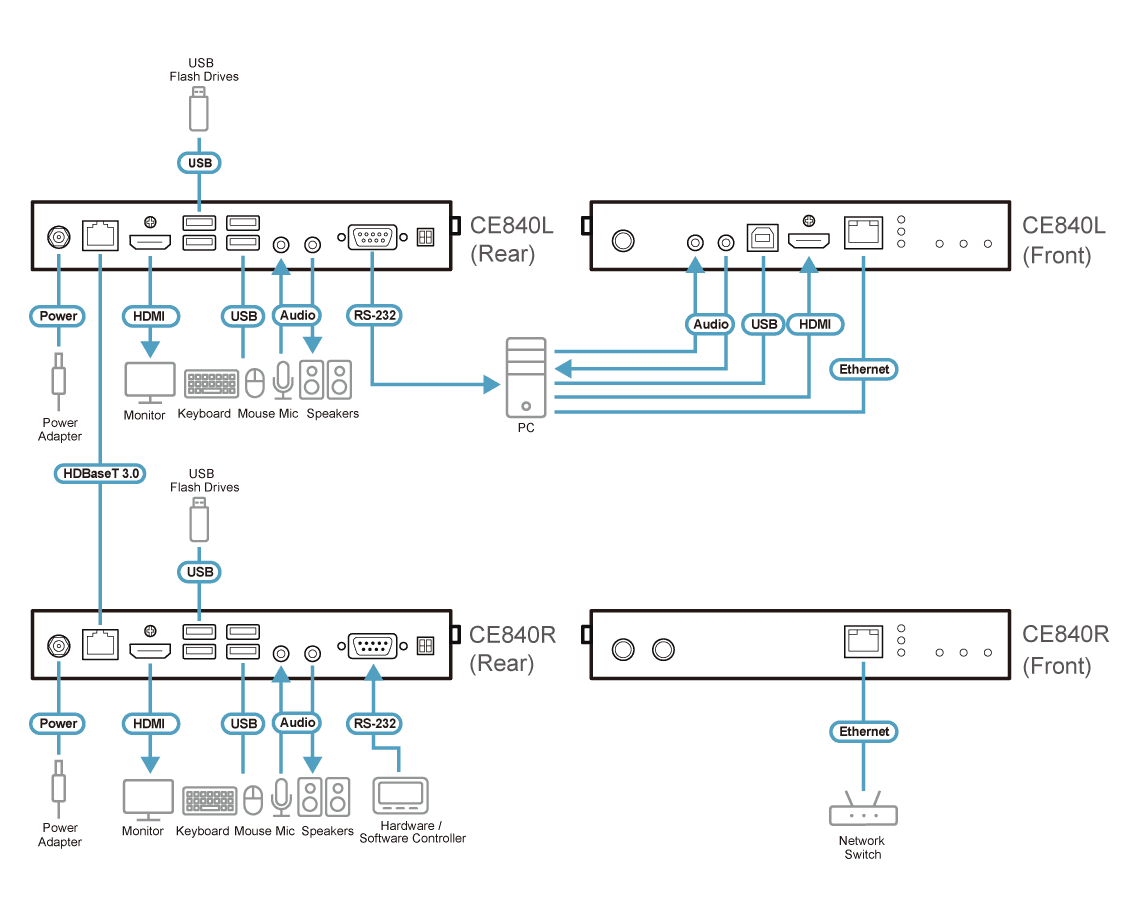

- Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
- Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
- Flexible 4 x USB 2.0 extension – each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
- Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- HDCP2.3 and 2.2 compliant
- Supports widescreen formats
- Built-in 8KV/15KV ESD protection
- Firmware upgradable
- No software or driver installation required
- Rack-mountable Note: 1. The long reach mode is only supported by CE840 using firmware version v1.0.064m or later. 2. When the long reach mode switch is switched and turned on, the CE840 will reboot itself to activate the long reach mode.

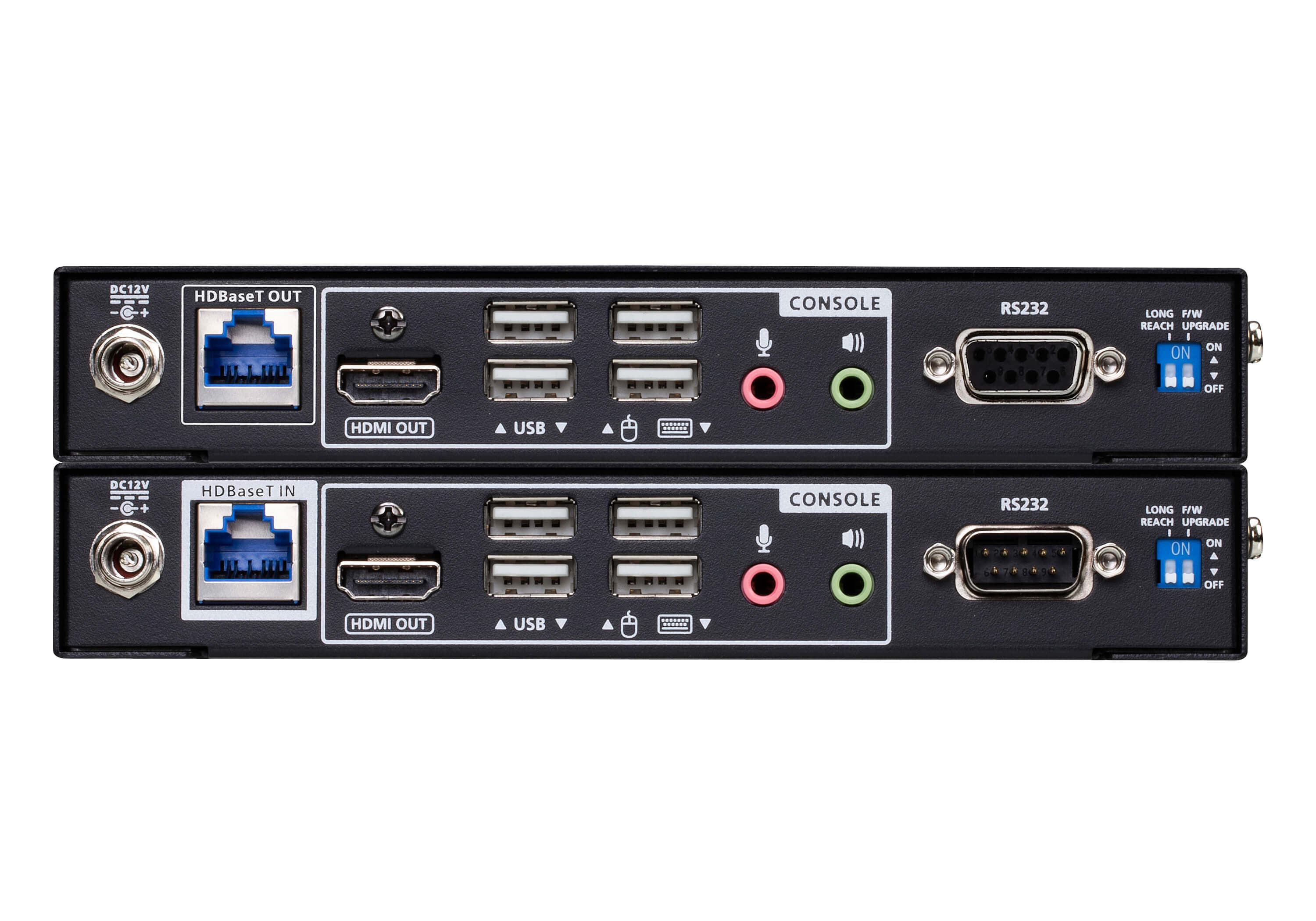

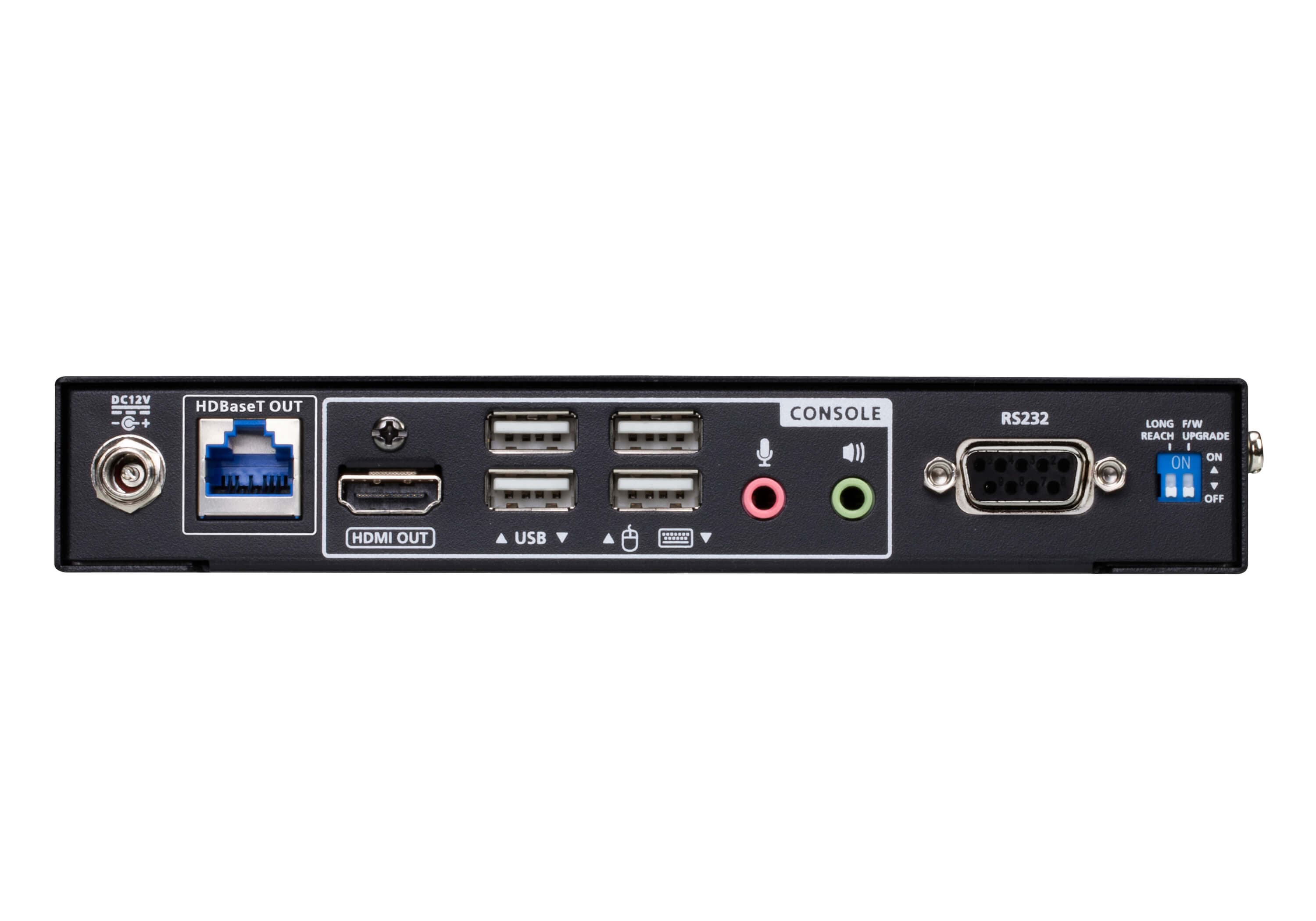

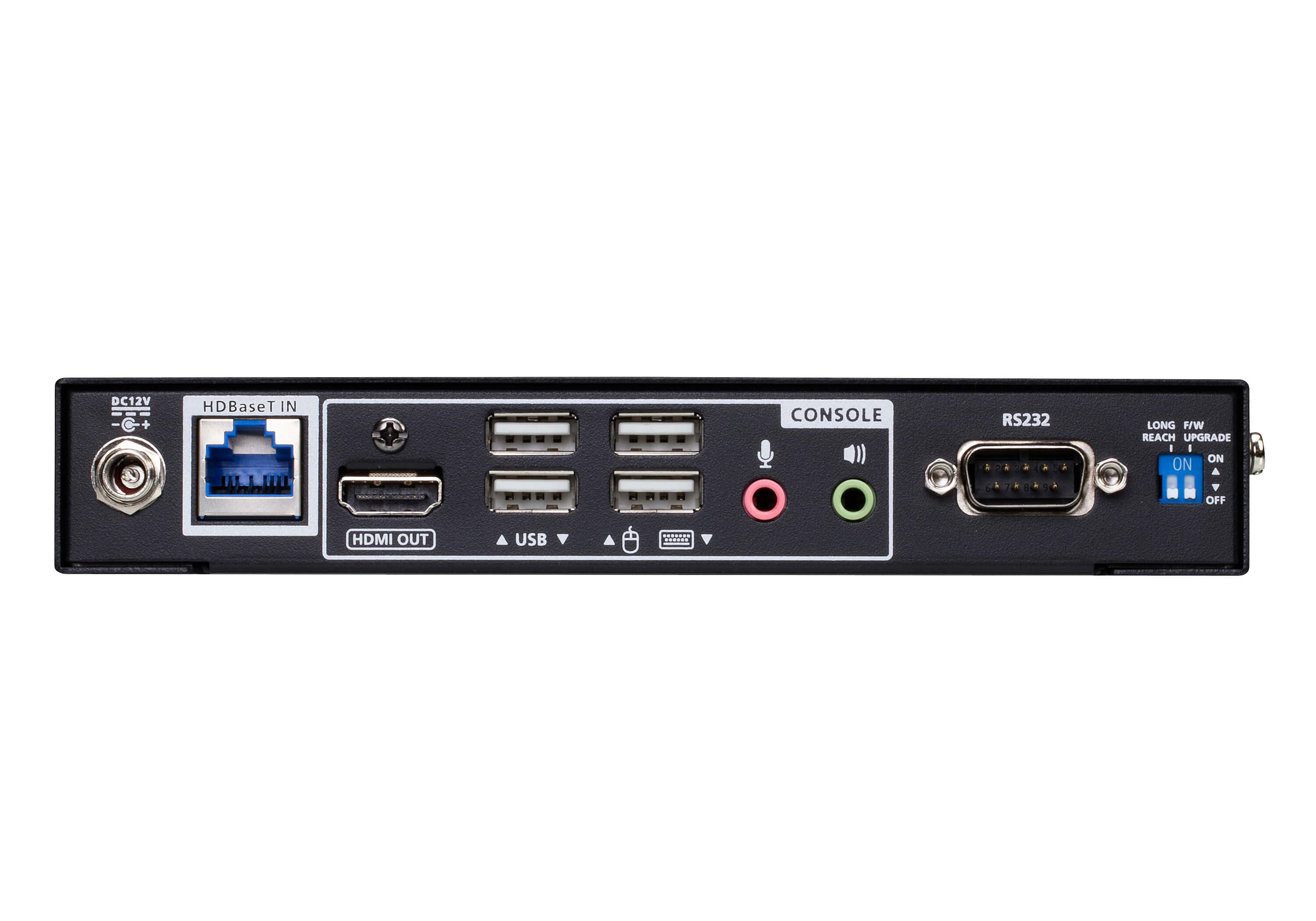

Конектори
- Конзолни портове
- 1 x HDMI (Female, Black) 4 x USB Type A (Female, White) * 1 x Mini Stereo Jack (Female, Green) 1 x Mini Stereo Jack (Female, Pink) * 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match
- Конзолни портове
- 1 x HDMI (Female, Black) 4 x USB Type A (Female, White) * 1 x Mini Stereo Jack (Female, Green) 1 x Mini Stereo Jack (Female, Pink) 1 x GbE (RJ-45 Female, Black) * 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match
- KVM портове
- 1 x HDMI (Female, Black) 1 x USB Type B (Female, White) 1 x Mini Stereo Jack (Female, Green) 1 x Mini Stereo Jack (Female, Pink) 1 x GbE (RJ-45 Female, Black)
- KVM портове
- N/A
- RS-232
- 1 x DB-9 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack (Black)
- Захранване
- 1 x DC Jack (Black)
- Между устройства
- 1 x RJ-45 Female (Black, HDBaseT)
- Между устройства
- 1 x RJ-45 Female (Black, HDBaseT)
Видео
- Макс. скорост на данните
- 18Gbps (6Gbps per lane)
- Макс. скорост на данните
- 18Gbps (6Gbps per lane)
- Макс. пикселна честота
- 600 MHz
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI (Deep Color, 4K/60Hz); 4K HDR+ HDCP2.3 Compatible Consumer Electronics Control (CEC)* *The CEC signals are only bypassed from the Local unit to the remote unit and do not support local HDMI console output.
- Съответствие
- HDMI (Deep Color, 4K/60Hz); 4K HDR+ HDCP2.3 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- 4096 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
- Макс. резолюция
- 4096 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
- Макс. резолюция / разстояние
- 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT 3.0 Certified Cat 6a U/FTP cable or above / ATEN 2L-29330 Cat 6a cable)
- Макс. резолюция / разстояние
- 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT 3.0 Certified Cat 6a U/FTP cable or above / ATEN 2L-29330 Cat 6a cable)
Индикатори
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)
- Връзка
- 1 (Orange)
- Връзка
- 1 (Orange)
- Видео
- 1 x HDMI IN (Orange)
- Видео
- 1 x HDMI OUT (Orange)
- Състояние на конзолата
- 3 x Local USB Keyboard/Mouse Authority Indicator (Green)
- Състояние на конзолата
- 3 x Remote USB Keyboard/Mouse Authority Indicator (Green)
Бутони и превключватели
- Превключвател Long Reach
- 1 x Slide Switch
- Превключвател Long Reach
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
Бутони
- Бутон за събуждане
- N/A
- Бутон за събуждане
- 1 x Pushbutton
- Избор на работен режим
- 1 x Local USB Keyboard/Mouse Authority switch
- Избор на работен режим
- 1 x Remote USB Keyboard/Mouse Authority switch
- Консумация
- DC12V:7.36W:60BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC12V:7.37W:60BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40˚C
- Работна температура
- 0-40˚C
- Температура на съхранение
- -20-60˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.82 kg ( 1.81 lb )
- Тегло
- 0.81 kg ( 1.78 lb )
- Размери (Д x Ш x В)
- 17.82 x 15.60 x 2.88 cm (7.02 x 6.14 x 1.13 in.)
- Размери (Д x Ш x В)
- 17.82 x 15.60 x 2.88 cm (7.02 x 6.14 x 1.13 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Входни резолюции
- 640 x 480 @ 60/67/72/75 Hz
- Входни резолюции
- 720p 60 Hz
- 800 x 600 @ 56/60/72/75 Hz
- 1080i 60 Hz
- 1024 x 768 @ 60/70/75 Hz
- 640 x 480 60Hz (4:3)
- 1280 x 800 @ 60 Hz
- 576p 50 Hz (4:3)/(16:9)
- 1280 x 1024 @ 60/75 Hz
- 720p 50 Hz
- 1400 x 1050 @ 60 Hz
- 1080i 50 Hz
- 1440 x 900 @ 60 Hz
- 1080p 24/25/30/50 Hz
- 1600 x 1200 @ 60 Hz
- 3840 x 2160p 24/25/30/50/60 Hz
- 1680 x 1050 @ 60 Hz
- 4096 x 2160p 24/25/30/50/60 Hz
- 1920 x 1080 @ 60/120 Hz
- 3840 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
- 1920 x 1200 @ 60 Hz
- 4096 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
- 1920 x 1200 @ 60 Hz (Reduced Blanking)
- 1920 x 1080 @ 144 Hz
- 1080p 60 Hz
- 2560 x 1440 @ 144 Hz
- 480p 60 Hz (4:3) / (16:9)
