USB DVI HDBaseT™ 2.0 KVM Extender (Long Reach mode up to 1920 x 1080@150 m)
CE620
Пренася DVI, USB, аудио и RS-232 по един Ethernet кабел чрез HDBaseT 2.0 — 1920 x 1200 до 100 m в стандартен режим и 1920 x 1080 до 150 m в режим Long Reach.
Характеристики
- HDBaseT™ 2.0 connectivity technology • Extends video, audio, USB and RS-232 signals via a single Ethernet cable • EDID Buffer for smooth power-up and the highest quality display • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Long distance superior video quality • HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m • HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
- Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
- 3 USB 2.0 ports for keyboard/mouse and peripherals
- Supports 2-channel PCM digital audio — ensuring highquality audio transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV) Note: The CE620 does not support HDCP.

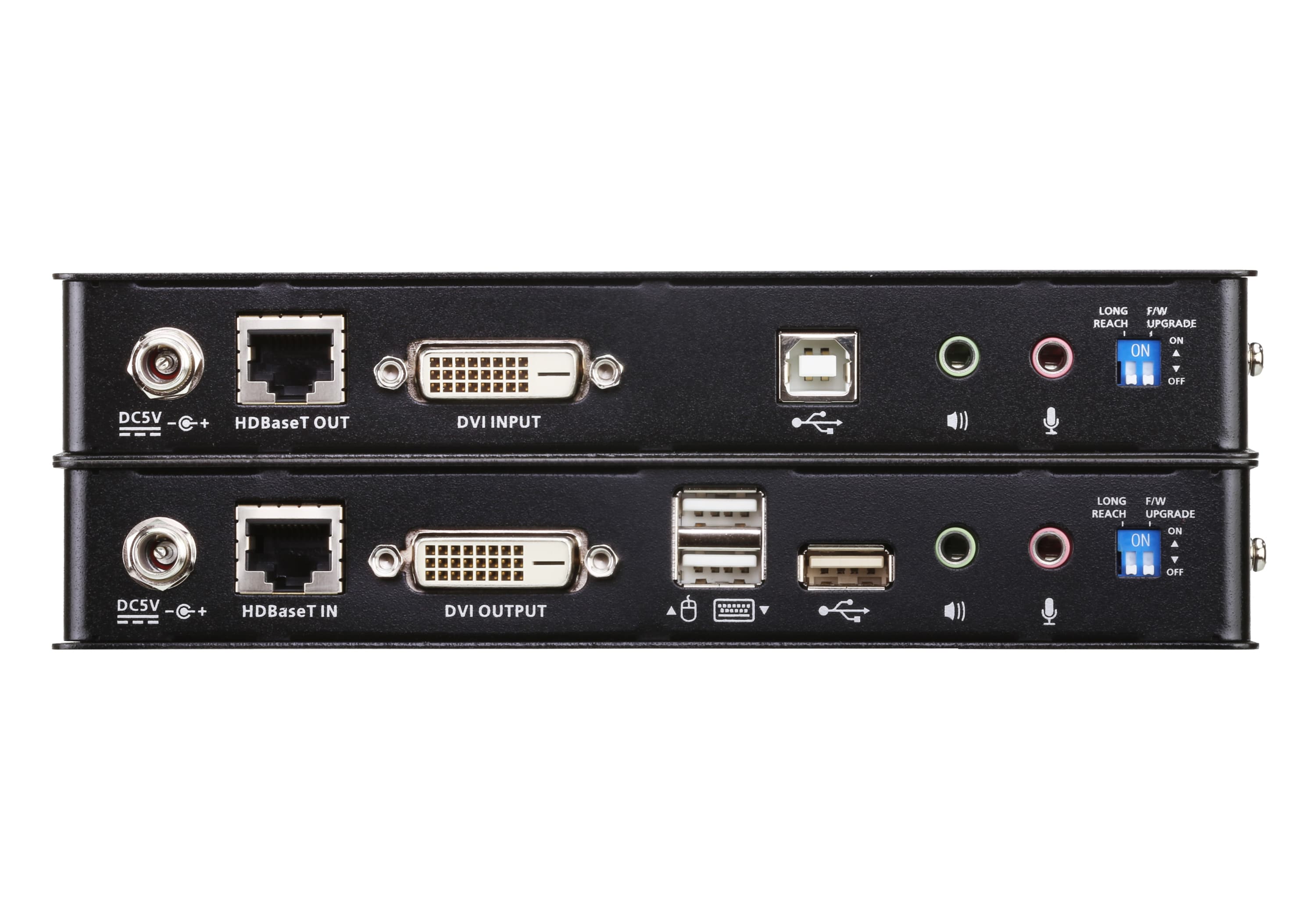

Конектори
- KVM портове
- 1 x DVI-D Female (White) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- N/A
- Конзолни портове
- N/A
- Конзолни портове
- 1 x DVI-D Female (White) 3 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- RS-232
- 1 x DB-9 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack with locking
- Захранване
- 1 x DC Jack with locking
- Между устройства
- 1 x RJ-45 Female (Black)
- Между устройства
- 1 x RJ-45 Female (Black)

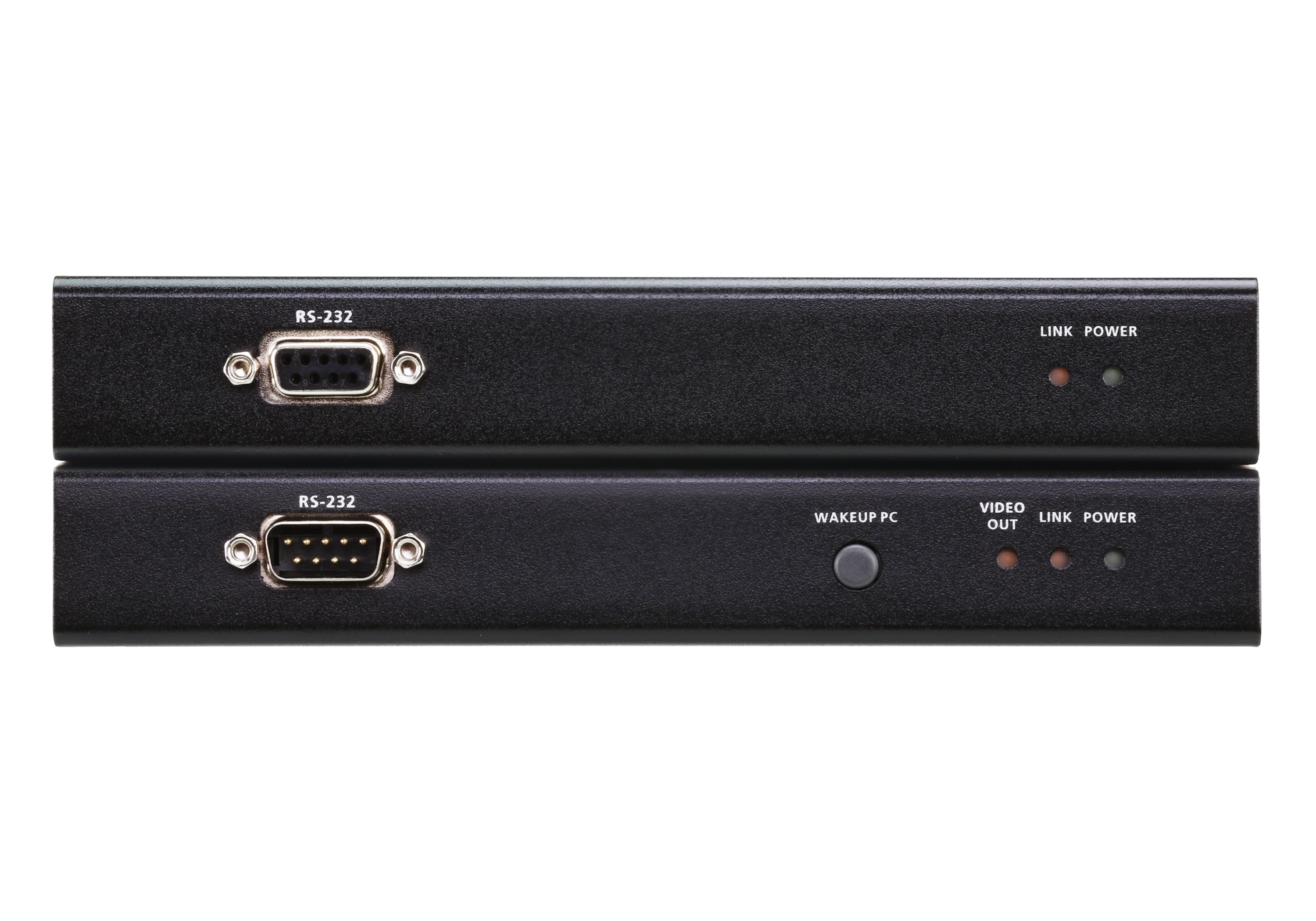

Индикатори
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)
- Връзка
- 1 (Orange)
- Връзка
- 1 (Orange)
- Видео изход
- N/A
- Видео изход
- 1 (Orange)
Бутони и превключватели
- Превключвател Long Reach
- 1 x Slide Switch
- Превключвател Long Reach
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
Бутони
- Бутон за събуждане
- N/A
- Бутон за събуждане
- 1 x Push button
- Видео
- Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a) 1920x1080@150m (Long reach mode enable)
- Видео
- Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a) 1920x1080@150m (Long reach mode enable)
- Консумация
- DC5V:2.68W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:5.02W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.63 kg ( 1.39 lb )
- Тегло
- 0.64 kg ( 1.41 lb )
- Размери (Д x Ш x В)
- 18.20 x 12.28 x 2.87 cm (7.17 x 4.83 x 1.13 in.)
- Размери (Д x Ш x В)
- 18.20 x 12.28 x 2.87 cm (7.17 x 4.83 x 1.13 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
