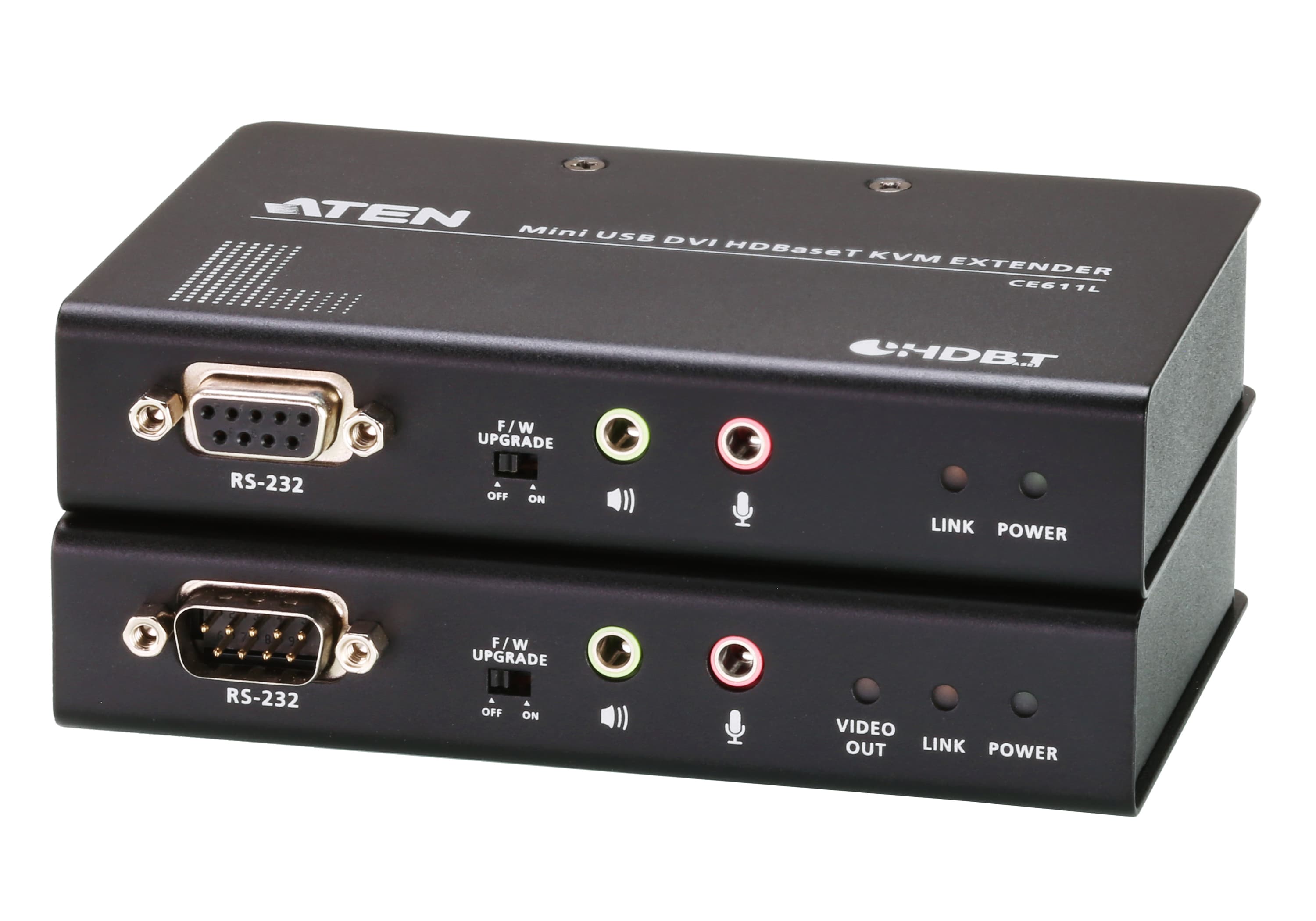

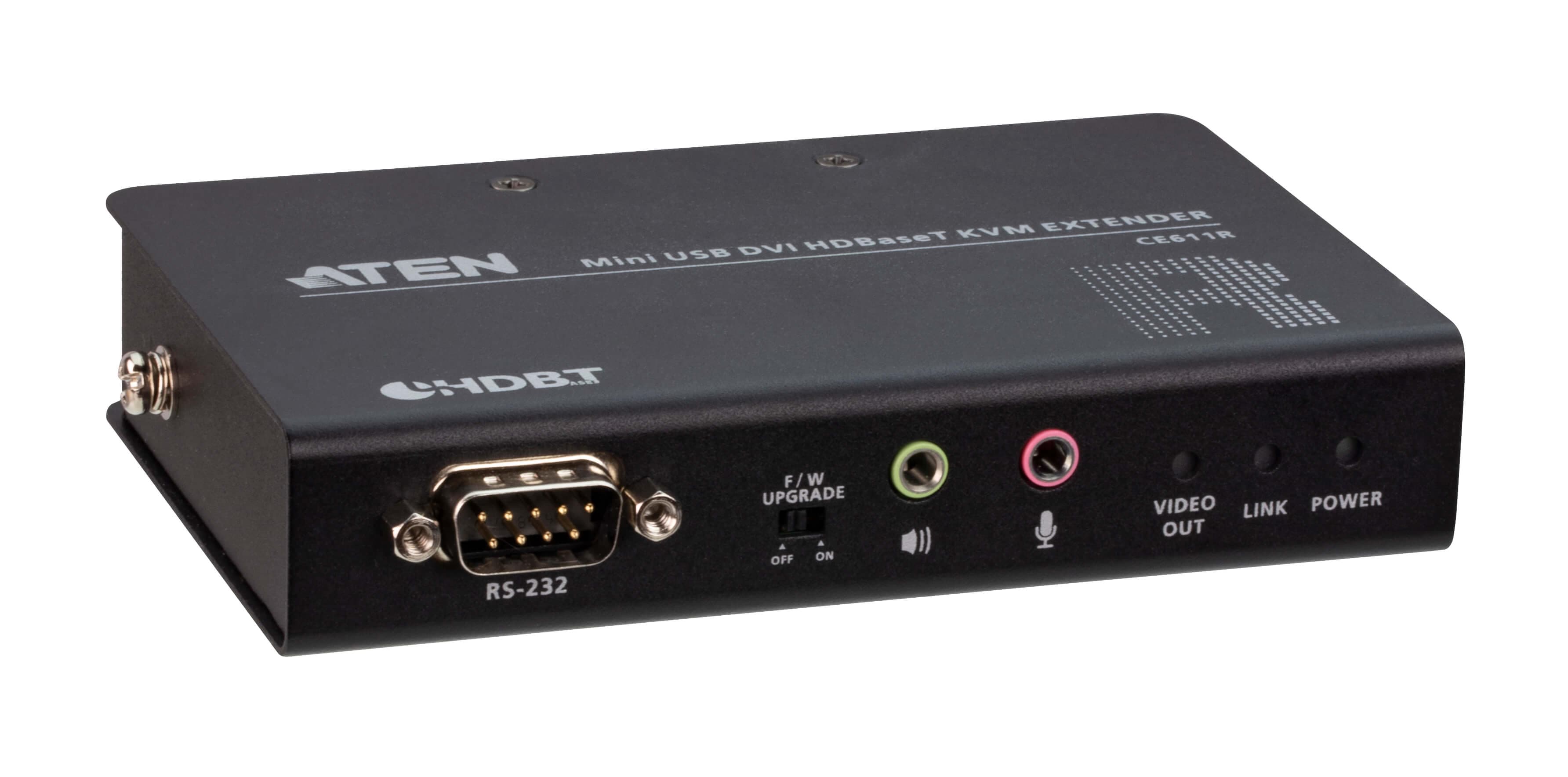

Mini USB DVI HDBaseT™ KVM Extender (1920 x 1200@100m)

Name: Mini USB DVI HDBaseT™ KVM Extender (1920 x 1200@100m)
Brand: ATEN
SKU: CE611

CE611

Компактен KVM удължител, който пренася DVI видео, аудио, USB и RS-232 до 100 m по един Cat 6/6a кабел чрез HDBaseT при резолюция 1920 x 1200.

Характеристики

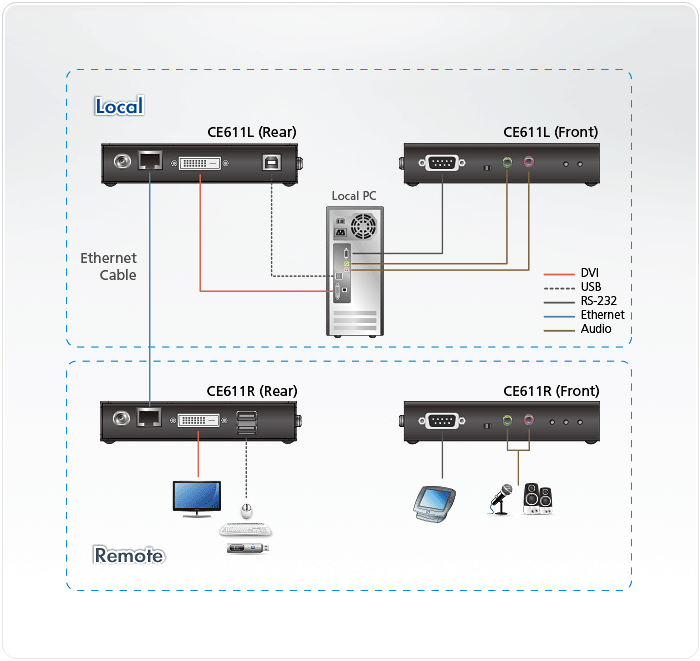

Supports HDBaseT™ technology • Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions • Status detection and LED indication for HDBaseT™ signal transmission
Long distance with superior video quality – up to 1920 x 1200 @ 100m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable)
USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
Supports individual 2-channel stereo audio for high-quality audio applications
Built-in 8KV / 15KV ESD protection (contact voltage 8KV; air voltage 15KV)

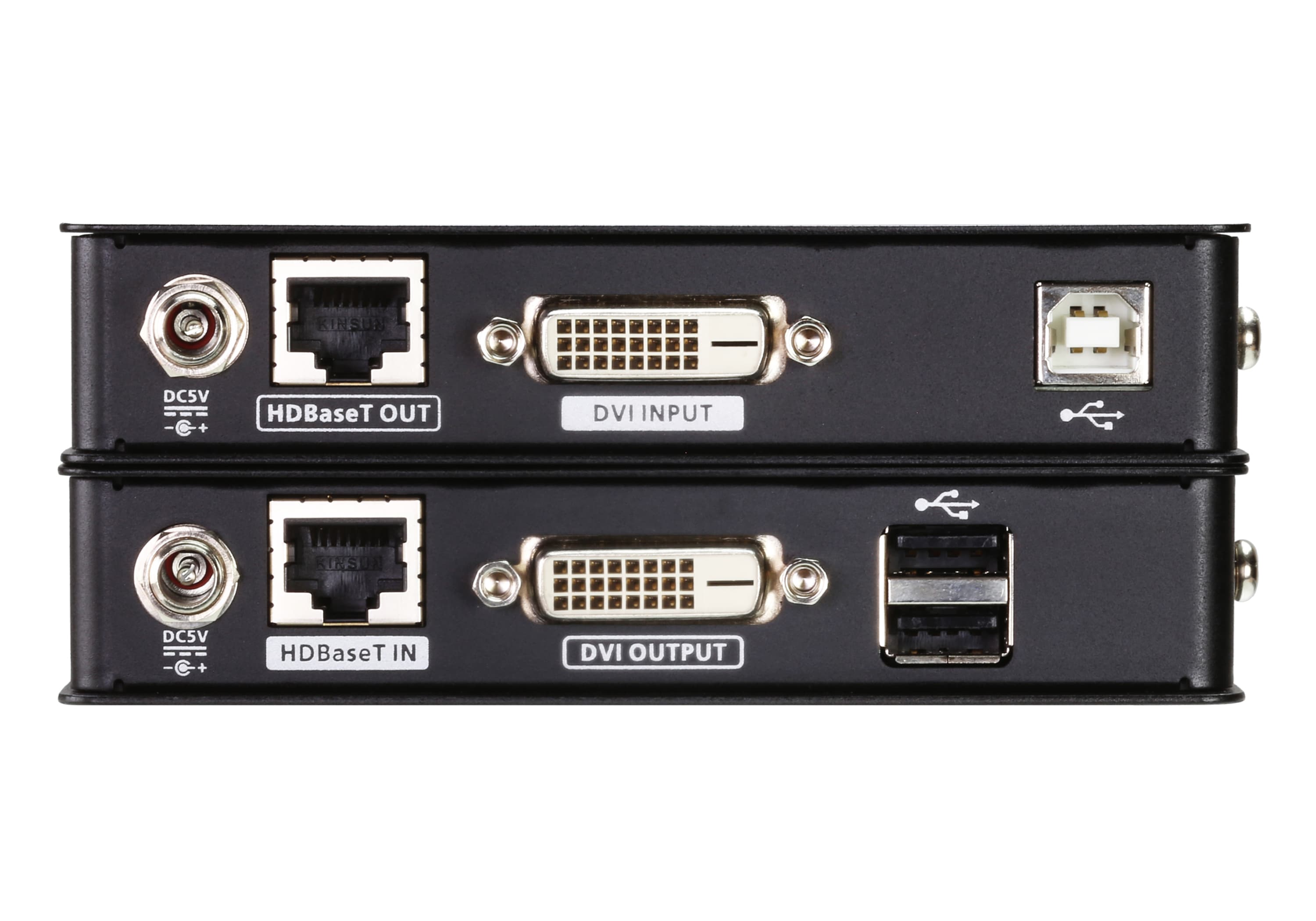

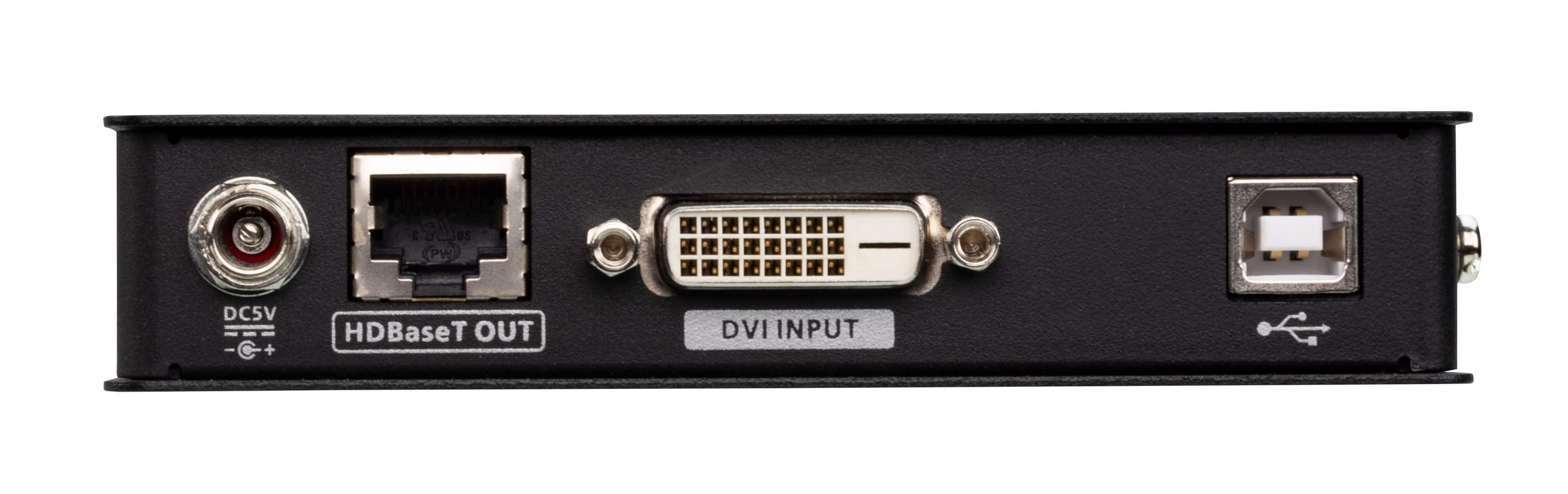

KVM портове: 1 x DVI-D Female (White) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: N/A
Конзолни портове: N/A

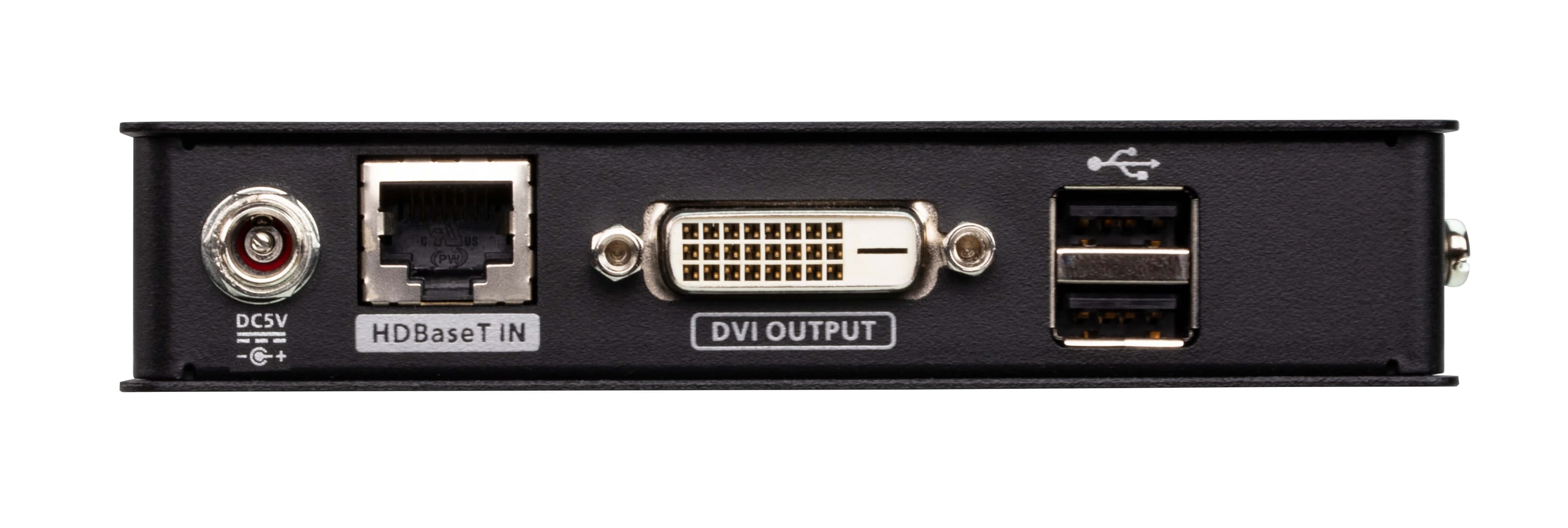

Конзолни портове: 1 x DVI-D Female (White) 2 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)

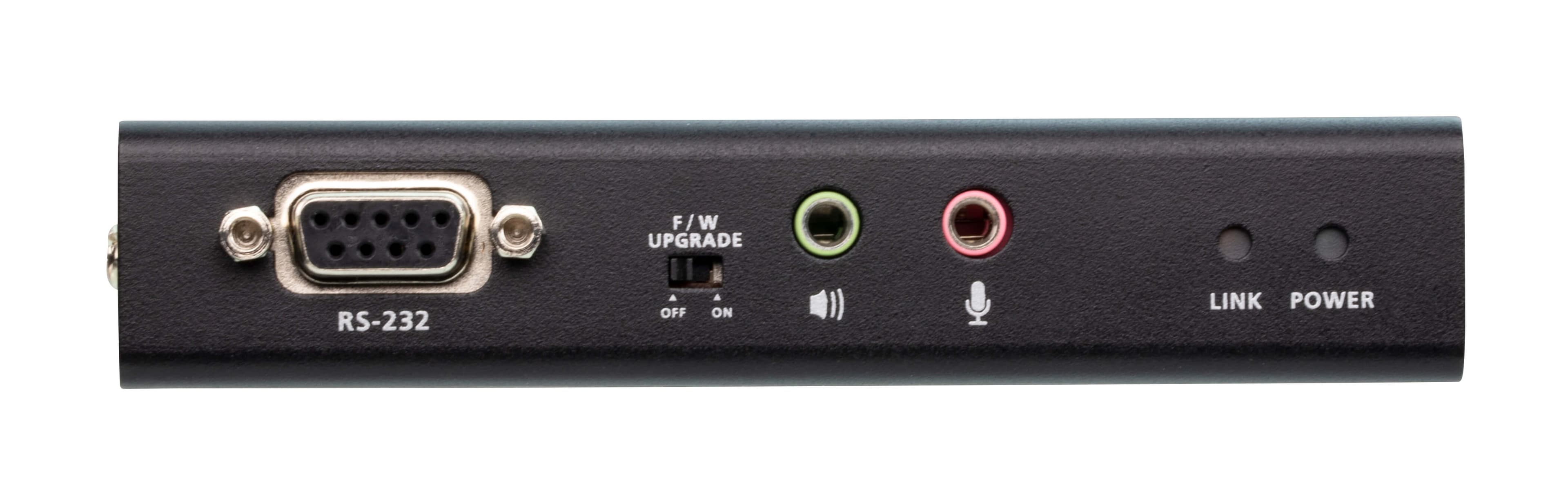

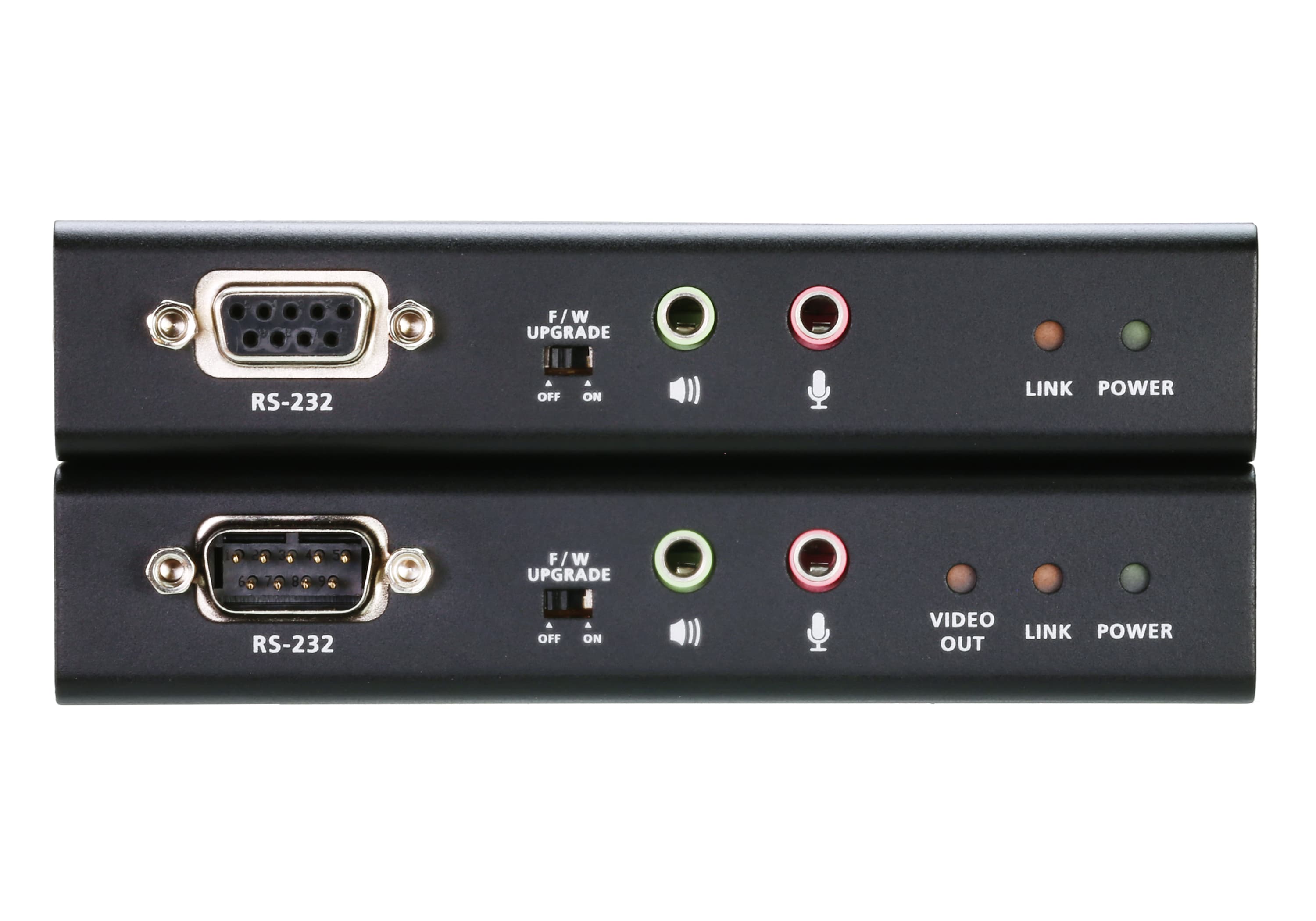

RS-232: 1 x DB-9 Female (Black); Type: DTE

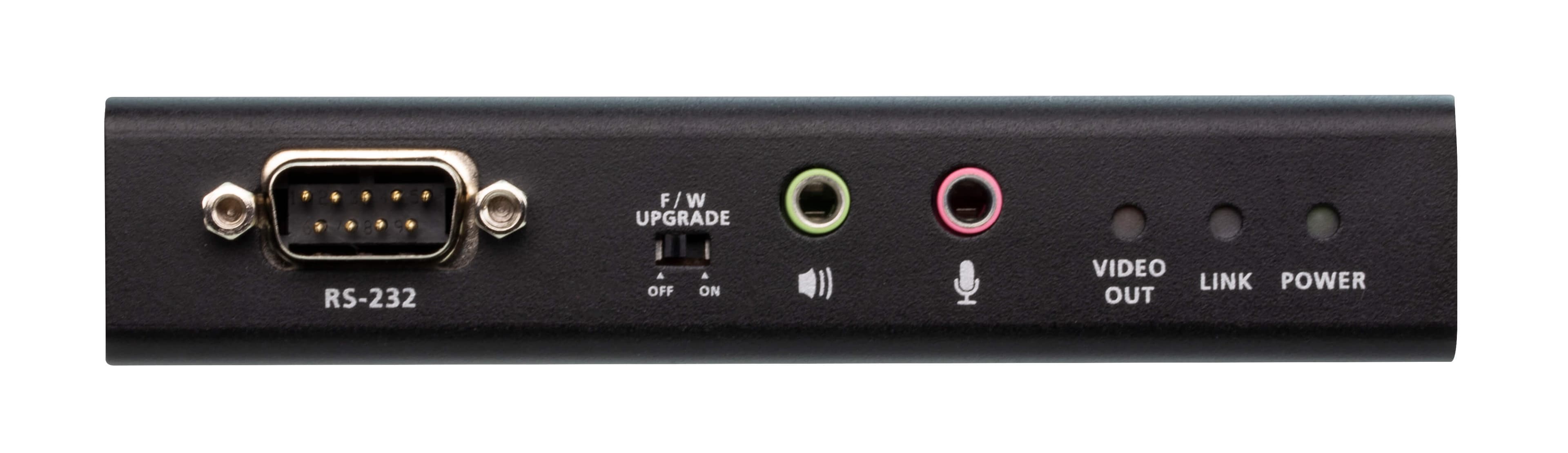

RS-232: 1 x DB-9 Male (Black); Type: DTE
Захранване: 1 x DC Jack with locking
Захранване: 1 x DC Jack with locking
Между устройства: 1 x RJ-45 Female (Black)
Между устройства: 1 x RJ-45 Female (Black)

Обновяване на фърмуера: 1 x Slide Switch
Обновяване на фърмуера: 1 x Slide Switch
Видео: Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1920x1080@100m(Cat 5e/6/6a)
Видео: Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1920x1080@100m(Cat 5e/6/6a)
Консумация: DC5V: 2.494W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V: 4.816W:27BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.35 kg ( 0.77 lb )
Тегло: 0.34 kg ( 0.75 lb )
Размери (Д x Ш x В): 12.80 x 8.69 x 2.50 cm (5.04 x 3.42 x 0.98 in.)
Размери (Д x Ш x В): 12.80 x 8.69 x 2.50 cm (5.04 x 3.42 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
