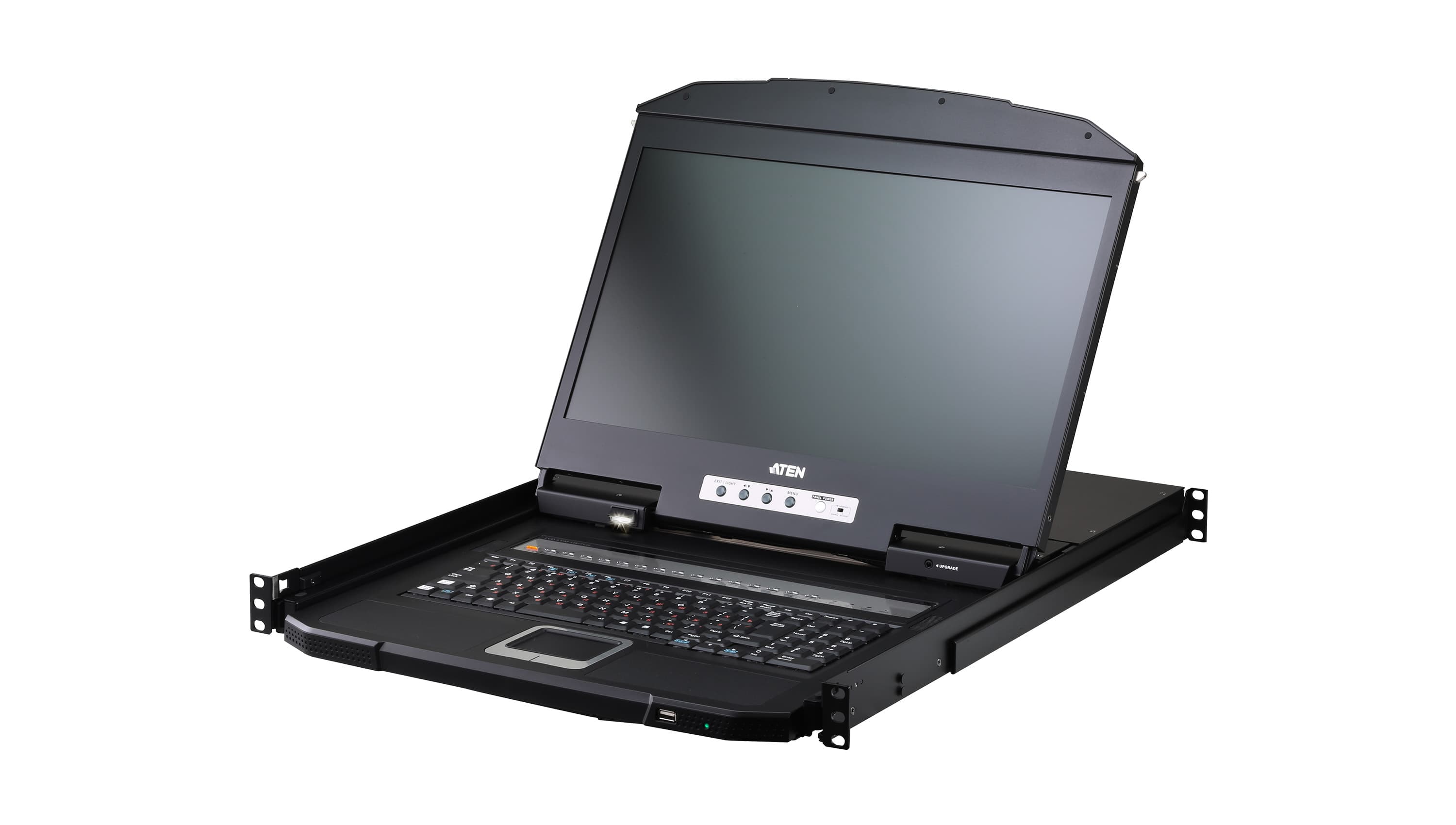

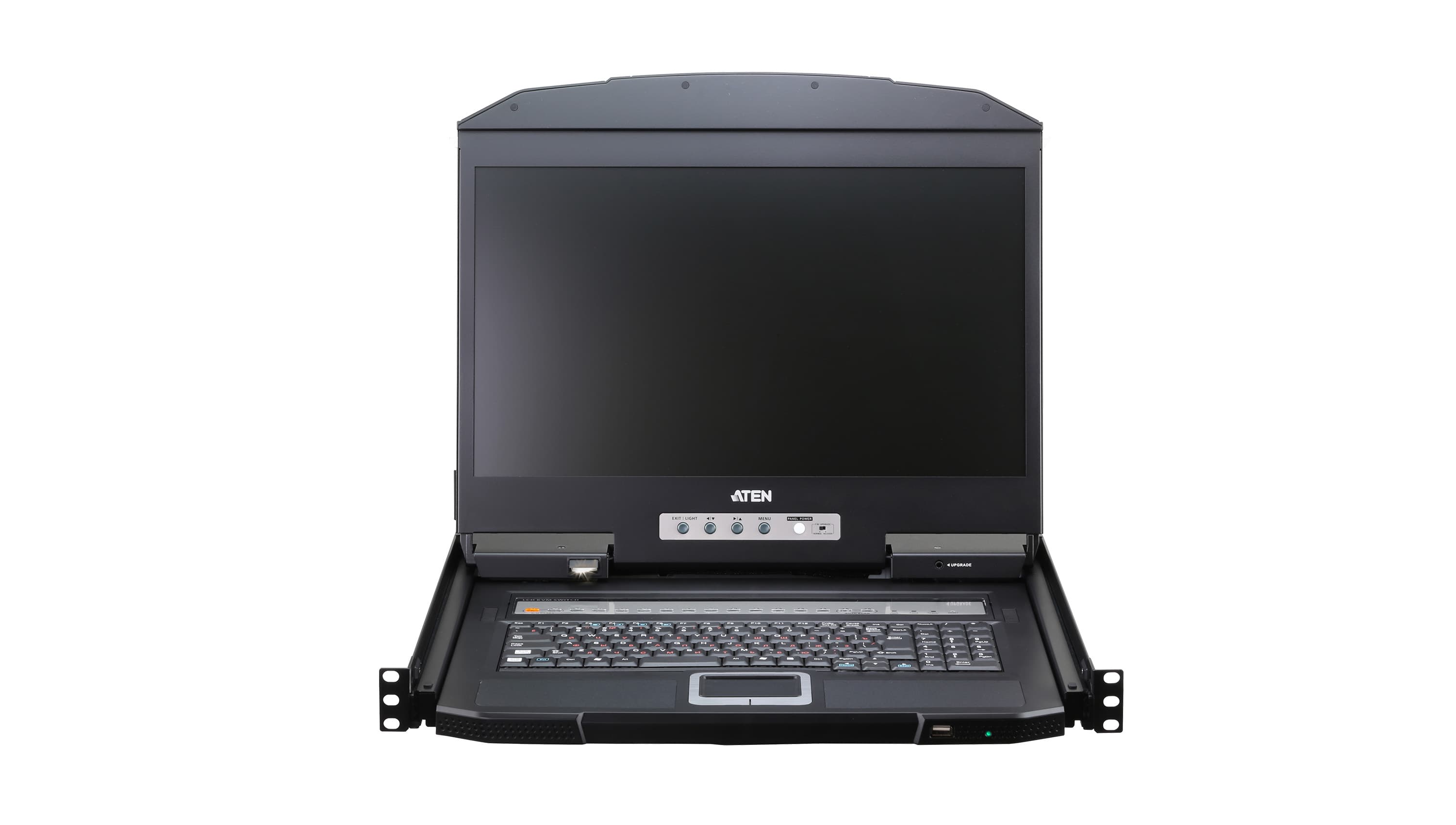

16-Port USB HDMI Single Rail WideScreen LCD KVM Switch
CL3716
LCD KVM превключвател в 1U с 18.5-инчов широкоекранен панел — управлява 16 компютъра през HDMI и USB, до 256 чрез каскадиране, в корпус с една релса.
Характеристики
- Space Utility Optimization
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to enhance usability in dimly lit settings
- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows users to work with your rack-mounting equipment in narrow spaces
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- Reliability and Operational Versatility
- Superior video quality – up to 1920 x 1080 @ 60 Hz (CL3716NW) or 1366 x 768 @ 60 Hz (CL3716NX)
- Cascade up to 2 levels – CL3716 controls up to 256 computers from a single console (With compatible KVM Switches1)
- External console port – connect with a larger, higher-resolution monitor or pair with a KVM extender1 to extend the console to a remote location for increased operational efficiency
- Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
- Two level password security – only authorized users can view and control computers
- Auto Scan mode – enables continuous monitoring of user-selected computers
- Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
- Installation Flexibility
- Standard rack mount kit included
- Optional rack mount kits available including easy installation options2
- No software required
- Firmware upgradable
- Supports hot-plugging Note: 1. Please refer to the Compatible Products section below. 2. Contact your ATEN dealer for product information. More information about "Easy Rack Mounting"...
Връзки към компютри
- Директно
- 16
- Директно
- 16
- Максимум
- 256 (via Cascade)
- Максимум
- 256 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton
- Избор на порт
- OSD, Hotkey, Pushbutton

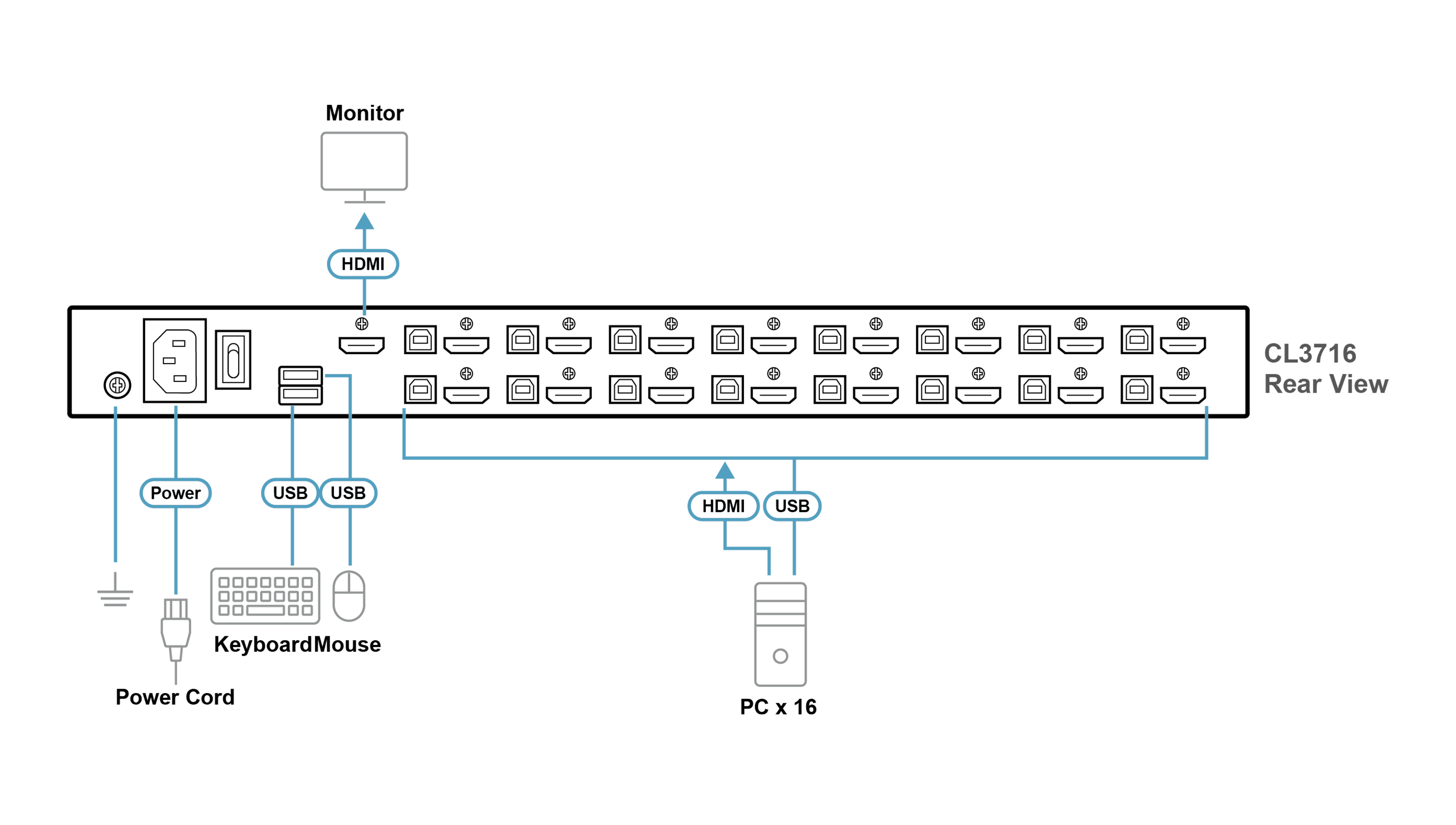

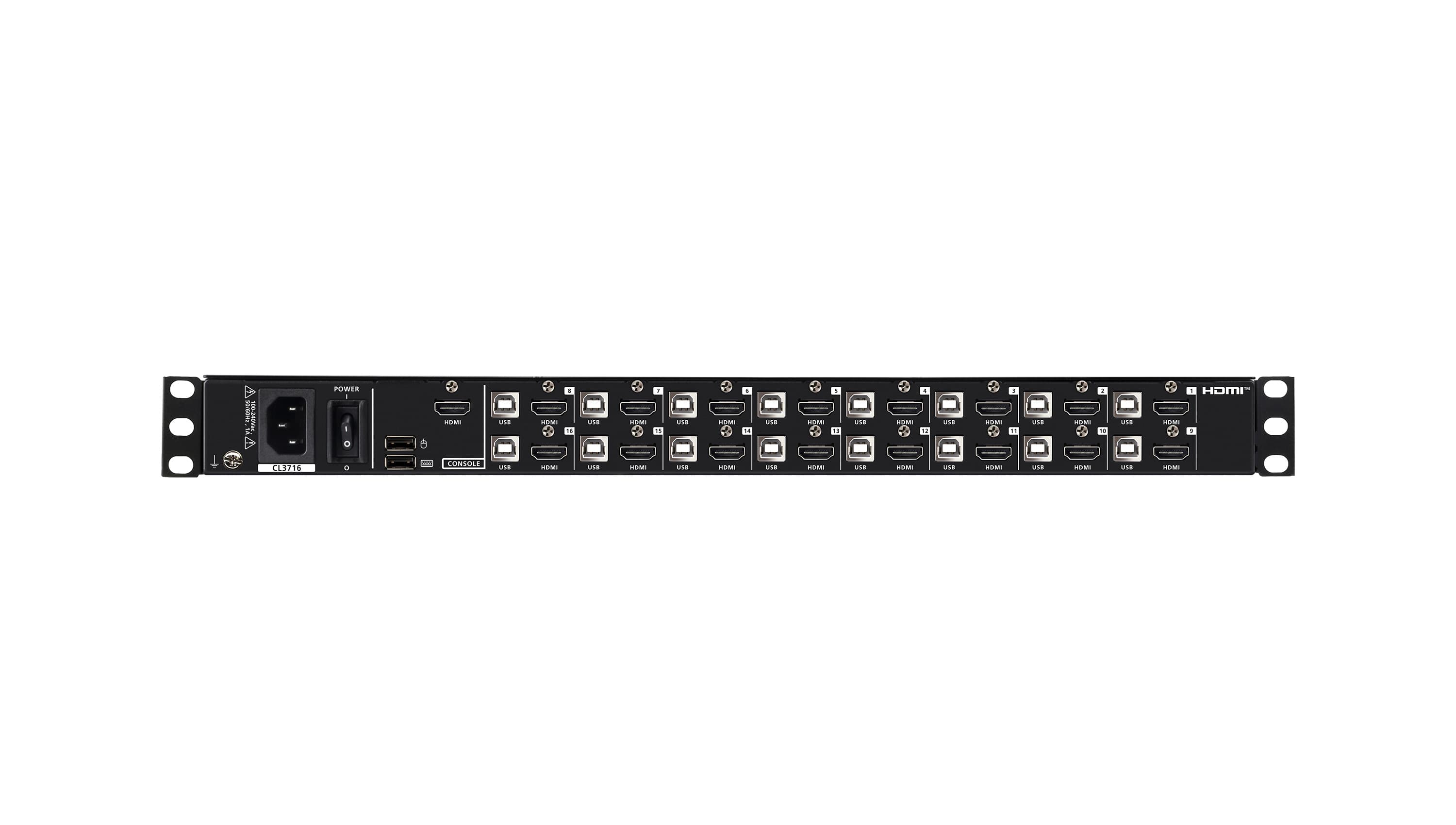

Конектори
- KVM портове
- 16 x HDMI Female 16 x USB Type B Female
- KVM портове
- 16 x HDMI Female 16 x USB Type B Female
- Обновяване на фърмуера
- 1 x 3.5mm Audio Jack Female (Black)
- Обновяване на фърмуера
- 1 x 3.5mm Audio Jack Female (Black)
- Захранване
- 1 x IEC 60320/C14
- Захранване
- 1 x IEC 60320/C14
- Външен порт за мишка
- 1 x USB Type A Female (Front)
- Външен порт за мишка
- 1 x USB Type A Female (Front)
- Външни конзолни портове
- 1 x HDMI Female 2 x USB Type A Female
- Външни конзолни портове
- 1 x HDMI Female 2 x USB Type A Female
Бутони и превключватели
- Избор на порт
- 16 x Pushbutton
- Избор на порт
- 16 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Онлайн
- 16 (Orange)
- Онлайн
- 16 (Orange)
- Избран
- 16 (Green)
- Избран
- 16 (Green)
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 18.5" TFT-LCD
- LCD модул
- 18.5" TFT-LCD
- Резолюция
- 1920 x 1080 @ 60 Hz
- Резолюция
- 1366 x 768 @ 60 Hz
- Време за реакция
- 20 ms
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 178° (H), 178° (V)
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.213 mm x 0.213 mm
- Стъпка на пикселите
- 0.3 mm x 0.3 mm
- Поддържани цветове
- 16.77M colors
- Поддържани цветове
- 16.77M colors
- Контраст
- 1000 : 1
- Контраст
- 1000 : 1
- Яркост
- 350 cd/m²
- Яркост
- 450 cd/m²
Видео
- Входна видео резолюция
- up to 1920 x 1200 @ 60Hz; 1920 x 1080 @ 60 Hz, DDC2B
- Входна видео резолюция
- up to 1920 x 1200 @ 60Hz; 1366 x 768 @ 60 Hz, DDC2B
- Втора конзола
- 1920 x 1200 @ 60 Hz
- Втора конзола
- 1920 x 1200 @ 60 Hz
- Интервал на сканиране
- 1-255 seconds
- Интервал на сканиране
- 1-255 seconds
Емулация
- Клавиатура / мишка
- USB
- Клавиатура / мишка
- USB
- Макс. входна мощност
- 100–240 VAC, 50/60 Hz, 1 A
- Макс. входна мощност
- 100–240 VAC, 50/60 Hz, 1 A
- Консумация
- AC110V:29.7W:146BTU/h AC220V:30.1W:148BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- AC110V:29.7W:146BTU/h AC220V:30.1W:148BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal + Plastic
- Корпус
- Metal + Plastic
- Тип релси
- Single Rail
- Тип релси
- Single Rail
- Тегло
- 10.59 kg ( 23.33 lb )
- Тегло
- 10.59 kg ( 23.33 lb )
- Размери (Д x Ш x В)
- 48.06 x 63.10 x 4.28 cm (18.92 x 24.84 x 1.69 in.)
- Размери (Д x Ш x В)
- 48.06 x 63.10 x 4.28 cm (18.92 x 24.84 x 1.69 in.)
- Размери на корпуса (Д x Ш x В)
- 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.)
- Размери на корпуса (Д x Ш x В)
- 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.)
- Забележка
- Body Dimensions exclude I/O ports, handles, and mounting brackets.
- Забележка
- Body Dimensions exclude I/O ports, handles, and mounting brackets.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
