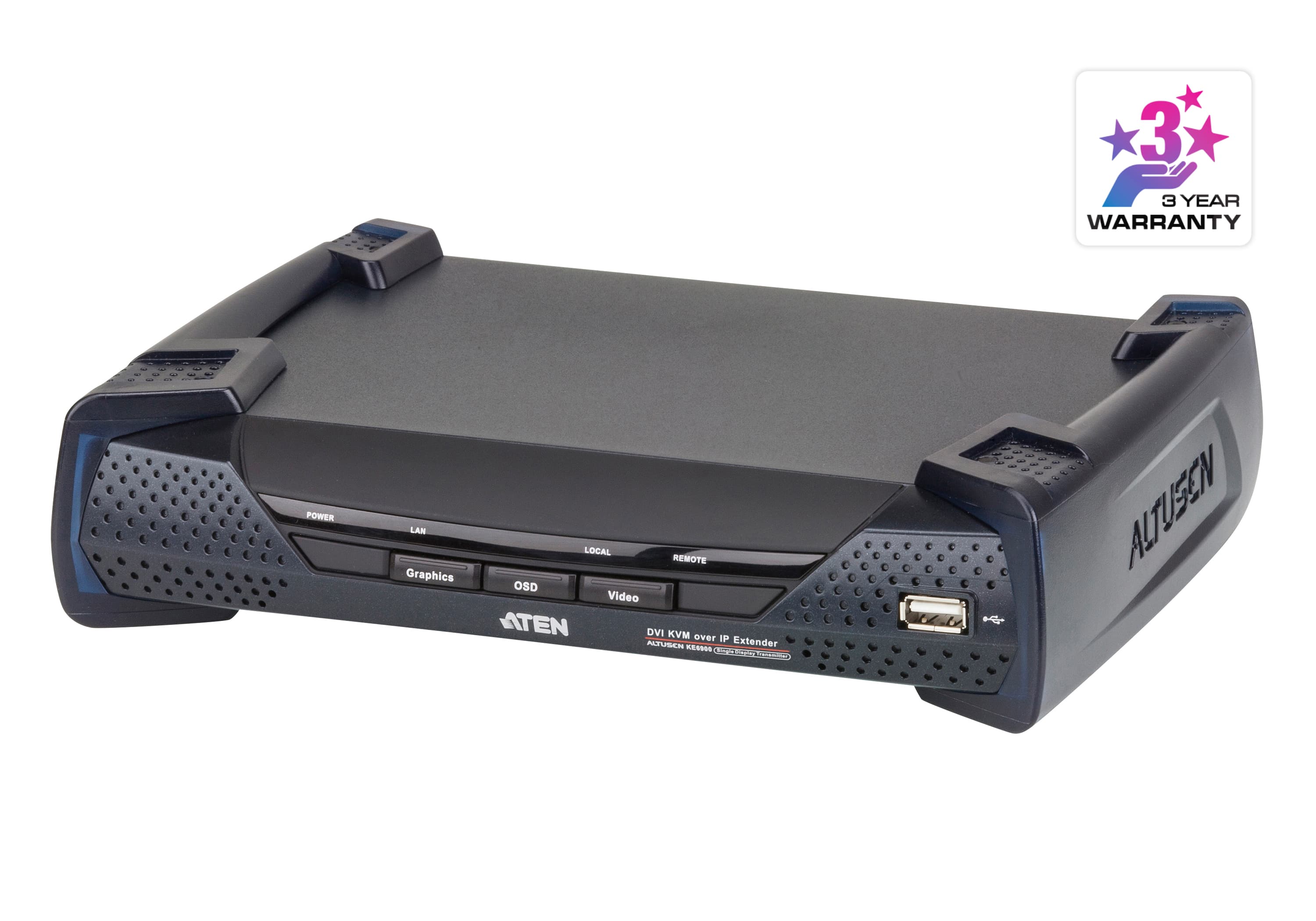

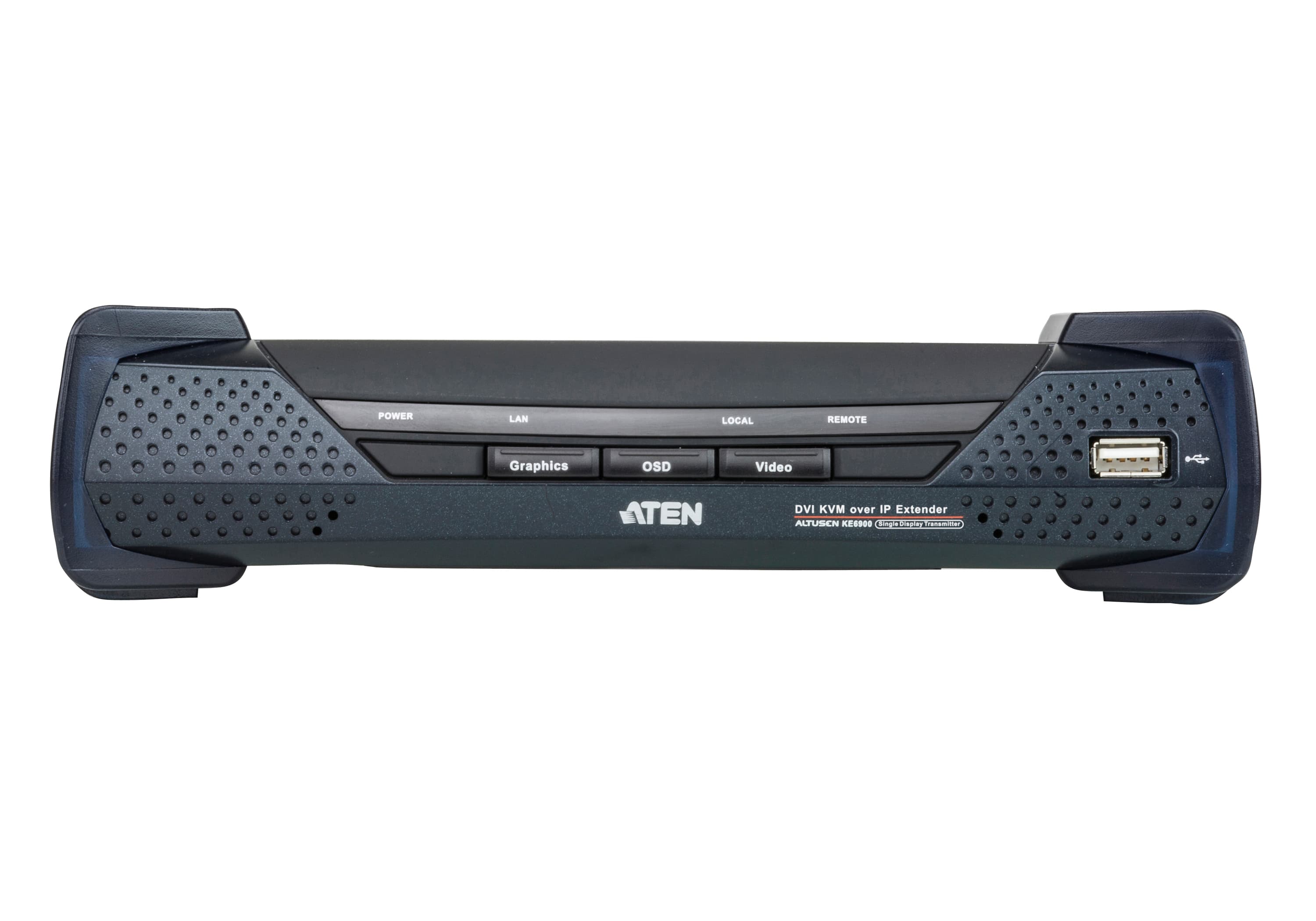

USB DVI-I Single Display KVM Over IP Receiver
KE6900R
Приемник за KVM over IP удължаване с DVI-I изход за един дисплей и портове за USB периферия. Поддържа Matrix Link и превключване чрез преместване на мишката между екраните.
Характеристики
- ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
- Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- Remotely access computers on your KVM installation via intranet
- Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
- RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
- Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
- OSD (On Screen Display) on the Receiver configures both units
- Remote login security
- DVI digital and analog monitor support
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Supports stereo speakers and stereo microphone
- Auto-MDIX - automatically detects cable type
- Supports widescreen formats
- Support High-Quality Video streaming
- High speed USB Storage Transmission support
- Hot pluggable
- Rack Mountable
- Upgradeable firmware
- An industrial-grade power adapter included – supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions
Емулация
- Клавиатура / мишка
- USB

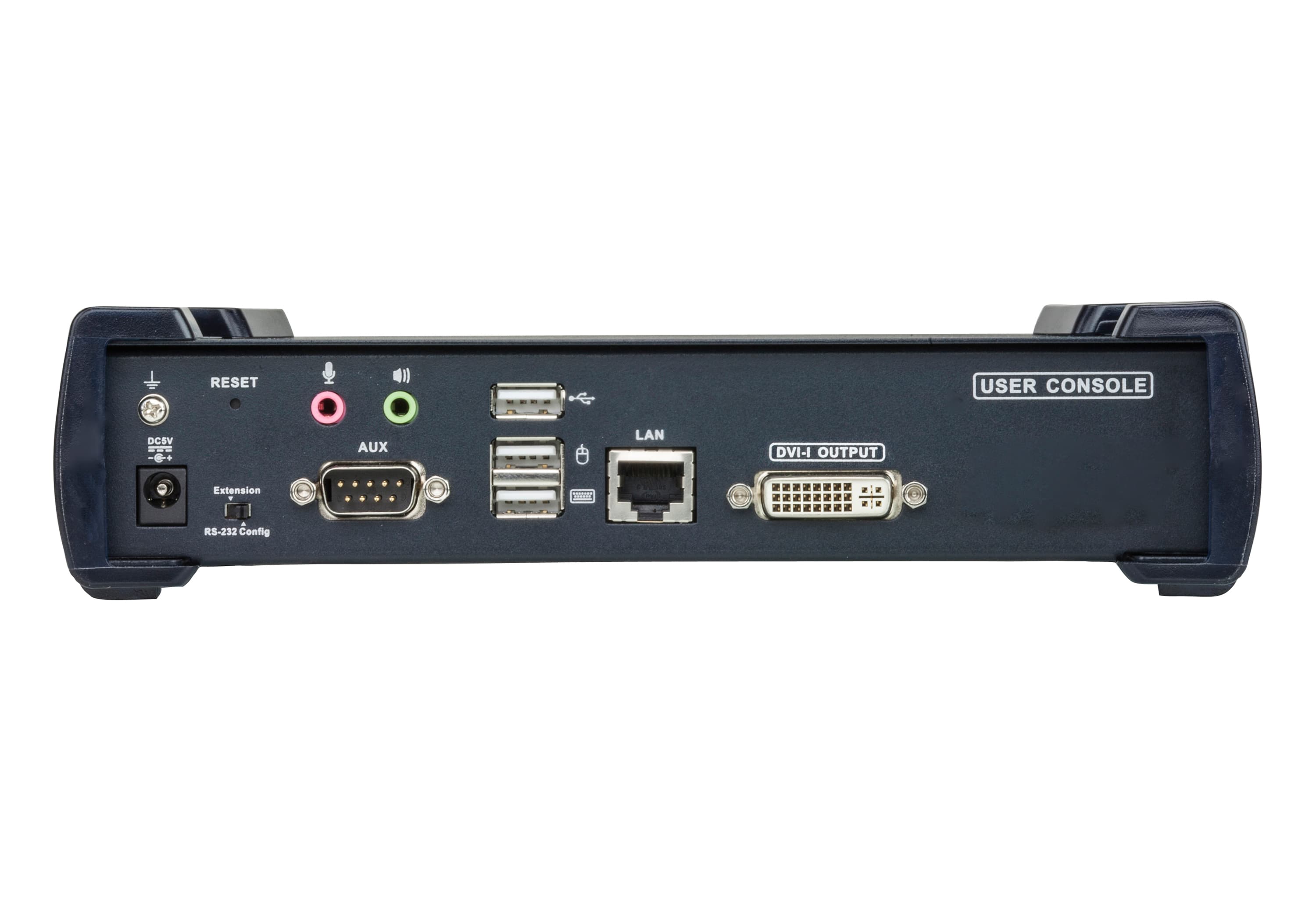

Конектори
- USB порт
- 2 x USB Type A Female (White)
- Конзолни портове
- 2 x USB Type A Female (White) 1 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB9 Male (Black)
- KVM портове
- N/A
- Захранване
- 1 x DC Jack (Black)
- LAN портове
- 1 x RJ-45 (Black)
Бутони и превключватели
- OSD
- 1 x Pushbutton
- Видео
- 1 x Pushbutton
- Графика
- 1 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- 10/100/1000 Mbps
- 1 (Green / Orange)
- Захранване
- 1 (Blue)
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
- Консумация
- DC5V:6.9W:58BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.25 kg ( 2.75 lb )
- Размери (Д x Ш x В)
- 22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.)
- Видео резолюция
- Up to 1920 x 1200 @ 60Hz
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
