DVI HDBaseT KVM Extender with ExtremeUSB® (1920 x 1200 @ 100m)
CE610A
Удължава DVI видео и USB до 100 m по един Cat 5e кабел при 1920 x 1200 @ 60 Hz. Дава достъп до компютър или KVM инсталация от отдалечена конзола чрез HDBaseT и ExtremeUSB.
Характеристики

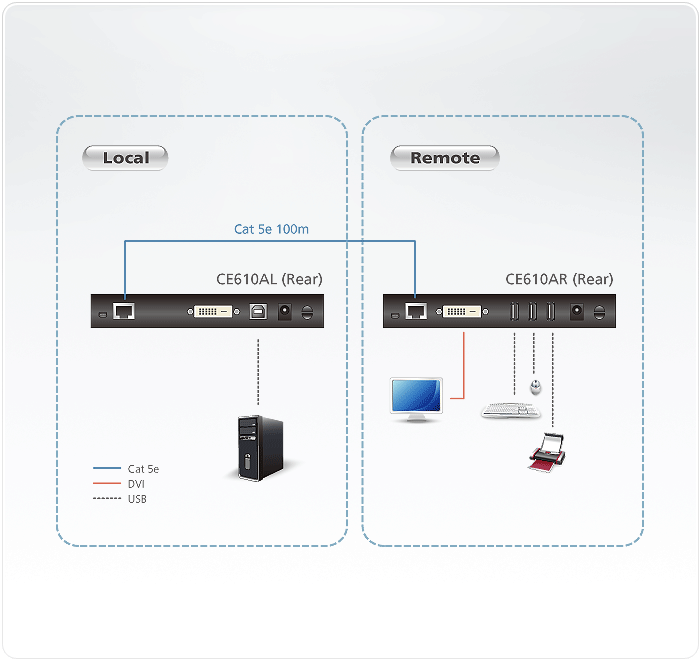

- Uses a single Cat 5e cable to connect the local and remote units
- Allows access to a computer or KVM installation from a remote console
- Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
- Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
- ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Supports USB 1.1 web cameras
- USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel other USB devices which require moderate amounts of bandwidth
- Extends local PC Video/Keyboard/Mouse to remote side
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Works with all major operating systems: Windows®, OS X®, and Linux® *Note: The CE610A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices.

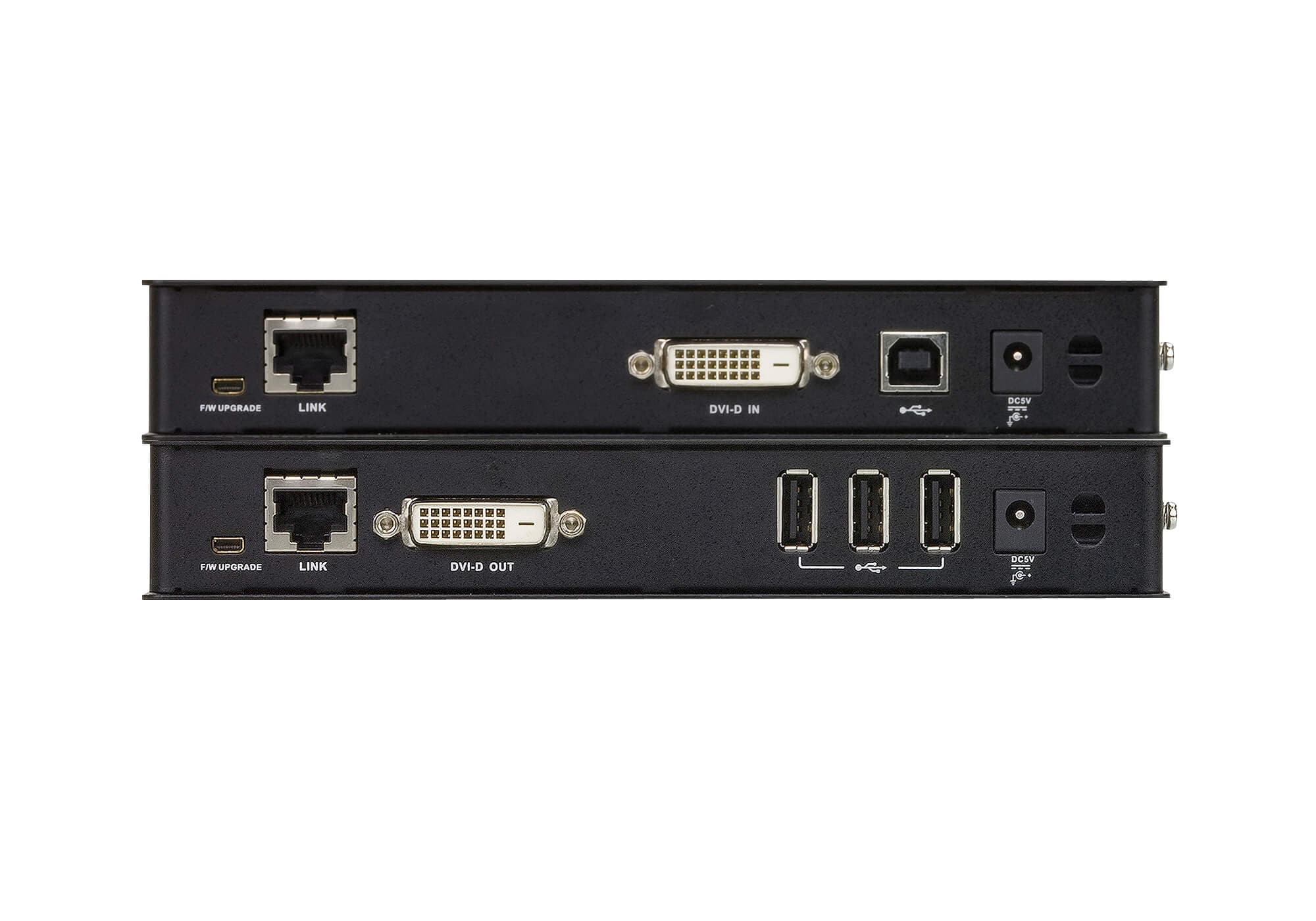

Конектори
- Видео вход
- 1 x DVI-D Female (White)
- Видео вход
- N/A
- Видео изход
- N/A
- Видео изход
- 1 x DVI-D Female (White)
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
- Обновяване на фърмуера
- 1 x mini-USB
- Обновяване на фърмуера
- 1 x mini-USB
- USB порт
- 1 x USB Type B Female (White)
- USB порт
- 3 x USB Type A Female (White)
- Между устройства
- 1 x RJ-45 Female (Black)
- Между устройства
- 1 x RJ-45 Female (Black)

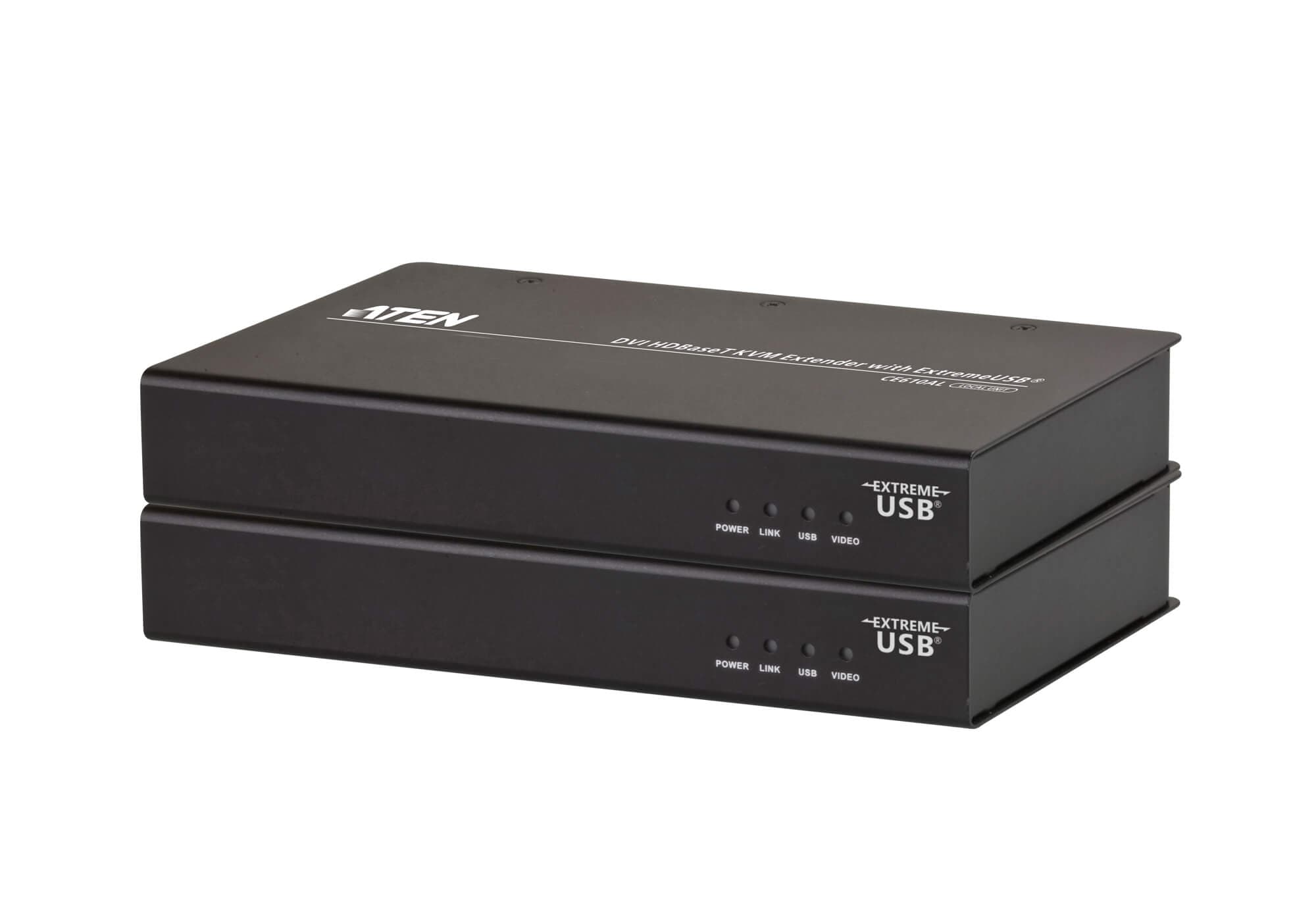

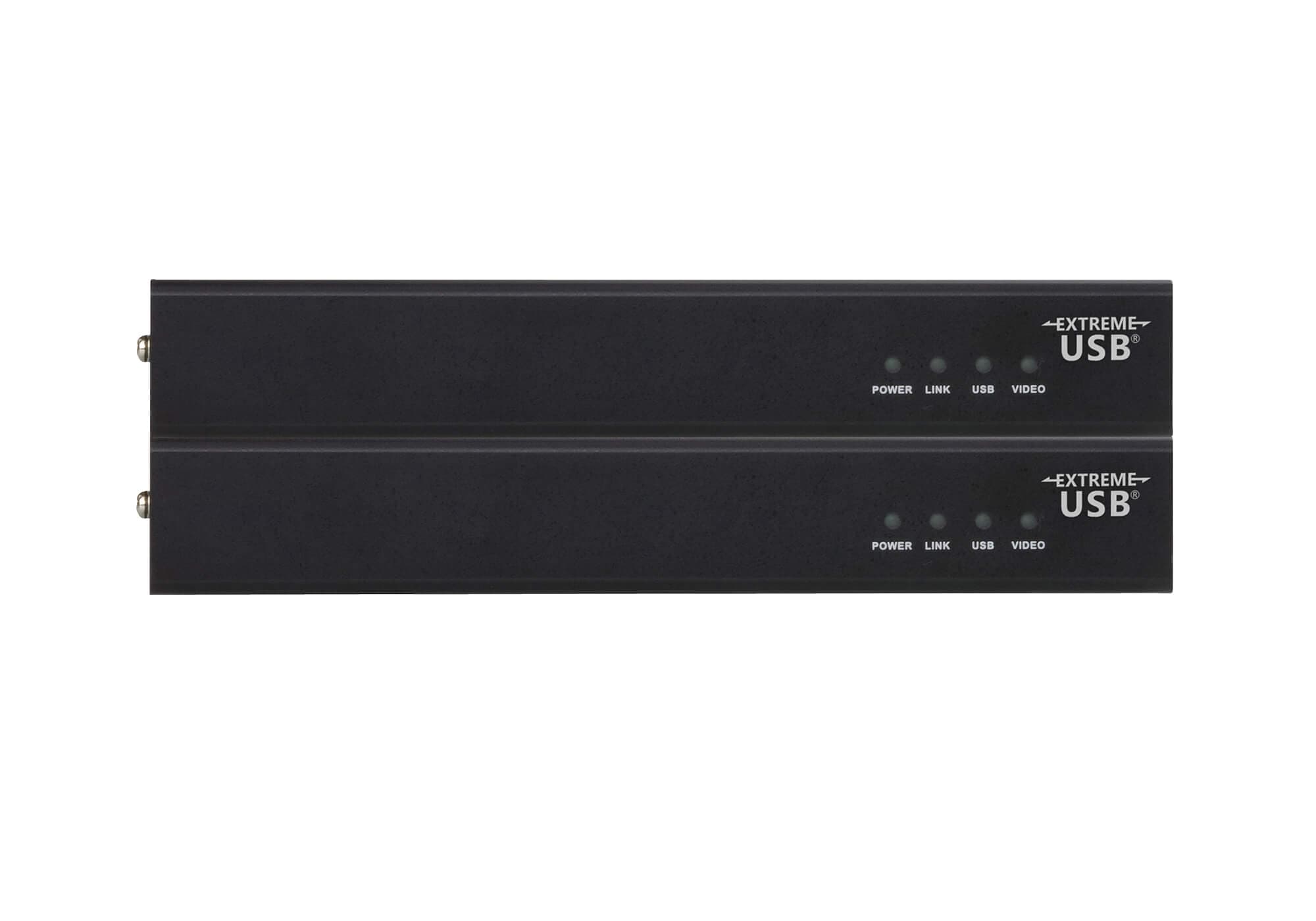

Индикатори
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)
- Връзка
- 1 (Green)
- Връзка
- 1 (Green)
- USB
- 1 (Green)
- USB
- 1 (Green)
- Видео
- 1 (Green)
- Видео
- 1 (Green)
- USB
- USB 2.0 (Transfer Rate: Up to 40Mbps)
- USB
- USB 2.0 (Transfer Rate: Up to 40Mbps)
- Видео
- 1920 x 1200 @ 60Hz (100 m)
- Видео
- 1920 x 1200 @ 60Hz (100 m)
- Консумация
- DC5V:1.99W:41BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:3.95W:50BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.62 kg ( 1.37 lb )
- Тегло
- 0.62 kg ( 1.37 lb )
- Размери (Д x Ш x В)
- 18.20 x 11.79 x 2.87 cm (7.17 x 4.64 x 1.13 in.)
- Размери (Д x Ш x В)
- 18.20 x 11.79 x 2.87 cm (7.17 x 4.64 x 1.13 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
