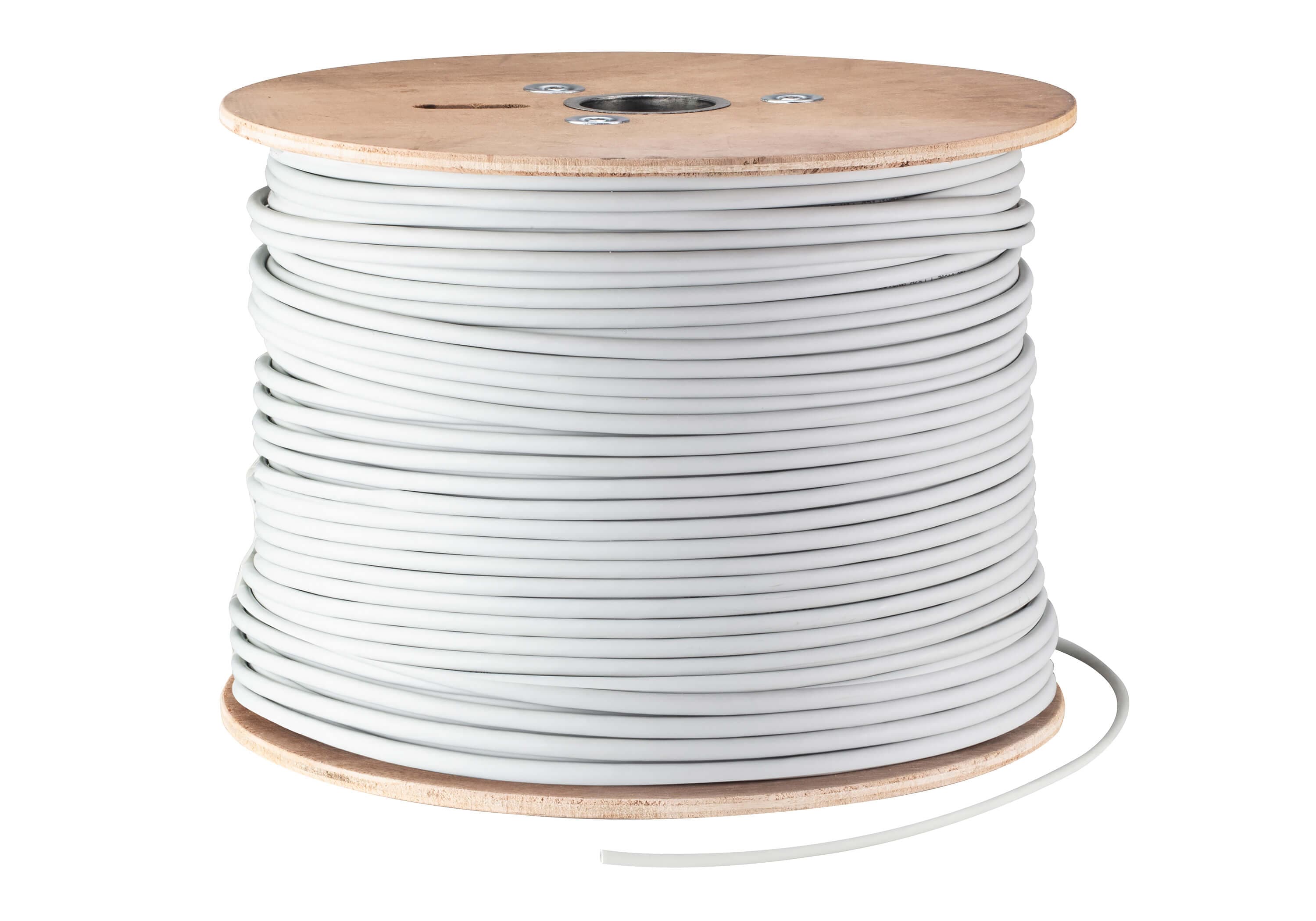

Ролка от 300 m Cat 6A U/FTP кабел за HDBaseT 3.0 — пренася некомпресирано видео, аудио, Ethernet и захранване при пропускателна способност до 16 Gbps. Реже се на отсечки до 100 m според инсталацията.
Характеристики
- 2L-29330 is HDBaseT Recommended Cable
- Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s bandwidth, including True 4K video, audio, Ethernet, power, and control
- The length of a reel of 2L-29330 is 300 m – tailored to specific lengths up to 100 m based on practical usage
- Resistant to electromagnetic interference (EMI) and radio frequency interference (RFI) brought by walkie-talkies or any other radio devices to prevent AV signal disturbance
- Conductor material: 23 AWG solid bare copper
- Tested transmission up to 500 MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D, and IEC 60332-1 standards
- Outer shielded material: AI Mylar tape and braid
- Low Smoke Zero Halogen (LSZH) copper cable – eco-friendly material design for better safety
- Compatible with ATEN’s HDBaseT extenders, splitters, and matrix switches
Спецификация
- Тип кабел
- Cat 6A U/FTP
- Дължина на кабела
- 300m / 990ft

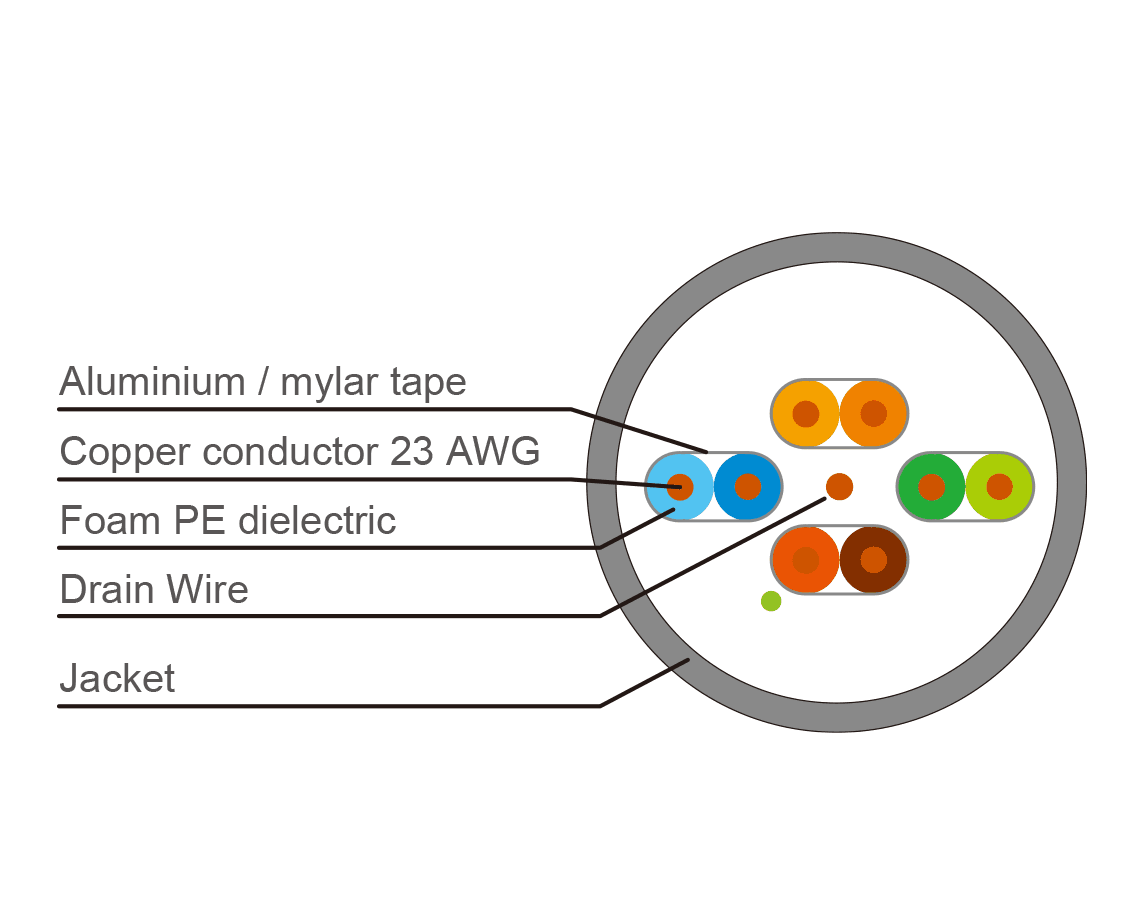

Проводник
- Сечение
- 23AWG
- Конструкция
- Individual shielded pair
- Материал
- Solid plain annealed bare copper wire
- Брой двойки
- 4 twisted pairs, 2 single conductors paired
Изолация
- Материал
- Foamed PE , 1.46 +/- 0.1mm
- Цветови кодове
- Twisted pair color code: Light Blue / Blue Light Orange / Orange Light Green / Green Light Brown / Brown
Бандаж
- Материал
- Polyester
Екран
- Материал
- A layer of aluminum-foil laminated tape
Дренажен проводник
- Конструкция
- 26AWG
Обвивка
- Материал
- LSZH (Low Smoke Zero Halogen)
- Диаметър
- 7.2+/-0.5 mm
- Цвят
- Gray
Електрически характеристики
- DC съпротивление
- 9.38 Ω (max.) / 100m at 20 °C
- Закъснение на разпространение
- 535.6ns (max.) / 100m at 500Mhz
- Разлика в закъснението на разпространение
- 45ns Max./100m
- Затихване
- 45.3 dB (max.) / 100m at 500Mhz
- Импеданс
- 100+/-15 Ω
Работна среда
- Температура (работна / съхранение)
- -20°C to 60°C
Физически характеристики
- Тегло
- 17.00 kg ( 37.44 lb )
- Поддържани стандарти
- ANSI/TIA-568.2-D HDBaseT 3.0 Premium cable
