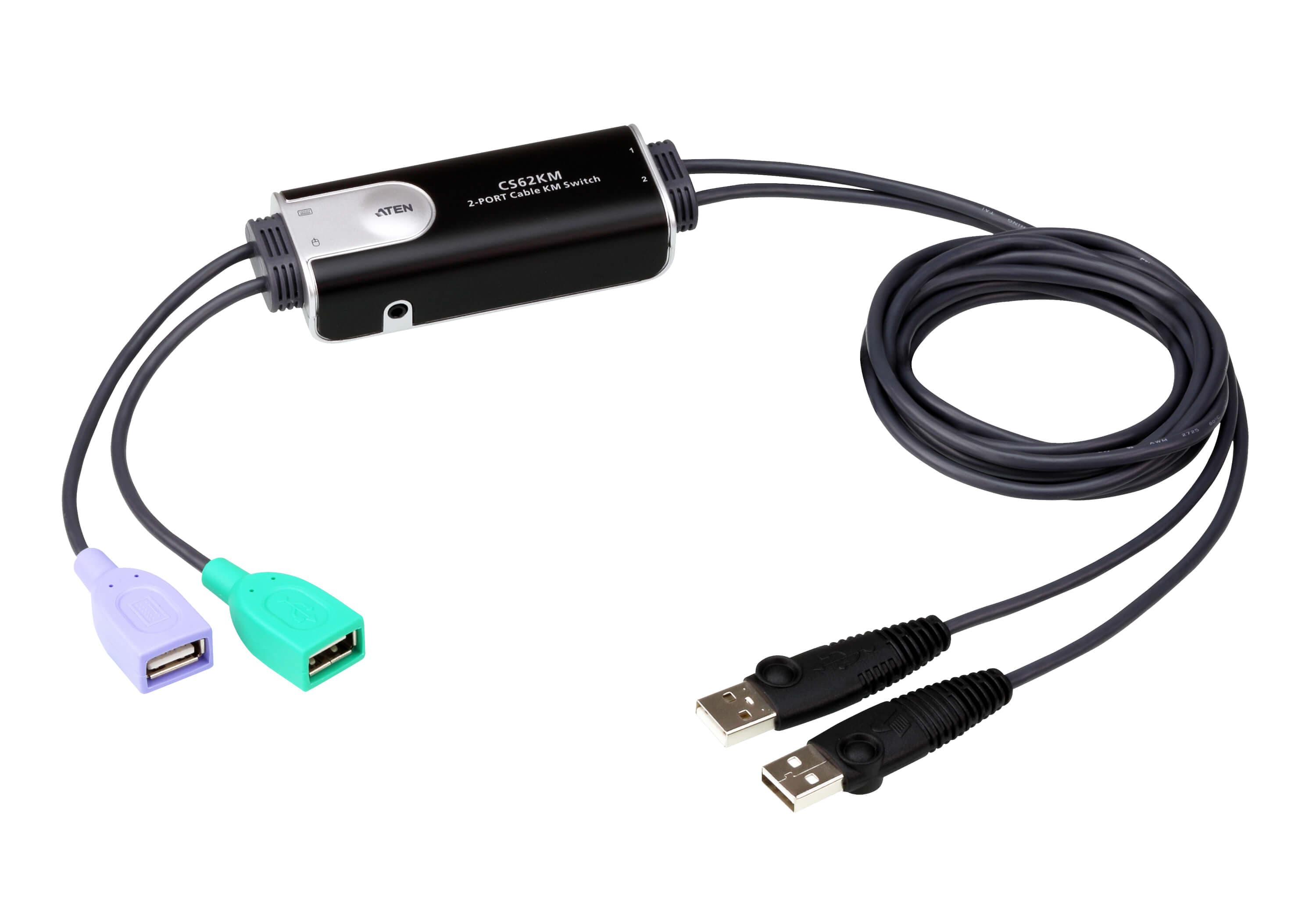

Кабелен KM превключвател: една USB клавиатура и мишка управляват 2 компютъра без софтуер. Преминаването на курсора от единия екран към другия (Boundless Switching) превключва управлението автоматично.
Характеристики
- Single USB keyboard and mouse control up to 2 computers
- Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next
- Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel1
- No software required
- Firmware upgradable
- Supports USB hot-plugging
- Bus-powered – no external power adapter required2
- Works with Windows, iOS, Android, macOS, and Linux operating systems3 Note: 1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. 2. The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to two computers to get sufficient power supply. 3. The boundless switching only supports on Windows operating system.
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Mouse Wheel, Mouse Cursor, Remote Port Selector
Конектори
- Конзолни портове
- 2 x USB Type A Female
- KVM портове (компютри)
- 2 x USB Type A Male
- Дистанционен избор на порт
- 1 x 2.5mm Audio Jack Female
Индикатори
- Избран
- 2 (Green)
Дължина на кабела
- Конзола
- 0.15 m
- Компютър
- 1.2 m
- Дистанционен избор на порт
- 1.8 m
Емулация
- Клавиатура / мишка
- USB
- Консумация
- DC 5V:0.74W:7.7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.12 kg ( 0.26 lb )
- Размери (Д x Ш x В)
- 8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
