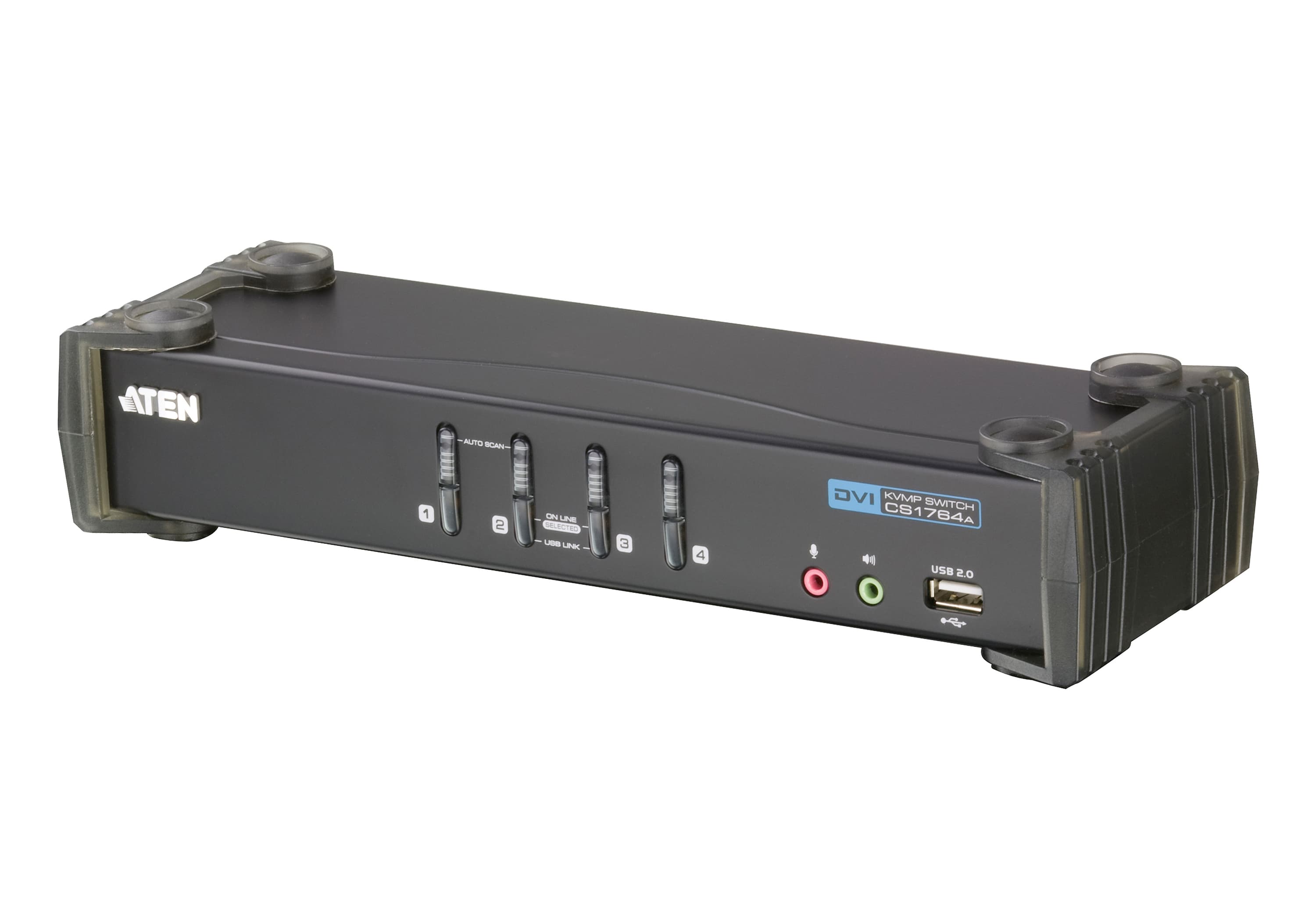

4-Port USB DVI/Audio KVMP™ Switch

Name: 4-Port USB DVI/Audio KVMP™ Switch
Brand: ATEN
SKU: CS1764A

CS1764A

DVI KVMP превключвател — една USB конзола управлява 4 компютъра и две допълнителни USB 2.0 устройства. Вграден 2-портов USB 2.0 хъб и аудио.

Характеристики

One USB console controls four DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification

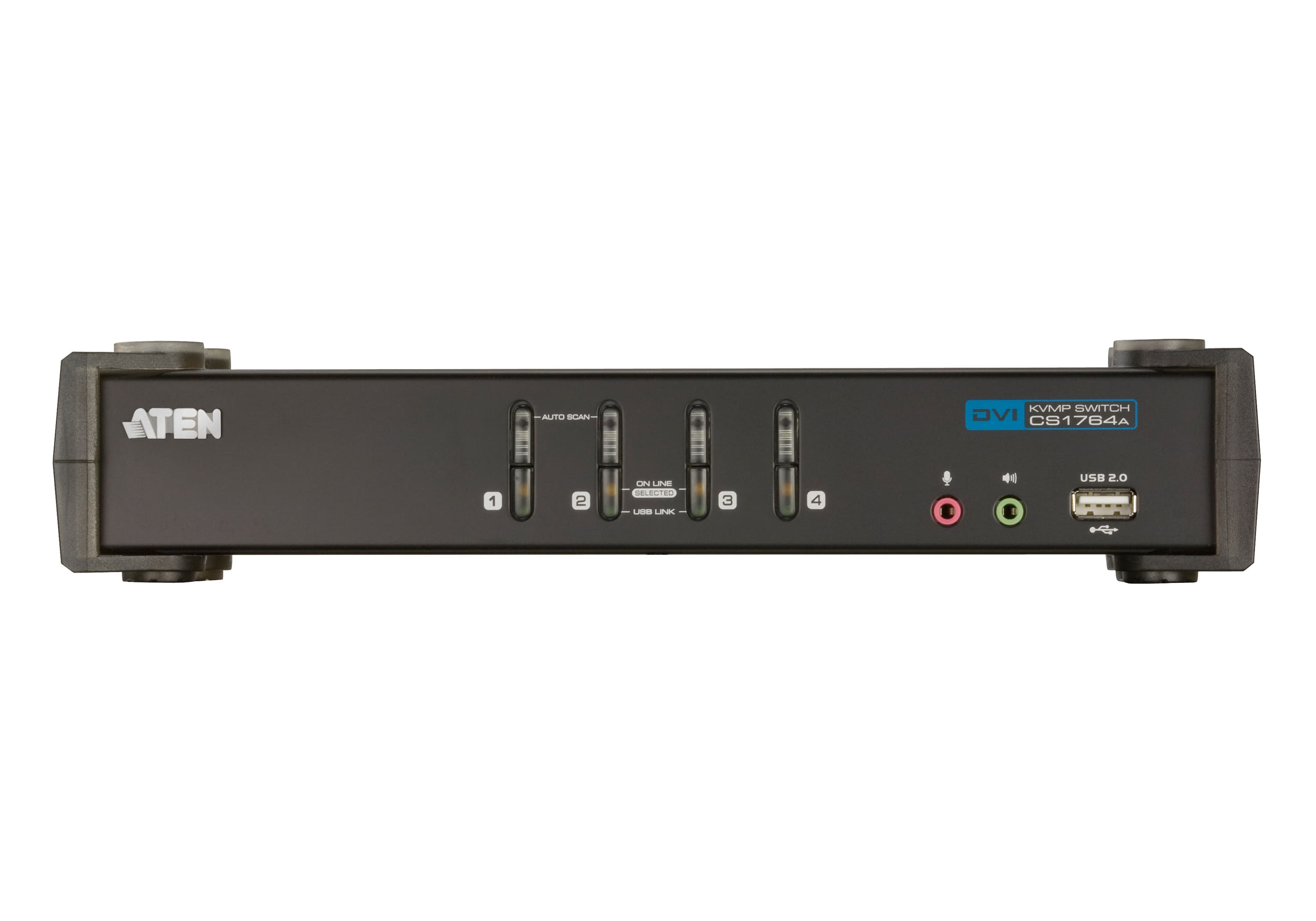

Computer selection via front panel pushbuttons and hotkeys
Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support - Windows, Linux, Mac and Sun
Superior video quality - 1920 x 1200, 60Hz; DDC2B
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support - fully compliant with the DVI specifications
HDCP compliant
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Sun /Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
Firmware upgradable via USB * 1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers

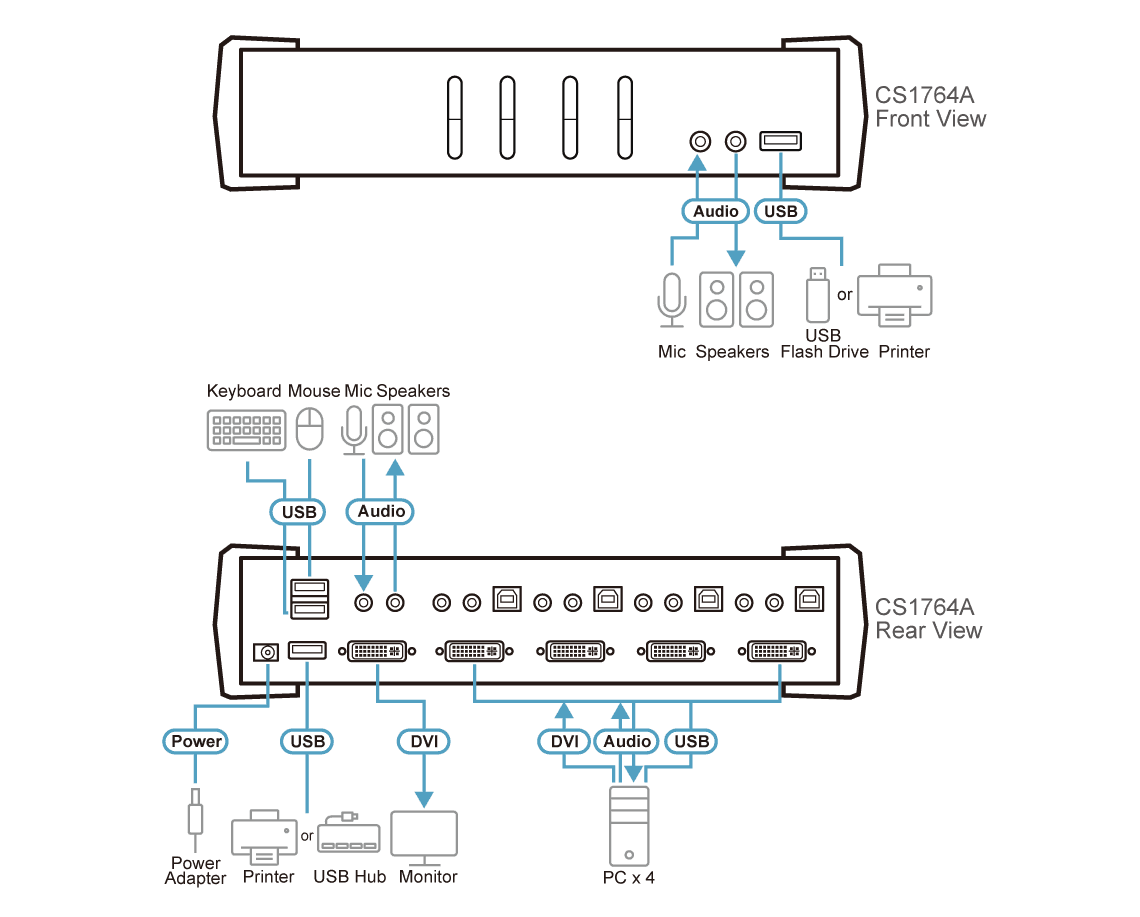

Конзолни портове: 2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)

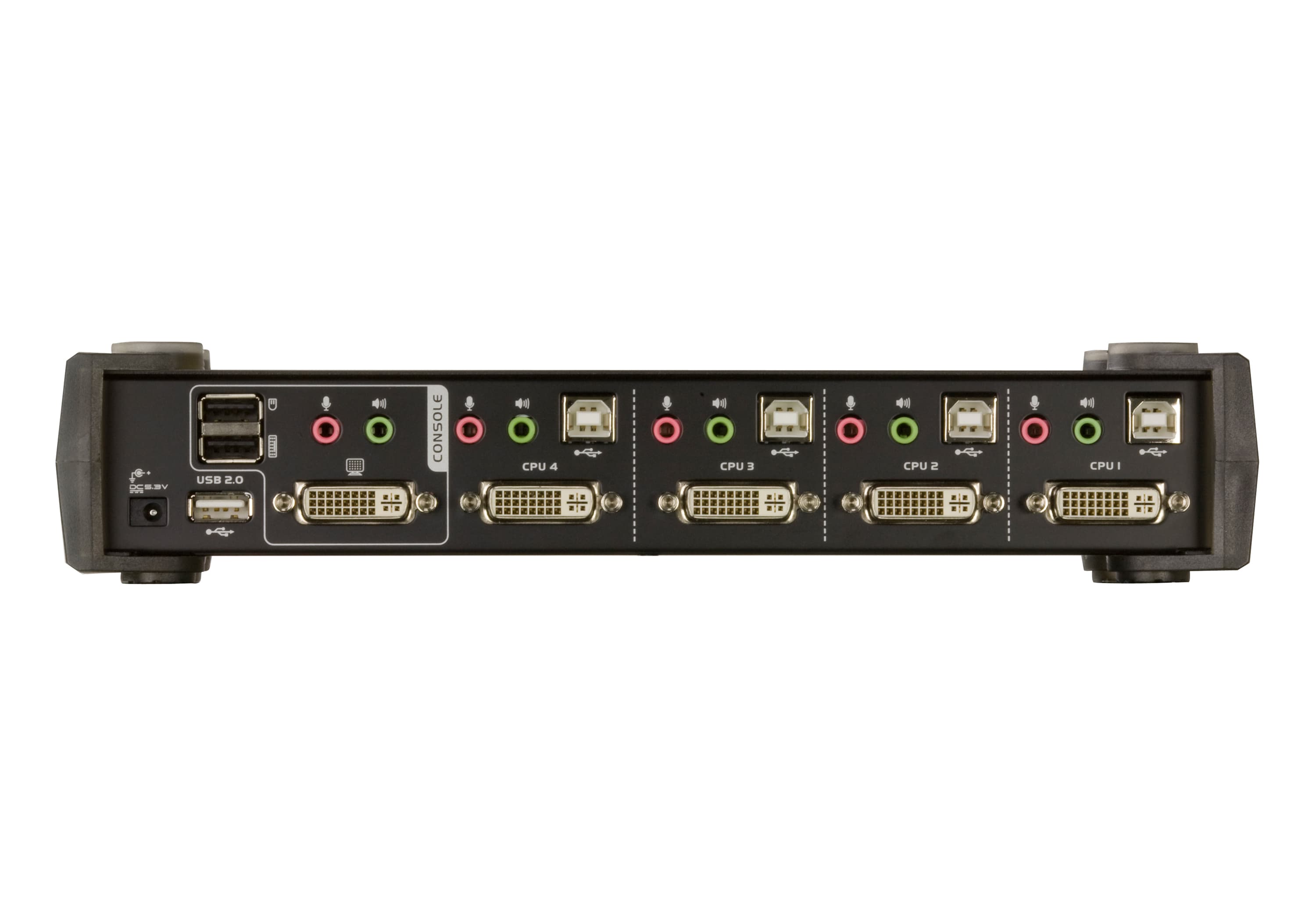

KVM портове: 4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
Захранване: 1 x DC Jack
USB хъб: 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)

Клавиатура / мишка: USB
Видео: 1920 x 1200@ 60Hz; DDC2B
Интервал на сканиране: 1–99 Seconds (Default: 5 sec.)
Консумация: DC5.3V:3.69W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.94 kg ( 2.07 lb )
Размери (Д x Ш x В): 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
