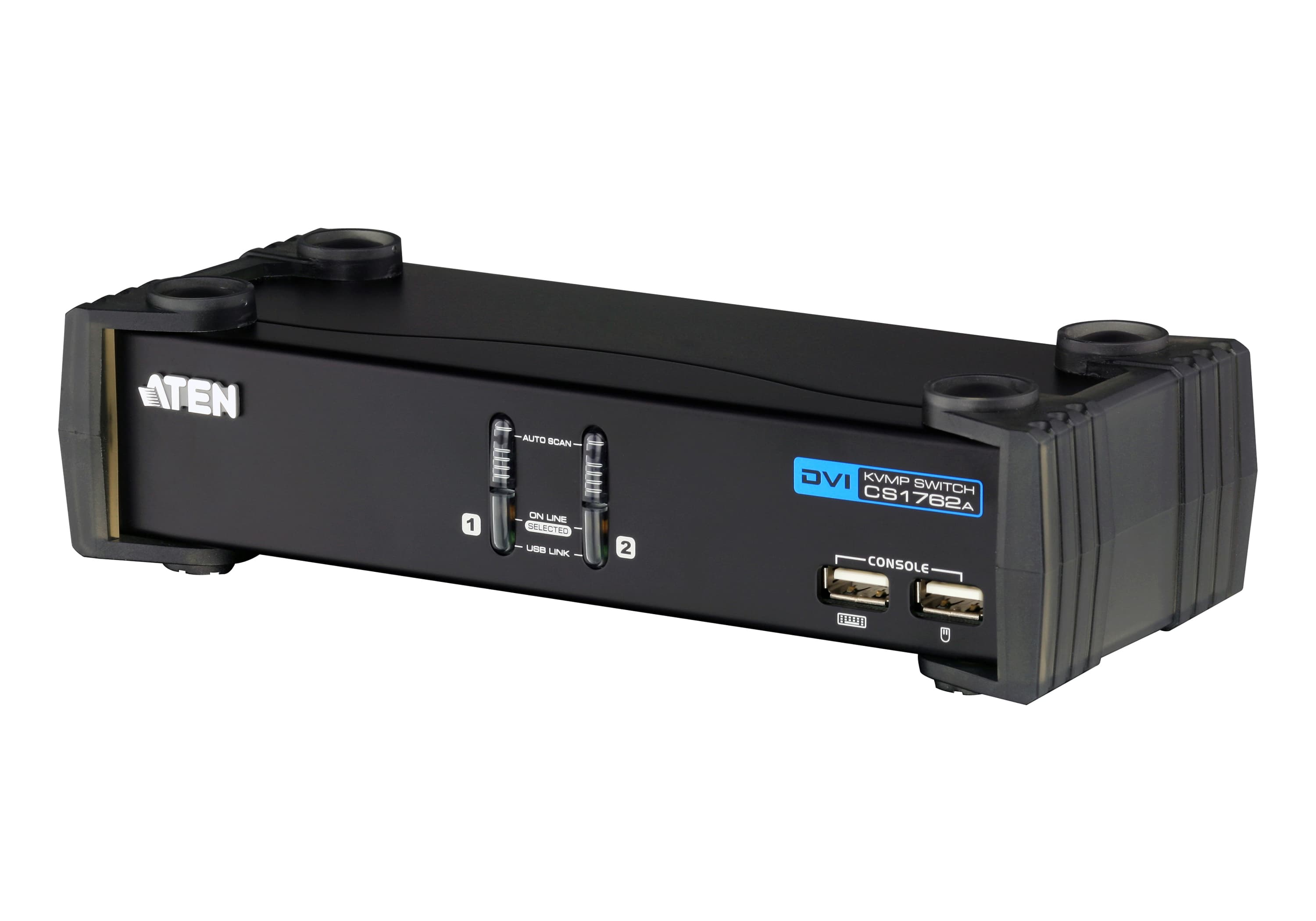

2-Port USB DVI/Audio KVMP™ Switch

Name: 2-Port USB DVI/Audio KVMP™ Switch
Brand: ATEN
SKU: CS1762A

CS1762A

DVI KVMP превключвател — една USB конзола управлява 2 компютъра и две допълнителни USB 2.0 устройства. Вграден 2-портов USB 2.0 хъб и аудио.

Характеристики

One USB console controls two DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification

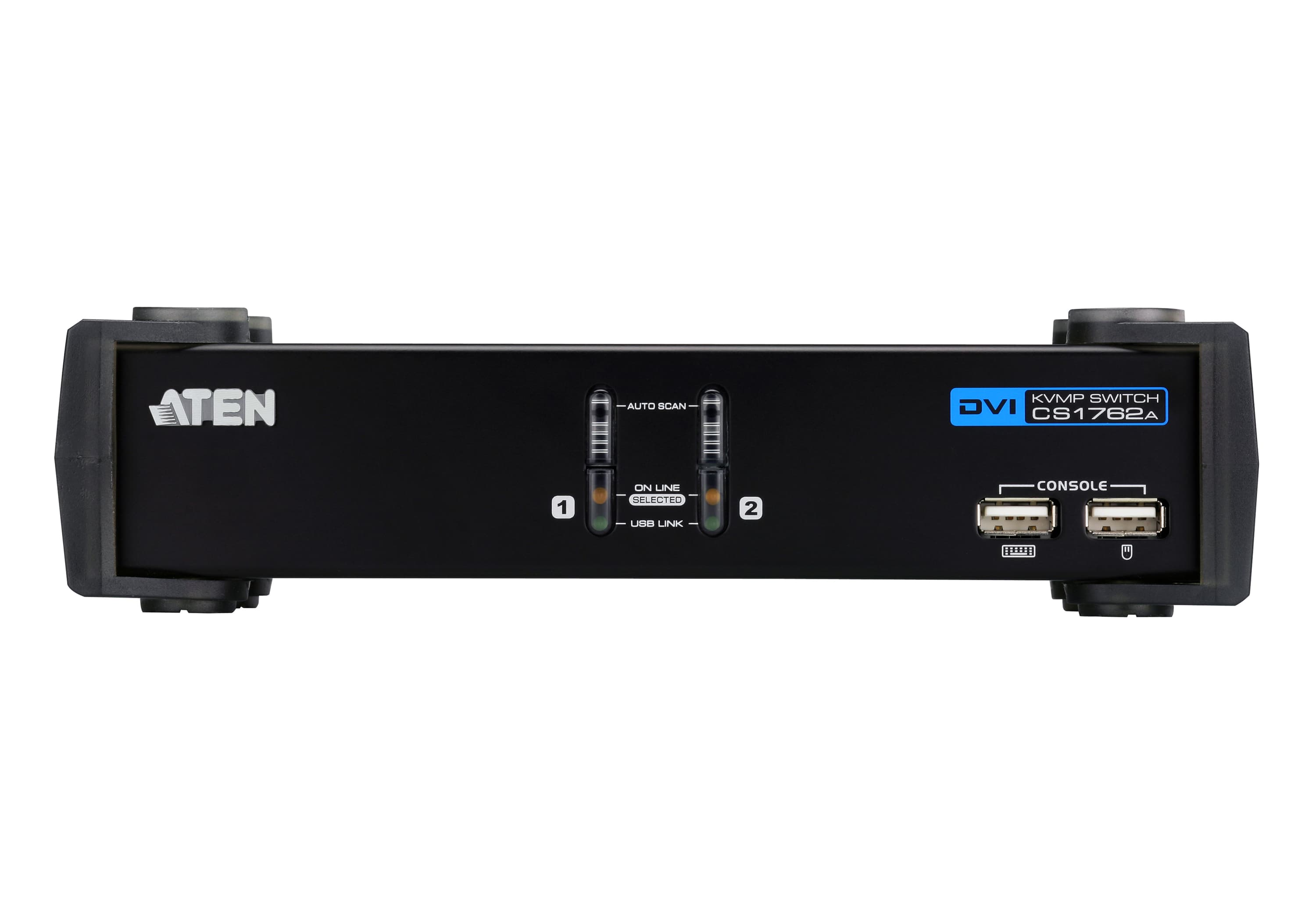

Computer selection via front panel pushbuttons, hotkeys, and mouse
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support – Windows, Linux, Mac, and Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
HDCP compatible
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable * 1. PC keyboard combinations emulate Mac/Sun keyboards 2. Mac/Sun keyboards only work with their own computer

Конзолни портове: 2 x USB Type A Female 1 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

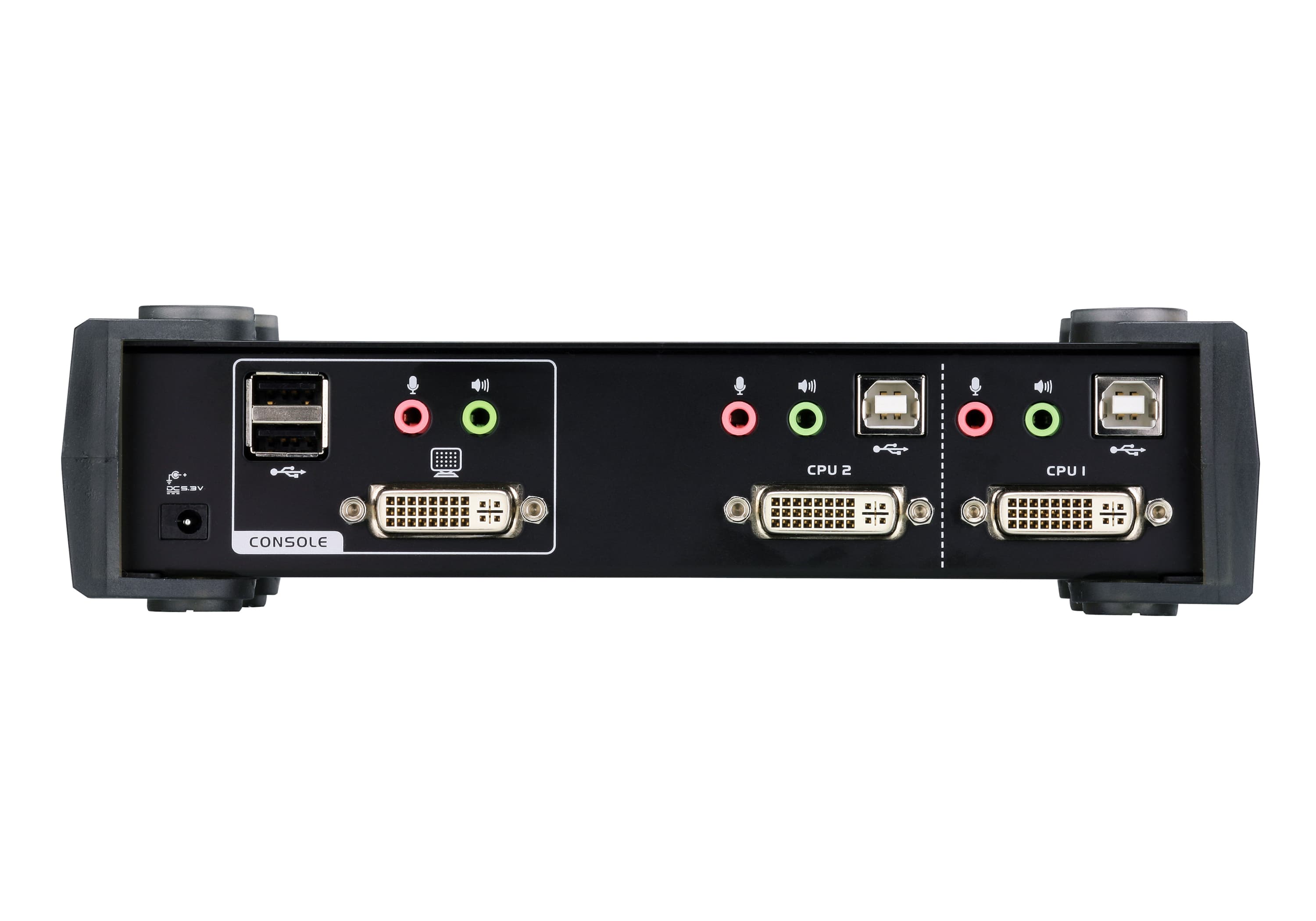

KVM портове: 2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Захранване: 1 x DC Jack
USB хъб: 2 x USB Type A Female (rear panel)

Клавиатура / мишка: USB
Видео: 1920 x 1200 @ 60Hz
Интервал на сканиране: 1–99 seconds (default: 5 sec.)
Консумация: DC5.3V:3.78W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.73 kg ( 1.61 lb )
Размери (Д x Ш x В): 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
