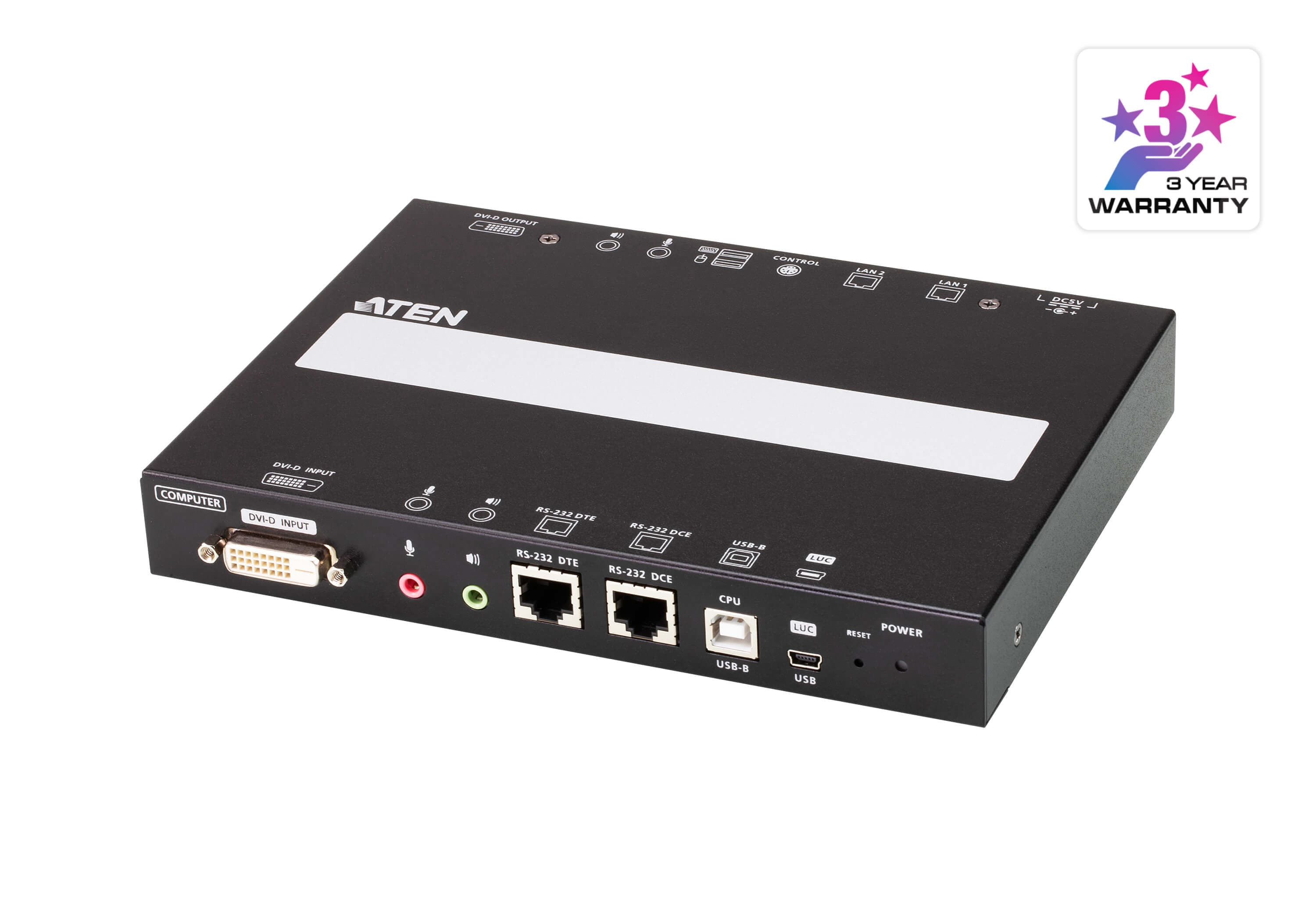

1-Local/Remote Shared Access Single Port DVI KVM over IP Switch

Name: 1-Local/Remote Shared Access Single Port DVI KVM over IP Switch
Brand: ATEN
SKU: RCMDVI101

RCMDVI101

Заяви оферта Datasheet PDF Ръководство CAD чертеж

Еднопортов DVI KVM Over-IP комутатор за споделен локален и отдалечен достъп до една машина; два LAN порта, двойно захранване, виртуални носители и API за интеграция в системи за мониторинг.

Характеристики

Supports ATEN Access Control Box for on-site enabling / disabling of remote control privilege
Supports customizable API Panel Array by system integrators to monitor all machines for operators
Supports exclusive integrated RCM OCR API with various function for system integrators
OSD title bar notification – instantly notifies users if any urgent event occurs
Multi-view – allows viewing of multiple machines simultaneously on one screen
Local console priority – gives the local console the priority over remote consoles to access the connected server
Compact and slim design for space utility optimization
Provides an FPGA graphics processor for better image quality
Complies to the RS-232 DTE / DCE standards for serial control
Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality1
Local console provides USB keyboard and mouse support2
A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
Dual power supply to ensure seamless connectivity
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media support3
High video resolution – up to 1920 x 1200 @ 60Hz for both local and remote consoles
Audio support – microphone and speakers are supported on the local and remote console Note: 1. Compatible KVM Switch: ATEN DVI Single Link KVM Switches 2. Since there are a large number of keyboards / mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue. 3. Some of the RCMDVI101's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
Up to 64 user accounts – up to 32 users can simultaneously share control Note: As more users connect to the device, the bandwidth allocated to each user decreases.
Console access right management
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Event Logging – the RCMDVI101 can record all events and write them to a searchable database
Supports instant notification of critical system events via email, SNMP trap and Syslog
Firmware upgradable via remote access
Access the RCMDVI101 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
Out of Band support – access the RCMDVI101 through its serial port using a dial-up connection
Port Share Mode allows multiple users to gain access to a server simultaneously
Local/Remote Share Mode conveniently grants shared or exclusive console privilege
Integration with ATEN CCVSR Video Session Recording Software
Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
Supports export / import of user account and configuration settings
Browser Access Permission – extra security feature to allow / disallow browser / http / https acces
Supports IPv6
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Chrome, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel with configurable function for quick launch
External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard / mouse, video, and virtual media data encryption
Supports IP / MAC Filter
Supports password protection
Private CA
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB-enabled servers at OS and BIOS level
Supports USB 1.1 and USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives, folders and ISO images
Video quality can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
Full-screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Supports Exit Macros
BIOS-level access

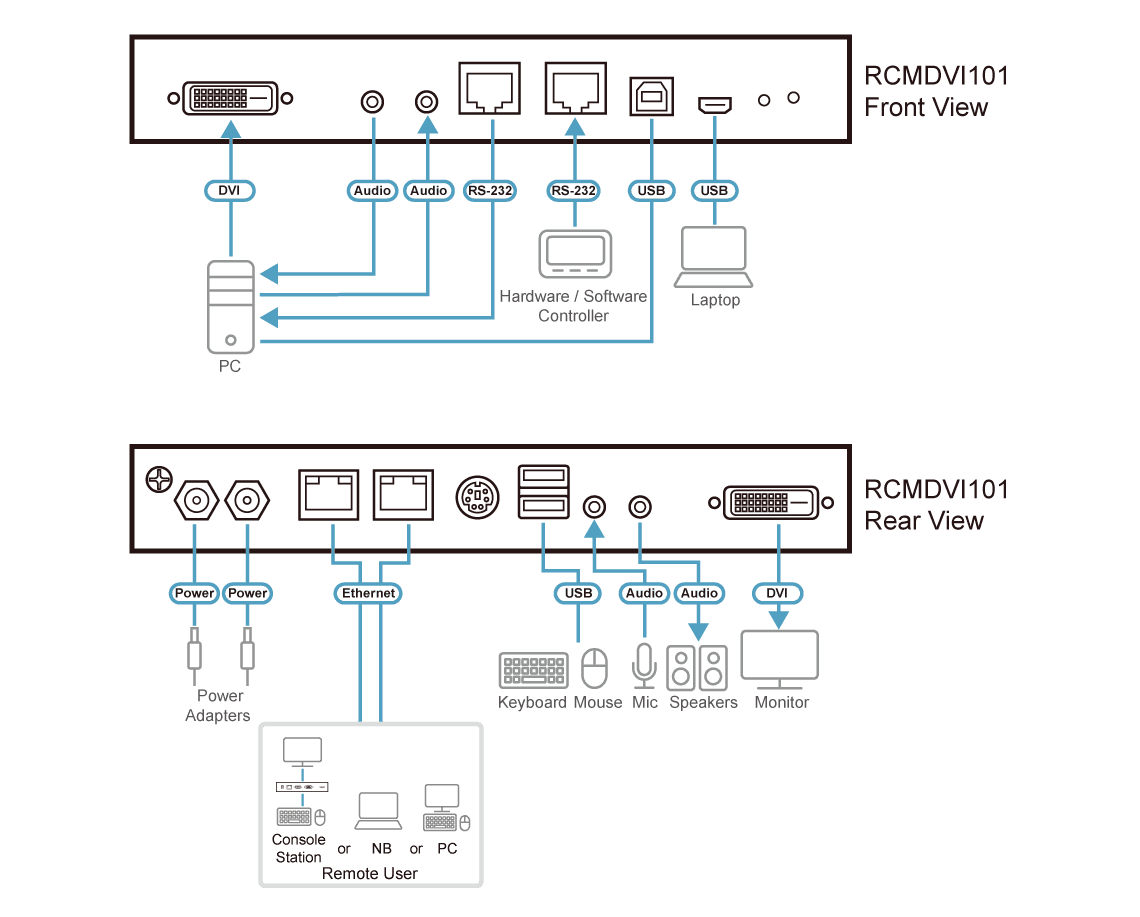

Конектори

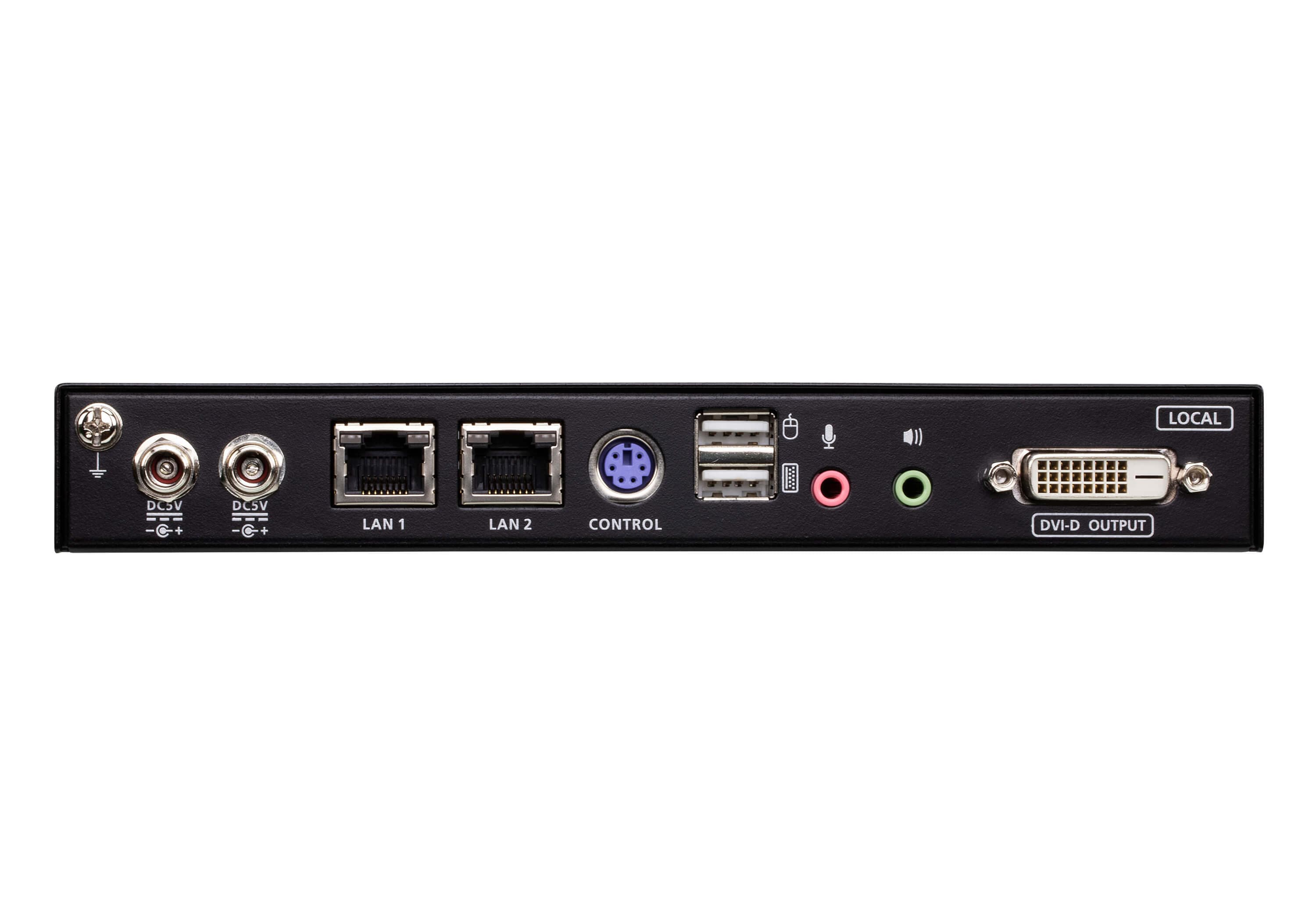

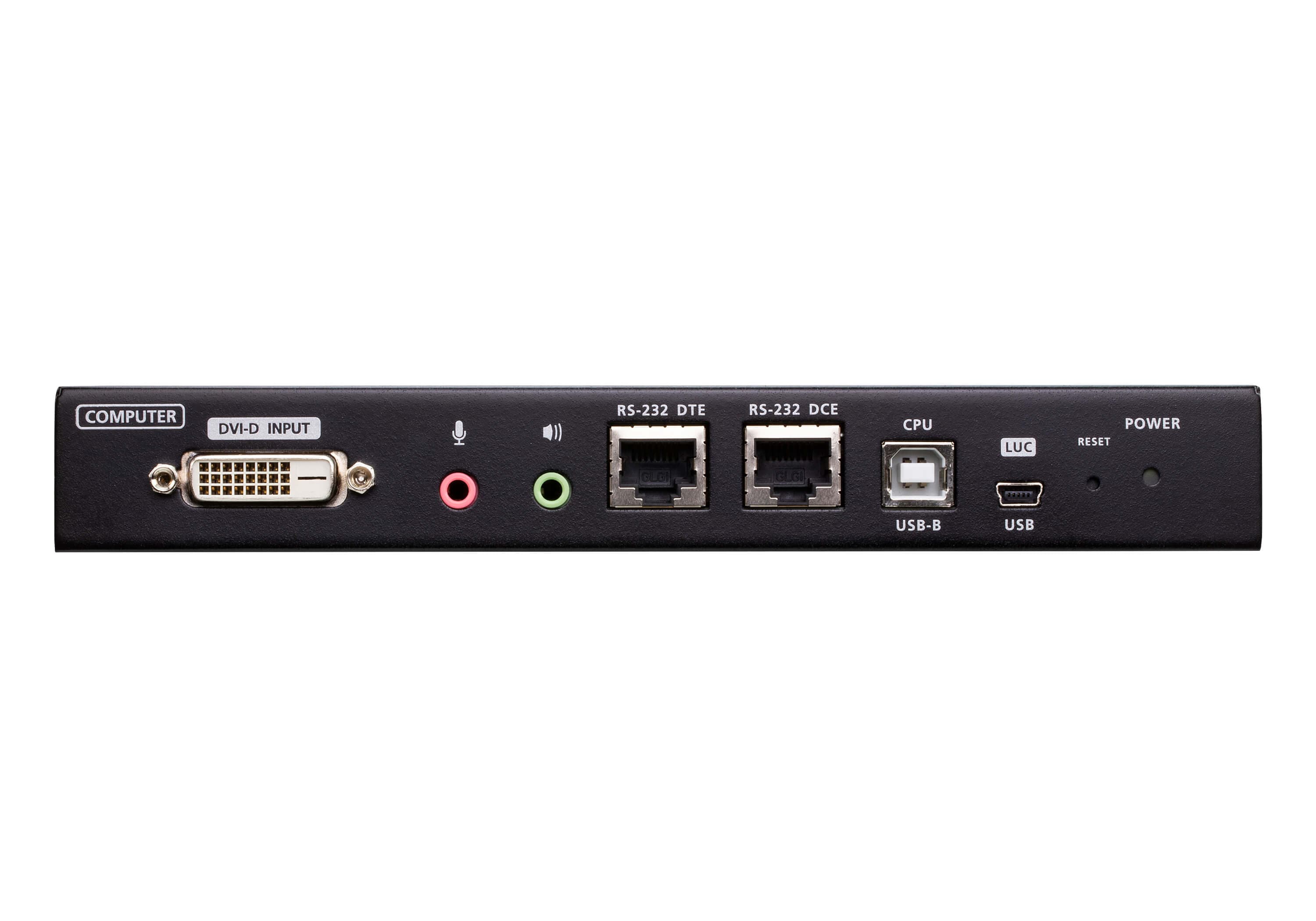

Конзолни портове: 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: 1 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
LAN портове: 2 x RJ-45 Female
Виртуална медия: 1 x USB Mini-B Female
Захранване: 2 x DC Jack
Сериен: 2 x RJ-45 Female
Управление: 1x PS/2 Female

Бутони и превключватели

Нулиране: 1 x Semi-recessed pushbutton (Black)

Емулация

Клавиатура / мишка: USB

Индикатори

Захранване: 1 (Green)
Видео: Local console - 1920 x 1200 @ 60 Hz Remote - 1920 x 1200 @ 60 Hz
Консумация: DC5V:5.55W:30BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C 0 - 40°C (Power Adapter)
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.84 kg ( 1.85 lb )
Размери (Д x Ш x В): 20.00 x 15.49 x 2.85 cm (7.87 x 6.1 x 1.12 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
