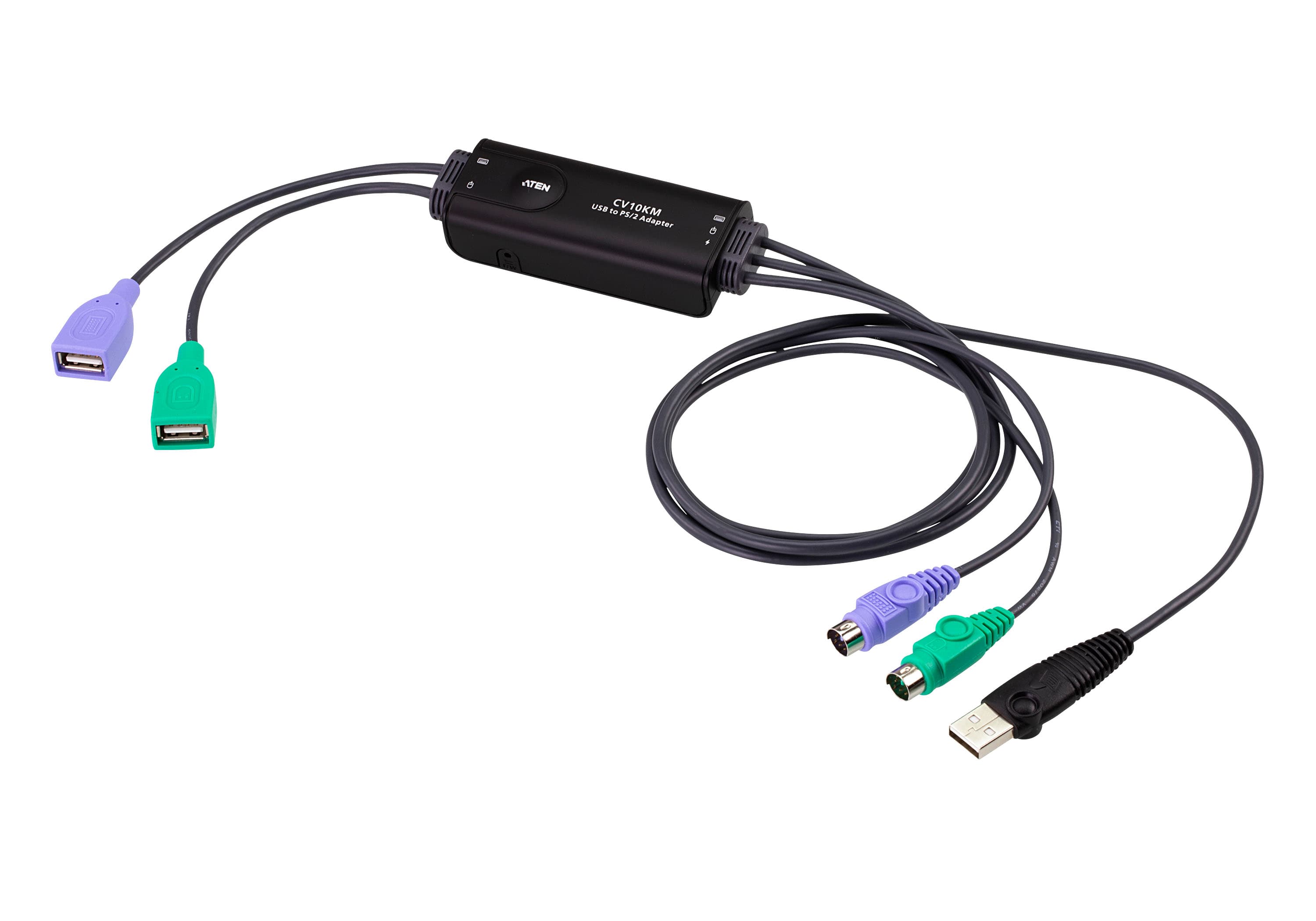

Конвертор, който превръща USB клавиатура и мишка в PS/2 сигнали. Съвместим с предаватели от сериите KE, CN и RCM; кабел 80 cm, USB 2.0.
Характеристики
- Converts USB keyboard and mouse signals into PS/2 signals
- Compatible with all KE / CN / RCM series transmitters
- USB 2.0 compliant
- Embeds pushbutton for firmware upgrade
- Multiplatform support – Windows and Linux
- Bus Powered (via the USB and PS/2 cables)
- Plug and play
Конектори
- Клавиатура
- 1 x PS/2 6-pin Mini-DIN Male (Purple) 1 x USB Type A Female (Purple)
- Мишка
- 1 x PS/2 6-pin Mini-DIN Male (Green) 1 x USB Type A Female (Green)
- Захранване (опция)
- 1 x USB Type A Male (Black)
- Дължина на кабела
- 80cm
- Бутон за нулиране
- 1 x Push Button
- Платформи
- Windows/Linux
- USB спецификация
- USB 1.1 - 2.0 (Full speed & Low speed) Compatible
- Режим на захранване
- Bus Powered (via the USB and PS/2 cables)
- Консумация
- DC5V:0.2W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.11 kg ( 0.24 lb )
- Размери (Д x Ш x В)
- 8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
