KVM превключвател за 8 компютъра със Single Link DVI или VGA, управлявани от една USB конзола. Позволява смесена работа с цифрово (DVI) и аналогово (VGA) видео.
Характеристики
- One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
- KVM console supports a digital (DVI-D) or an analog (VGA) video output
- Computer ports support digital (DVI) and analog (VGA) video inputs* – mixed operation possible
- Cascadable to three levels – control up to 512 computers
- Multi-Display mode – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Two-level (Administrator/User) password authorization for enhanced security protection
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Console audio ports on front panel for easy access
- Multiplatform support – Windows, Linux, Mac, Sun
- Supports widescreen resolutions
- Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
- Independent switching of KVM and USB focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation**
- Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
- Auto Scan Mode for monitoring all computers
- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.
- Firmware upgradable Note: * A VGA input requires a VGA to DVI adapter or a VGA to DVI KVM cable(2L-7DX2U/2L-7DX3U). This KVM cable is sold separately ** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers
Връзки към компютри
- Директно
- 8
- Максимум
- 512 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton

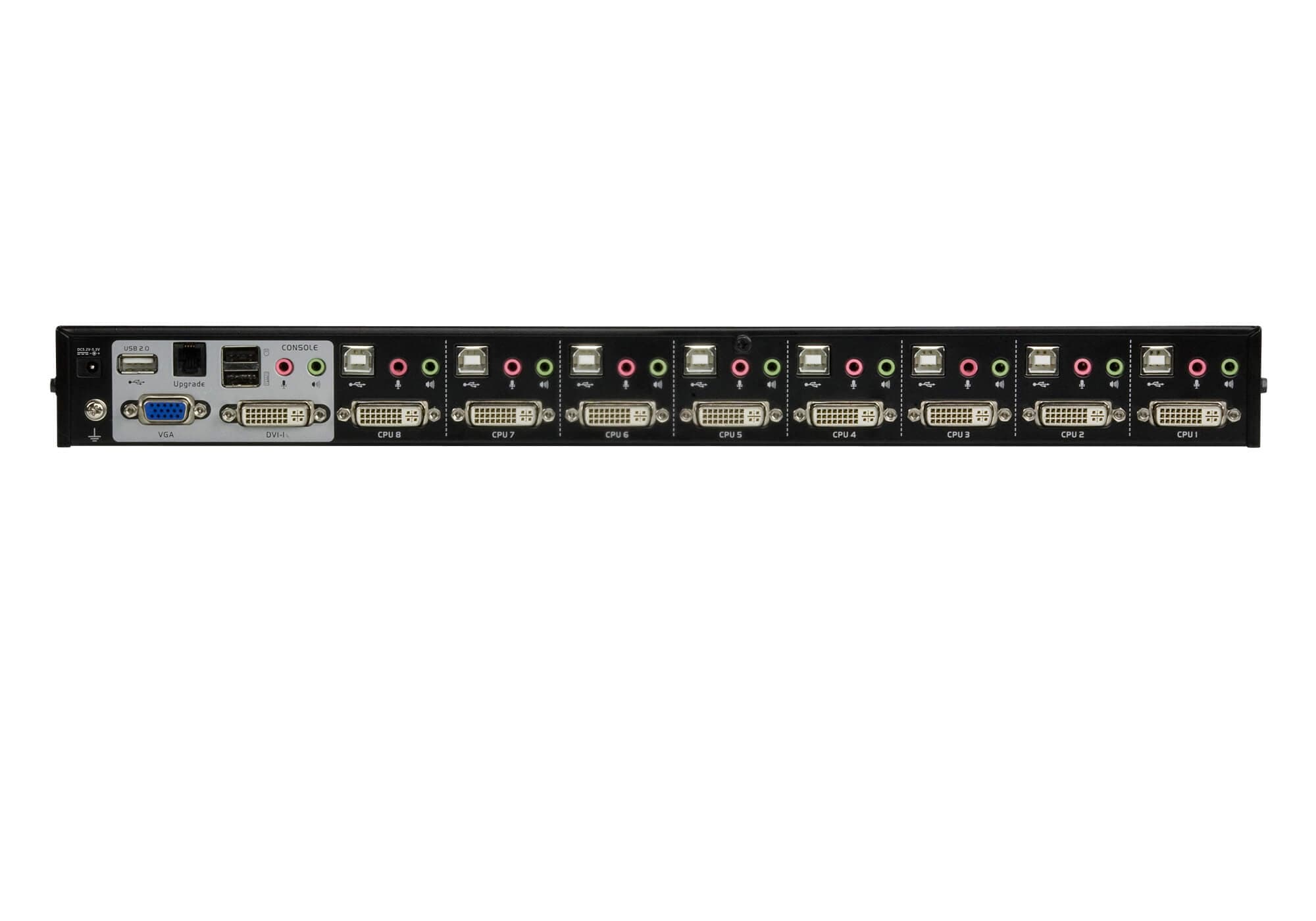

Конектори
- Конзолни портове
- 1 x HDB-15 Female (Blue) 1 x DVI-I Female (White) 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
- KVM портове
- 8 x DVI-I Female (White) 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green) 8 x 3.5mm Audio Jack Female (Pink)
- Обновяване на фърмуера
- 1 x RJ-11 Female (Black)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB Type A Female (1 x front panel, 1 x rear panel)

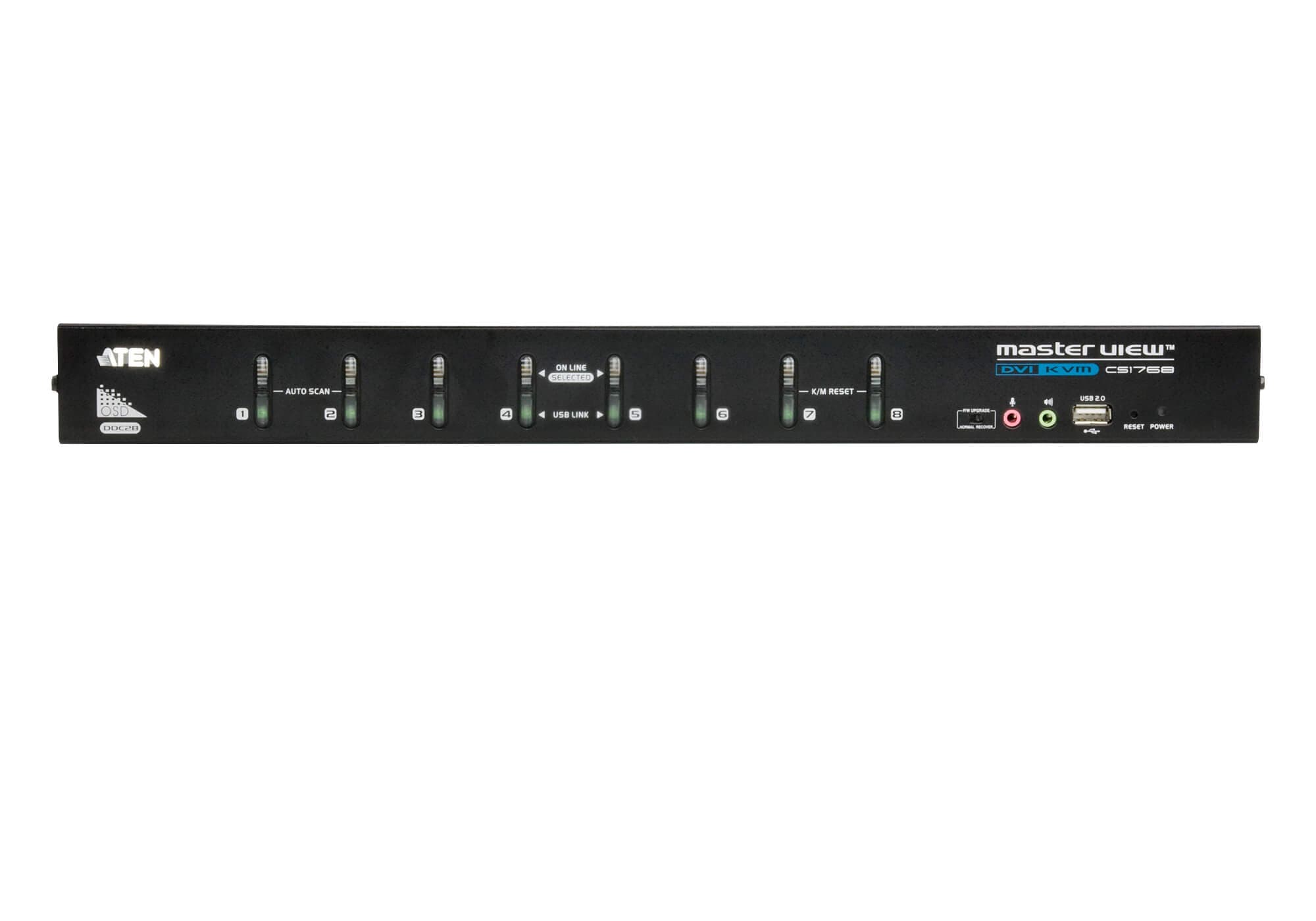

Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
Индикатори
- USB връзка
- 8 (Green)
- Захранване
- 1 (Dark Green)
- Онлайн / избран
- 8 (Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- DVI (Single Link): 1920 x 1200 @ 60Hz; VGA: 2048 x 1536 @ 60Hz
- Интервал на сканиране
- 1–255 seconds (default: 5 secs.)
- Консумация
- DC5.2V:7.43W:60BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.80 kg ( 6.17 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.12 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
