Конзолна станция без Java за отдалечен достъп до ATEN KVM over IP комутатори без отделен компютър. Разполага с VGA видеоизход и FPGA графичен процесор с резолюция 1920 x 1200.
Характеристики
- A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches (Please refer to the Compatible Products list on the website.)
- Impenetrable security against virus threats and impervious data protection
- Single sign-on to consolidate the management of multiple ATEN’s KVM over IP switches (Please refer to the Compatible Products list on the website.)
- Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
- Supports 1 VGA video output
- Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
- Supports Boundless Switching – allows users to control up to 3 screens between two console stations by using one set of keyboard & mouse
- Share screen – shares screen content from one console station to another for real-time collaboration
- Supports Telnet / SSH for connecting to and management of console devices
- Supports RDP / VNC remote management for physical servers / virtual machines*
- Lock screen password – prevents unauthorized users from accessing the console station when unattended
- Supports Virtual Media
- Supports USB Smartcard
- Wall Mountable – standard mounting kit included
- Space-saving 0U rack mount design for rear rack mounting
- GUI with multi-language interface Note: The audio function is not supported and it will be available in future firmware updates.

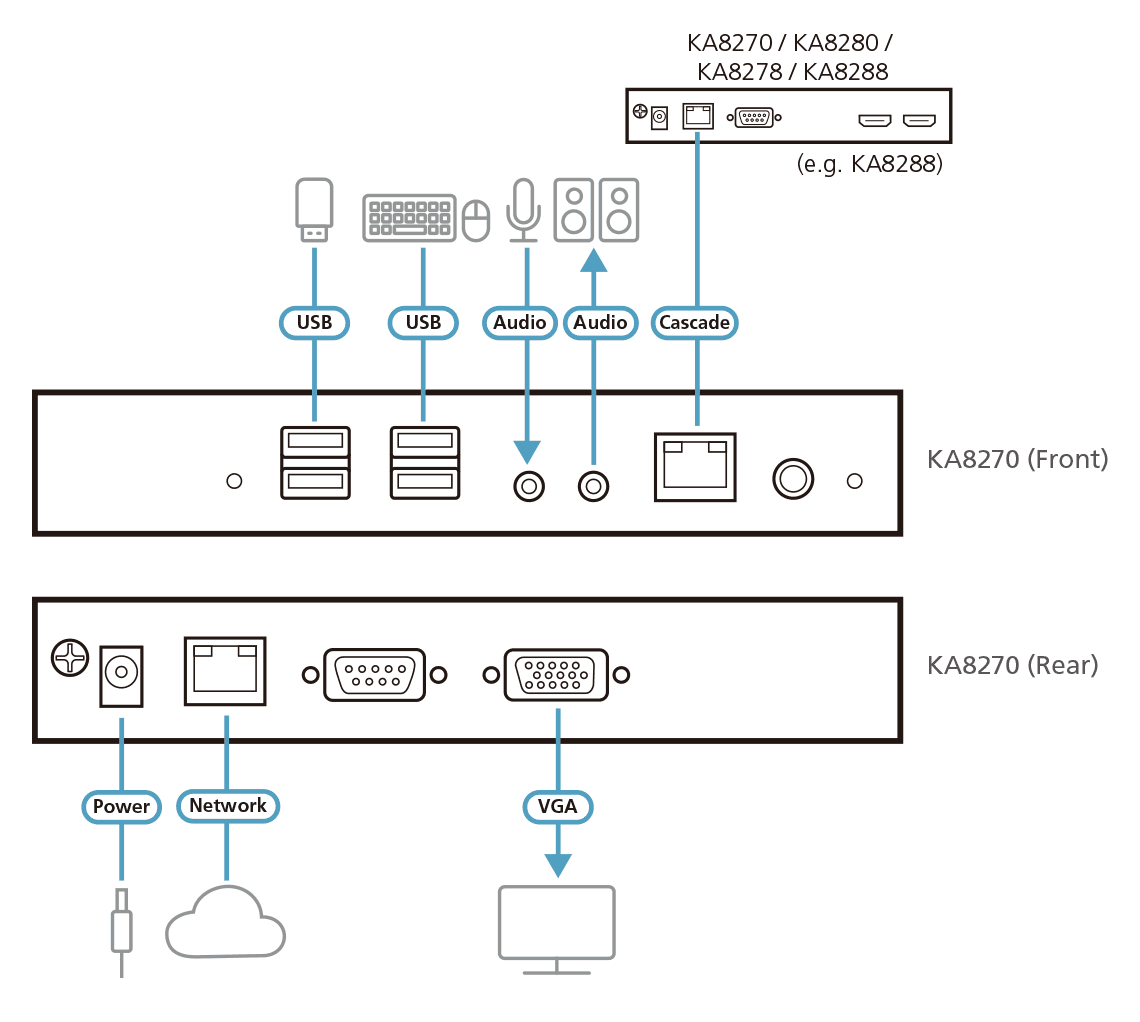

Конектори
- Видео
- 1 x HDB-15 Female
- RS-232
- 1 x DB-9 Male
- Захранване
- 1 x DC Jack
- Аудио
- 2 x Audio Jack Female
- LAN портове
- 1 x RJ-45 Female
- Клавиатура
- 1 x USB Type-A Female
- Мишка
- 1 x USB Type-A Female
- USB порт
- 2 x USB Type-A Female
- Каскаден порт
- 1 x RJ-45 Female
Индикатори
- Захранване
- 1 (Blue)
Бутони и превключватели
- Захранване
- 1 x Push button
- Нулиране
- 1 x Semi-recessed Push button
- Видео
- 1920 x 1200 @ 60Hz
- Консумация
- DC 5V:4.66W:47.44BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 -40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.75 kg ( 1.65 lb )
- Размери (Д x Ш x В)
- 17.42 x 15.54 x 2.88 cm (6.86 x 6.12 x 1.13 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
