Single Rail LCD Console (USB, HDMI / DVI / VGA)
CL6700

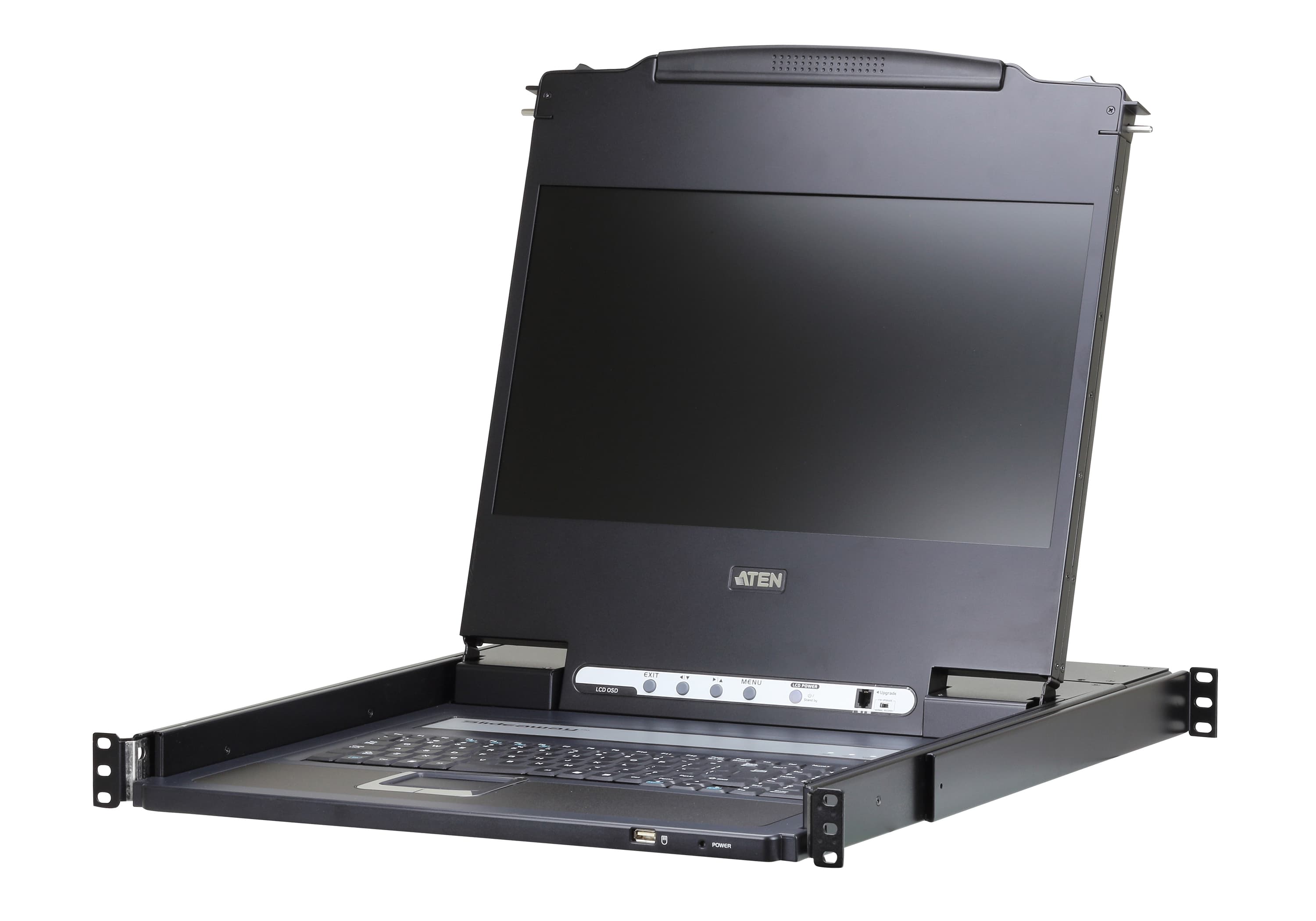

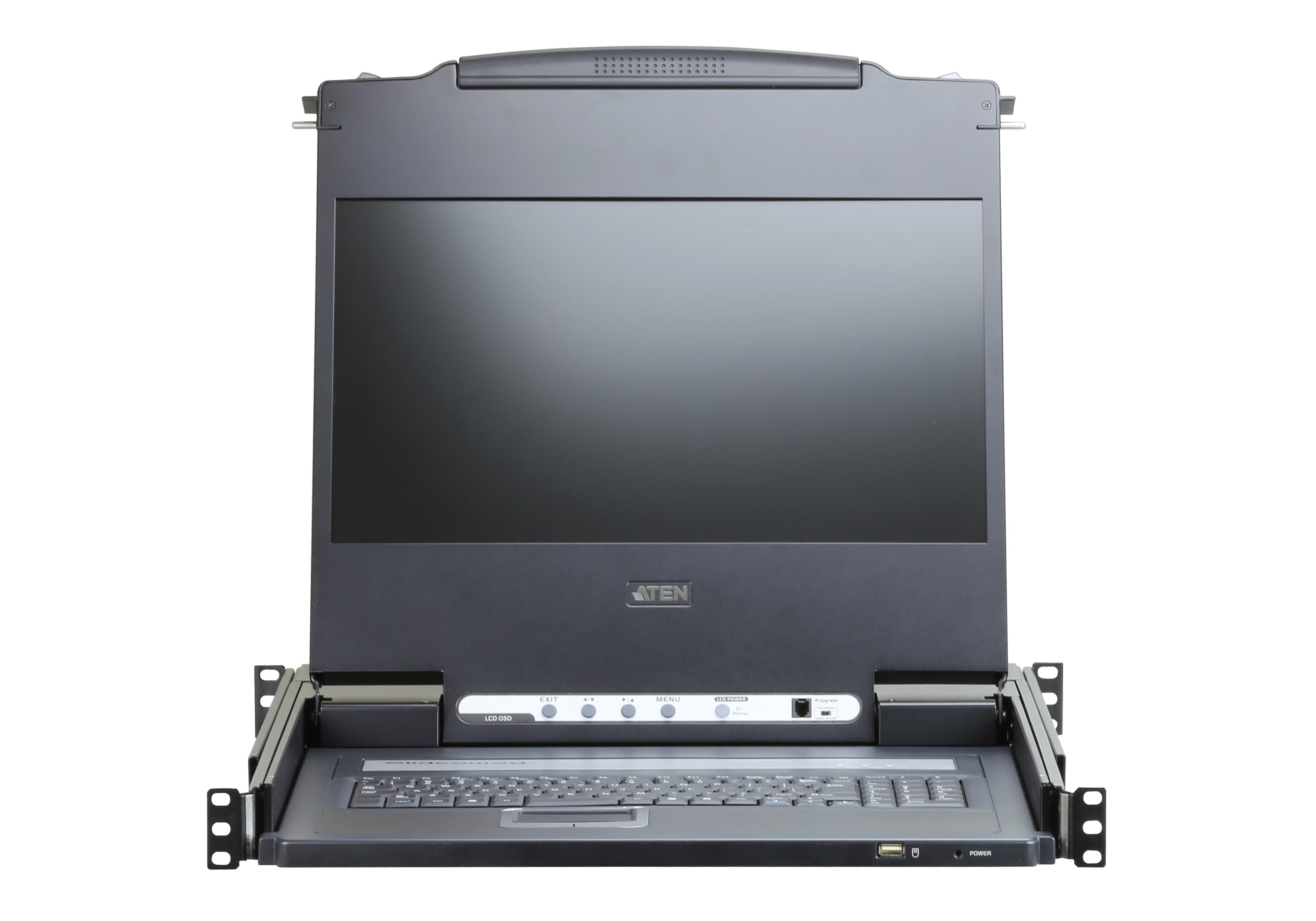

LCD KVM конзола в 1U плъзгащо се чекмедже с клавиатура и тъчпад. Предлага се със 17,3-инчов Full HD или с 19-инчов екран и се свързва към компютъра по USB и HDMI, DVI или VGA.
Характеристики
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with a 17.3” LED-backlit widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation with a 1U high system rack (CL6700MW)
- Integrated KVM console with a 19" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
- Superior video quality – up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
- Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Audio support (speakers)
- Standard rack mount kit included
- Optional rack mount kits available including easy installation options
- Standard 105-key keyboard; Sun keyboard emulation
- Multiplatform support – Windows, Linux, Mac, and Sun
- Firmware upgradeable
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor More information about "Easy Rack Mounting"...
Връзки към компютри
- Директно
- 1
- Директно
- 1
- Избор на конзола
- Hotkey
- Избор на конзола
- Hotkey

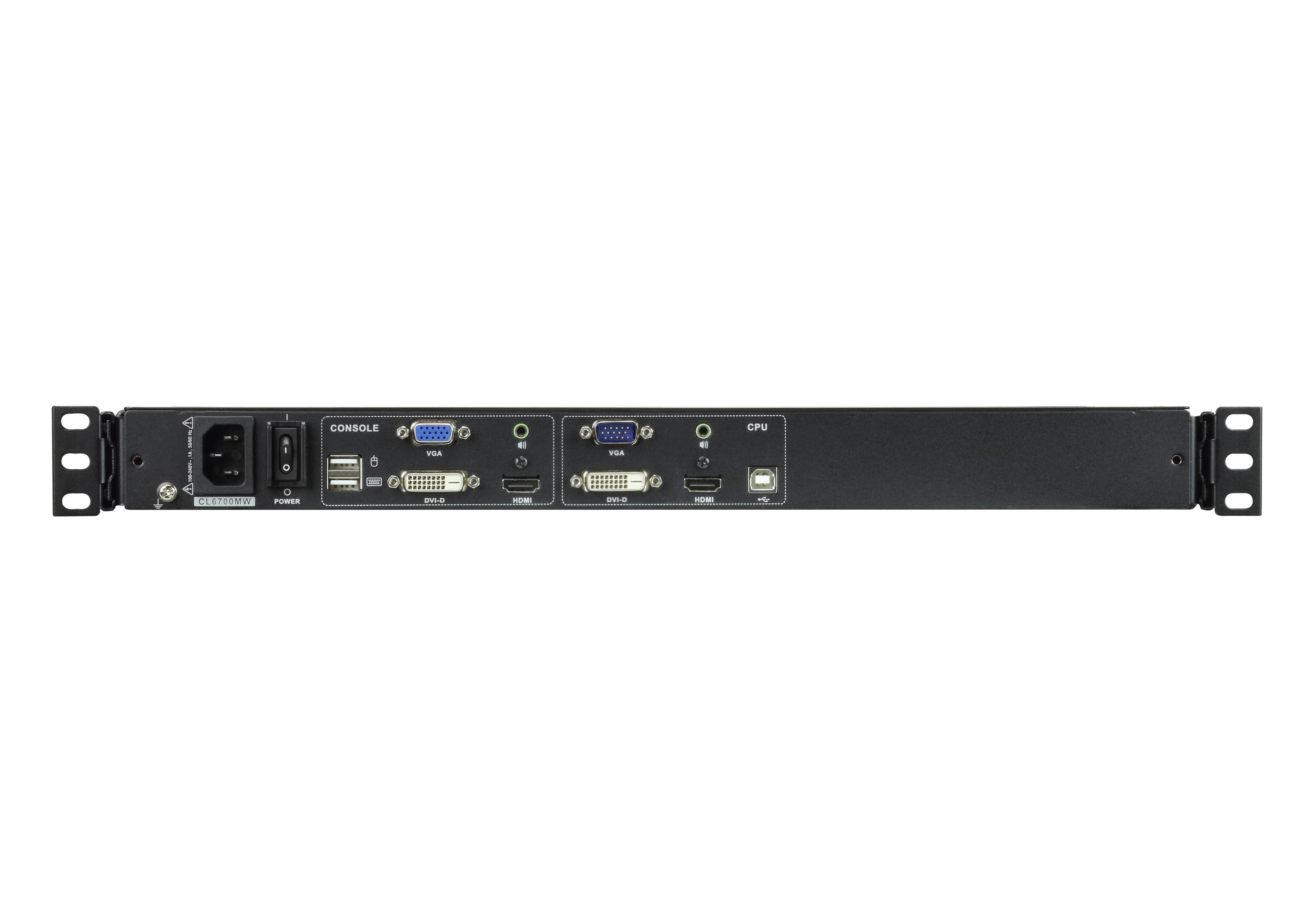

Конектори
- KVM портове
- 1 x USB Type-B Female 1 x HDMI Female 1 x DVI-D Female (White) 1 x HDB-15 Male (Blue) 1 x 3.5mm Audio Jack Female (Green)
- KVM портове
- 1 x USB Type B Female 1 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC 60320/C14
- Захранване
- 1 x IEC 60320/C14
- Външни конзолни портове
- 2 x USB Type-A Female 1 x HDMI Female 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 1 x 3.5mm Audio Jack Female (Green)
- Външни конзолни портове
- 2 x USB Type A Female 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 1 x 3.5mm Audio Jack Female (Green)
- Външна мишка / периферия
- 1 x USB Type A Female (Front)
- Външна мишка / периферия
- 1 x USB Type A Female (Front)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 17.3" TFT-LCD
- LCD модул
- 19" TFT-LCD
- Резолюция
- 1920 x 1080 @ 60 Hz
- Резолюция
- 1280 x 1024 @ 75 Hz
- Време за реакция
- 16 ms
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 170° (V)
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.1989 mm x 0.1989 mm
- Стъпка на пикселите
- 0.294 mm x 0.294 mm
- Поддържани цветове
- 16.77M colors
- Поддържани цветове
- 16.77M colors
- Контраст
- 800 : 1
- Контраст
- 1000 : 1
- Яркост
- 250 cd/m²
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 x 1200 @ 60Hz (all resolution @ 60Hz only); 1920 x 1080 @ 60 Hz, DDC2B
- Входна видео резолюция
- 1280 x 1024 @ 75Hz, DDC2B
Емулация
- Клавиатура / мишка
- USB
- Клавиатура / мишка
- USB
- Макс. входна мощност
- 100-240V AC; 50-60Hz; 1A
- Макс. входна мощност
- 100-240V AC; 50-60Hz; 1A
- Консумация
- AC110V:21.2W:106BTU/h AC220V:20.8W:104BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- AC110V:21.2W:106BTU/h AC220V:20.8W:104BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0-80% RH, Non-condensing
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тип релси
- Single Rail
- Тип релси
- Single Rail
- Тегло
- 11.38 kg ( 25.07 lb )
- Тегло
- 11.38 kg ( 25.07 lb )
- Размери (Д x Ш x В)
- 48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.)
- Размери (Д x Ш x В)
- 48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
