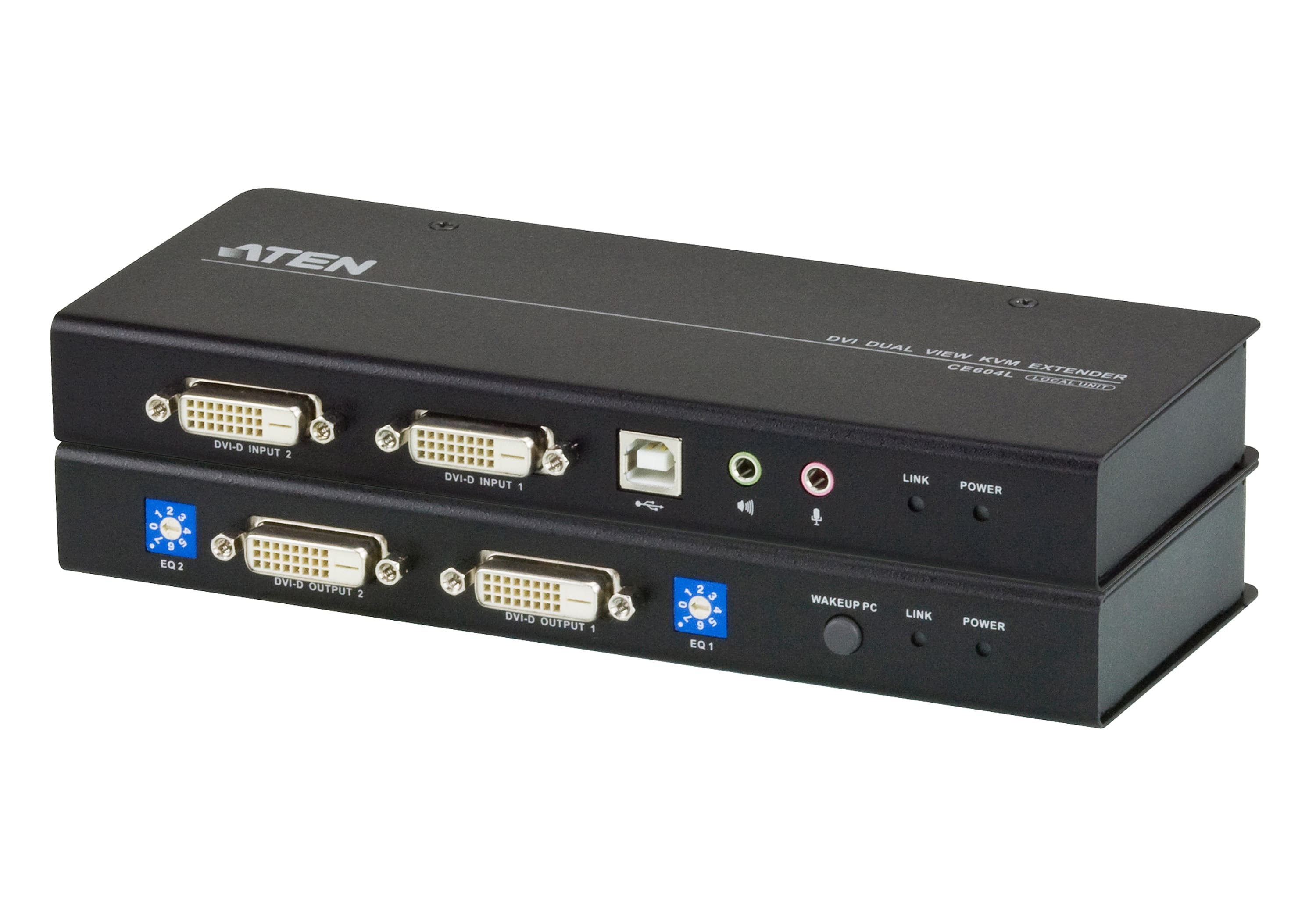

USB DVI Dual View Cat 5 KVM Extender (1024 x 768@60m)

Name: USB DVI Dual View Cat 5 KVM Extender (1024 x 768@60m)
Brand: ATEN
SKU: CE604

CE604

KVM удължител за DVI Dual View — пренася образ към два монитора на отдалечената конзола до 60 m по два Cat 5e кабела, с USB и RS-232.

Характеристики

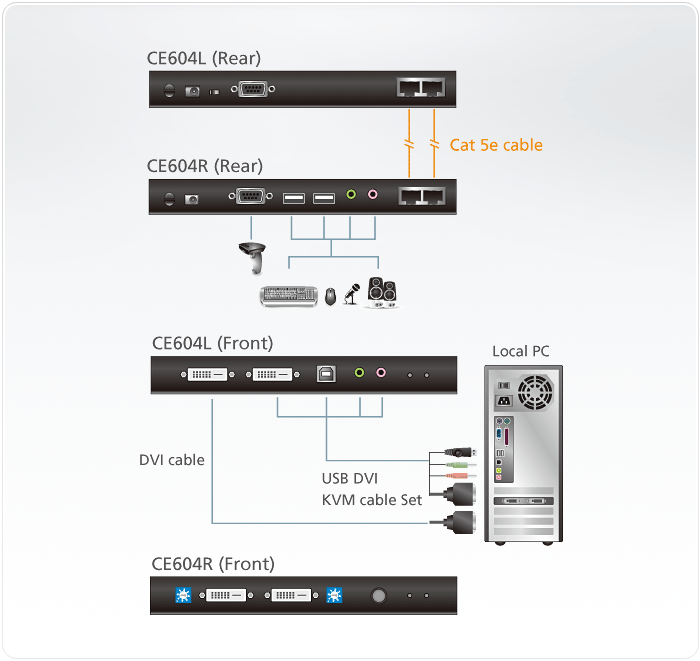

Local and Remote Units connect at distances up to 60 m using two Cat 5e cables
Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable
Supports Dual View video source transmission (one PC with two video output ports)
Audio Enabled – supports stereo speakers and microphone
Supports Real DDC bypass and ATEN default EDID technology – set up various configurations via hotkeys
Supports PC wakeup function via one pushbutton or hotkey
RS-232 serial channel – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps)
Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A
Superior video quality – up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m
Manual compensation control to adjust video signal quality in order to compensate for distance
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

Конзолни портове: N/A

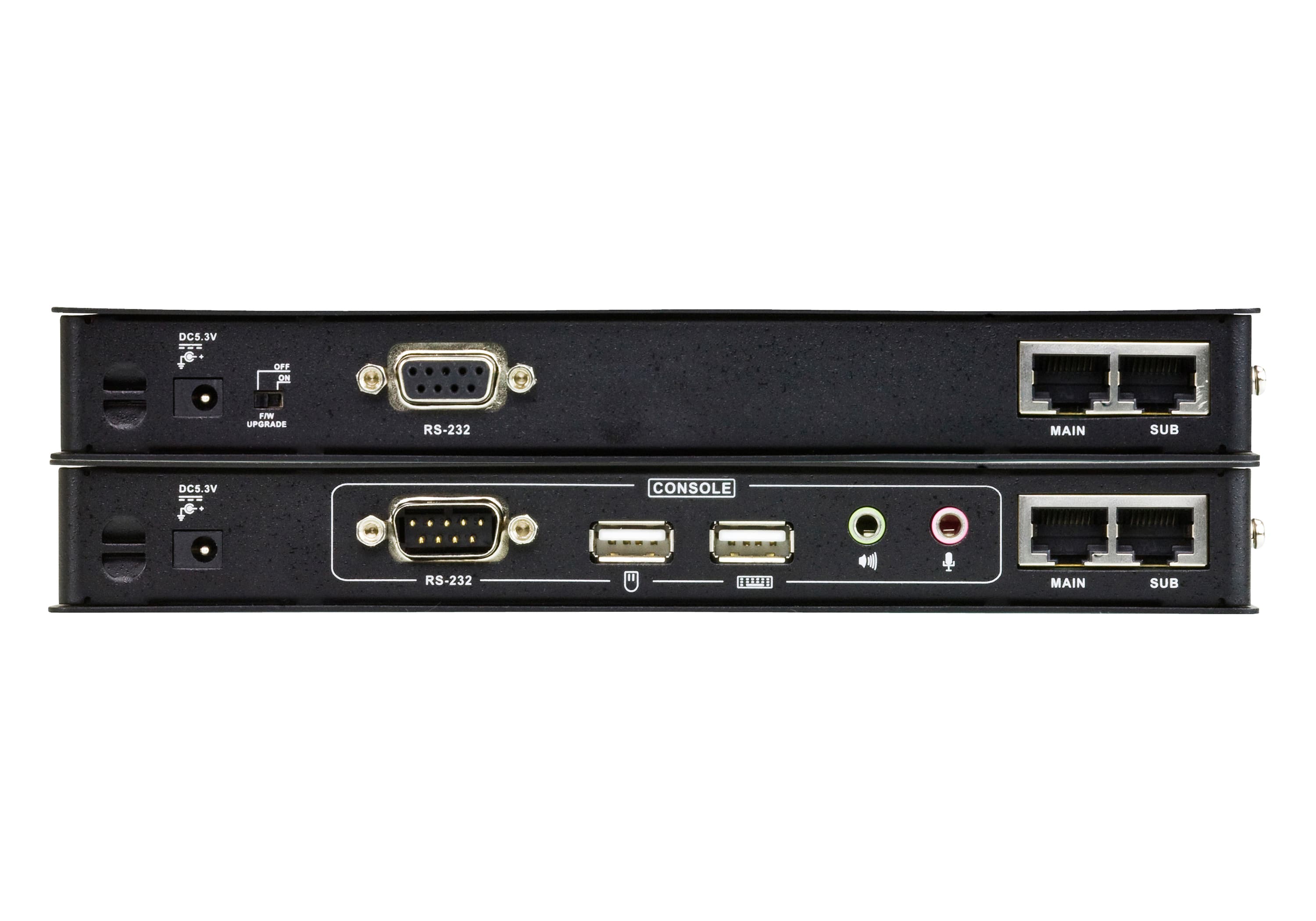

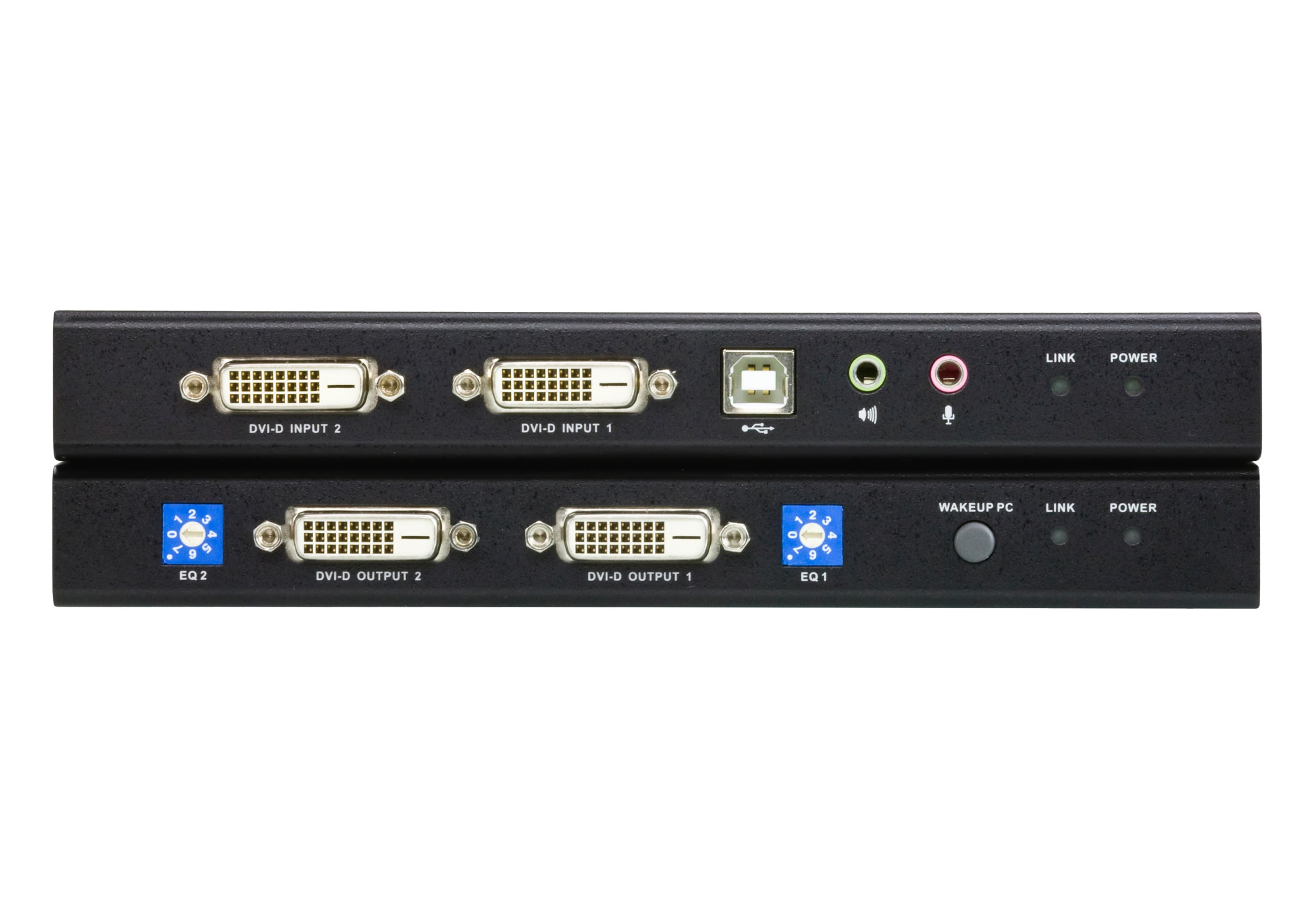

Конзолни портове: 2 x USB Type A Female (White) 2 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 2 x DVI-D Female (White)
KVM портове: N/A
RS-232: 1 x DB-9 Female (Black)
RS-232: 1 x DB-9 Male (Black)
Захранване: 1 x DC Jack (Black)
Захранване: 1 x DC Jack (Black)
Sub / Main: 2 x RJ-45 Female (Black)
Sub / Main: 2 x RJ-45 Female (Black)

Бутон за събуждане: N/A
Бутон за събуждане: 1 x pushbutton
Видео: 1920x1200 @ 60Hz (30 m); 1024x768 @ 60Hz (60 m)
Видео: 1920x1200 @ 60Hz (30 m); 1024x768 @ 60Hz (60 m)
Консумация: DC5.3V:2.88W:18BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5.3V:2.35W:15BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.49 kg ( 1.08 lb )
Тегло: 0.49 kg ( 1.08 lb )
Размери (Д x Ш x В): 20.20 x 8.53 x 2.50 cm (7.95 x 3.36 x 0.98 in.)
Размери (Д x Ш x В): 20.20 x 8.67 x 2.50 cm (7.95 x 3.41 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
