Презентационен превключвател с безжично споделяне от лаптопи и мобилни устройства (AirPlay, Google Cast, Chrome). Извежда съдържание едновременно към 1 HDMI дисплей (до 4K @ 30 Hz) и 1 VGA дисплей (до 1080p).
Характеристики
- A BYOD presentation switch with wireless presentation capability
- Up to 4K content can be output to 1 HDMI-enabled display and 1 VGA-enabled display at the same time
- Allows native content sharing from users’ laptop screens through the ATEN Wireless Presentation Switch App available on Windows, macOS, and Android
- Compatible with popular operating systems, including AirPlay1, Google Cast1, and Chrome, for wireless content sharing
- Multi-view presentation – up to two sources can be shared wirelessly in full screen / side-by-side layout
- Auto layout projection – presentation layout can be switched automatically whenever a new signal is detected
- Multiple simultaneous connections – allows up to 8 attendees to quickly enter a meeting either wirelessly (through VP2020) or via LAN connection in the same network environment
- Moderation Mode – the moderator can manage and control team members’ connection status and the AV content being displayed
- USB touch back – allows for seamless operation of a presentation directly from a connected touchscreen or mouse
- Web GUI for control and configuration of the presentation switch
- Supports Power over Ethernet (PoE) connectivity for easier installation, eliminating the need for an additional power adapter
- HDMI audio de-embedding – enables easy integration with audio amplifiers or mixing systems
- A perfect collaboration terminal that suits any wireless video conference and digital learning application *The information contained is the property of ATEN International Co. LTD or their respective owners. All rights reserved. AirPlay® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Google Cast ™ is a trademark of Google LLC. Any other brand names or marks are used for compatibility description only and are trademarks or registered trademarks of their respective owners.

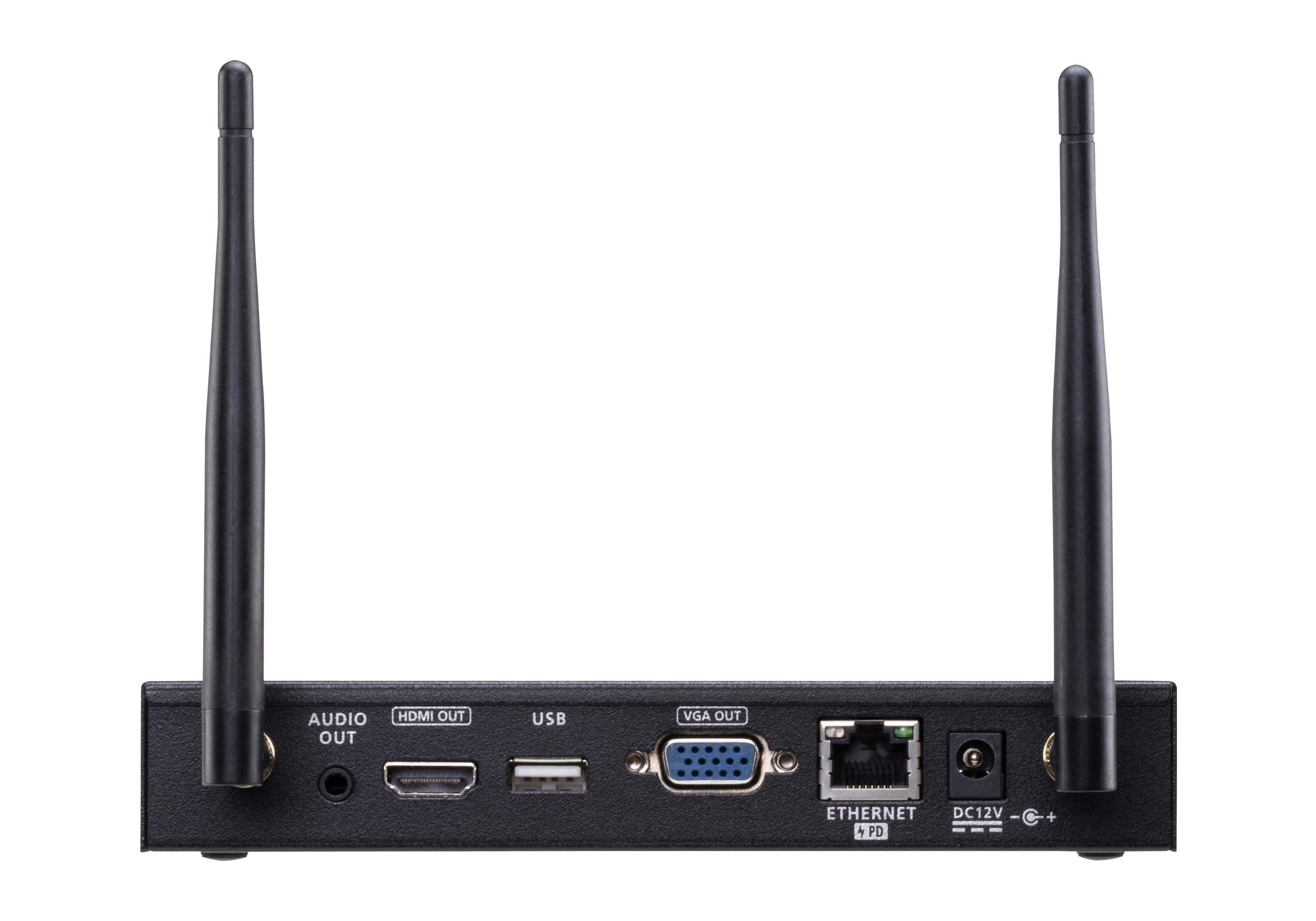

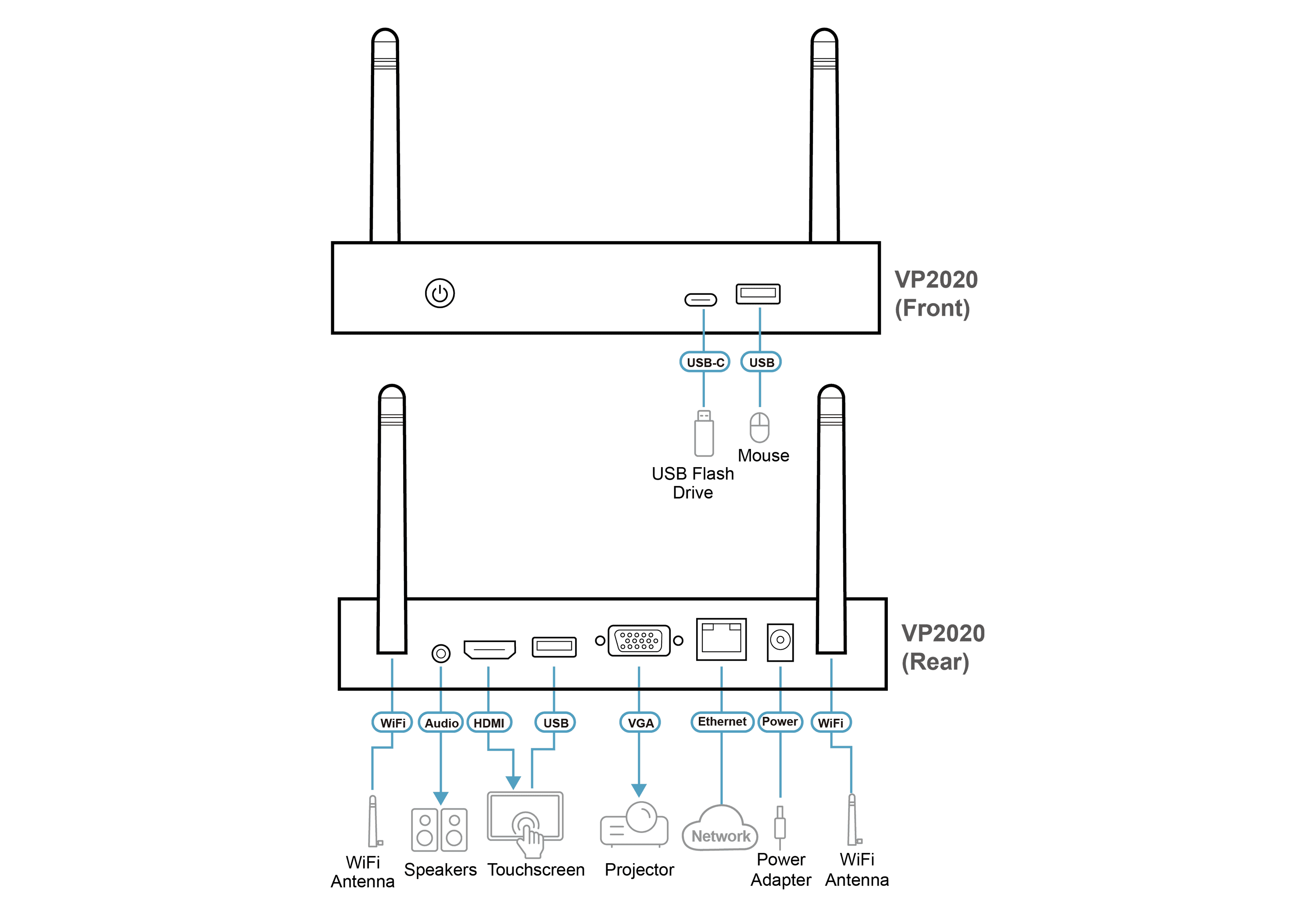

Видео изход
- Интерфейси
- 1 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female
- Макс. разстояние
- HDMI: Up to 5m VGA: Up to 15m
Видео
- Макс. резолюция
- HDMI: Up to 4K@30Hz VGA: Up to 1080p
Аудио
- Изход
- Stereo Audio: 1 x mini stereo Jack female (Black)
- Скорост на мрежов пренос
- 10/100/1000 Mbps RJ 45 LAN ( Support PoE)
Безжична връзка
- Протокол за удостоверяване
- AP mode: WPA2-PSK Station mode: WEP, WPA, WPA2, 802.1x EAP
- Протокол за безжичен пренос
- IEEE 802.11ac
- Честотен обхват
- Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
- Обхват
- 20m Transmission in 5GHz 30m Transmission in 2.4GHz

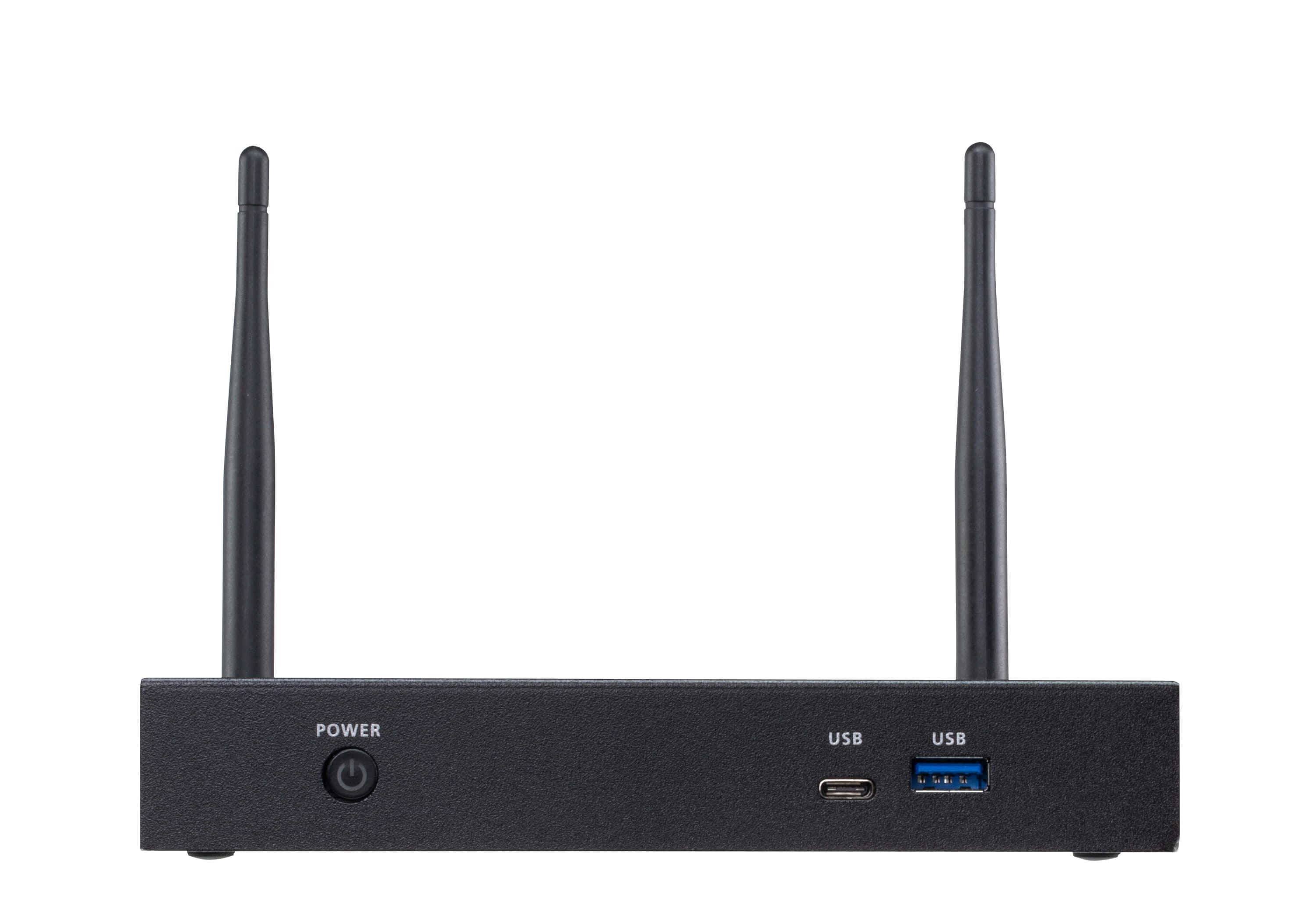

Конектори
- Конзолни портове
- USB 3.0: 1 x USB Type A Female (Blue) USB 2.0: 1 x USB Type A Female USB-C: 1 x USB Type C Female
- Захранване
- 1 x DC Jack (Black)
Бутони и превключватели
- Захранване
- 1 x Pushbutton (LED: Blue)
Управление
- Ethernet
- 1 x RJ-45 Female (Silver)
- Консумация
- DC12V:12W
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.47 kg ( 1.04 lb )
- Размери (Д x Ш x В)
- 17.00 x 10.40 x 2.83 cm (6.69 x 4.09 x 1.11 in.)
- Брой в кашон
- 5 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Входни резолюции
- 640 x 480 @ 60/67/72/75 Hz
- 800 x 600 @ 56/60/72/75 Hz
- 1680 x 1050 @ 60 Hz
- 1024 x 768 @ 60/70/75 Hz
- 1920 x 1080 @ 50/60 Hz
- 1280 x 720 @ 50/60 Hz
- 1920 x 1200 @ 60 Hz
- 1280 x 800 @ 60 Hz
- 3840 x 2160p @ 30 Hz (RGB)
- 1280 x 1024 @ 60/75 Hz
- 1440 x 900 @ 60 Hz
Фърмуер
