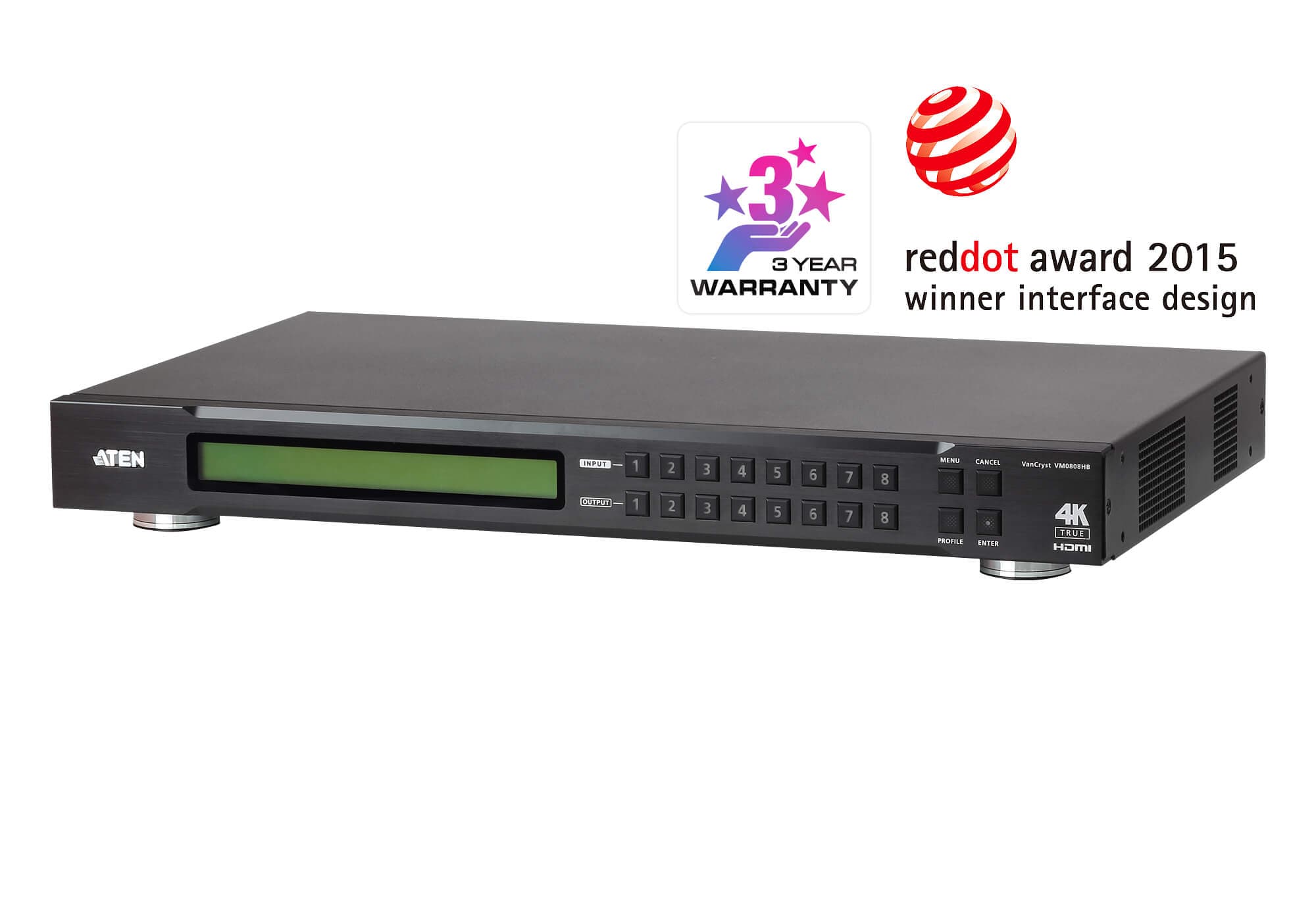

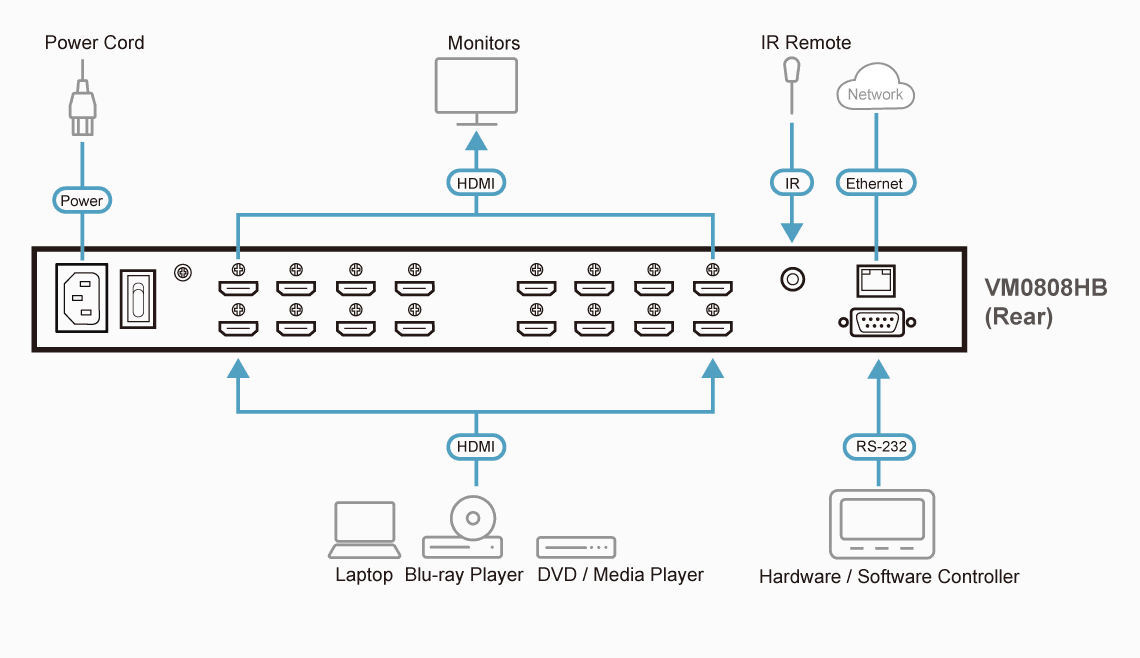

Матричен превключвател, който насочва всеки от 8 HDMI източника към всеки от 8 дисплея при True 4K (4096x2160@60Hz 4:4:4). Управление от предния панел, с IR дистанционно, по RS-232 или през уеб интерфейс.
Характеристики
- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports HDR10+

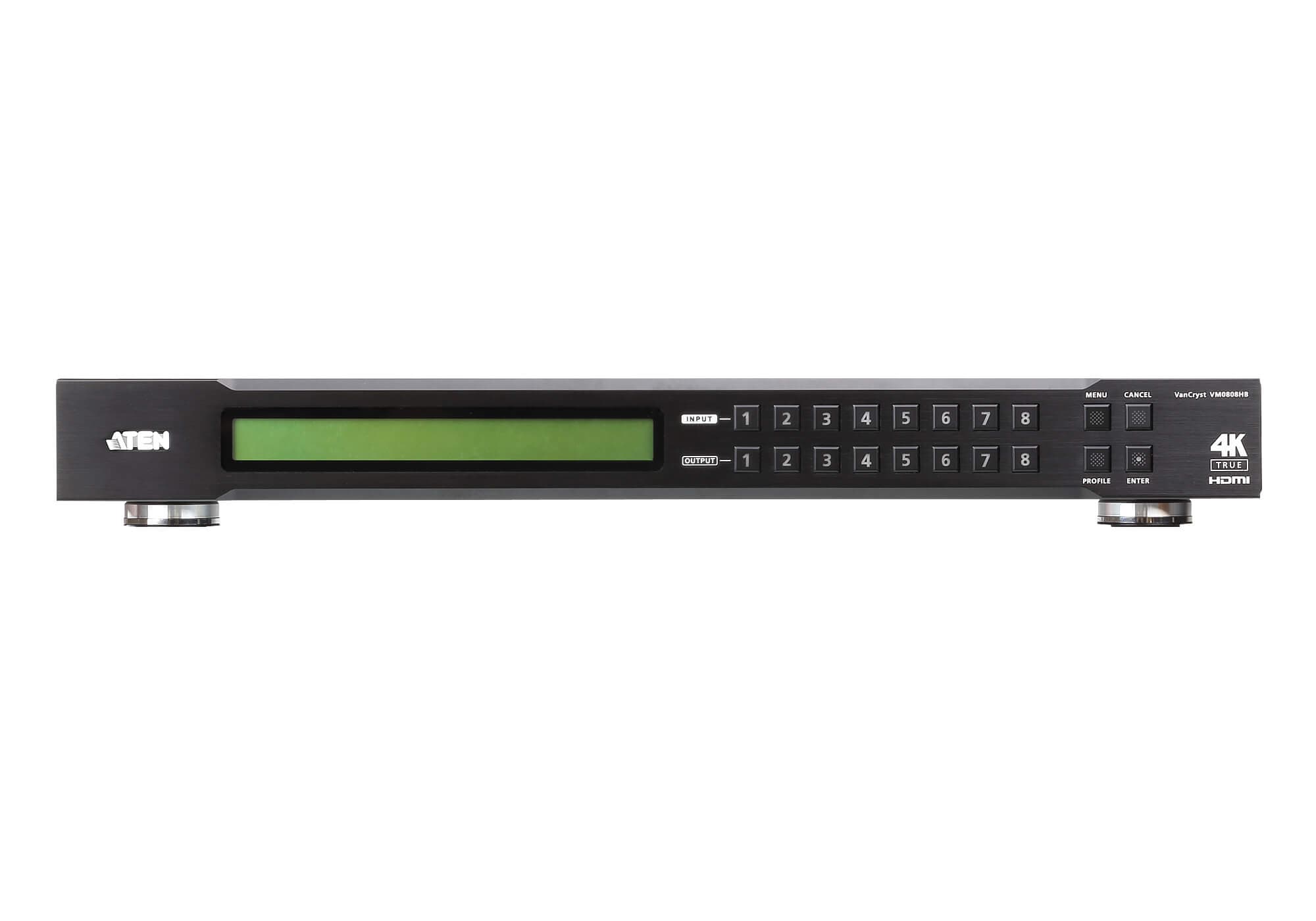

- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Supports Consumer Electronics Control (CEC)
- Power-on Detection – switches to the next powered-on source when one source is powered off
- ESD protection for HDMI
- Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
- Firmware upgradeable
- Rack mountable (1U design)
Видео вход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5.0 m / 4K@60Hz (4:4:4)
Видео изход

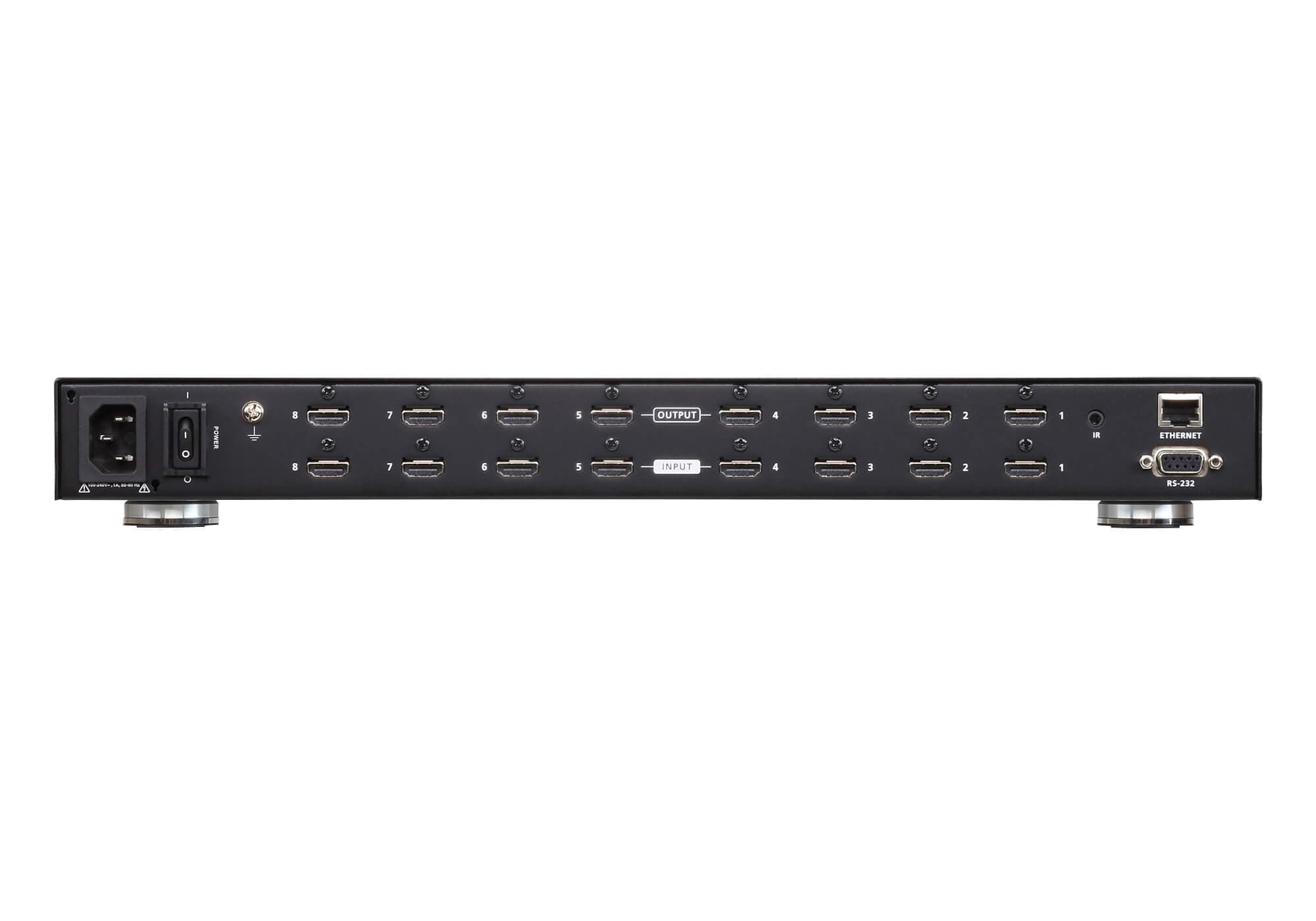

- Интерфейси
- 8 x HDMI Type A Female (Black)
- Макс. разстояние
- 5m / 4K@60Hz (4:4:4) 15m / 1920 x 1200
- Импеданс
- 100 Ω
Видео
- Макс. пикселна честота
- 600 MHz
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Макс. скорост на данните
- 18 Gbps( 6 Gbps Per Lane)
- Съответствие
- HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- Ethernet
- 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)
Работна среда
- Работна температура
- 0-40°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Температура на съхранение
- -20 - 60°C
Физически характеристики
- Тегло
- 3.99 kg ( 8.79 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.)
Конектори
- Захранване
- 1 x 3-Prong AC Socket
- Брой в кашон
- 1 pc
- Консумация
- AC110V:38.1W:179BTU/h AC220V:37.8W:177BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 1.0A
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
