7 x 3 Seamless Presentation Matrix Switch with Scaler, Streaming, Audio Mixer, and HDBaseT

Name: 7 x 3 Seamless Presentation Matrix Switch with Scaler, Streaming, Audio Mixer, and HDBaseT
Brand: ATEN
SKU: VP2730

VP2730

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

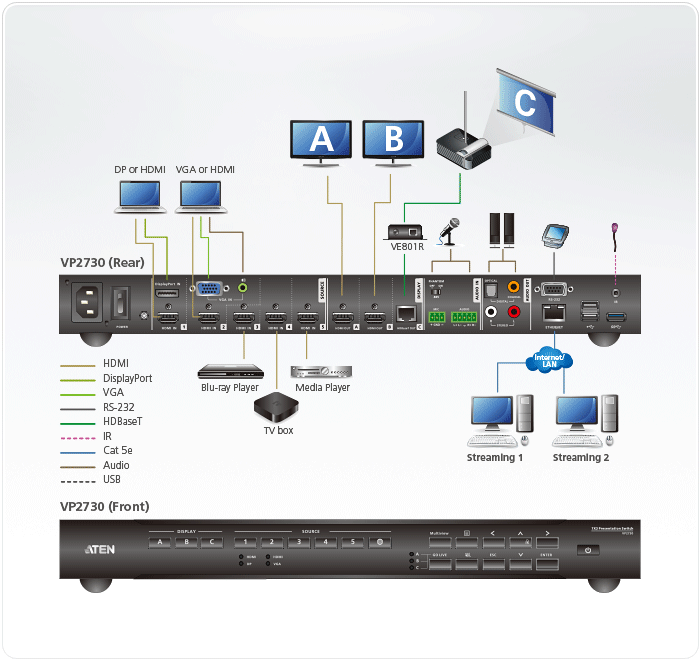

Презентационна матрица със 7 входа (HDMI, DisplayPort, VGA) и 3 изхода — 2 HDMI и 1 HDBaseT до 70 m по Cat 6a — при 1080p@60Hz. Включва скалер, аудио миксер, стрийминг и превключване без прекъсване.

Характеристики

Supports multi-format 7 Inputs: • 2 combo inputs (HDMI/VGA, HDMI/DisplayPort) • 3 HDMI inputs
2 HDMI and 1 HDBaseT outputs
Superior video quality up to 1080p @ 60Hz (HDMI/DisplayPort)
Ultra Seamless Switch™ – zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
Flexible aspect ratio conversion
Go Live – meeting moderator can broadcast HD video streams to up to 5 remote locations
Streaming In – remote locations can stream and share content to the meeting moderator at any distance via intuitive web GUI
Streaming Queuing – shares the streamed-in content approved by the meeting moderator one at a time to help manage the meeting flow
Audio Mixer – allows mixing of the microphone inputs to any external analog or digital audio output device
Embed/De-embed Audio – HDMI/DisplayPort audio signals can be extracted to separate digital/analog audio signals; Mic/Line audio can be embedded to HDMI audio
Supports multi-format digital/analog audio outputs, including coaxial, TOSLINK and RCA
Multi-view – displays and switches simultaneously in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen
Moderator Mode – enables the meeting moderator control other displays via host display
Chat Room – facilitates real-time and precise communication among remote participants
Screen Capture – captures anything on your screen with a click
Freeze – freezes the screen for discussion or to control the meeting flow
View and control via ATEN Video Presentation Control App in a swift and agile way
Multiple Control Options – flexible control via built-in Web UI, Front Panel, OSD, IR Remote Control, and RS-232, and Mobile App
Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience

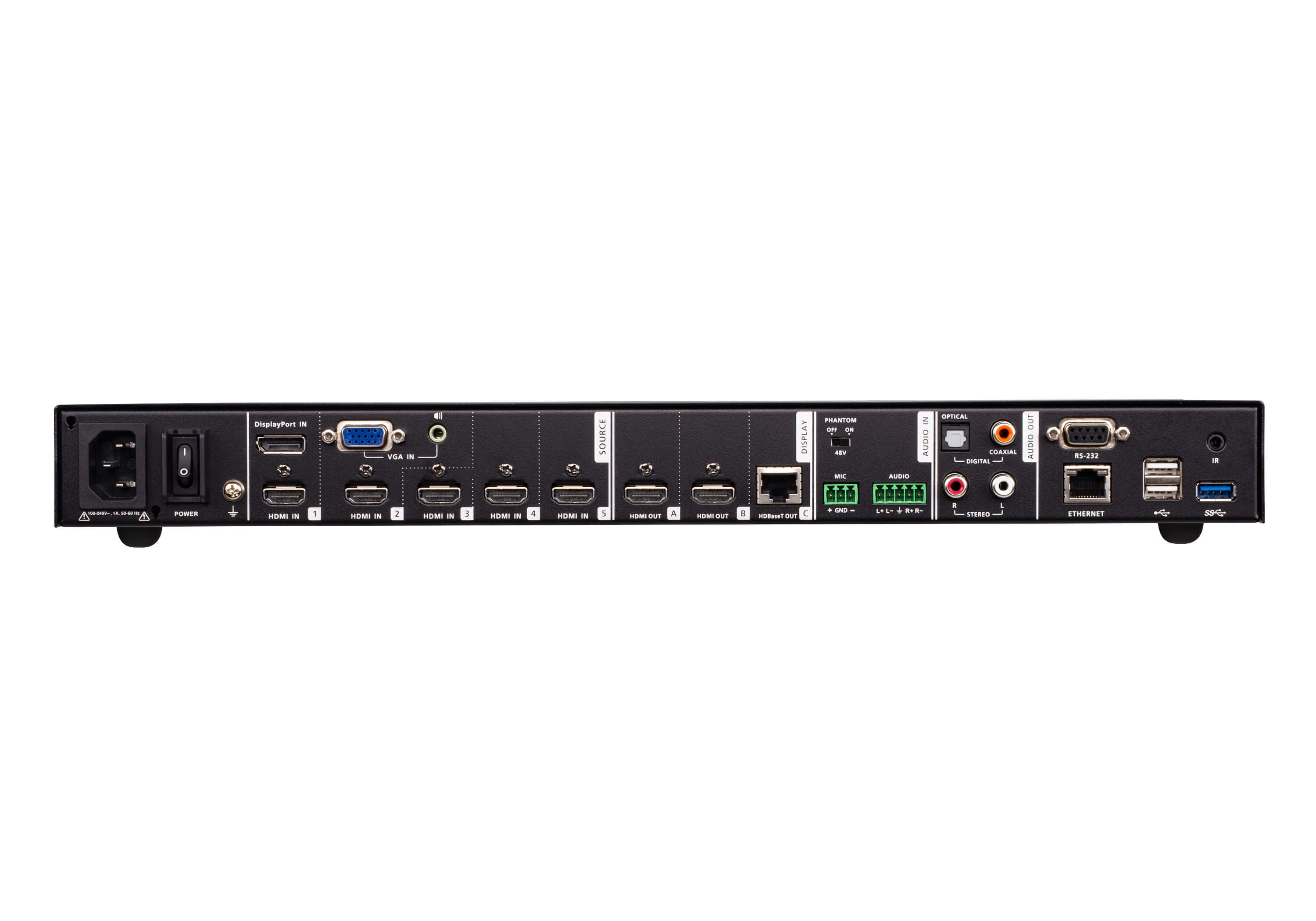

Видео вход

Интерфейси: 5 x HDMI Type A female (Black) 1 x DP Female (Black) 1 x HDB-15 Female (Blue)

Видео изход

Интерфейси: 2 x HDMI Type A female (Black) HDBaseT: 1 x RJ-45 Female (Silver)
Макс. разстояние: HDMI: Up to 15m HDBaseT: Up to 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6)

Видео

Макс. резолюция: HDMI/DP: Up to 1080p@60Hz VGA/Analog: Up to 1920x1200@60Hz
Съответствие: HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)

Аудио

Вход: Stereo Audio: 1 x mini stereo Jack female (Green) Balance Audio: 1 x Captive Screw Connector, 5-pole Microphone: 1 x Captive Screw Connector, 3-pole
Изход: Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA female (Orange) Stereo Audio: 2 x RCA female (White / Red)

Конектори

Конзолни портове: USB 2.0: 2 x USB Type A Female (White) USB 3.0: 1 x USB Type A Female (Blue)
Захранване: 1 x 3-prong AC Socket

Управление

RS-232: 1 x DB 9 female (Black)
IR: 1 x Mini Stereo Jack Female (Black)
Ethernet: 1 x RJ-45 Female (Silver)

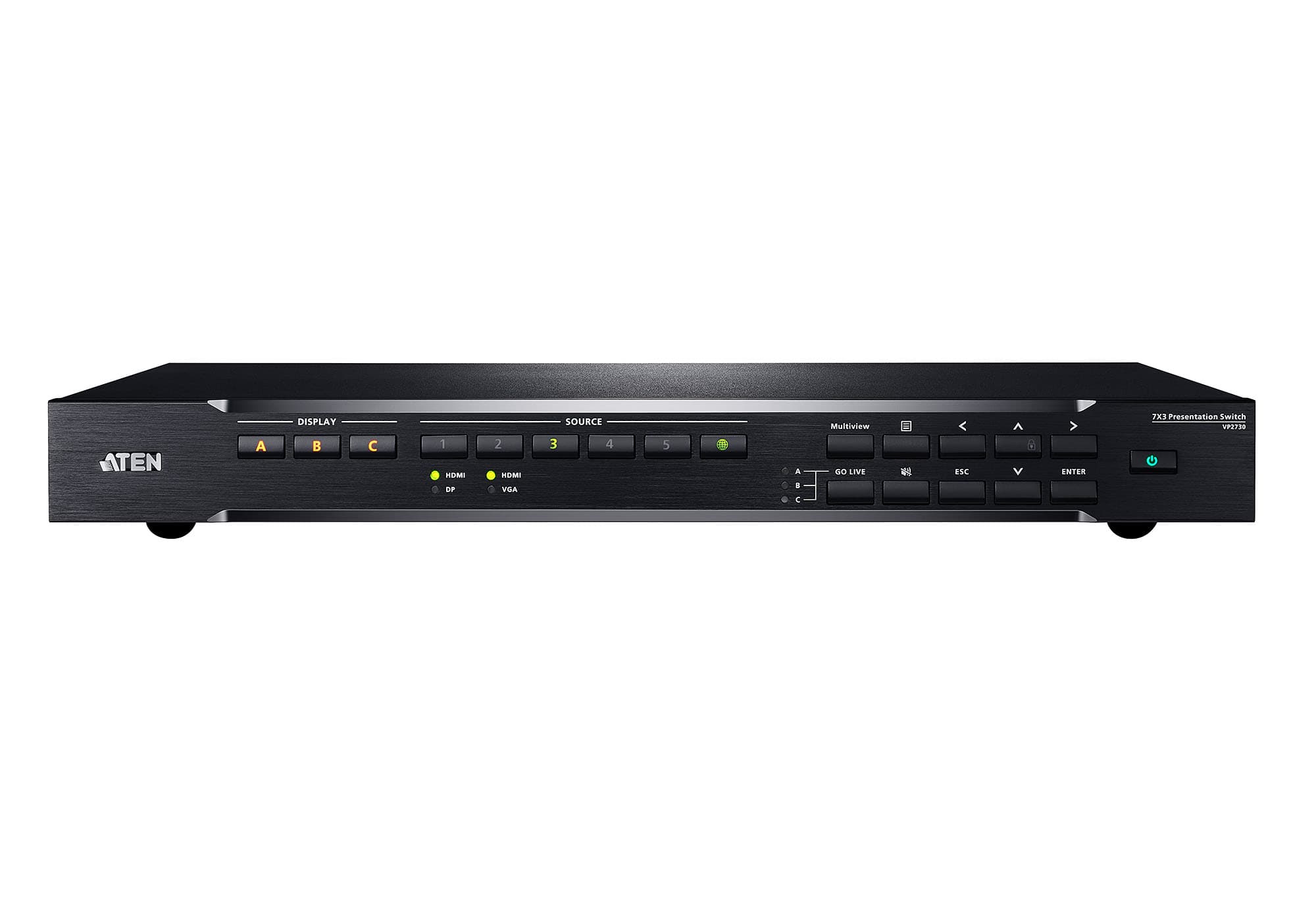

Бутони и превключватели

Захранване: 1 x Pushbutton 1 x Rocker
Избор на видео вход: Video In: 5 x Pushbutton Streaming In: 1 x Pushbutton
Избор на видео изход: 3 x Pushbutton
Избор: Multiview: 1 x Pushbutton Menu: 1 x Pushbutton Left: 1 x Pushbutton Up (Unlock): 1 x Pushbutton Right: 1 x Pushbutton Go Live: 1 x Pushbutton Mute: 1 x Pushbutton Esc: 1 x Pushbutton Down: 1 x Pushbutton Enter: 1 x Pushbutton
Фантомно захранване: 1 x Slide Switch

Индикатори

Видео: Source 1: HDMI/DP: 2(Green) Source 2: HDMI/VGA: 2(Green)
Видео изход: Go Live: 3 (Amber)
EDID настройки: EDID Mode: ATEN Default / Display A

Захранване

Макс. входна мощност: 100-240 VAC; 50-60Hz; 1.0A
Консумация: AC110V:28.5W:174BTU/h AC220V:27.3W:168BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 3.70 kg ( 8.15 lb )
Размери (Д x Ш x В): 43.24 x 26.28 x 4.40 cm (17.02 x 10.35 x 1.73 in.)
Брой в кашон: 1 pc
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
