5 x 2 True 4K Seamless Presentation Matrix Switch with Control

Name: 5 x 2 True 4K Seamless Presentation Matrix Switch with Control
Brand: ATEN
SKU: VP3520

VP3520

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

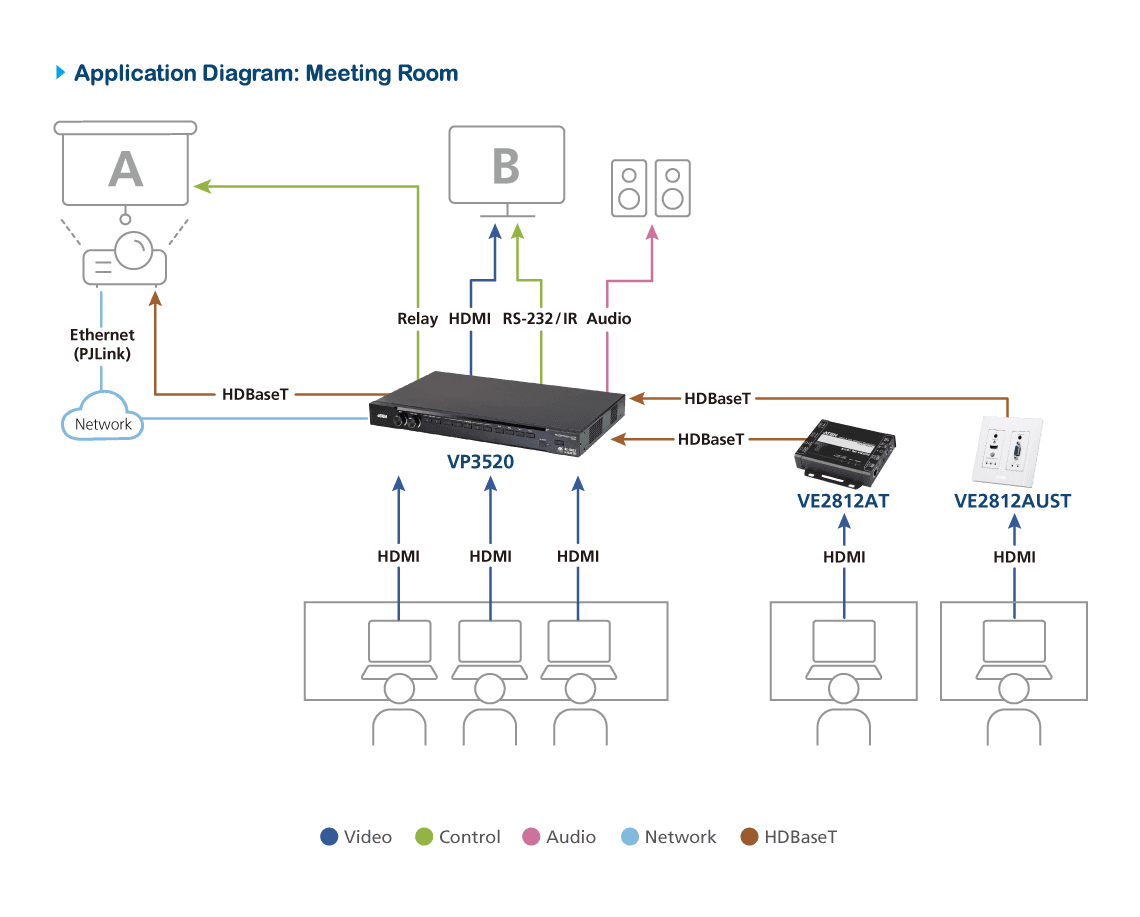

Презентационна матрица True 4K с 5 входа — 3 HDMI и 2 HDBaseT — и изходи 1 HDMI и 1 HDBaseT. Автоматично включва и изключва дисплеите чрез CEC, IR, RS-232 или PJLink и управлява прожекционен екран.

Характеристики

Auto display on / off control – supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port
Flexible control methods – triggered by source detection or 4 function keys on front panel
Supports multi-format 5 inputs – 3 HDMI, 2 HDBaseT
1 HDMI and 1 HDBaseT output
Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and coaxial audio output
Audio de-embedding – HDMI / HDBaseT audio can be extracted to stereo line out
Built-in Audio DSP – supports microphone input with selectable 48 V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
Automatically reduces program audio when a microphone signal is detected
Auto switching – automatically detects and switches to a new source as soon as it is connected
Audio amplifier – 2 x 10 W built-in power amplifier with speaker outputs on terminal block connectors
Superior video quality – True 4K resolutions up to 4096 x 2160 @ 60 Hz (4:4:4) (HDMI) / 4096 x 2160 @ 60 Hz (4:2:0) (HDBaseT)
Supports 4K HDR
4K Scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions
Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
EDID Expert™ –automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across the connected devices
HDMI; HDCP 2.2 compliant
Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
View the device status and control it via ATEN Video Presentation Control App in a swift and agile way.
RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
Supports stand-by mode for power saving and fast waking up
Consumer Electronics Control (CEC) support
Power over HDBaseT (PoH) – remote powering over existing communication cable with selectable powering device
Long-distance transmission – transmits digital AV signal, RS-232 commands, and IR control signals up to 70 m* via Cat 6/6a or ATEN 2L-2910 Cat 6 cables through HDBaseT Out port Note: This is achieved using both the HDBaseT In and the HDBaseT Out ports on the VP3520 with each extending the transmission up to 70 m.

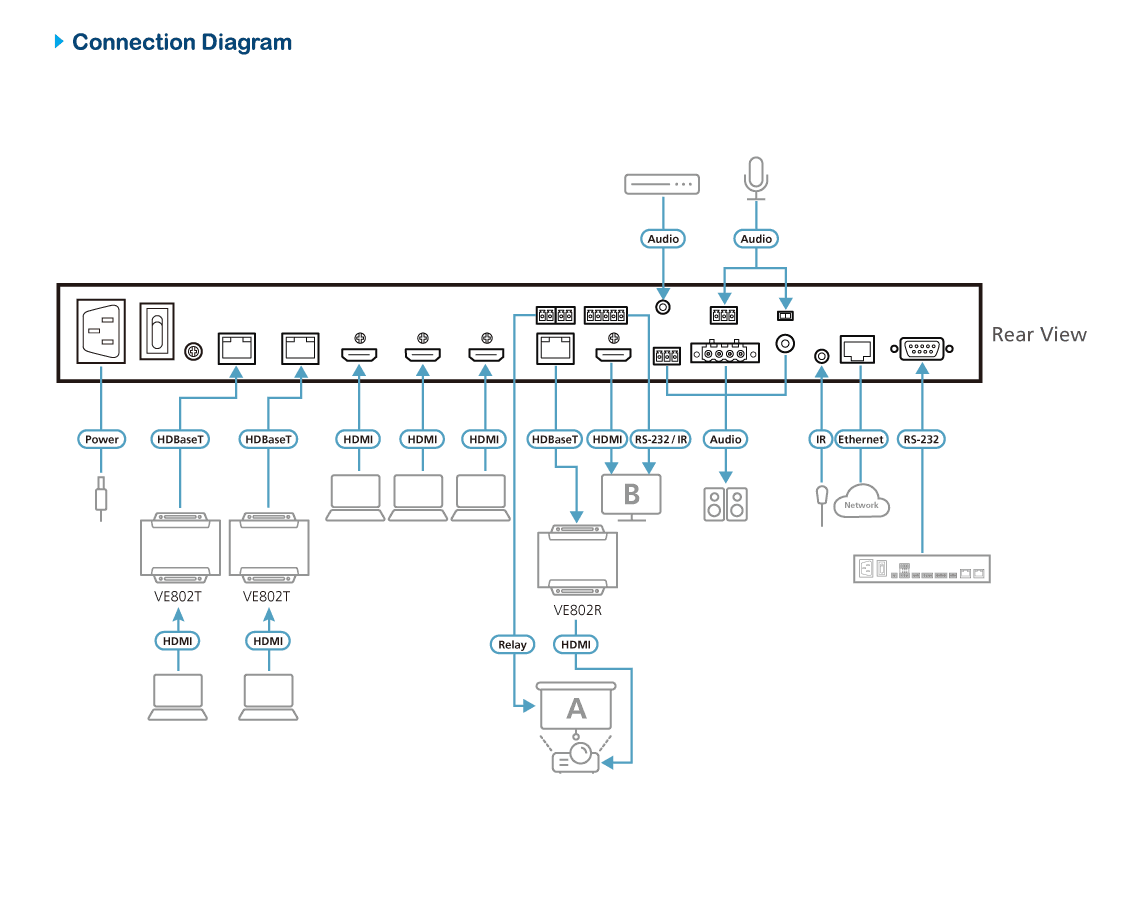

Видео вход

Интерфейси: 3 x HDMI Type A female (Black) 2 x HDBaseT (RJ-45) Female (Silver) with PoH
Макс. разстояние: HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)

Видео изход

Интерфейси: 1 x HDMI Type A female (Black) 1 x HDBaseT (RJ-45) Female (Silver) with PoH
Макс. разстояние: HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)

Видео

Макс. резолюция: HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) HDBaseT: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Съответствие: HDMI; 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC)

Аудио

Изход: Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole Digital Audio: 1 x Coaxial Amplifier out: 1 x Captive Screw Connector, 4-pole
Вход: Stereo Audio (HDMI/HDBT): 1 x mini stereo Jack female (Green) Microphone: 1 x Captive Screw Connector, 3-pole (with selectable phantom power)

Управление

RS-232: 1x DB-9 Female (Black); VP device control & configuration 1 x Captive Screw Connector, 3-pole ; AV device control
IR: 1 x Mini Stereo Jack Female (Black); VP device control 1 x Captive Screw Connector, 2-pole; AV device control
Ethernet: 1 x RJ-45 Female (Silver); Support PJLink protocol

Интерфейси

Реле: 2 x Captive Screw Connector, 2-pole

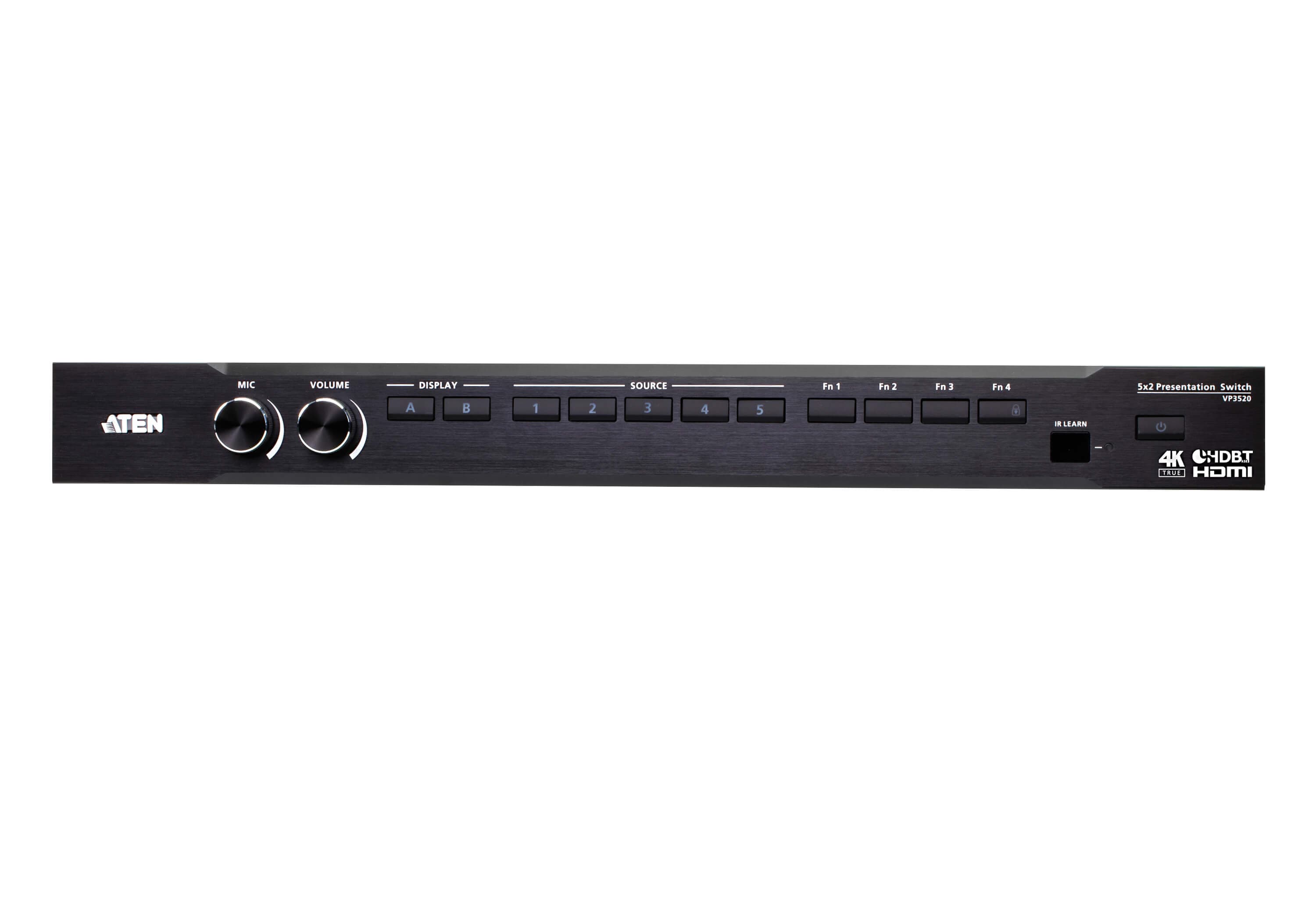

Бутони и превключватели

Захранване: 1 x Pushbutton (LED: Green / Orange) 1 x Slide Switch (+48V Phantom Power)
Избор на видео вход: 5 x Pushbutton (LED: Green)
Избор на видео изход: 2 x Pushbutton (LED: Orange)
Избор: Mic: 1 x Knob Volume: 1 x Knob Mode / Unlock: 1 x Pushbutton Function keys: 4x Pushbutton
EDID настройки: EDID Mode: ATEN Default / Display A / Remix

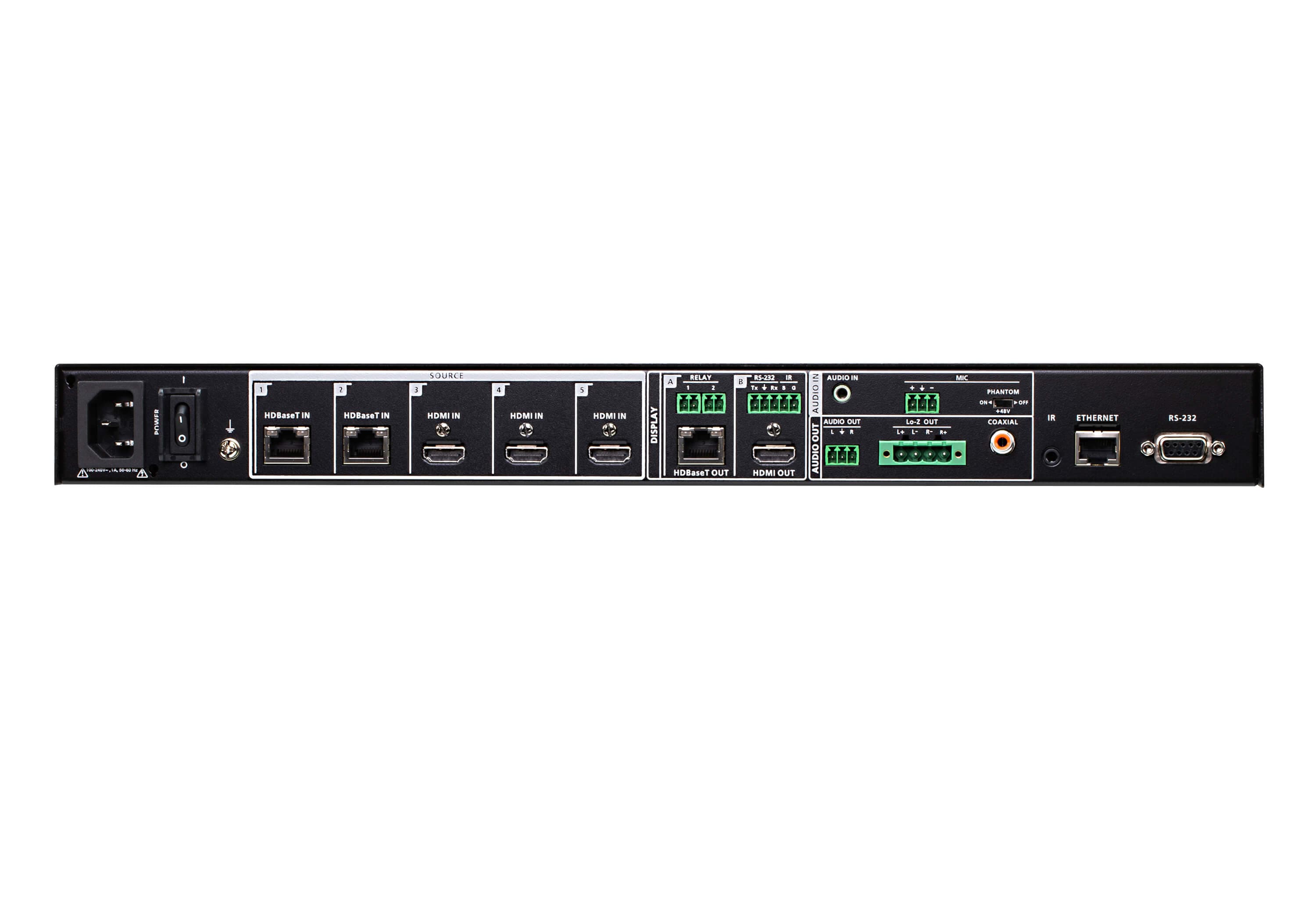

Конектори

Захранване: 1 x 3-Prong AC Socket
Консумация: AC110V:46.7W:314BTU/h AC220V:45.8W:310BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 3.80 kg ( 8.37 lb )
Размери (Д x Ш x В): 43.24 x 27.23 x 4.40 cm (17.02 x 10.72 x 1.73 in.)
Брой в кашон: 3 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Входни резолюции: 640 x 480 @ 60 / 67 / 72 / 75 Hz
720 x 400 @ 70 Hz: 1680 x 1050 @ 60 Hz
800 x 600 @ 56 / 60 / 72 / 75 Hz: 1920 x 1080 @ 60 Hz
1024 x 768 @ 60 / 70 / 75 Hz: 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking)
1280 x 800 @ 60 Hz: 1080p / 720p / 1080i 60 Hz
1280 x 1024 @ 60 / 75 Hz: 480p 60 Hz (4:3) / (16:9)
1400 x 1050 @ 60 Hz: 640 x 480 60 Hz (4:3)
1440 x 900 @ 60 Hz: 576p 50 Hz (4:3) / (16:9)
