Презентационна матрица с 9 входа в различни формати — HDMI, DisplayPort, VGA, AV/YPbPr — и 2 HDMI изхода. Видео до 4096 x 2160 @ 60Hz (4:2:0); вгражда и извлича аудио сигнали.
Характеристики

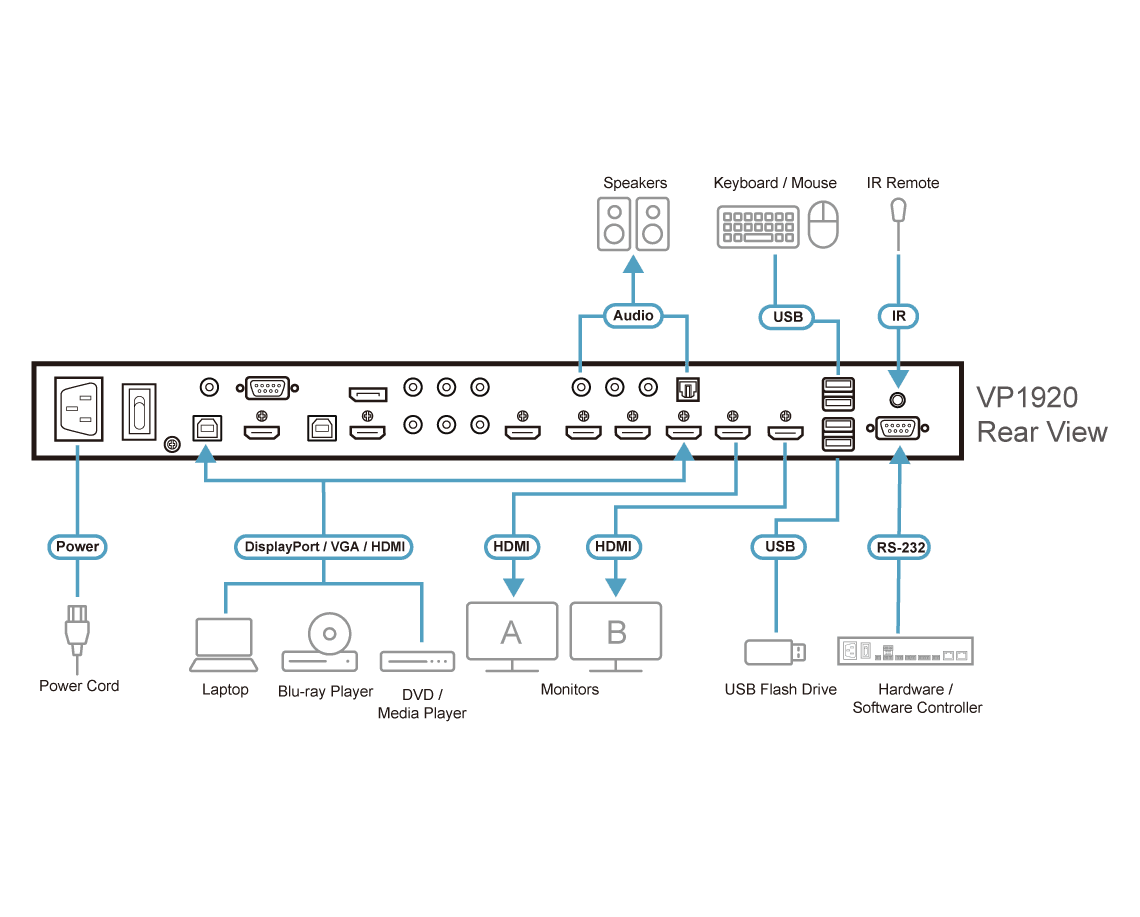

- Supports multi-format 9 Inputs and 2 HDMI outputs: • 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr) • 3 HDMI inputs • 2 HDMI outputs
- VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
- Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals
- Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
- EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
- Source preview – quickly identifies and switches to the target content
- Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
- Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
- Supports stand-by mode for power saving and fast waking up
- USB ports enable keyboard/mouse or touch panel control over the connected computers
- Control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source
Видео вход
- Интерфейси

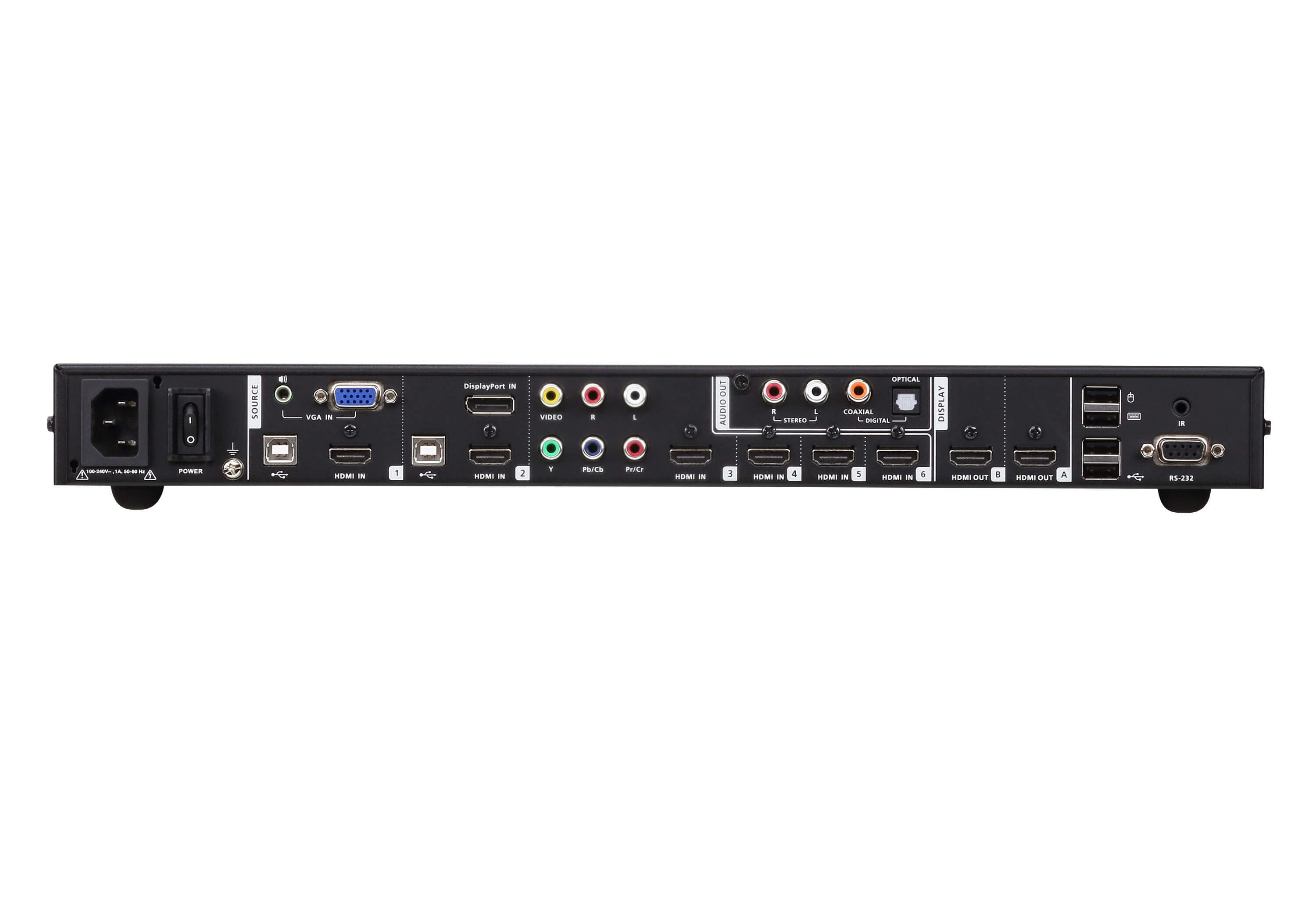

- 6 x HDMI Type A female (Black) 1 x DP Female (Black) 1 x HDB-15 Female (Blue) 1 x Component (3x RCA female, Blue/Green/Red) 1 x Composite (1x RCA female, Yellow)
Видео изход
- Интерфейси
- 2 x HDMI Type A female (Black)
- Макс. разстояние
- Up to 15m
Видео
- Макс. резолюция
- HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) DP: Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) VGA/Analog: Up to 1920x1200@60Hz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
Аудио
- Вход
- Stereo Audio: 1 x mini stereo Jack female (Green) Composite/Component Audio: 2 x RCA female (Red/White)
- Изход
- Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA female (Orange) Stereo Audio: 2 x RCA female (White / Red)
Конектори
- Компютри
- 2 x USB Type B Female (White)
- Конзолни портове
- Keyboard/Mouse: 2 x USB Type A Female (White) Device: 2 x USB Type A Female (White)
- Захранване
- 1 x 3-prong AC Socket
Управление
- RS-232
- 1 x DB 9 female (Black)
- IR
- 1 x Mini Stereo Jack Female (Black)

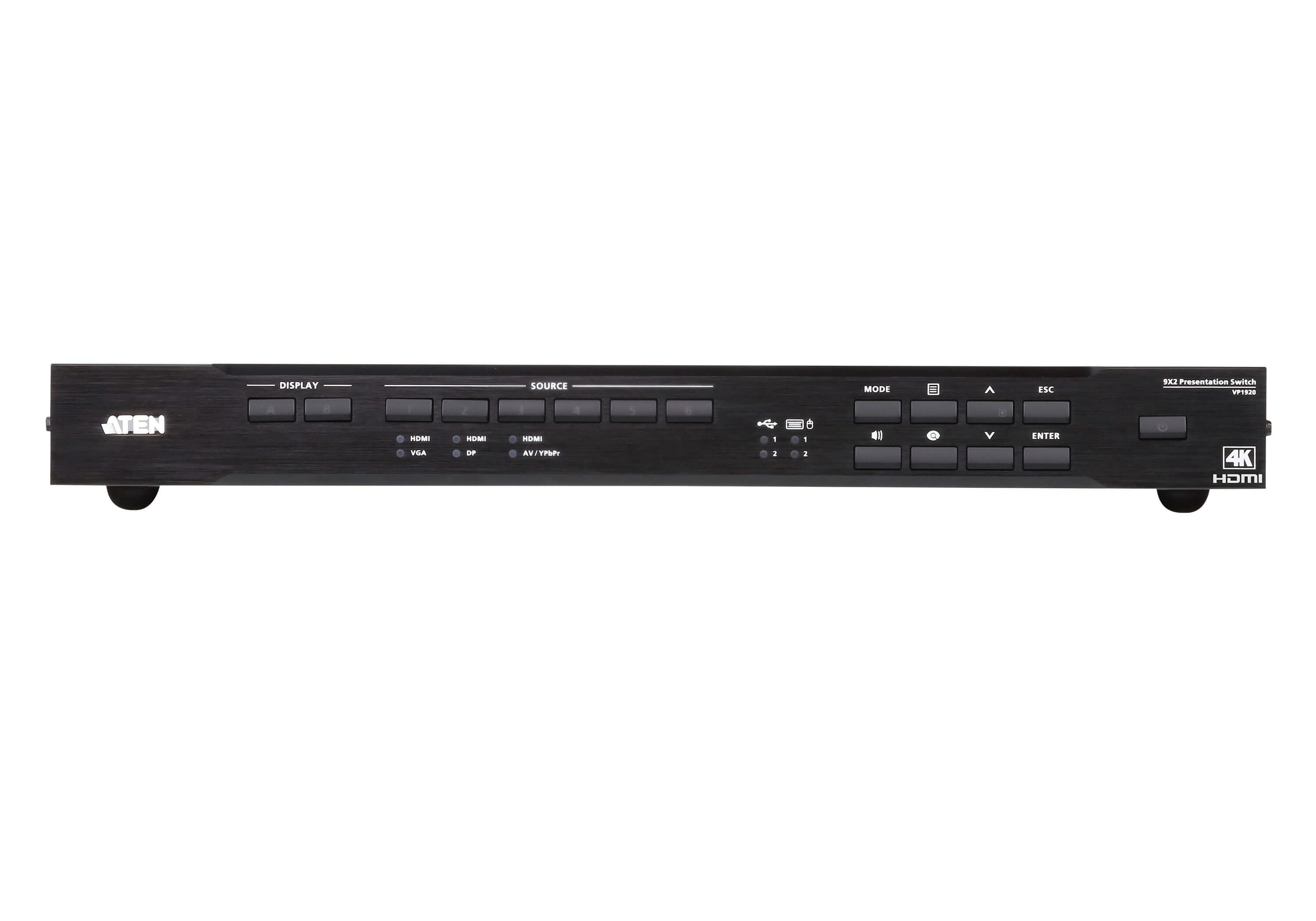

Бутони и превключватели
- Захранване
- 1 x Pushbutton 1 x Rocker
- Избор на видео вход
- 6 x Pushbutton
- Избор на видео изход
- 2 x Pushbutton
- Избор
- Mode: 1 x Pushbutton Menu: 1 x Pushbutton Up (Unlock): 1 x Pushbutton Esc: 1 x Pushbutton Audio: 1 x Pushbutton Preview: 1 x Pushbutton Down: 1 x Pushbutton Enter: 1 x Pushbutton
Индикатори
- Видео
- Source 1: HDMI/VGA: 2(Green) Source 2: HDMI/DP: 2(Green) Source 3: HDMI/AV/YPbPr: 2(Green)
- USB връзка
- Keyboard/Mouse: 2 (Amber) Device: 2 (Amber)
- EDID настройки
- EDID Mode: Default / Display A/ Remix
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60Hz; 1.0A
- Консумация
- AC110V:7.3W:60BTU/h AC220V:7.3W:60BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.36 kg ( 5.2 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.36 x 4.40 cm (17.21 x 6.44 x 1.73 in.)
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
