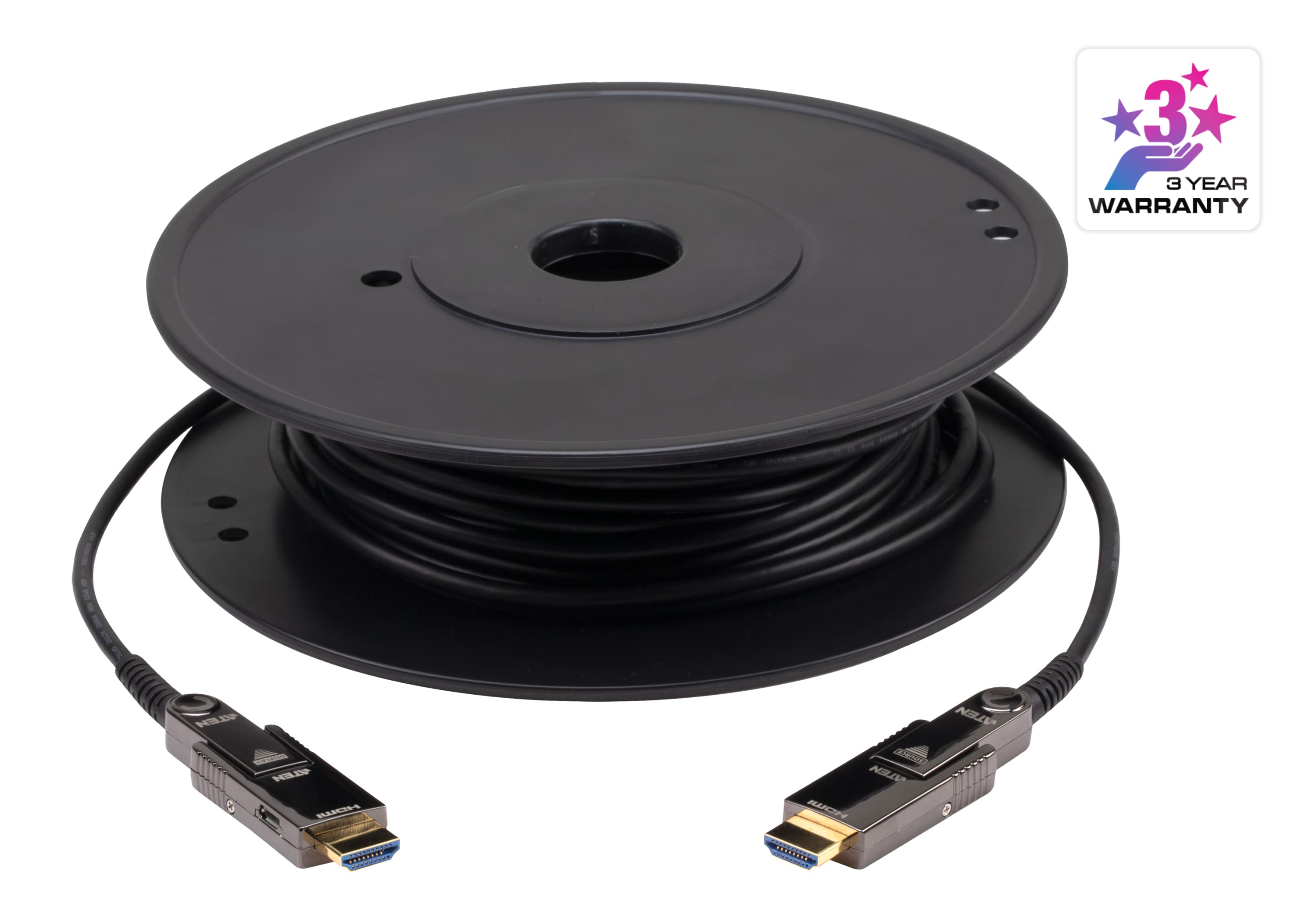

Активен оптичен HDMI кабел 60 m за True 4K 4096 x 2160 @ 60 Hz (4:4:4) с HDR и HDMI Ethernet Channel. Съвместим с HDCP 2.2.
Характеристики
- HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2 compliant
- Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 60 m
- Supports HDR
- Supports HDMI Ethernet Channel (HEC) – combines audio, video, and data streams into a cable to simplify the set-up
- Supports Audio Return Channel (ARC) – connects TV and audio system, eliminating the need for an additional cable
- Reduced EMI and RFI for lower noise interference
- Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
- Additional power source is available via Micro USB cable for better compatibility
- Gold-plated connectors for reliable transmissions
- Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
- Pluggable gender for easy installation
- Plug-and-play
Спецификация
- Дължина на кабела
- 60M / 196.8 ft
- Тип кабел
- Cable Type: Hybrid cable with optical fiber and copper wire HDMI Standards: High Speed HDMI Cable
Видео вход
- Интерфейси
- 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector 1 x HDMI Type-D Male
Видео изход
- Интерфейси
- 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector 1 x HDMI Type-D Male
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps per Channel)
- Макс. пикселна честота
- 600 MHz (Max.)
- Съответствие
- HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit
- Макс. резолюция / разстояние
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 60M
Комуникация
- Сигнали
- TMDS / HDCP 2.2 / EDID / CEC
Аудио
- Вход
- PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
- Изход
- PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Сертификати
- Сертификати
- Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
Проводник
- Конструкция
- 7 x Tinned Copper Wire 4 x OM3 Optical Fiber (50/125um)
Обвивка
- Материал
- UL Plenum (CMP-OF)
- Консумация
- DC5V:0.25W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Захранване (опция)
- Optional power source: Micro USB to USB cable (100cm) 5V, 250mW (max)
- Известяване
- Bend Radius: 20mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Shielding & Filling: AL Mylar shielding / Kevlar Filling
Работна среда
- Работна температура
- 0°C to 50°C (32℉ to 122℉)
- Температура на съхранение
- -20°C to 70°C (-4℉ to 158℉)
- Влажност
- 0 - 85% RH, Non-Condensing
Физически характеристики
- Корпус
- Connector Case: Zinc-Alloy
- Тегло
- 1.62 kg ( 3.57 lb )
- Външен размер на кабела
- Cable Outer Diameter: 4.5mm (± 0.2mm)
- Брой в кашон
- 10 pcs
