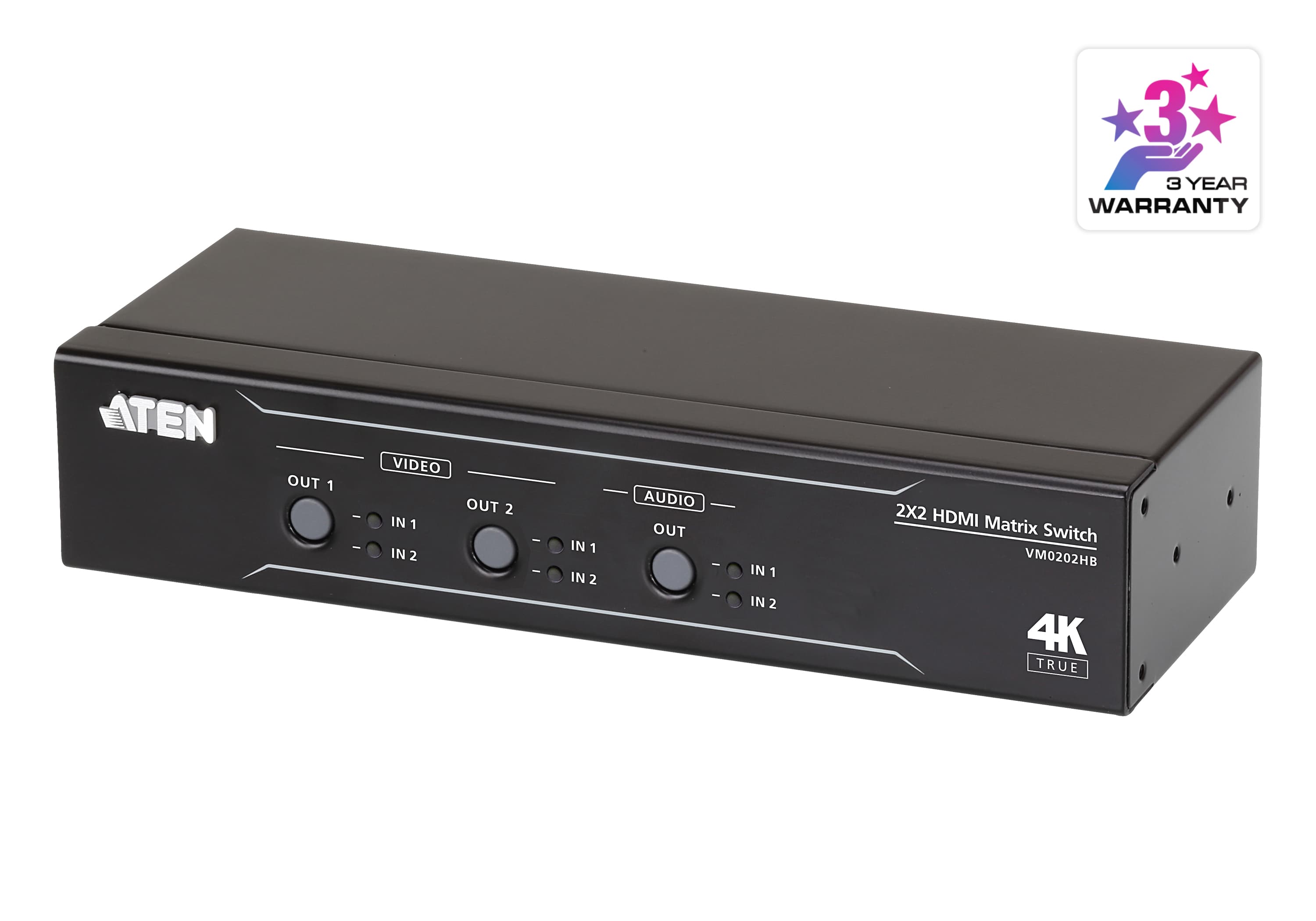

2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
VM0202HB
HDMI матрица 2 x 2: подава всеки от 2 източника към всеки от 2 дисплея при True 4K 4096 x 2160 @ 60Hz (4:4:4) с HDR. Извлича HDMI аудиото към стерео или Line Out изход.
Характеристики

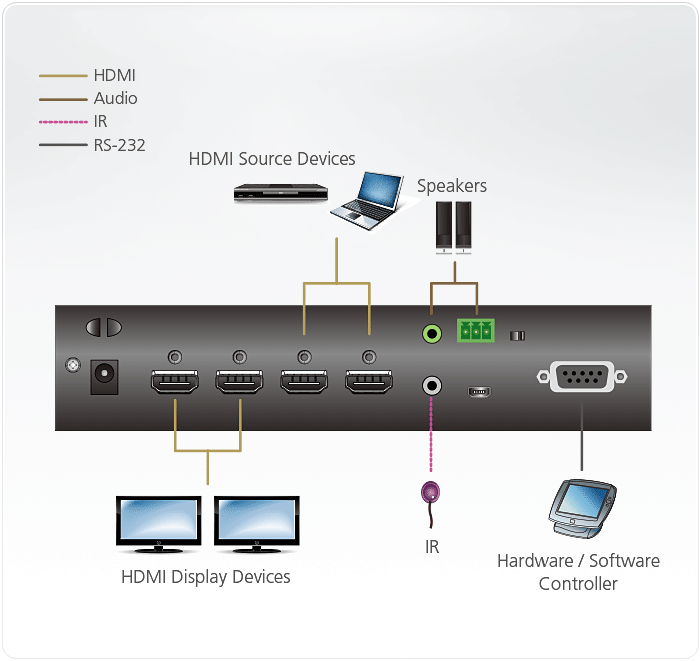

- Connects 2 HDMI sources to any 2 HDMI displays
- Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
- Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
- Supports Dolby True HD and DTS HD Master Audio
- Auto switching – automatically detects and switches to a new source once connected (Default: off)

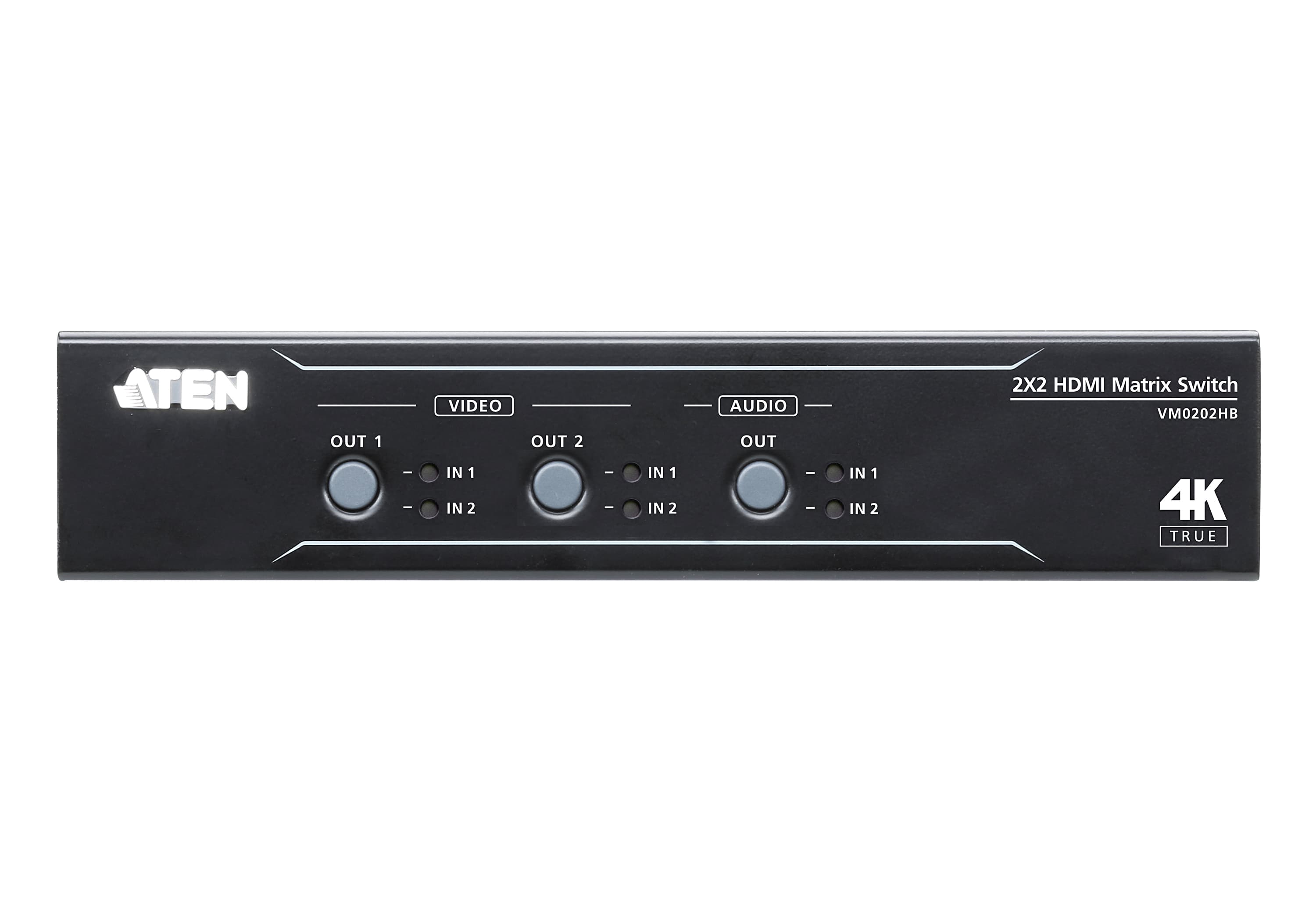

- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
- Long-distance transmission up to 5 meters
- HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
- All metal casing
- Firmware upgradable
- Rack mountable

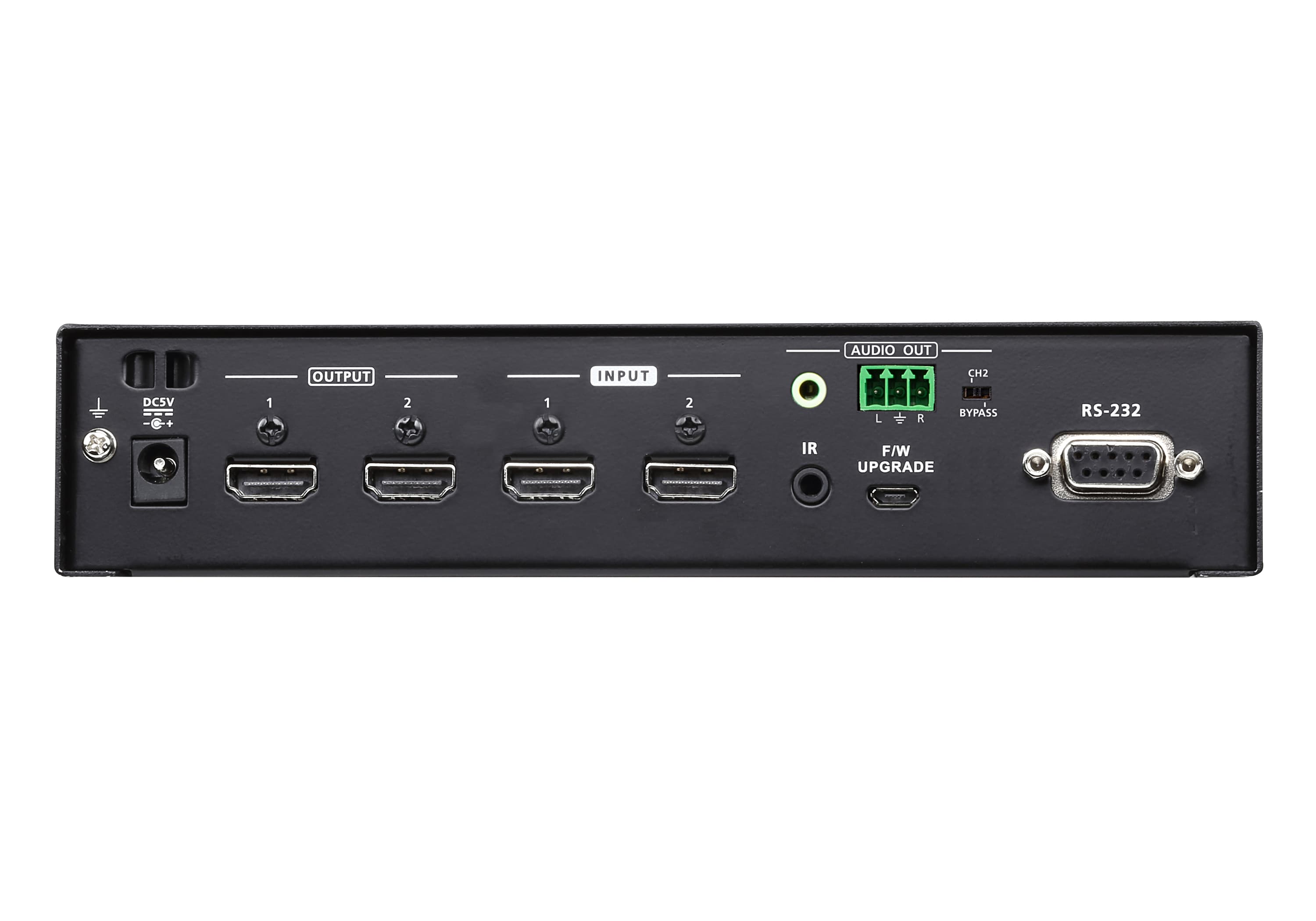

Видео вход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5.0 m
Видео изход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5.0 m
Видео
- Макс. скорост на данните
- 18.0 Gbps (6.0 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Макс. разстояние
- Up to 5.0 m
Аудио
- Изход
- 1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole
Управление
- USB
- 1 x Micro USB F/W upgrade
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- EDID настройки
- EDID Mode: Default / Port1 / Remix
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5V:2.47W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.60 kg ( 1.32 lb )
- Размери (Д x Ш x В)
- 20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
