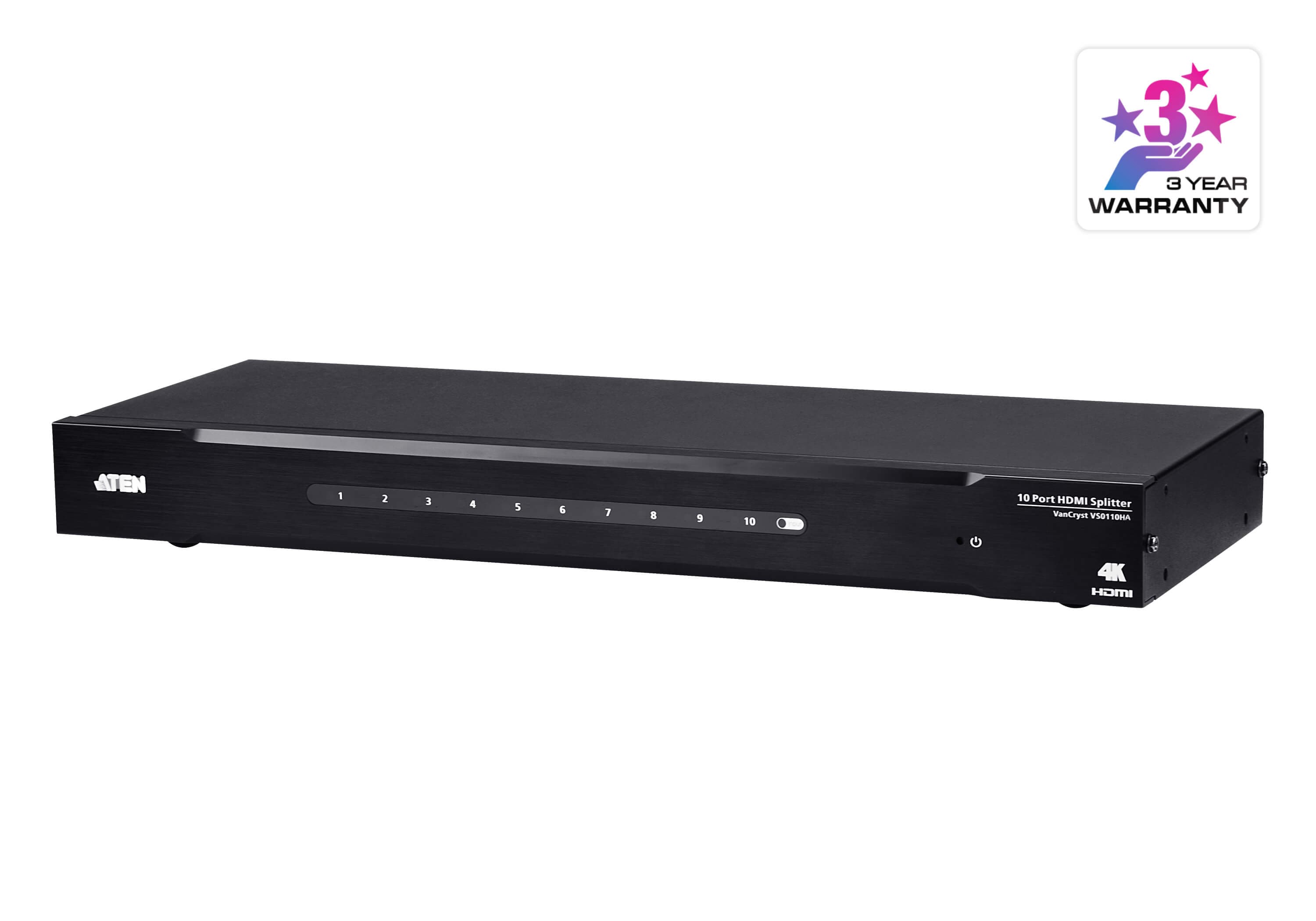

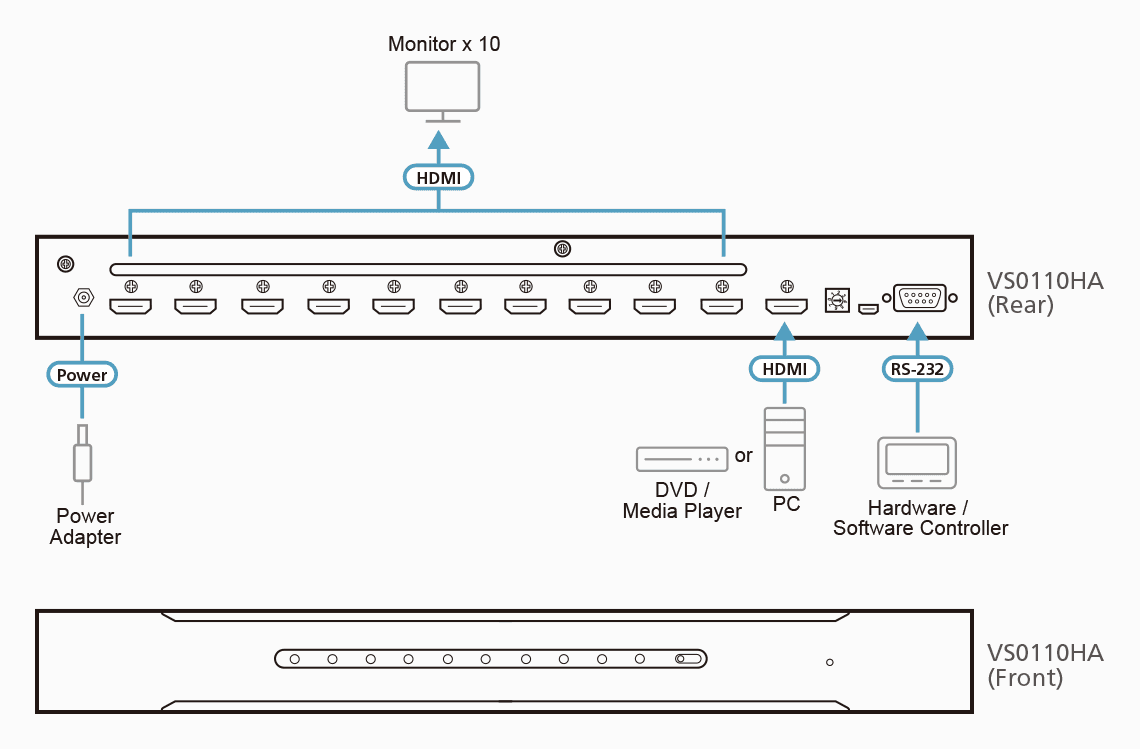

Сплитер, който подава един HDMI източник към до 10 дисплея едновременно при 4K резолюция (4096x2160@60Hz, 4:2:0). Разстояние на предаване до изхода до 15 m.
Характеристики
- Connects one HDMI source to up to ten HDMI displays at the same time
- HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
- Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
- Long distance transmission from source to output - up to 15 m
- Built-in bi-directional RS-232 serial control port for high-end system control
- Supports Dolby True HD and DTS HD Master Audio
- Clear LED indication of device status
- EDID Expert™ – Selects optimum EDID settings for smooth power-up, high quality display and use of the best resolution across different screens
- Plug-and-play
- Rack-mountable (1U design)

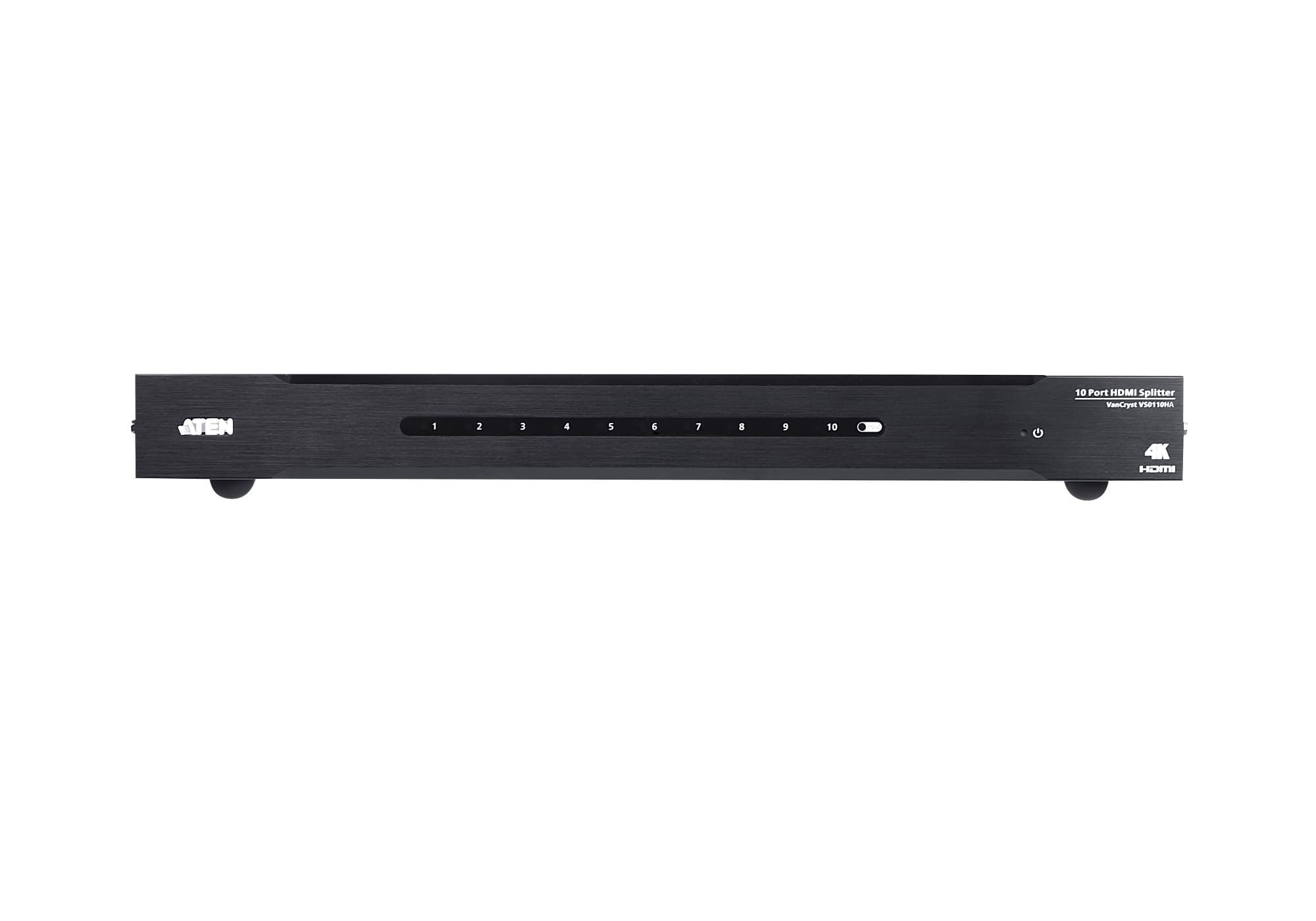

Индикатори
- Захранване
- 1 x LED (Green)
- Вход
- 1 x LED (Green)
- Видео изход
- 10 x LED (Green)
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m (at 4K resolution)

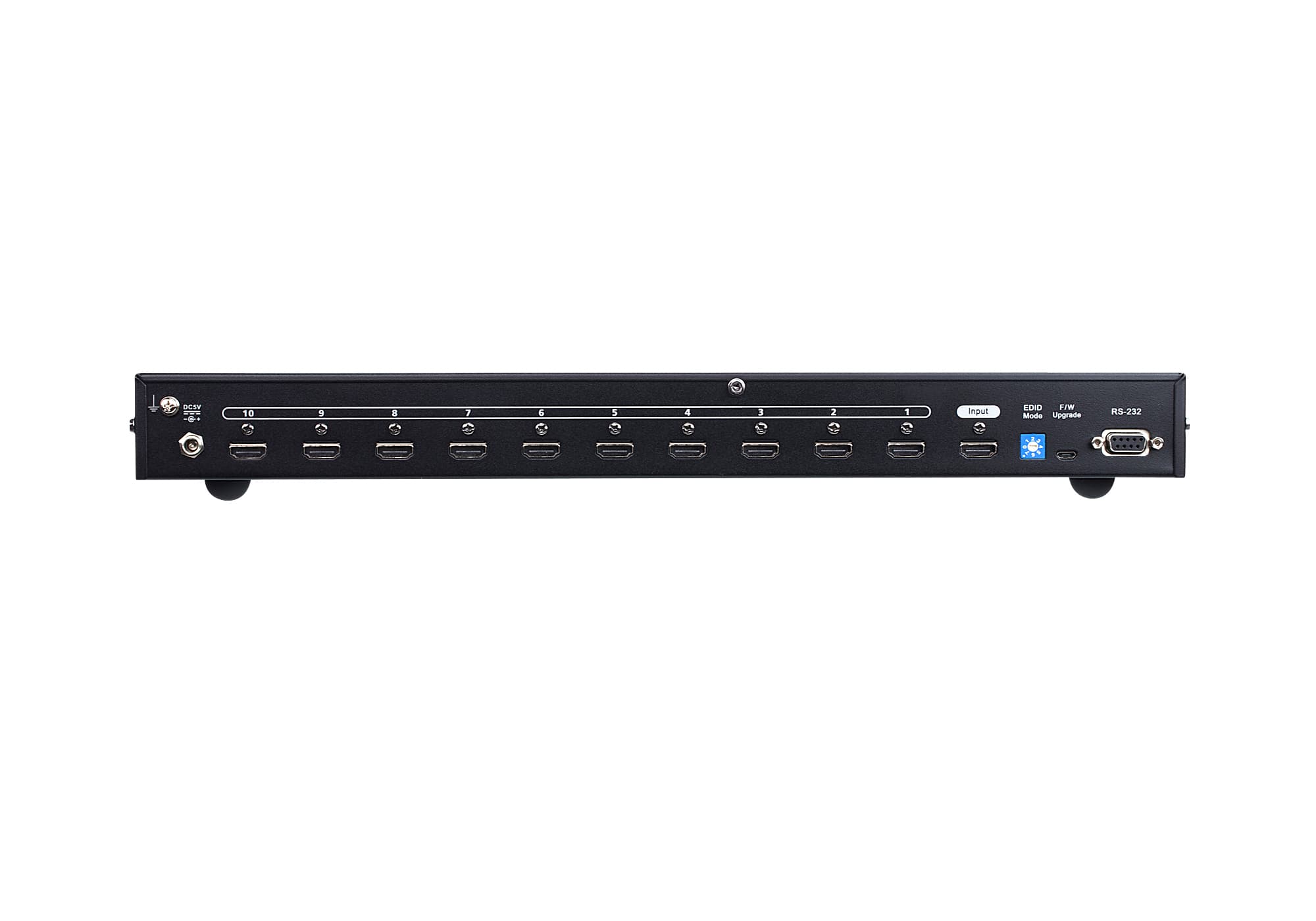

Видео изход
- Интерфейси
- 10 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 10m (at 4K resolution)
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No
- EDID настройки
- EDID Switch x1 EDID Mode: Default (1080p) / Port 1 / Auto
Конектори
- Захранване
- 1 x DC Jack
- USB порт
- 1 x Micro USB (FW upgrade)
- Консумация
- DC5V:4.34W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.10 kg ( 4.63 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
