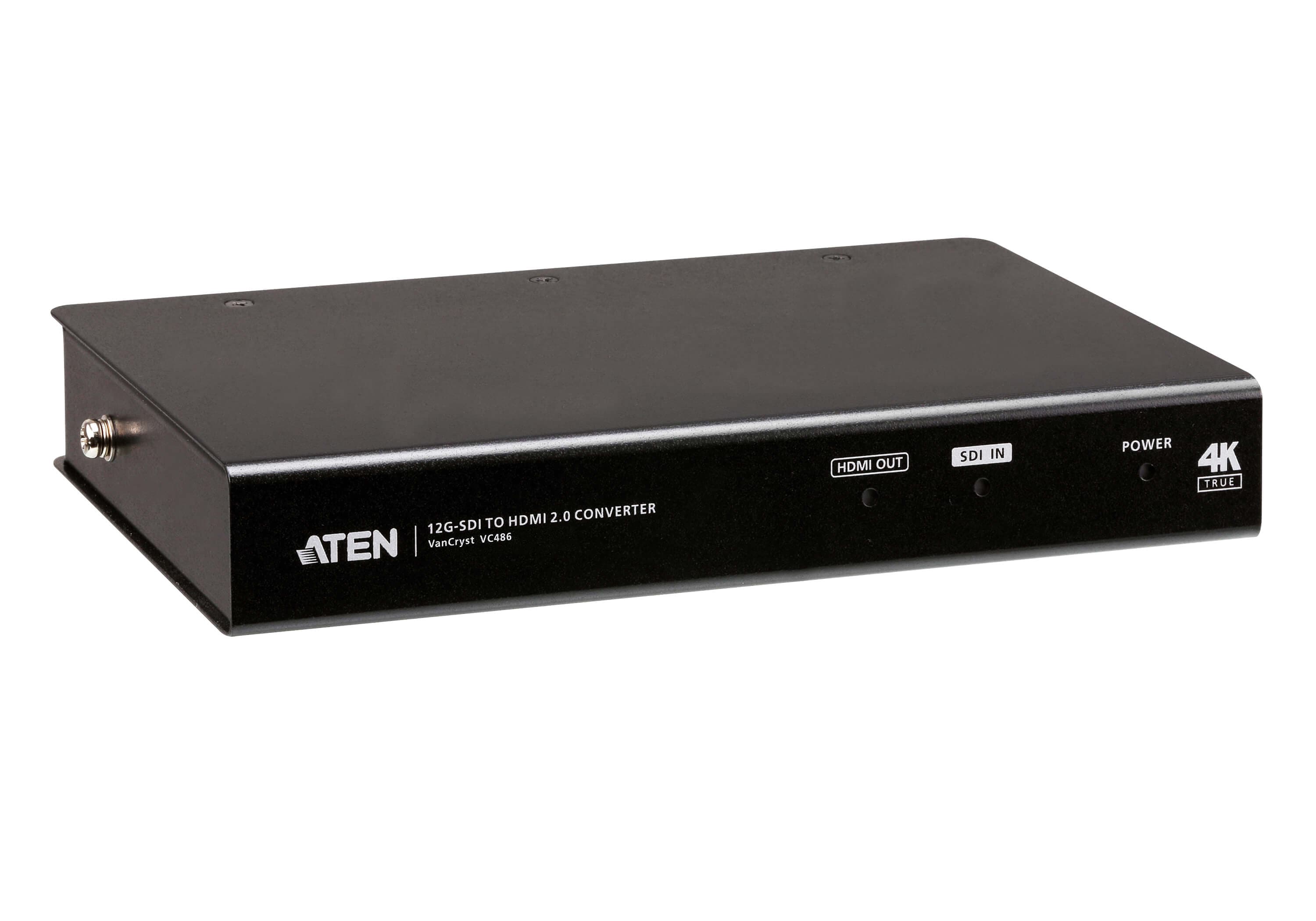

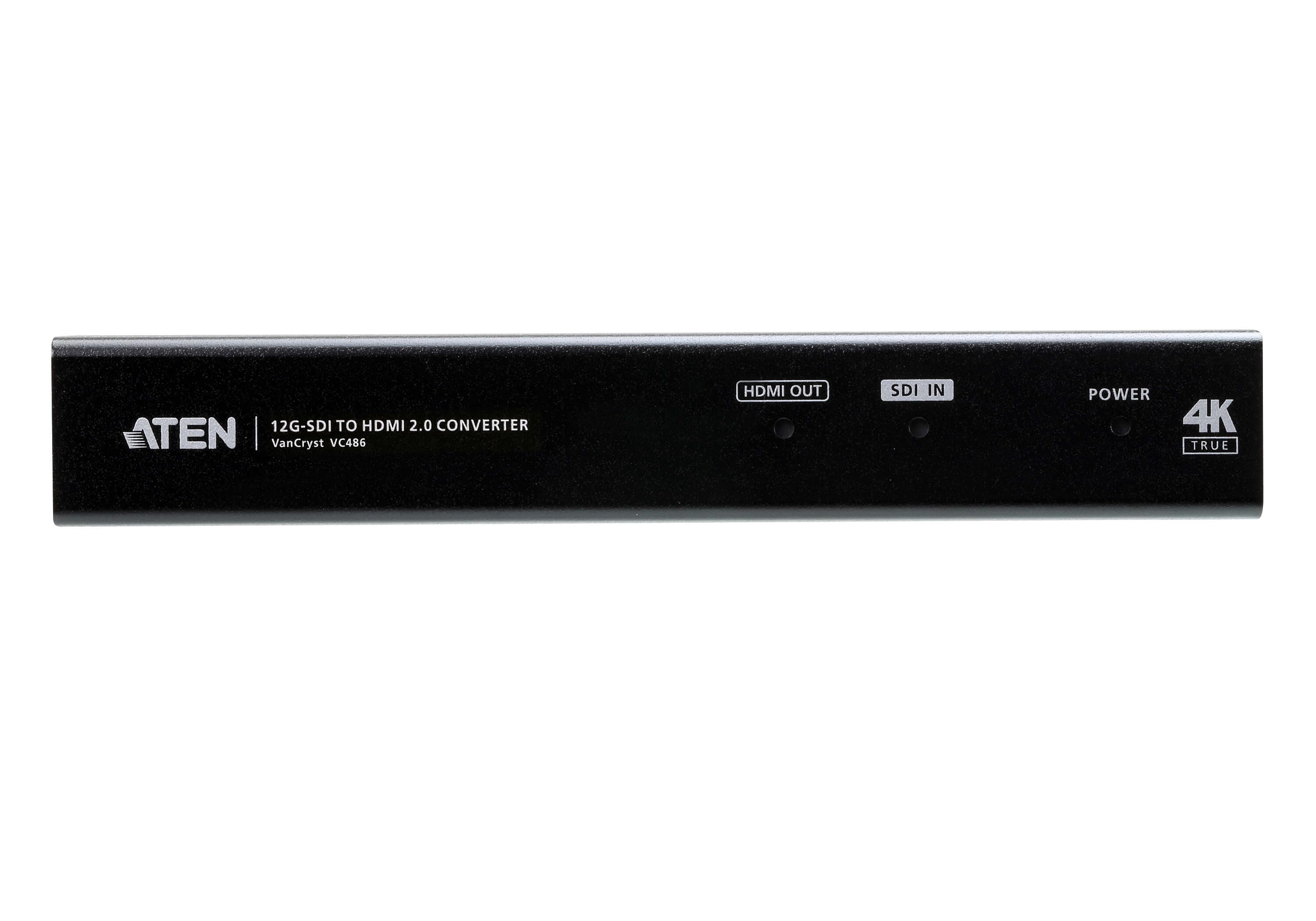

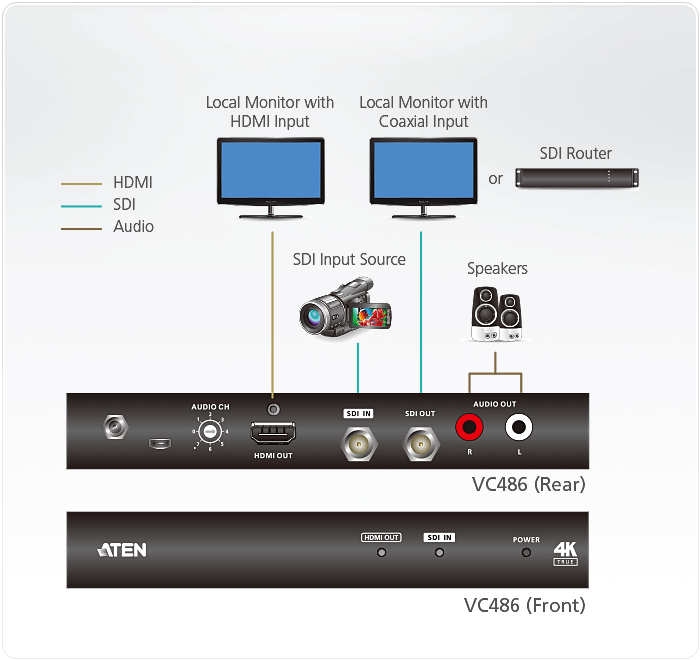

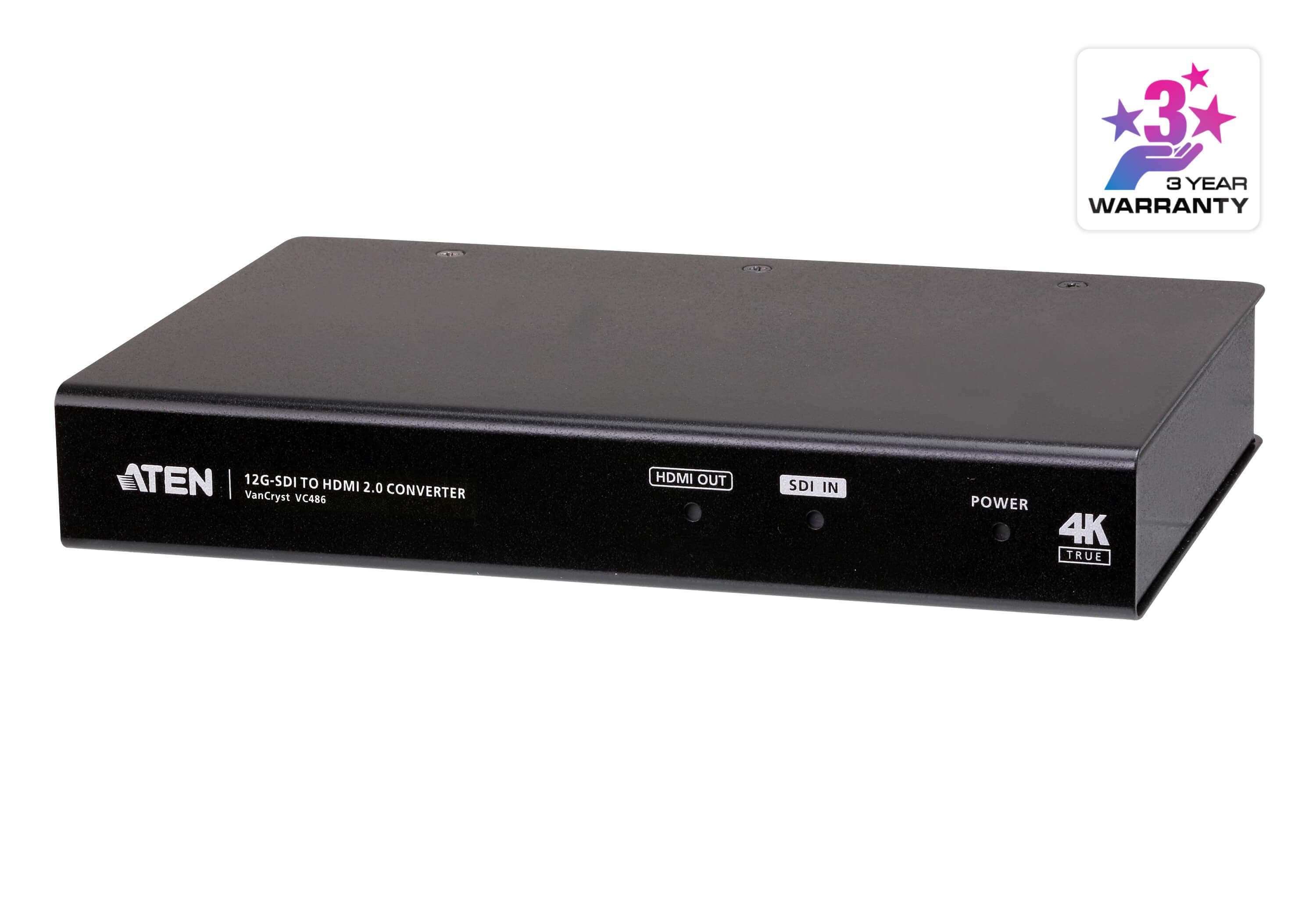

Преобразува HD/3G/6G/12G-SDI сигнал в HDMI в реално време, с обхват на SDI линията до 45 m при 12G-SDI и до 150 m при HD-SDI. За свързване на broadcast техника към HDMI дисплеи.
Характеристики
- Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time
- SDI signal re-clocked for high signal quality
- Supports SDI standard SMPTE-292/424/425-3/2081/2082
- Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m (3G-SDI) and 150 m (HD-SDI)
- Supported SDI formats: • HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) • 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps) • 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps) • 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)
- Supports analog stereo audio output with RCA (R/L) connector
- Automatic detection of input video signals
- Analog Audio channel selection with a 8-step rotary switch
- Locking power connector
Бутони и превключватели
- Избор на аудио EDID
- 1 x rotary switch (8-steps)
Управление
- USB
- 1 x Micro USB (FW upgrade)

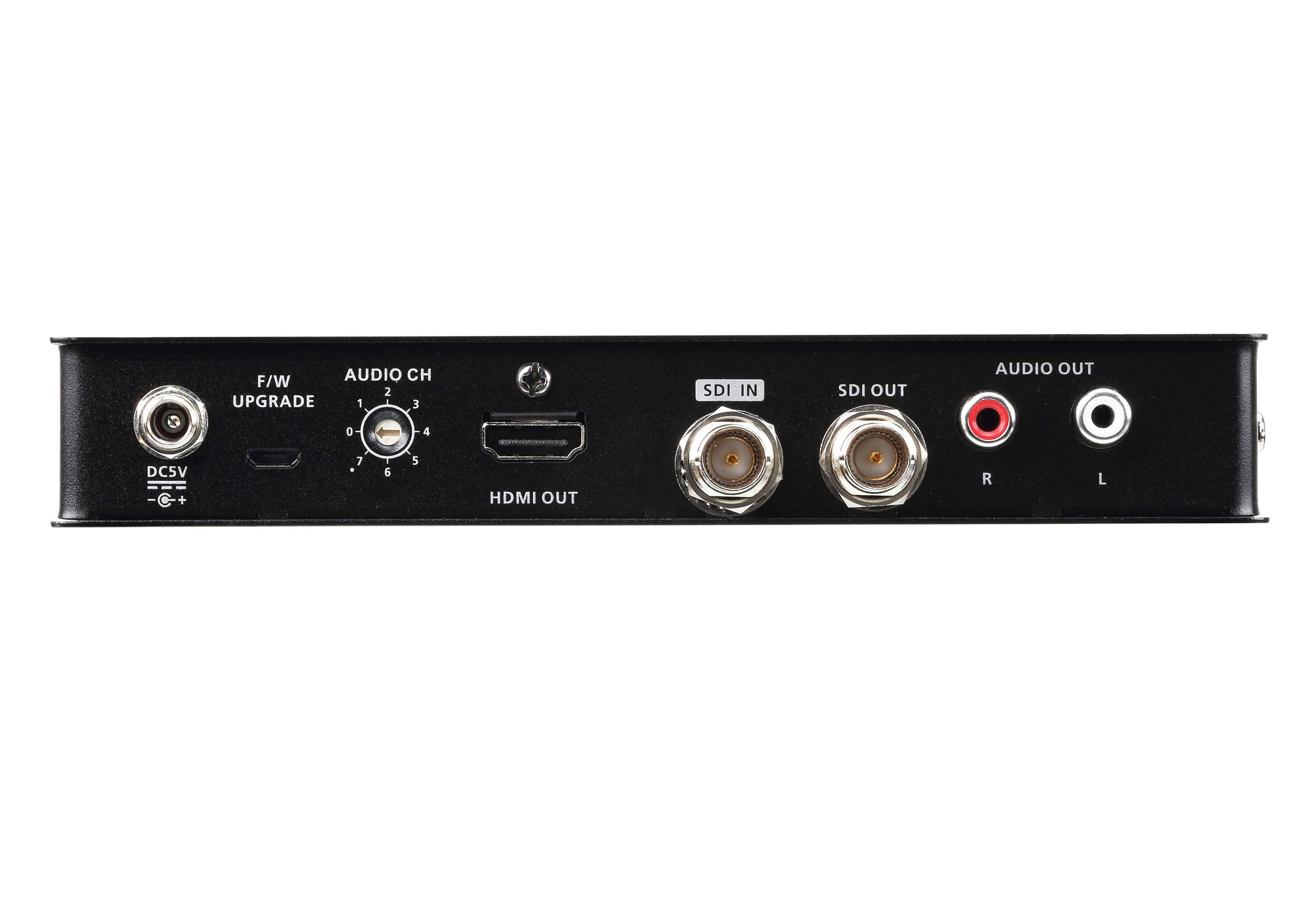

Видео вход
- Интерфейси
- 1 x SDI (BNC connector, inter-locked socket)
- Импеданс
- 75 Ω
Видео изход
- Интерфейси
- 1 x HDMI (Type-A) Female 1 x SDI (BNC connector, inter-locked socket)
- Импеданс
- HDMI 100 Ω / SDI 75 Ω
Видео
- Макс. скорост на данните
- 12 Gbps
- Поддържани резолюции
- 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 , 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 25PsF 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
- Макс. разстояние
- [12G-SDI] up to 45m [6G-SDI] up to 60m [3G-SDI] up to 90m [HD-SDI] up to 150m HDMI up to 3m (3840 X 2160@60Hz)
Аудио
- Изход
- 1 x HDMI (Type-A) Female 2 x RCA connector Female (R/L, analog audio)
- Формат
- Compliance with HDMI 2.0 with 2 CH Audio
- SDI формати
- HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps) 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps) 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12Gbps)
Конектори
- Захранване
- 1 x DC 5V 3A, Lockable
- Консумация
- DC5V:5.69W:27BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 20 - 90% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.65 kg ( 1.43 lb )
- Размери (Д x Ш x В)
- 18.20 x 12.96 x 2.87 cm (7.17 x 5.1 x 1.13 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
