Преходник от USB към сериен порт RS-232 (DB-9) с кабел 35 cm. Скорост на данните до 921.6 Kbps, захранва се от USB порта.
Характеристики
- Supports RS-232 serial interface
- Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
- Full compliance with USB specifications
- Up to 921.6 Kbps data transfer rate
- OS Compatibility: Windows, Mac, and Linux

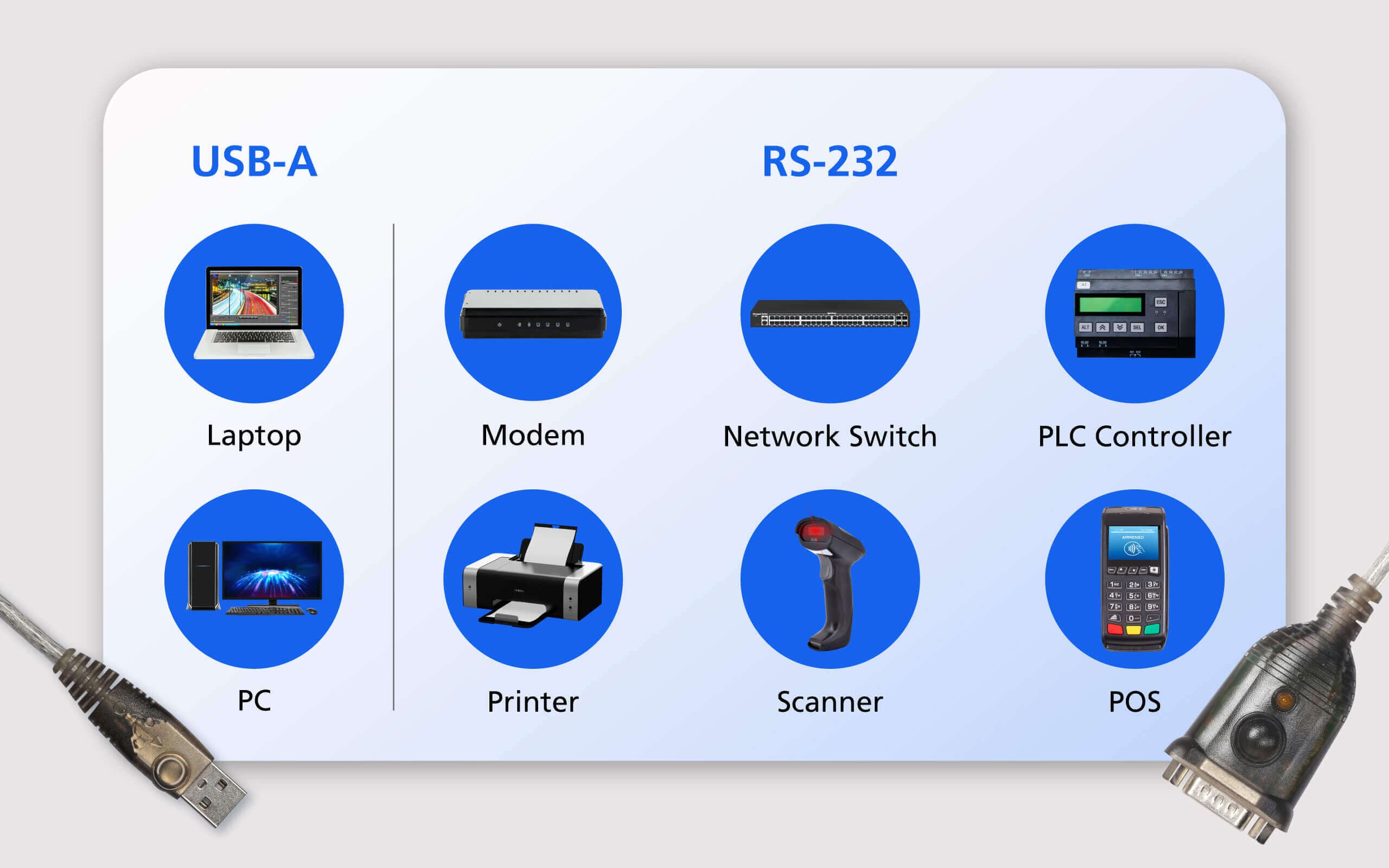

- Works with cellular phones, PDAs, digital cameras, modems, and ISDN terminal adapters
- A trustworthy connectivity solution recommended and adopted by leading enterprises worldwide
Конектори
- USB порт
- 1 x USB Type A Male (White)
- Сериен
- 1 x DB-9 Male (Silver)
- Скорост на данните
- Up to 921.6 Kbps
- Дължина на кабела
- 35cm
- Индикатори
- Power (Orange)
- Режим на захранване
- Bus Powered
- USB спецификация
- USB compliant
Работна среда
- Работна температура
- 0–40˚C
- Температура на съхранение
- -20–60˚C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.04 kg ( 0.09 lb )
- Размери (Д x Ш x В)
- 6.59 x 3.40 x 1.60 cm (2.59 x 1.34 x 0.63 in.)
- Консумация
- DC5V:0.155W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
