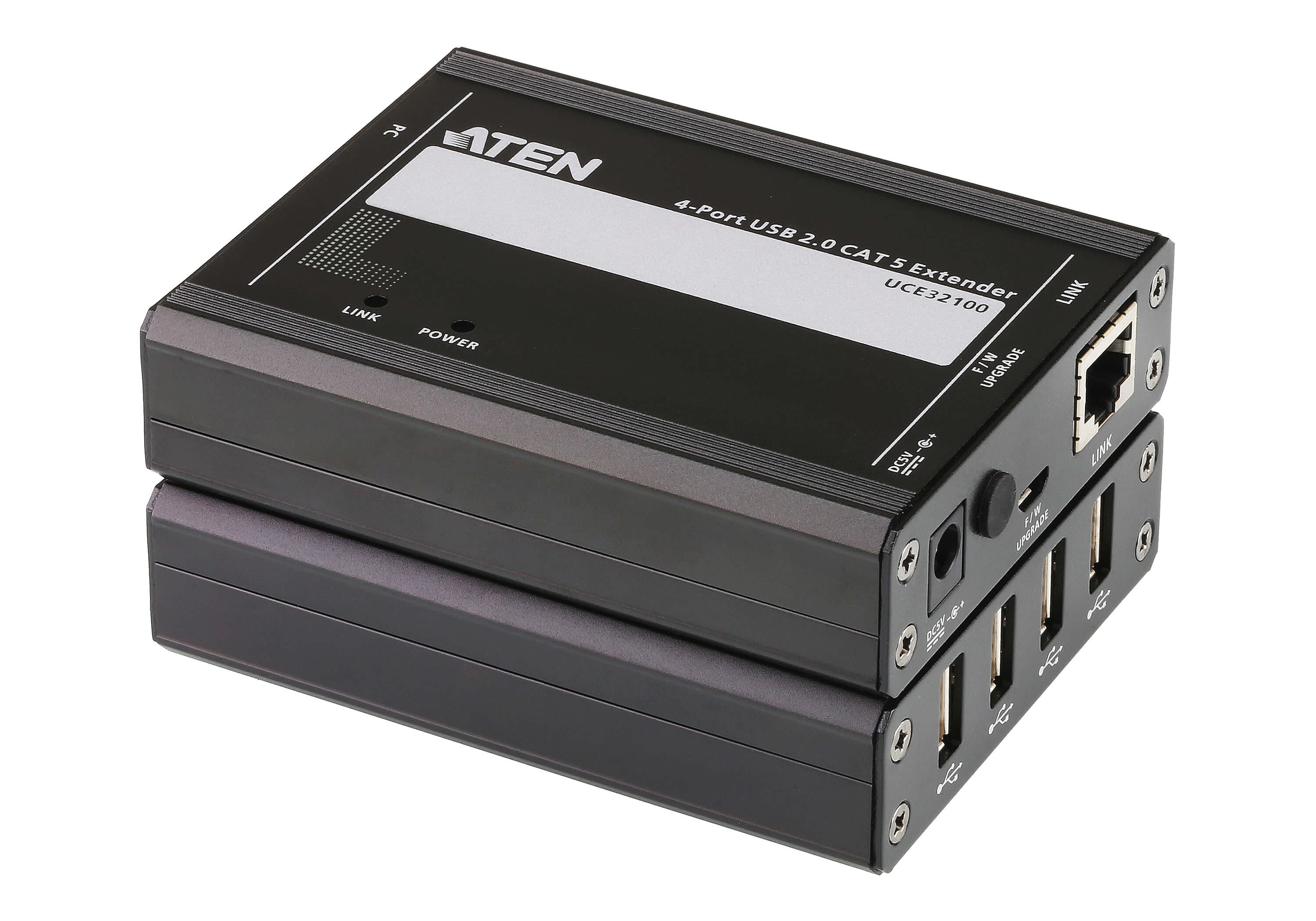

4-Port USB 2.0 Cat 5 Extender (up to 100 m)
UCE32100

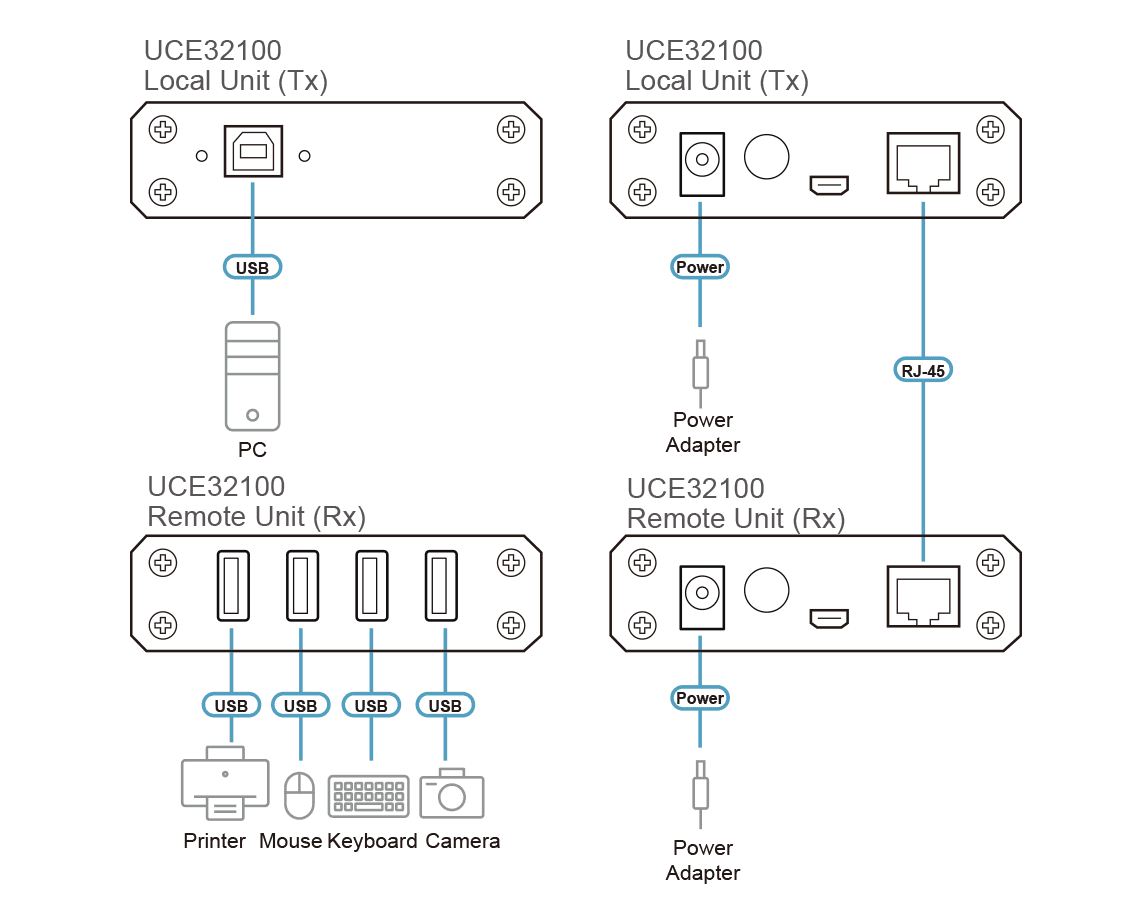

Двумодулен удължител, който пренася USB 2.0 сигнал до 480 Mbps на 100 m по Cat 5 кабел. Вграденият 4-портов хъб на отдалечения модул свързва до 4 USB устройства без допълнителен хъб.
Характеристики
- True USB 2.0 transparent extension over Ethernet cable up to 100 meters
- Supports all USB 2.0 devices up to 480Mbps
- An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
- Power supply for remote unit to ensure power delivery to multiple devices at once
- Compact size with wall mounting and din rail included for flexible installation
- DC jack lock kit included to ensure durable power adapter connection
- Supports Windows®, OS X®, and Linux®
- Plug-and-play

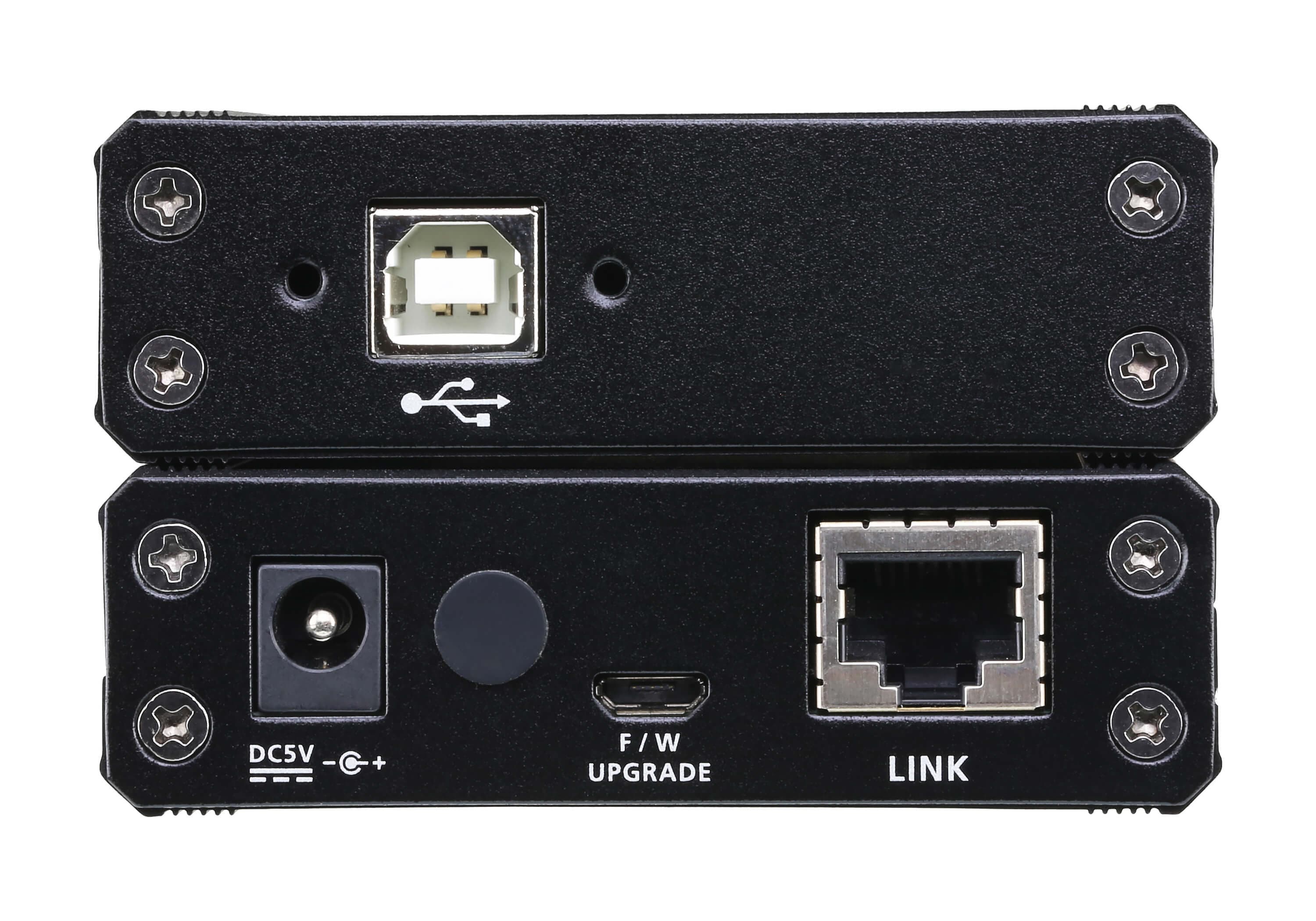

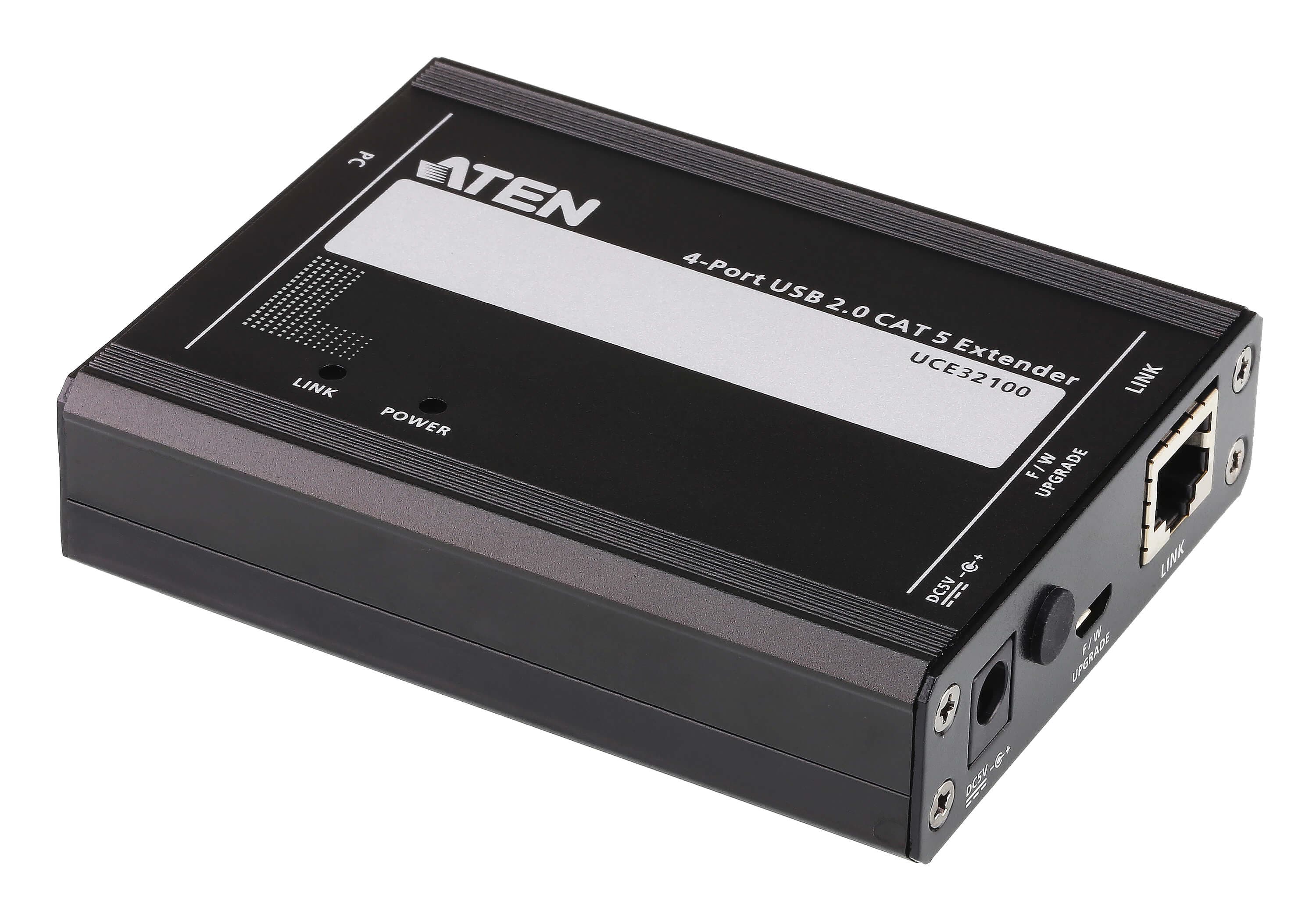

Локално устройство

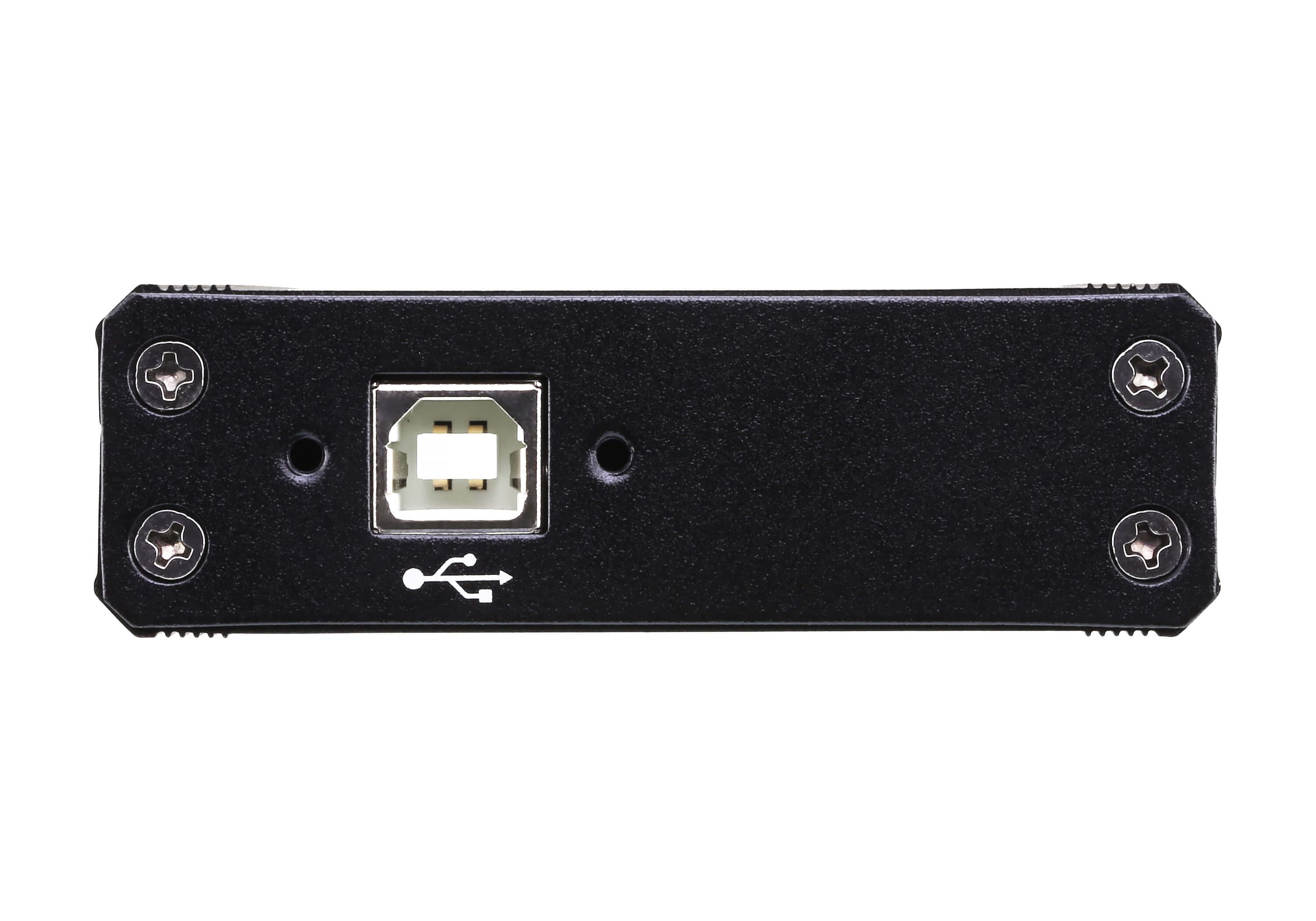

- Upstream порт
- 1 x USB Type B Female

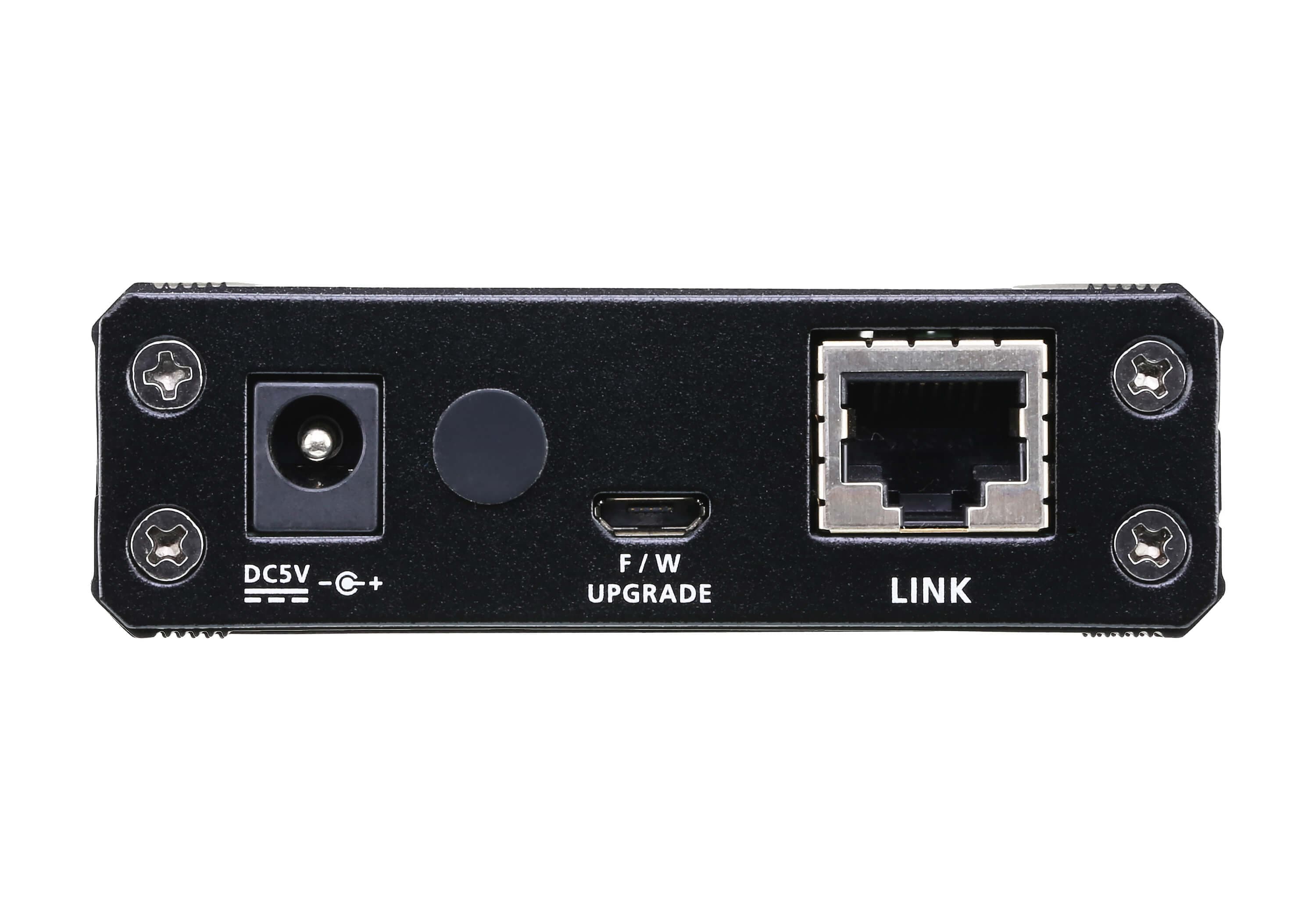

- Downstream порт
- 1 x RJ45 Female 1 x Micro USB Female (Firmware Upgrade)
- Захранване
- 1 x DC Jack

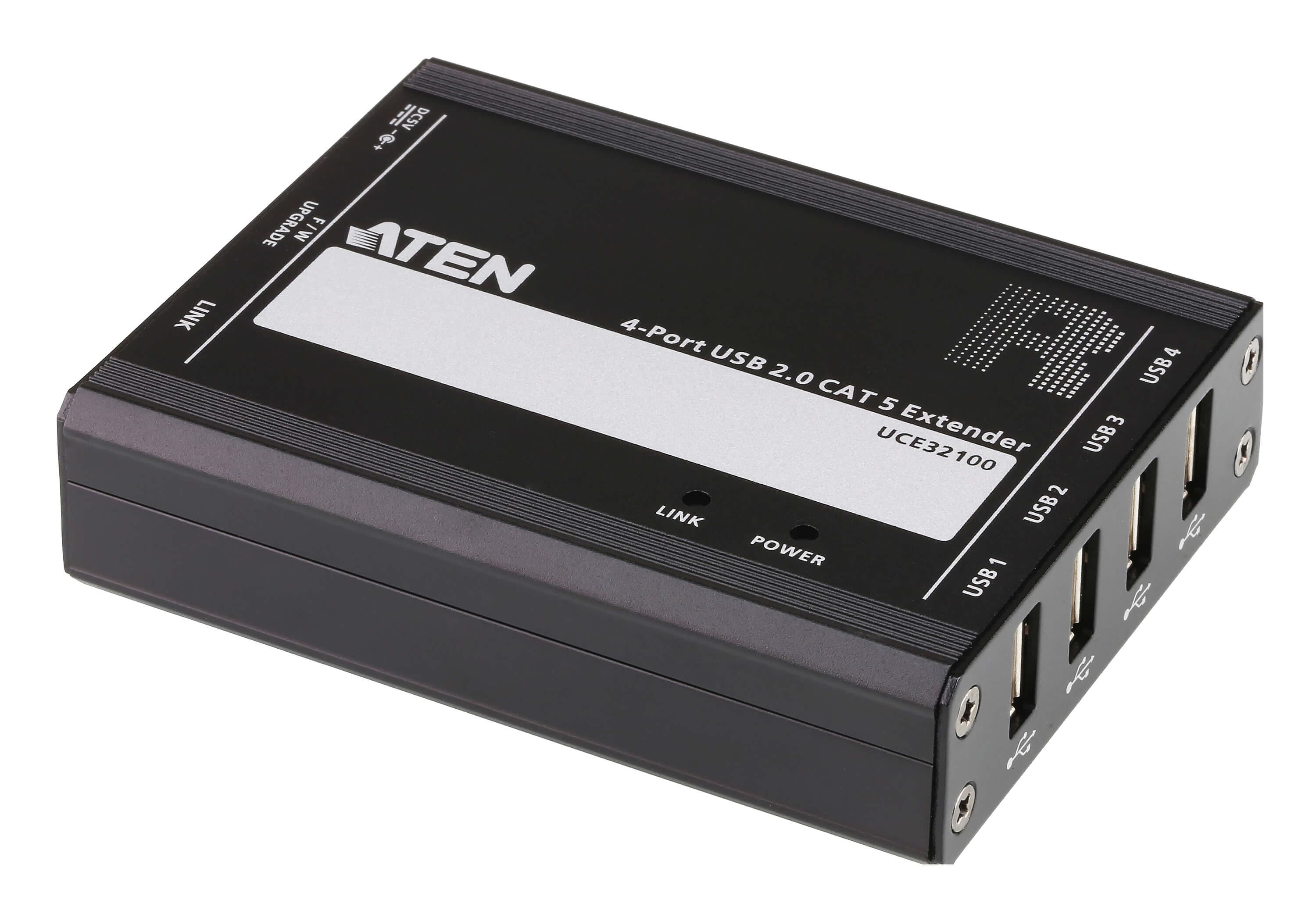

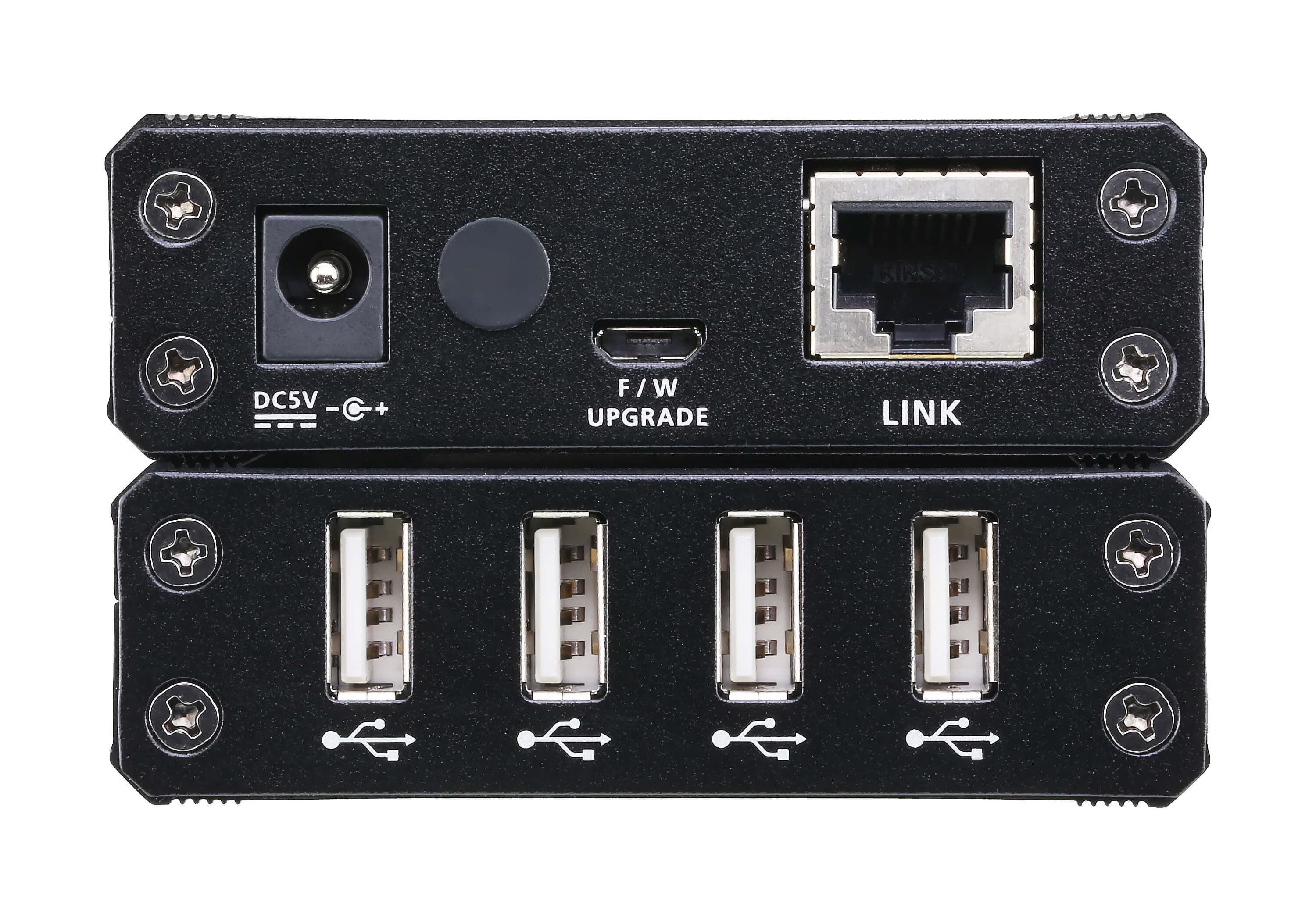

Отдалечено устройство
- Upstream порт
- 1 x RJ45 Female
- Downstream порт

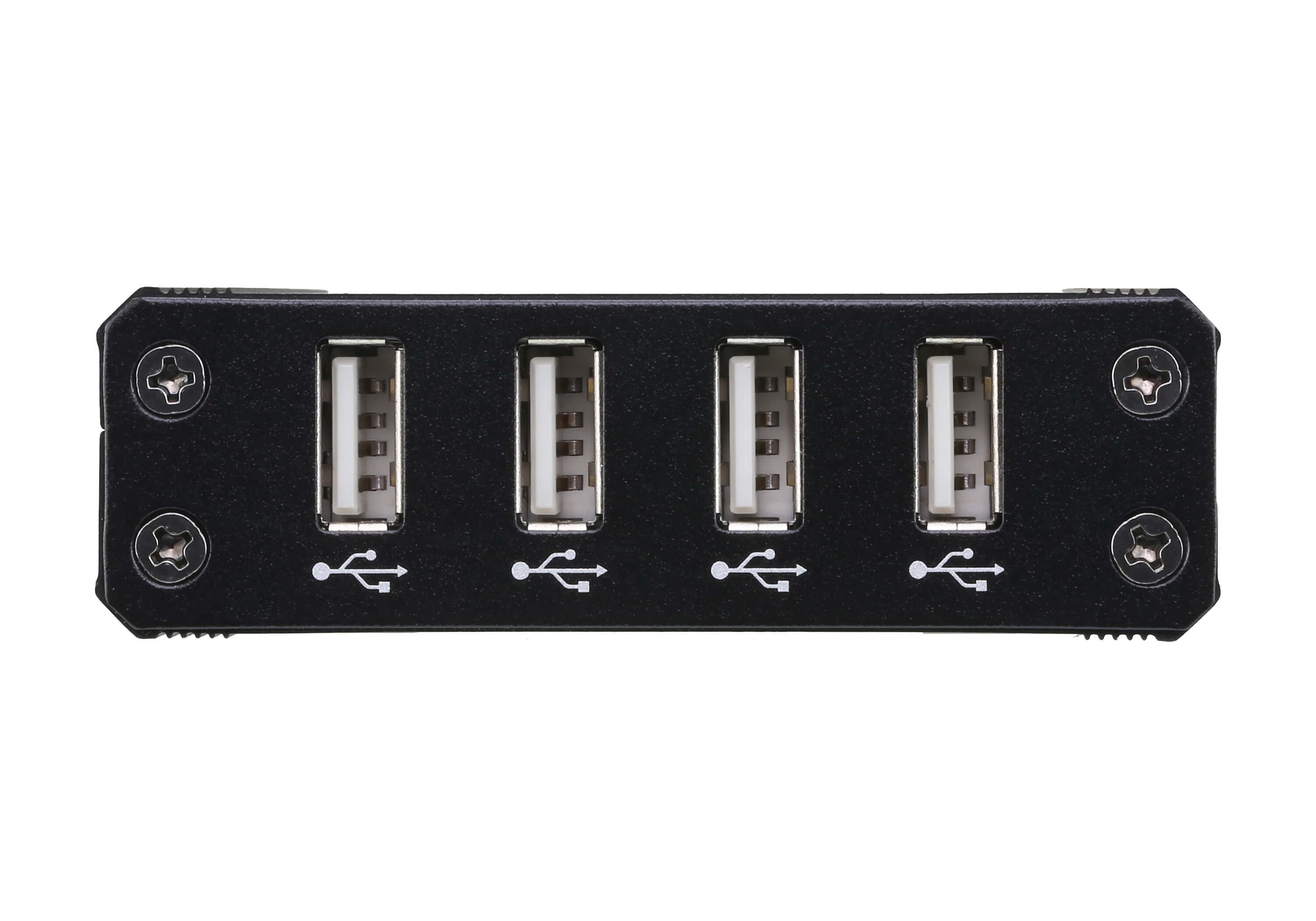

- 4 x USB Type A Female 1 x Micro USB Female (Firmware Upgrade)
- Захранване
- 1 x DC Jack
- USB спецификация
- USB 2.0 High-Speed
- Тип кабел
- Ethernet Cable
- Обхват на сигнала
- 100m
Индикатори
- Състояние
- 2 x LED
- Консумация
- DC5V:1.708W:8BTU/h DC5V:1.649W:50BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0°C to 50°C
- Температура на съхранение
- -20°C to 70°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Тегло
- 0.21 kg ( 0.46 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 10.15 x 7.90 x 2.44 cm (4 x 3.11 x 0.96 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
