1-Local/Remote Shared Access 8-Port PS/2-USB VGA Single Rail LCD KVM over IP switch

Name: 1-Local/Remote Shared Access 8-Port PS/2-USB VGA Single Rail LCD KVM over IP switch
Brand: ATEN
SKU: CL5708I

CL5708I

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

LCD KVM конзола с Over-IP достъп до 8 сървъра с PS/2-USB и VGA. Един локален и един отдалечен потребител споделят обща шина; монитор 17 или 19 инча, верижно свързване до 128 компютъра.

Характеристики

Hardware
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

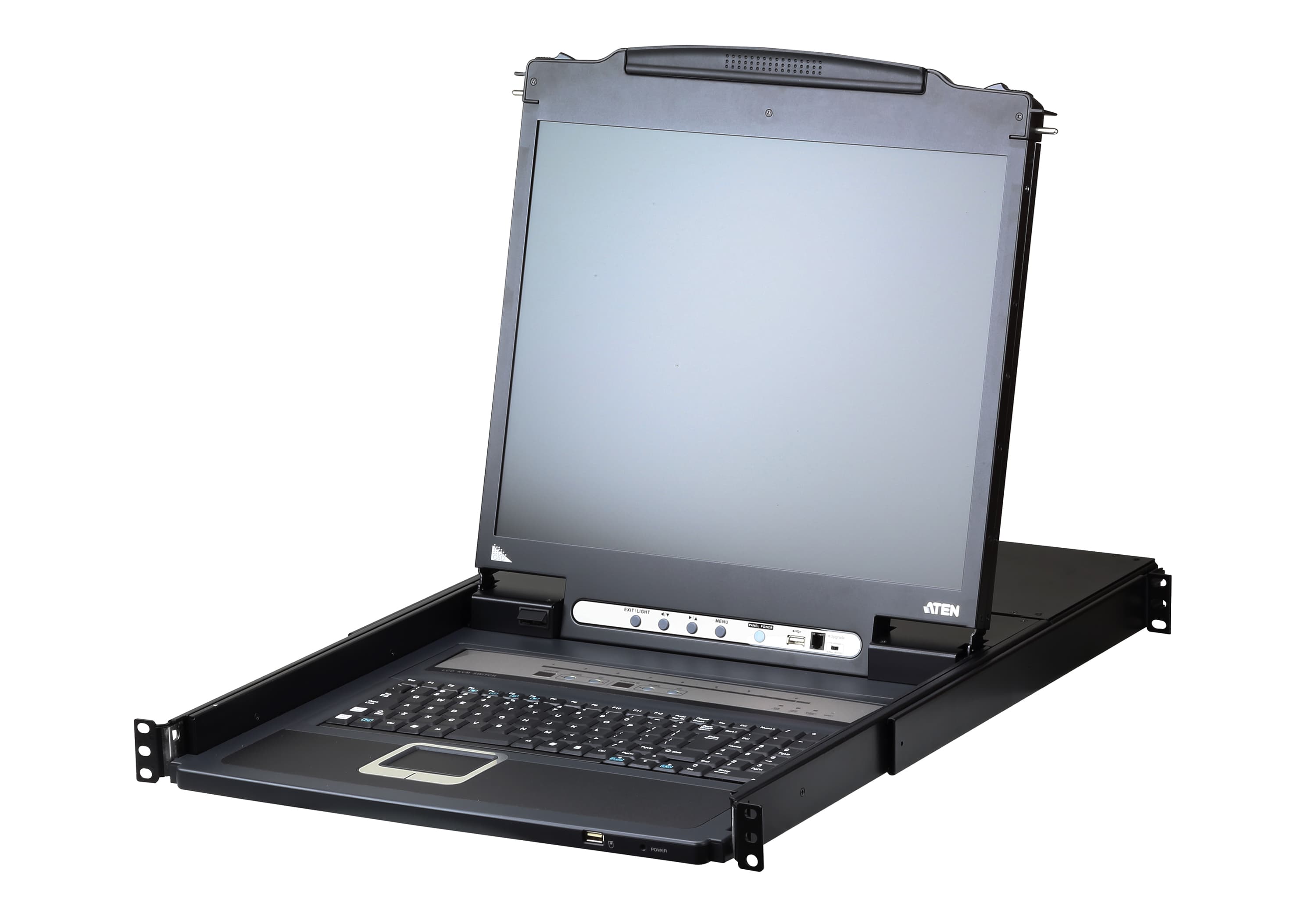

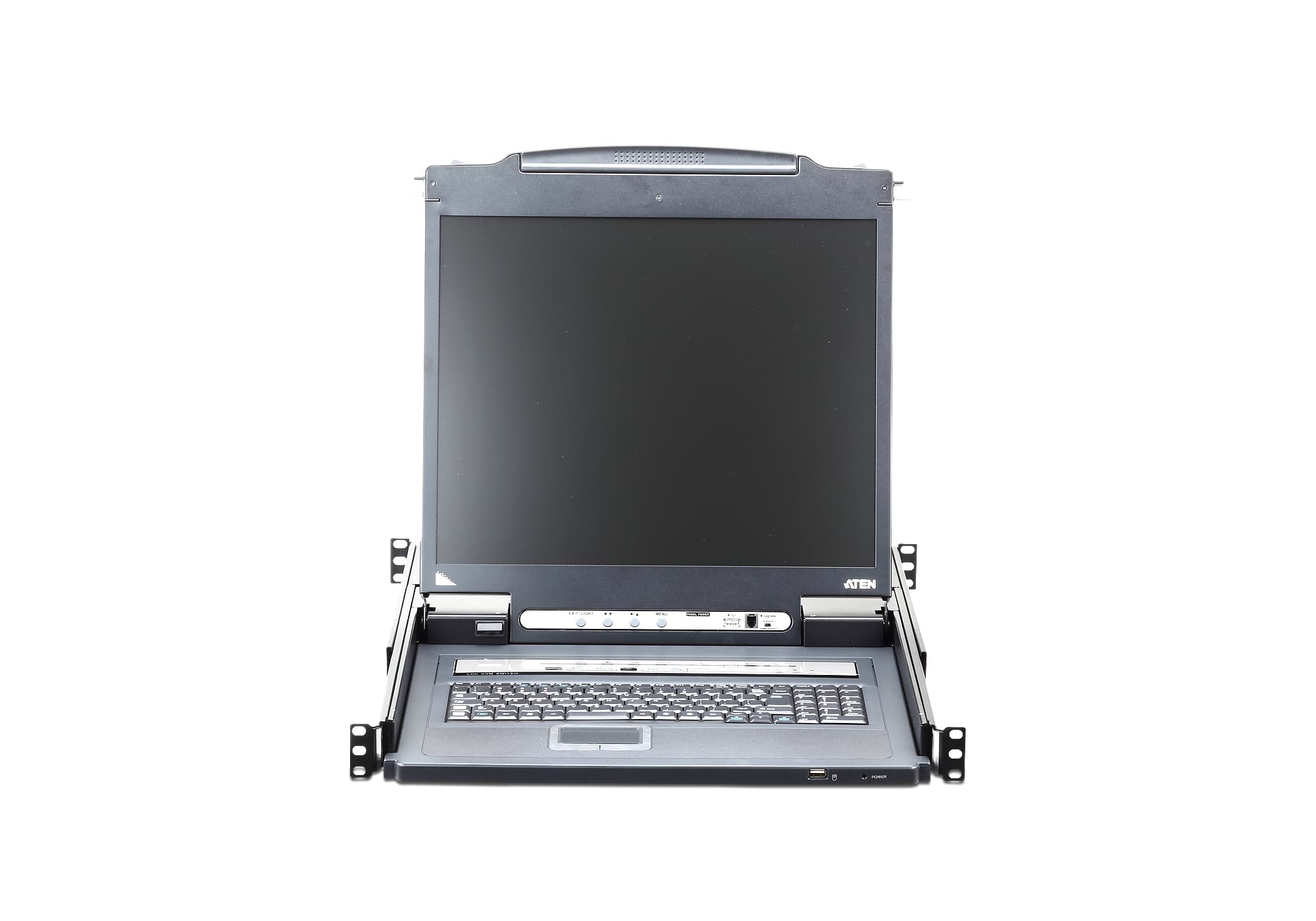

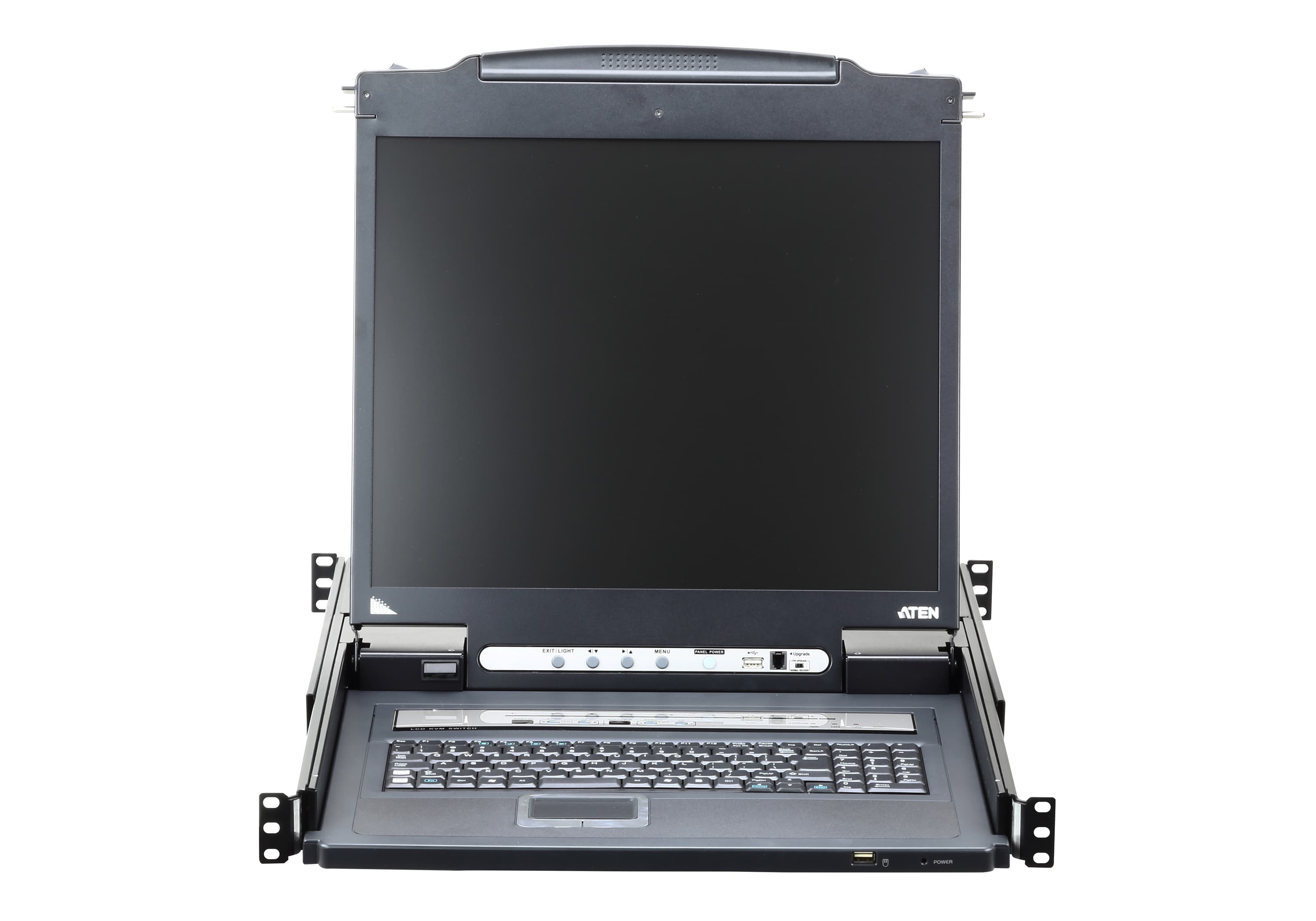

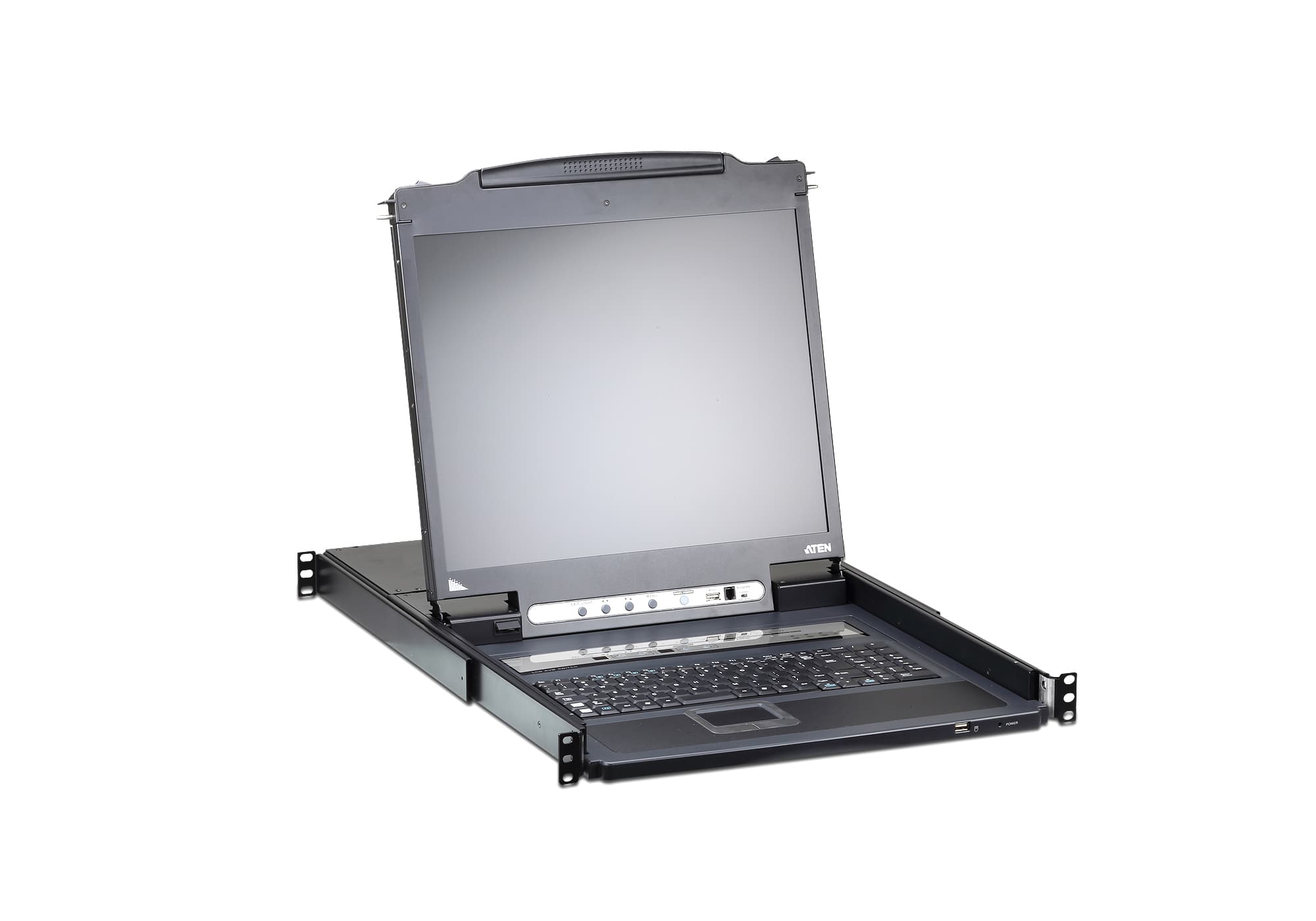

Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, CS1708A,CS1716A)
Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows connected computers to access USB peripherals*
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports multimedia USB keyboards for Windows, Mac and Sun
Supports external USB mouse
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack
Optional rack mount kits available including easy installation options
LCD module rotates up to 120 degrees for a more comfortable viewing angle Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Management
Convenient computer selection via front panel pushbuttons, hotkeys and multi-lingual on-screen display (OSD) menus
Up to 32 concurrent logins
Multi-language web UI support featuring a tree-structured local and remote OSD
Adjustable video quality for flexible adaptation to diverse network environments
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
Integration with CC2000 Centralized Management Software
Backup and restore configuration and user account settings
Event logging
IPv6 capable
Ease-to-Use Interface
Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
Multiplatform support - Windows, Linux, Mac, and Sun
Multi-browser support (IE, Firefox, Safari, Opera, Edge)
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
WinClient and JavaClient software support; JavaClient works with all operating systems
Beeper on / off via hotkey and OSD
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish
Advanced Security
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent Keyboard / Mouse and video data encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP / MAC Filter
Local and remote access logged and authenticated
Virtual Remote Desktop
Resizable remote desktop window
Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
Mouse DynaSync™
On-screen keyboard with multi-language support
BIOS-level access More information about "Easy Rack Mounting"...

Конзолни връзки

Локално: 1 (Share Remote Bus)
Локално: 1 (Share Remote Bus)
Отдалечено: 1
Отдалечено: 1

Връзки към компютри

Директно: 8
Директно: 8
Максимум: 128 (via Daisy-chain)
Максимум: 128 (via Daisy-chain)
Избор на порт: OSD, Hotkey, Pushbutton
Избор на порт: OSD, Hotkey, Pushbutton

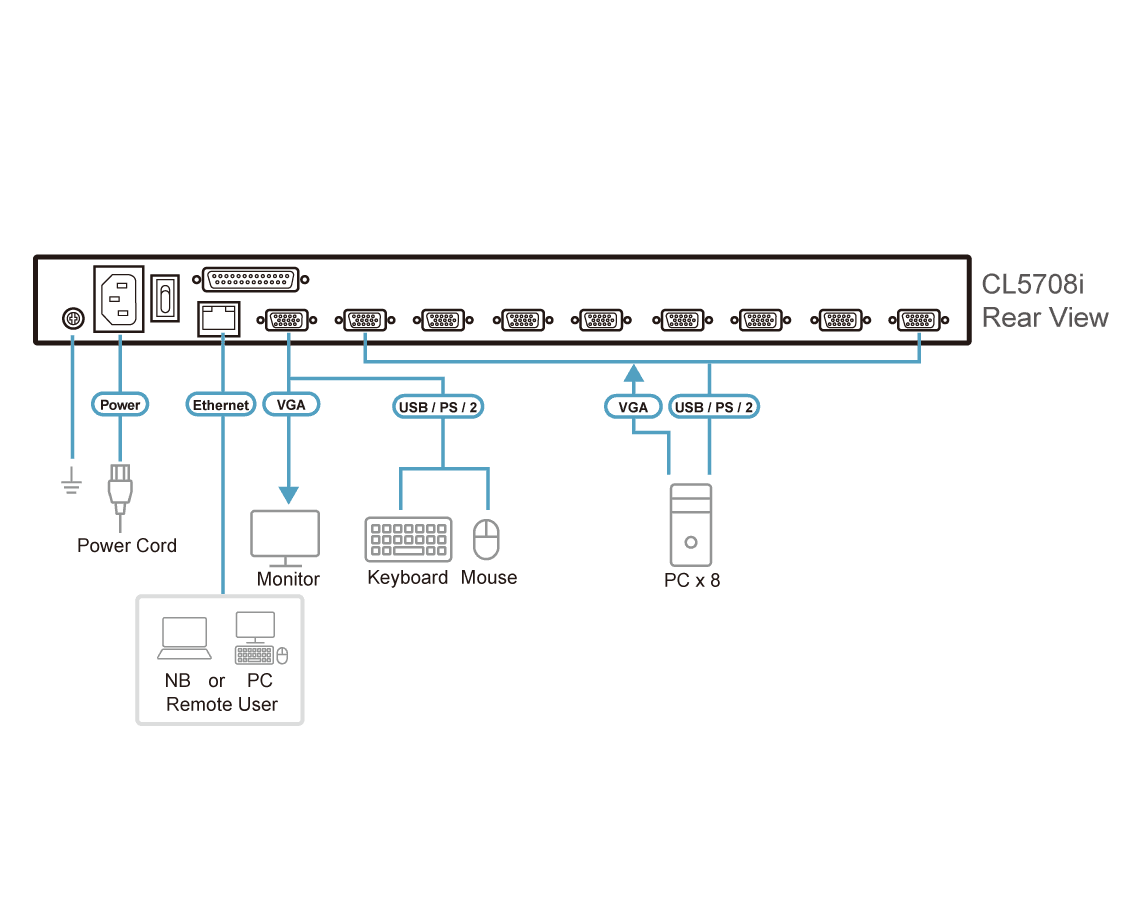

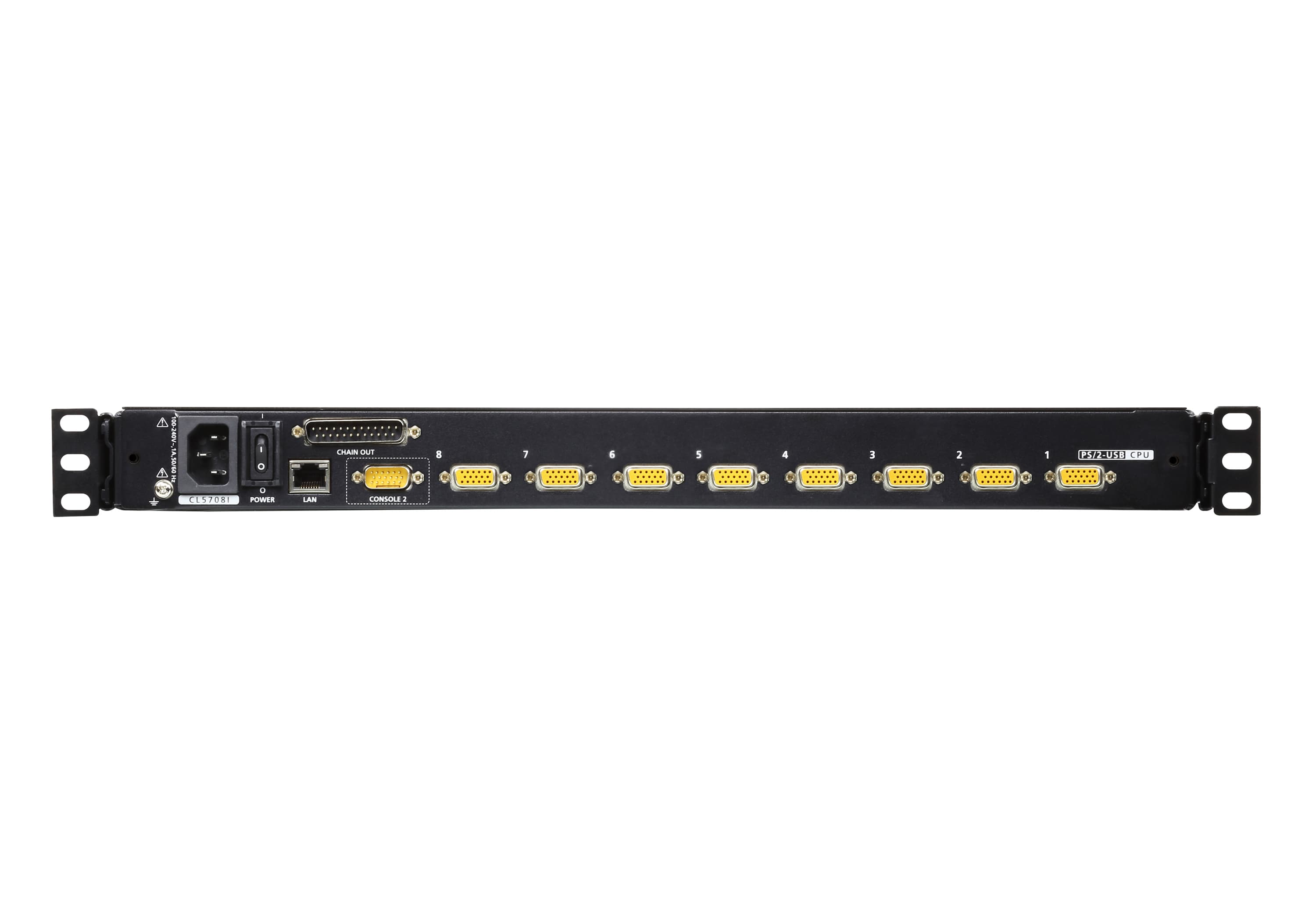

Конектори

Външни конзолни портове: 1 x SPHD Male (Yellow)
Външни конзолни портове: 1 x SPHD Male (Yellow)
Външен порт за мишка: 1 x USB Type-A Female
Външен порт за мишка: 1 x USB Type-A Female
USB порт: 1 x USB Type-A Female
USB порт: 1 x USB Type-A Female
KVM портове: 8 x SPHD Female
KVM портове: 8 x SPHD Female
Daisy Chain портове: 1 x DB-25 Male
Daisy Chain портове: 1 x DB-25 Male
Обновяване на фърмуера: 1 x RJ-11 Female
Обновяване на фърмуера: 1 x RJ-11 Female
LAN портове: 1 x RJ-45 Female
LAN портове: 1 x RJ-45 Female
Захранване: 1 x IEC 60320/C14
Захранване: 1 x IEC 60320/C14

Бутони и превключватели

Избор на порт: 2 x Pushbuttons
Избор на порт: 2 x Pushbuttons
Избор на станция: 2 x Pushbuttons
Избор на станция: 2 x Pushbuttons
Нулиране: 1 x Semi-recessed Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Обновяване на фърмуера: 1 x Switch
Обновяване на фърмуера: 1 x Switch
Захранване: 1 x Rocker Switch
Захранване: 1 x Rocker Switch
Дисплей вкл./изкл.: 1 x LED Pushbutton (Orange)
Дисплей вкл./изкл.: 1 x LED Pushbutton (Orange)
Настройка на дисплея: 4 x Pushbuttons
Настройка на дисплея: 4 x Pushbuttons

Индикатори

Онлайн: 8 x (Orange)
Онлайн: 8 x (Orange)
ID на порт: 1 x 2-digit, 7-segment (Yellow)
ID на порт: 1 x 2-digit, 7-segment (Yellow)
ID на станция: 1 x 2-digit, 7-segment (Yellow)
ID на станция: 1 x 2-digit, 7-segment (Yellow)
10/100 Mbps: 1 x (Orange/Green)
10/100 Mbps: 1 x (Orange/Green)
Захранване: 1 x (Dark Green)
Захранване: 1 x (Dark Green)
Заключване: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
Заключване: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)

Видео

Отдалечено: 1920 x 1200 @60 Hz
Отдалечено: 1920 x 1200 @60 Hz

Панел

LCD модул: 17" TFT-LCD
LCD модул: 19" TFT-LCD
Резолюция: 1280 x 1024 @75 Hz
Резолюция: 1280 x 1024 @75 Hz
Стъпка на пикселите: 0.264 mm x 0.264 mm
Стъпка на пикселите: 0.294 mm x 0.294 mm
Време за реакция: 5 ms
Време за реакция: 5 ms
Зрителен ъгъл: 170° (H), 160° (V)
Зрителен ъгъл: 170° (H), 160° (V)
Поддържани цветове: 16.7M colors
Поддържани цветове: 16.7M colors
Контраст: 1000:1
Контраст: 1000:1
Яркост: 250 cd/m²
Яркост: 250 cd/m²

Емулация

Клавиатура / мишка: PS/2, USB
Клавиатура / мишка: PS/2, USB
Интервал на сканиране: 1-255 sec.
Интервал на сканиране: 1-255 sec.
Макс. входна мощност: 100-240V AC, 50-60Hz, 1A
Макс. входна мощност: 100-240 VAC, 50-60Hz, 1A
Консумация: AC110V:26.8W:138BTU/h AC220V:27.7W:143BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: AC110V:29W:149BTU/h AC220V:29.8W:153BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-50°C
Работна температура: 0-50°C
Температура на съхранение: -20-60°C
Температура на съхранение: -20-60°C
Влажност: 0-80% RH, Non-condensing
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal + Plastic
Корпус: Metal + Plastic
Тегло: 13.49 kg ( 29.71 lb )
Тегло: 13.41 kg ( 29.54 lb )
Размери (Д x Ш x В): 48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.)
Размери (Д x Ш x В): 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
