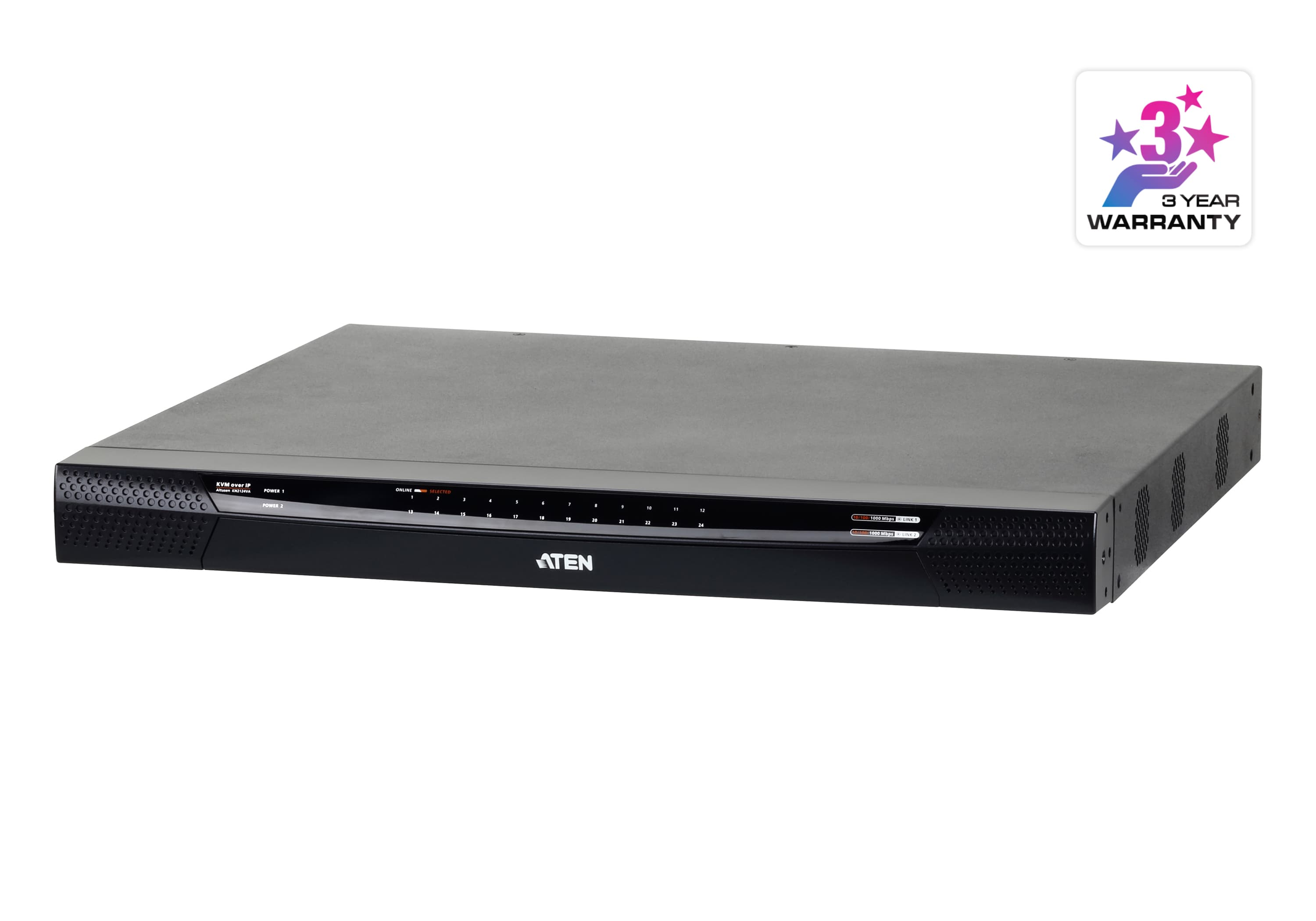

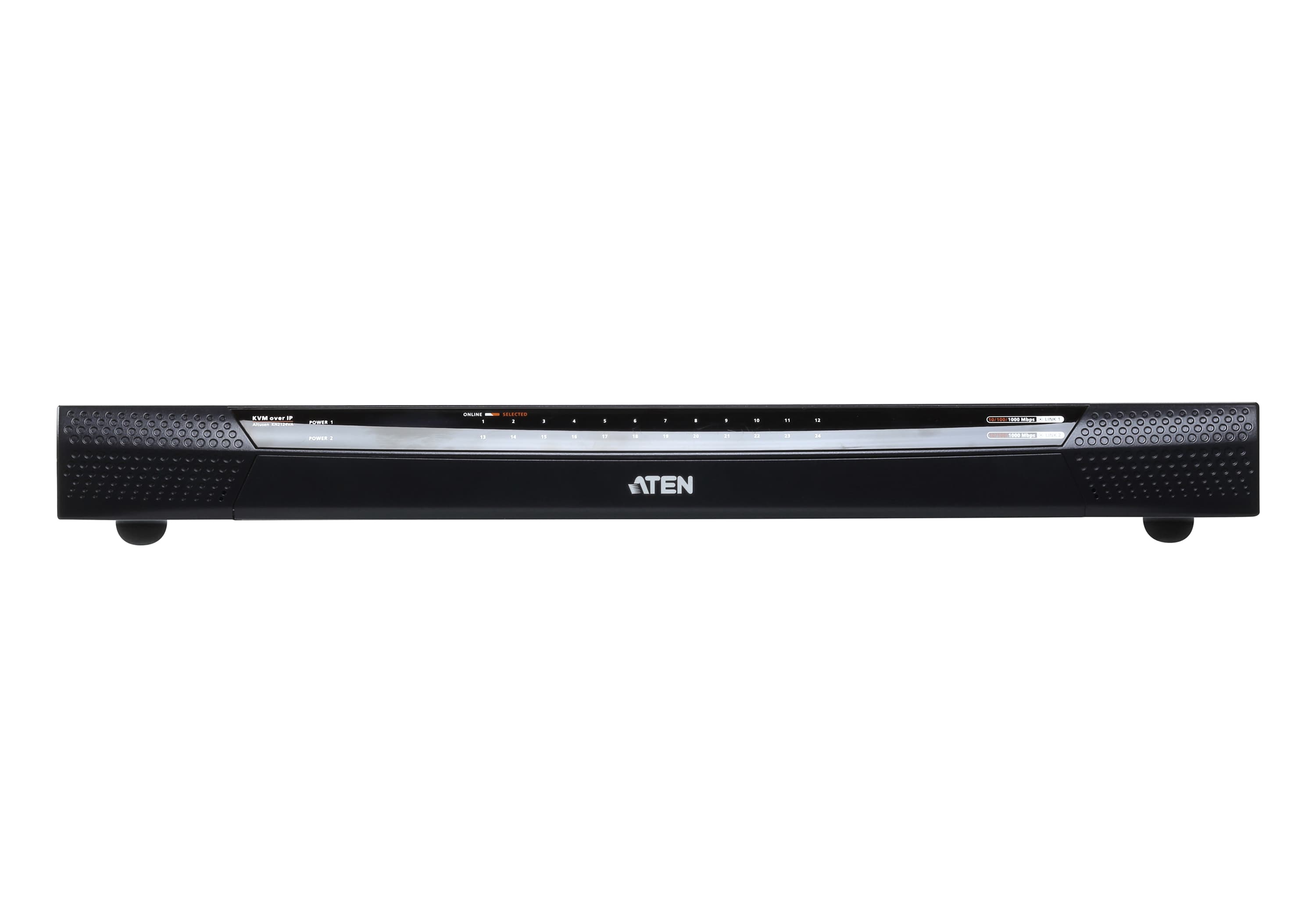

1-Local/2-Remote Access 24-Port Multi-Interface Cat 5 KVM over IP Switch

Name: 1-Local/2-Remote Access 24-Port Multi-Interface Cat 5 KVM over IP Switch
Brand: ATEN
SKU: KN2124VA

KN2124VAСнет от производство

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM Over-IP комутатор с 24 порта Cat 5 за управление на сървъри от 1 локален и 2 отдалечени потребителя едновременно. Чрез каскадиране достига до 512 компютъра; видео до 1920x1200.

Характеристики

Exclusive KN Series Features
High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds
Simultaneously share one local console and two independent connections to servers
Hardware
High Port Density – RJ-45 connectors for up to 40 ports in 1U housing
Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
Two separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual Power Supply
High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
Monitor and control up to 24 computers on a single level or control up to 384 computers in a cascade* * Cascade-compatible KVM switches include the following: CS9138, KH1508A, KH1516A, and KH1532A
Management
Up to 64 user accounts
Up to 32 concurrent logins
Green IT Fan – speed varies according to temperature
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Firmware upgradeable
Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
Port Share Mode – allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software*
IPv6 capable *supports recording computer operations accessed through the local console and via remote sessions.
Easy-to-Use Interface
ATEN Exclusive Panel ArrayTM Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera and Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
Launch multiple virtual remote desktop sessions to control multiple servers at the same time
Fullscreen or scalable virtual remote desktop window
Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Supports IP/MAC address filtering
Configurable user and group permissions for server access and control
Automated CSR creation utility and third-party CA certificate authentication
Virtual Media
Virtual media enables applications, OS patching, software installations and diagnostic testing
Works with USB-enabled servers at the operating system and BIOS level
Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speeds; monochrome color depth, threshold and noise settings reduce data transmission to lower bandwidth
Fullscreen or scalable window for desktop sessions
Message Board for communication among remote users
Mouse DynaSync – automatically synchronizes the local and remote mouse movements
Exit Macro support
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting

Конзолни връзки

Локално: 1
Отдалечено: 2

Връзки към компютри

Директно: 24
Максимум: 512 (via Cascade)
Избор на порт: Pushbuttons, Hotkeys, GUI

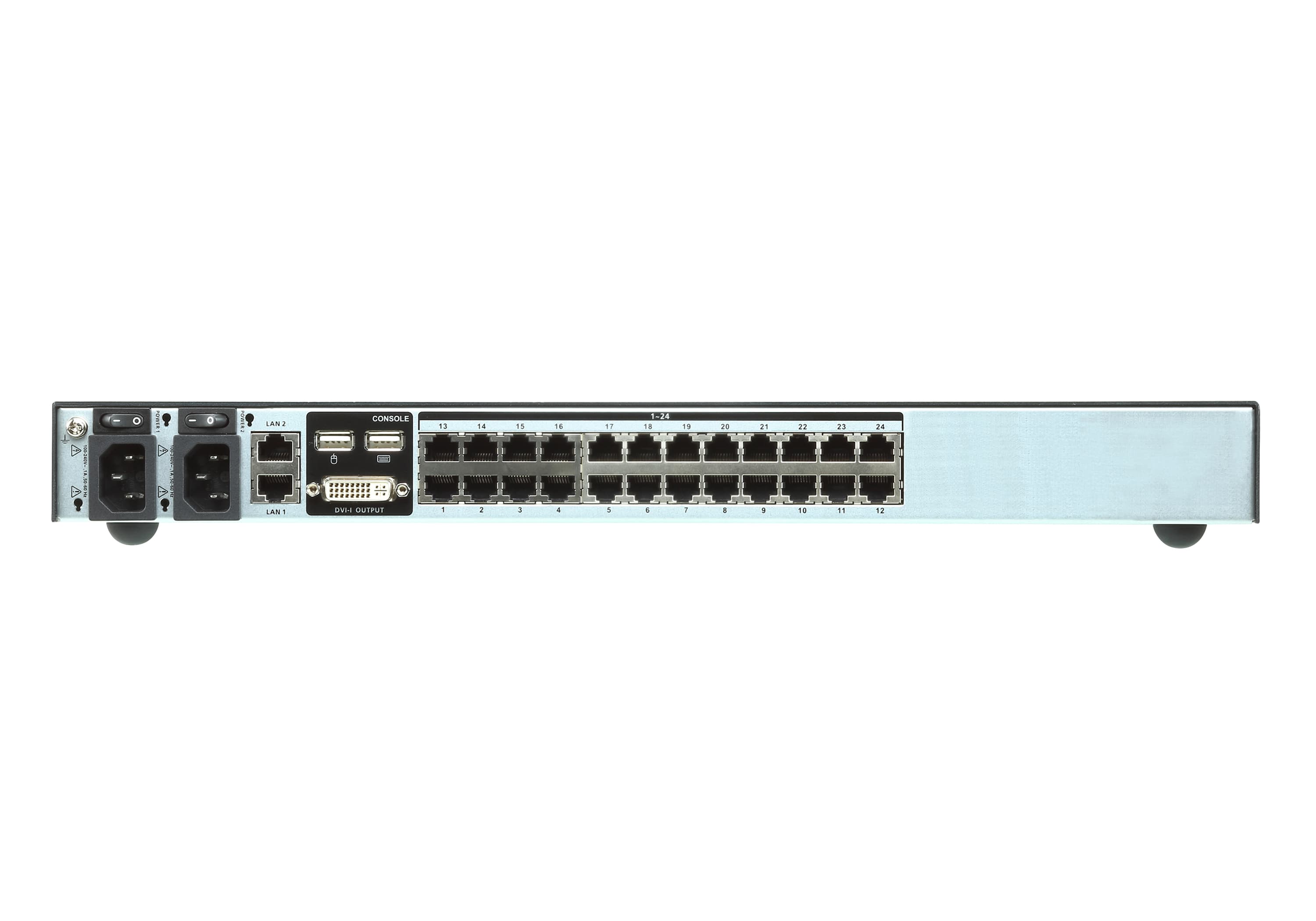

Конектори

Конзолни портове: 2 x USB Type-A Female (White) 1 x DVI-I Female (White)
USB порт: 3 x USB Type-A Female
Аудио: 2 x Audio Jack Female
Laptop USB Console (LUC) порт: 1 x USB Mini-B Female
KVM портове: 24 x RJ-45 Female
LAN портове: 2 x RJ-45 Female
Захранване: 2 x IEC 60320/C14

Бутони и превключватели

Избор на порт: 2 x Pushbuttons
Нулиране: 1 x Semi-recessed Pushbutton
Захранване: 2 x Rocker Switches

Индикатори

Онлайн / избран: 24 (Green/Orange)
Връзка 10/100/1000 Mbps: 2 (Red/Orange/Green)
Захранване: 2 (Blue)

Емулация

Клавиатура / мишка: PS/2; USB

Видео

Локално: 1920 x 1200 @ 60Hz
Отдалечено: 1920 x 1200 @ 60Hz
Интервал на сканиране: 1 – 255 Sec
Макс. входна мощност: 100–240V~ ; 50-60Hz; 1A
Консумация: AC110V:34.3W:198BTU/h AC220V:34.3W:198BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40˚C
Температура на съхранение: -20 - 60˚C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 5.48 kg ( 12.07 lb )
Размери (Д x Ш x В): 43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
