32-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

Name: 32-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch
Brand: ATEN
SKU: KH1532A

KH1532A

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Cat 5 KVM превключвател за 32 компютъра през RJ-45 портове и Cat 5e/6 кабели, с адаптери за DisplayPort, HDMI, DVI или VGA. Верижното свързване разширява контрола до 1024 машини от една конзола.

Характеристики

One KVM console controls up to 32 directly connected computers
Space-Saving RJ-45 connectors and Cat 5e/6 cabling

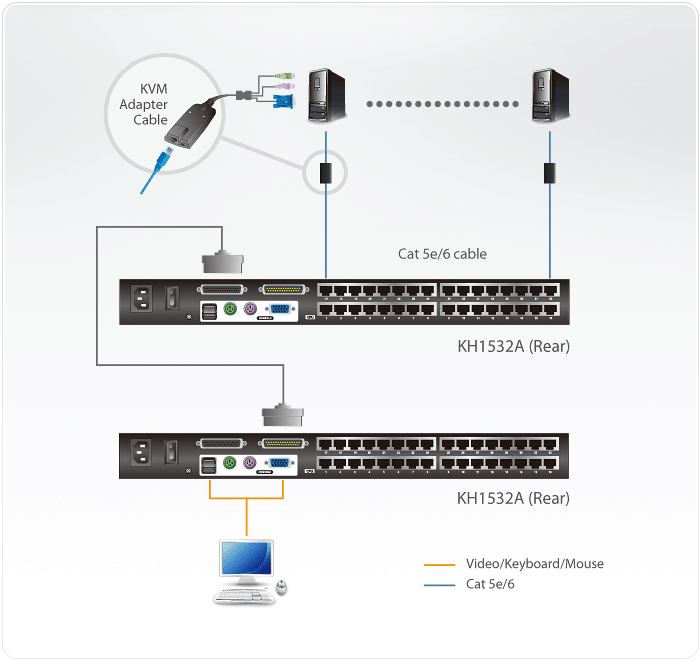

By daisy chaining up to 31 additional KH1532A switches, as many as 1024 computers can be controlled from the original KVM console
Console conversion – any KVM console can control any type of computer; mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides
Superior video quality – supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters*, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
Configure port access rights for users on a port-by-port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support – Windows, Linux, Mac and Sun
Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
Multiple user accounts – supports up to 10 user and 1 administrator accounts
Two-Level password security – supports one administrator and ten user profiles. Password protection prevents unauthorized access to the installation
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installations, upgrades, shutdowns, etc.), on all computers simultaneously
Adapter ID feature
Firmware Upgradeable *For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.

Връзки към компютри

Директно: 32
Максимум: 1024 (via Daisy-chain)
Избор на порт: OSD, Hotkey, Pushbutton

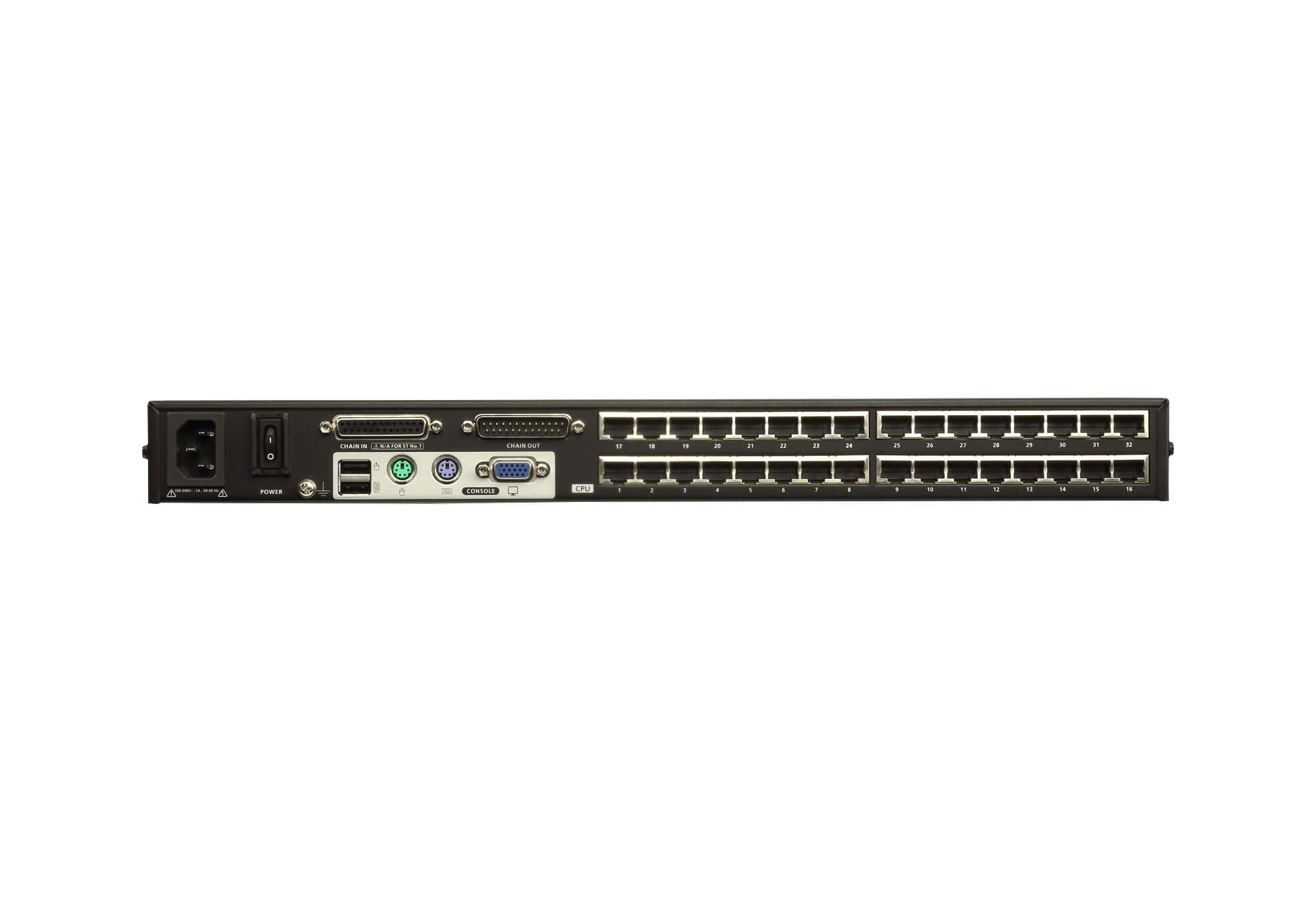

Конектори

Конзолни портове: 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
KVM портове: 32 x RJ-45 Female
Daisy Chain портове: 1 x DB-25 Female (Black) 1 x DB-25 Male (Black)
Обновяване на фърмуера: 1 x RJ-11 Female
Захранване: 1 x IEC 60320/C14

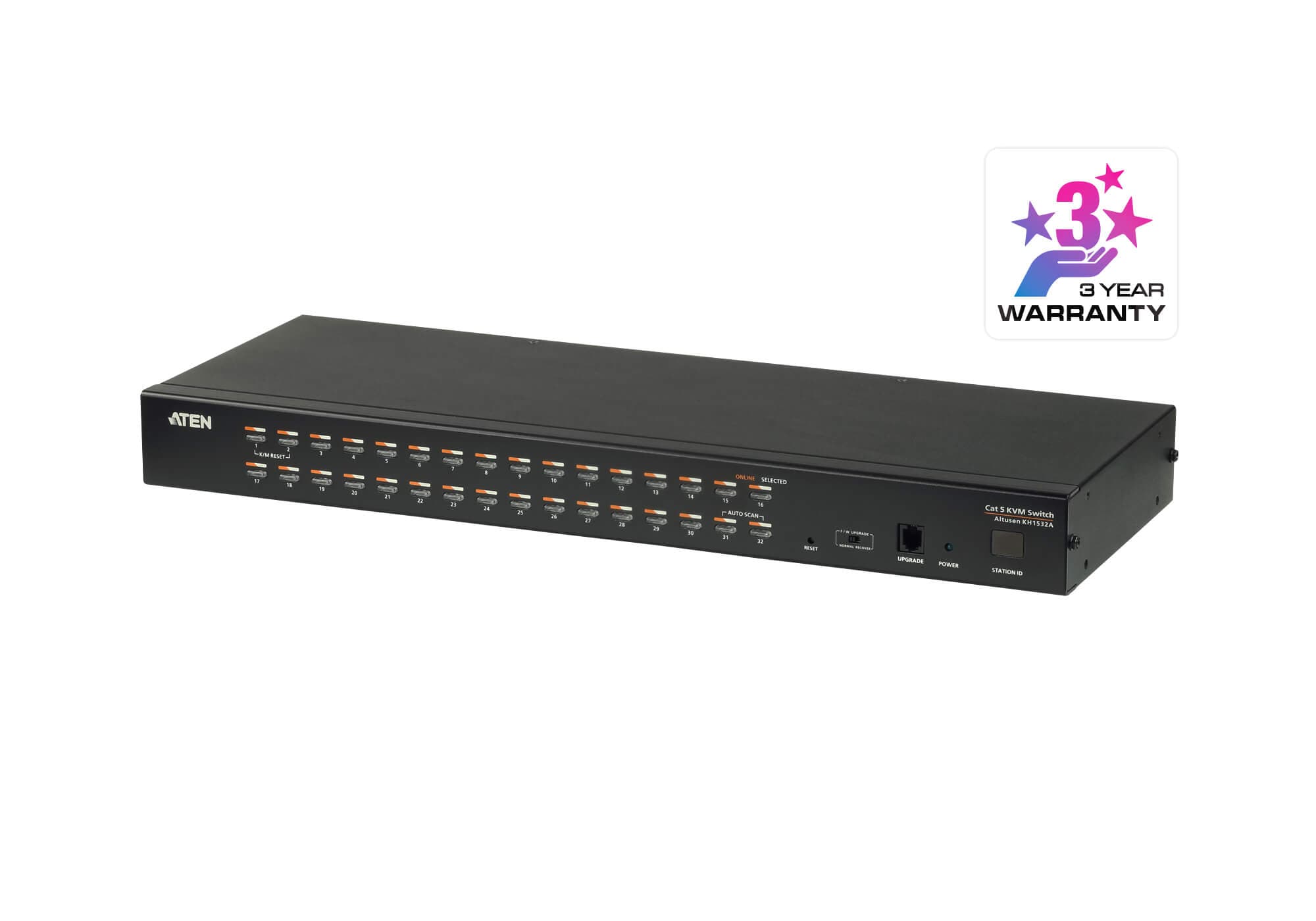

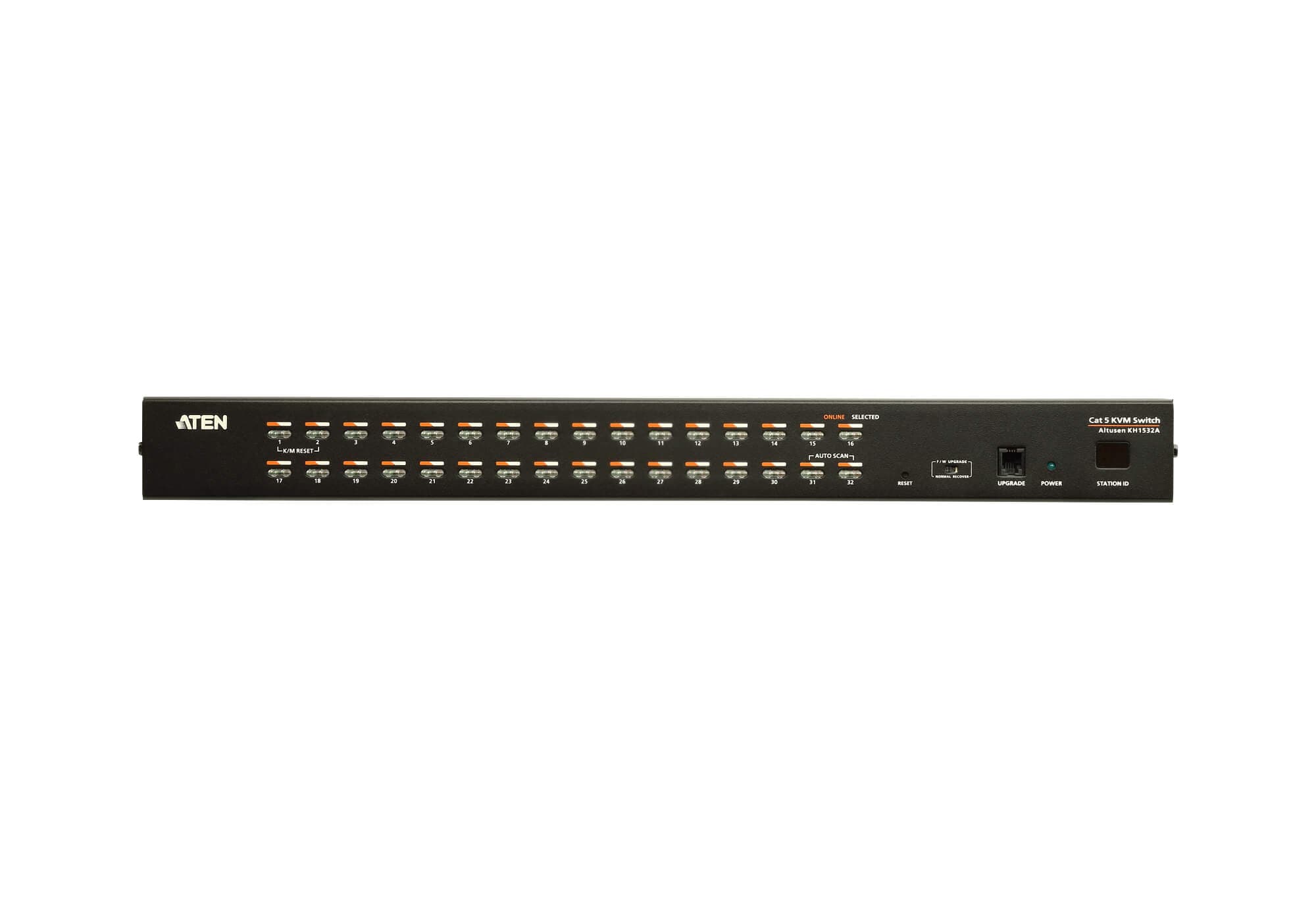

Бутони и превключватели

Избор на порт: 32 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Обновяване на фърмуера: 1 x Slide
Захранване: 1 x Rocker

Индикатори

Онлайн: 32 (Green)
Избран: 32 (Orange)
Захранване: 1 (Blue)
ID на станция: 1 x 2 Digit 7-segment (Orange)

Емулация

Клавиатура / мишка: PS/2; USB
Интервал на сканиране: 1–255 seconds
Видео: 1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)
Макс. входна мощност: 100–240V AC; 50/60 Hz; 1A
Консумация: AC110V:4.6W:30BTU/h AC220V:4.8W:31BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 2.81 kg ( 6.19 lb )
Размери (Д x Ш x В): 43.72 x 16.37 x 4.40 cm (17.21 x 6.44 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
