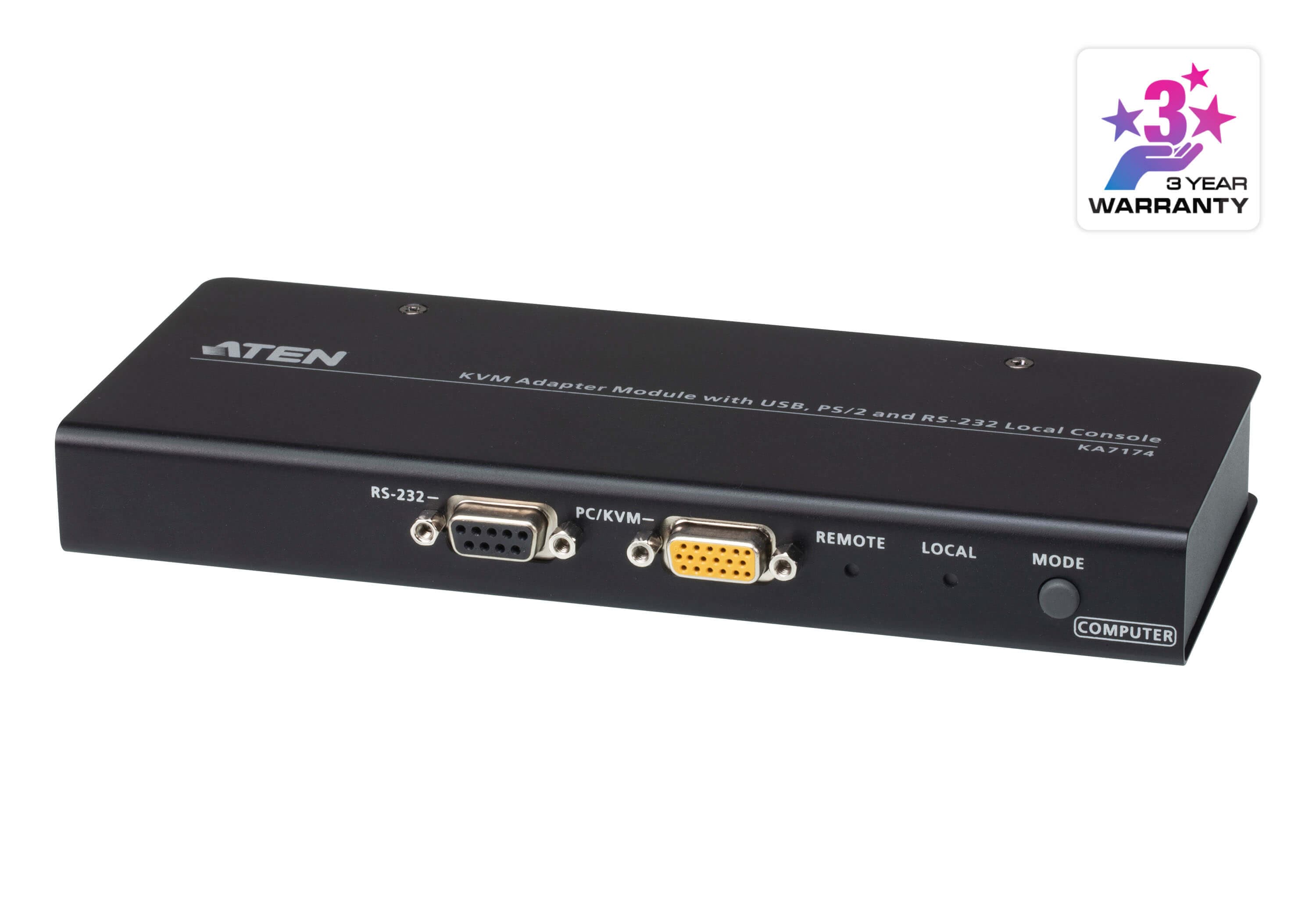

KVM Adapter Module with USB, PS/2, and RS-232 Local Console
KA7174
Адаптерен модул, който добавя локална конзола с USB, PS/2 и RS-232 към KVM комутатор през Cat 5e/6 кабел. Поддържа RS-232 тъч панели от локална и отдалечена страна и работа с Access Control Box.
Характеристики
- Compatible with ATEN 2XRT-0015G KVM over IP Access Control Box to initiate local-only access and control to the servers
- Cat 5e / 6 cable connects the device and KVM switch
- Supports computers with PS/2 and USB keyboards and mice, controlling the system from these extended devices and monitor via local console
- Supports custom RS-232 touch panel from both local and remote sites
- Pushbutton operating mode selection for privileged console control with OSD tag notifications indicating denial of access to the local or remote users when configured as such
- Built-in ASIC for greater stability and compatibility
- USB over-current detection and prevention
- Built-in ESD protection and surge protection
- Superior video quality – supports resolution up to 1920 x 1200 (reduced blanking)*
- Supports VGA , SVGA , SXGA , UXGA , WUXGA, and multisync monitors; local monitor supports DDC, DDC2, and DDC2B
- Easy to install – no software required – simply connect cables to the devices * This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

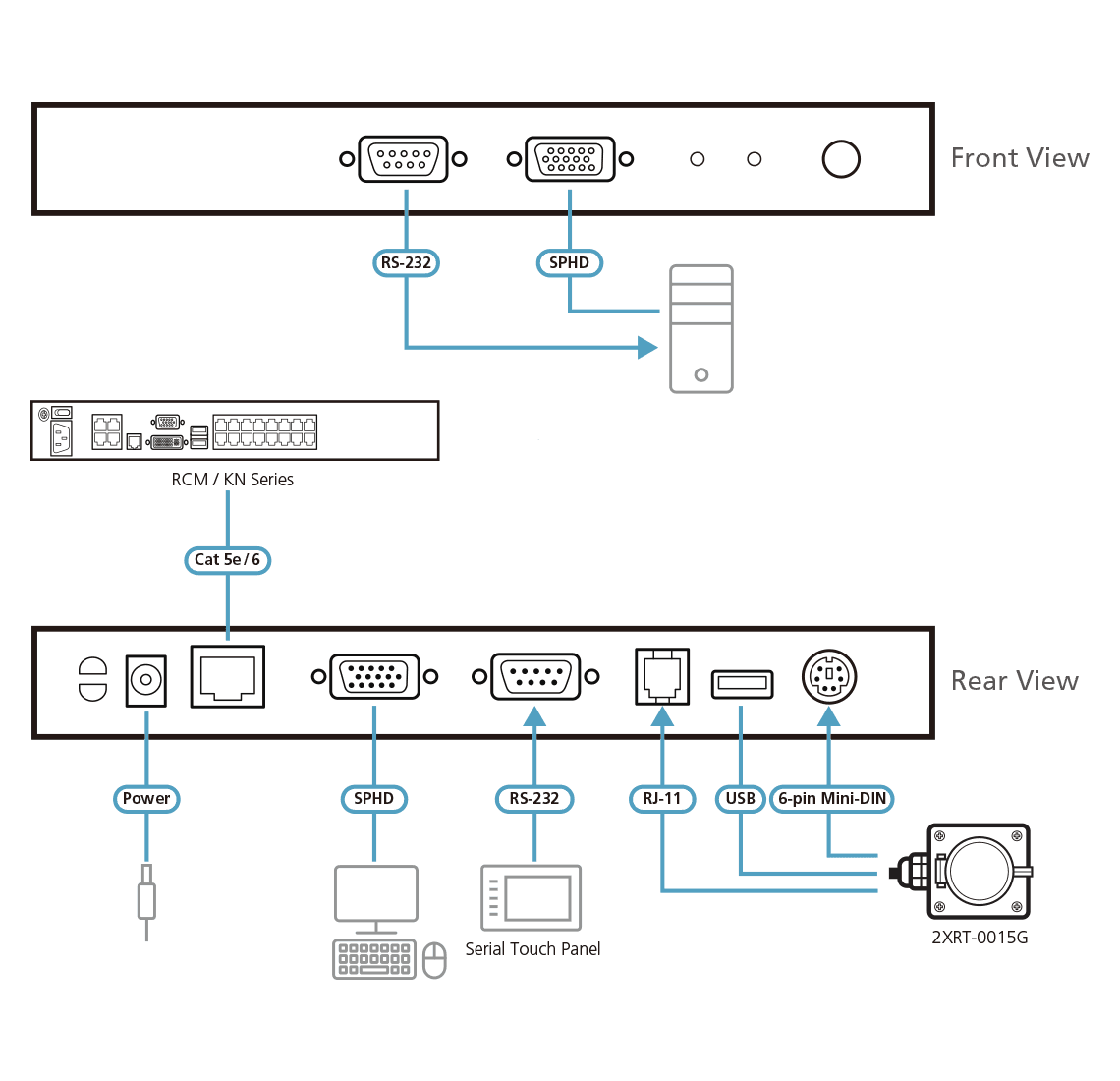

Конектори

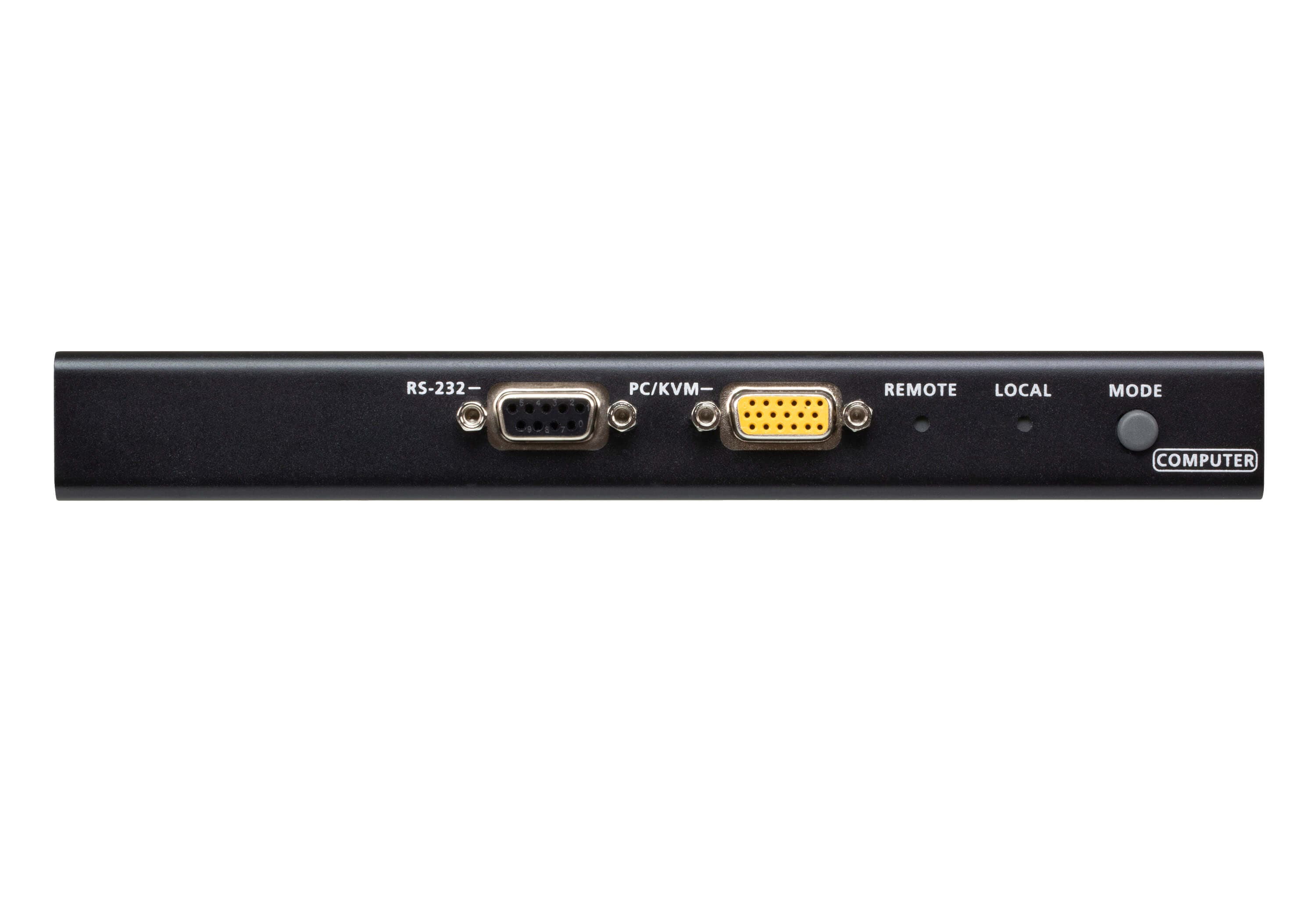

- Конзолни портове
- 1 x SPHD Male (Yellow)

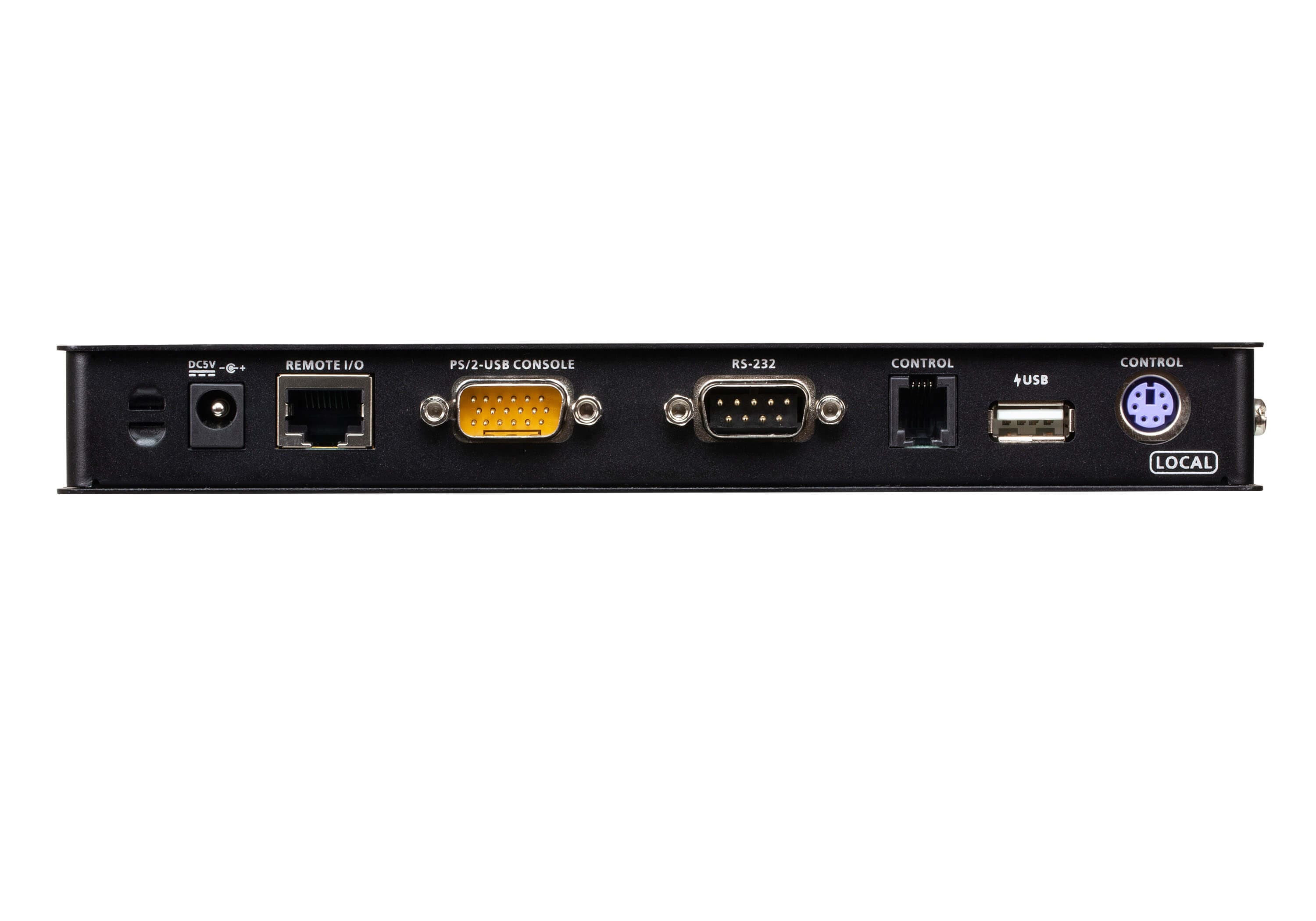

- KVM портове
- 1 x SPHD Female (Yellow)
- Захранване
- 1 x DC Jack (Black)
- Управление
- 1 x 6-pin Mini-DIN Female (Purple) 1 x RJ-11 Female + 1 x USB Type A Female (Black)
- RS-232
- 1 x DB-9 Male (Black) 1 x DB-9 Female (Black)
- Връзка
- 1 x RJ-45 Female (Black)
Бутони
- Избор на работен режим
- 1 x Pushbutton
Индикатори
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
Емулация
- Клавиатура / мишка
- PS/2, USB
- Видео
- Up to 1920 x 1200 @ 60Hz
- Консумация
- DC5V:1.57W:30BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.49 kg ( 1.08 lb )
- Размери (Д x Ш x В)
- 20.30 x 8.64 x 2.50 cm (7.99 x 3.4 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
