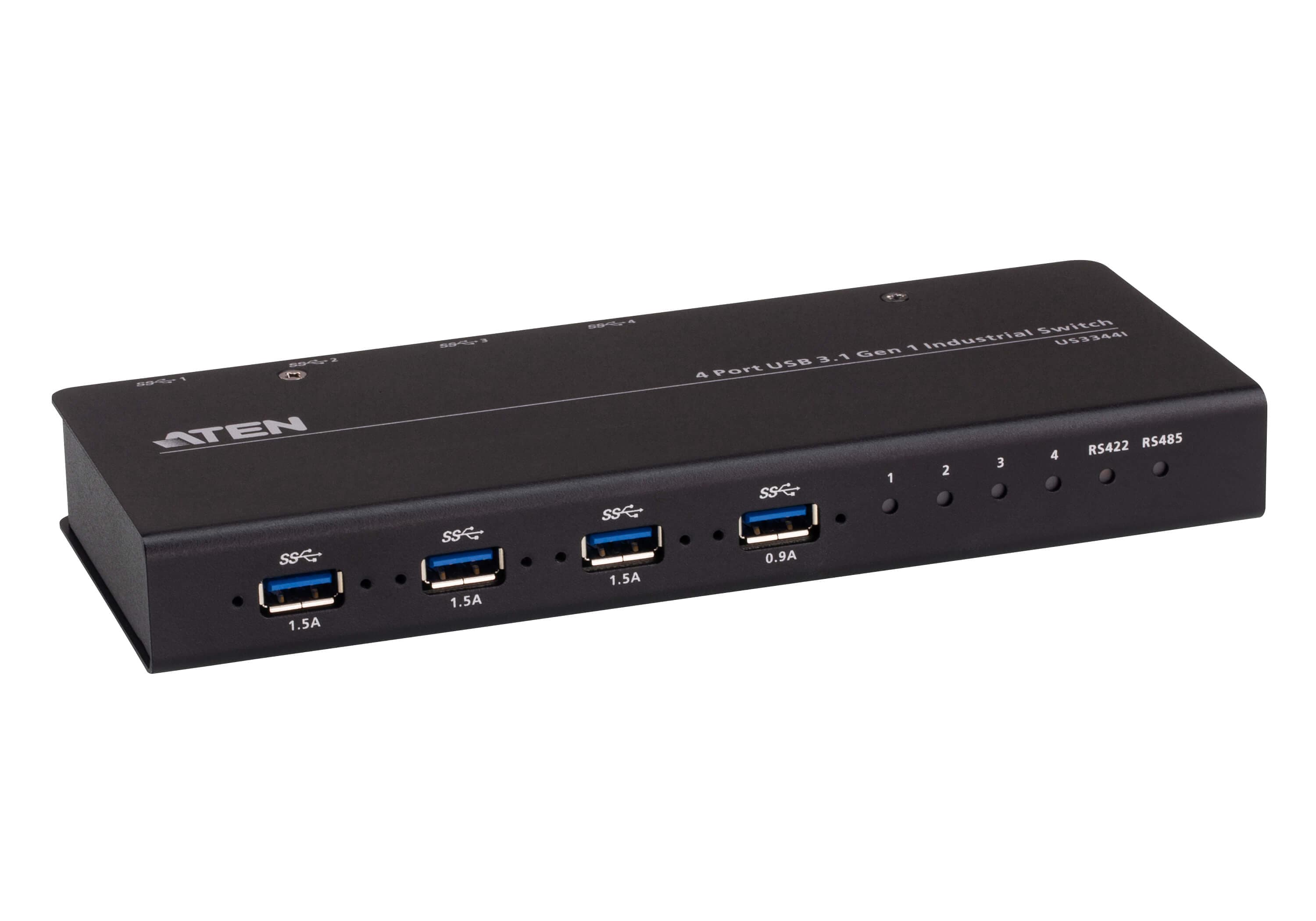

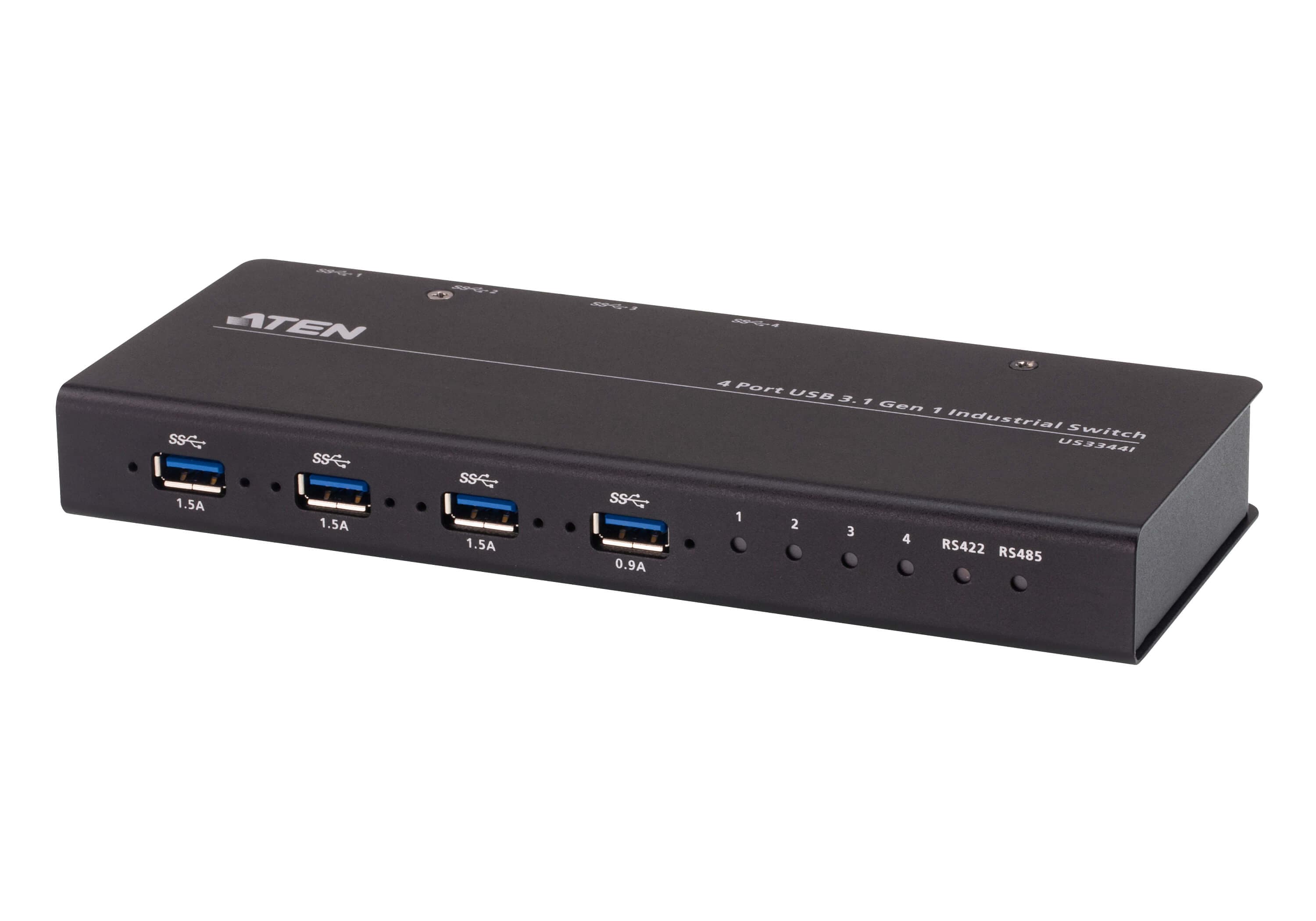

4 x 4 USB 3.2 Gen 1 Industrial Sharing Switch

Name: 4 x 4 USB 3.2 Gen 1 Industrial Sharing Switch
Brand: ATEN
SKU: US3344I

US3344I

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

Industrial sharing switch connecting 4 computers to 4 USB 3.2 Gen 1 devices at up to 5 Gbps, with terminal-block power input, for production-line stations that share a printer or instrument.

Features

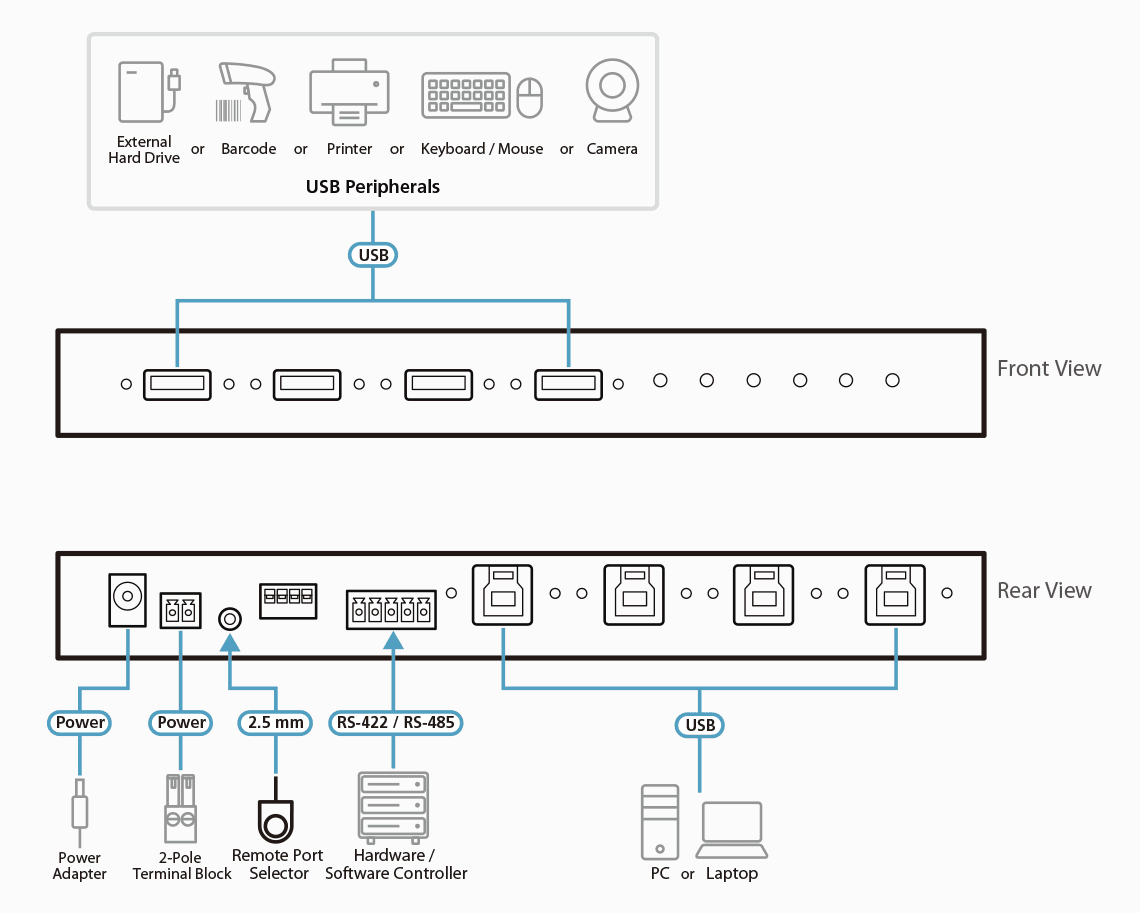

Enables four computers to share USB peripheral up to four devices
USB 3.2 Gen 1 compatibility with maximum data transfer rates up to 5 Gbps
Multiplatform support - Windows, Mac and Linux
Displays port focus via LED indicators
Metal mechanical cassis with wall mountable design
Supports aftermarket USB M2 screw locking cable
Supports port selection via remote controller or RS-422 / RS-485 link through 5-pin terminal block
Supports hot plugging
Supports DC 9 - 24V power input through terminal block*
Supports USB BC 1.2 and over current protection
Power on detection – The computer focus automatically switches to a newly plugged-in or powered-on computer – The computer focus automatically switches to port 1 when the focused computer is unplugged or powered-off
Firmware upgradable *Supports either of the following, power supplies: 1. DC terminal block 2. DC power jack (available for purchase separately from your closest ATEN dealer.Part No.: 0AD8-8012-33M1)

Specifications

Computer Connections: 4

Connectors

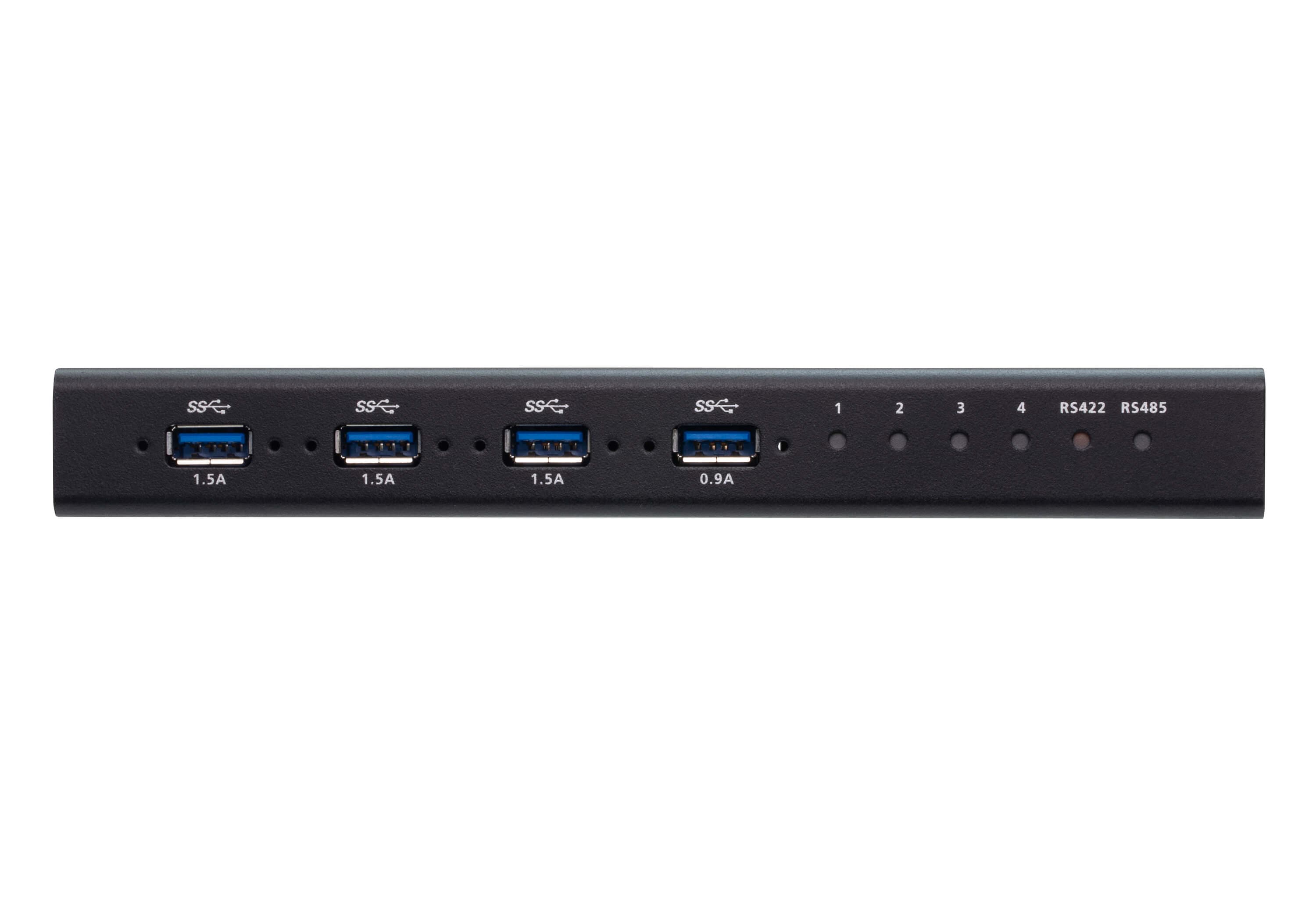

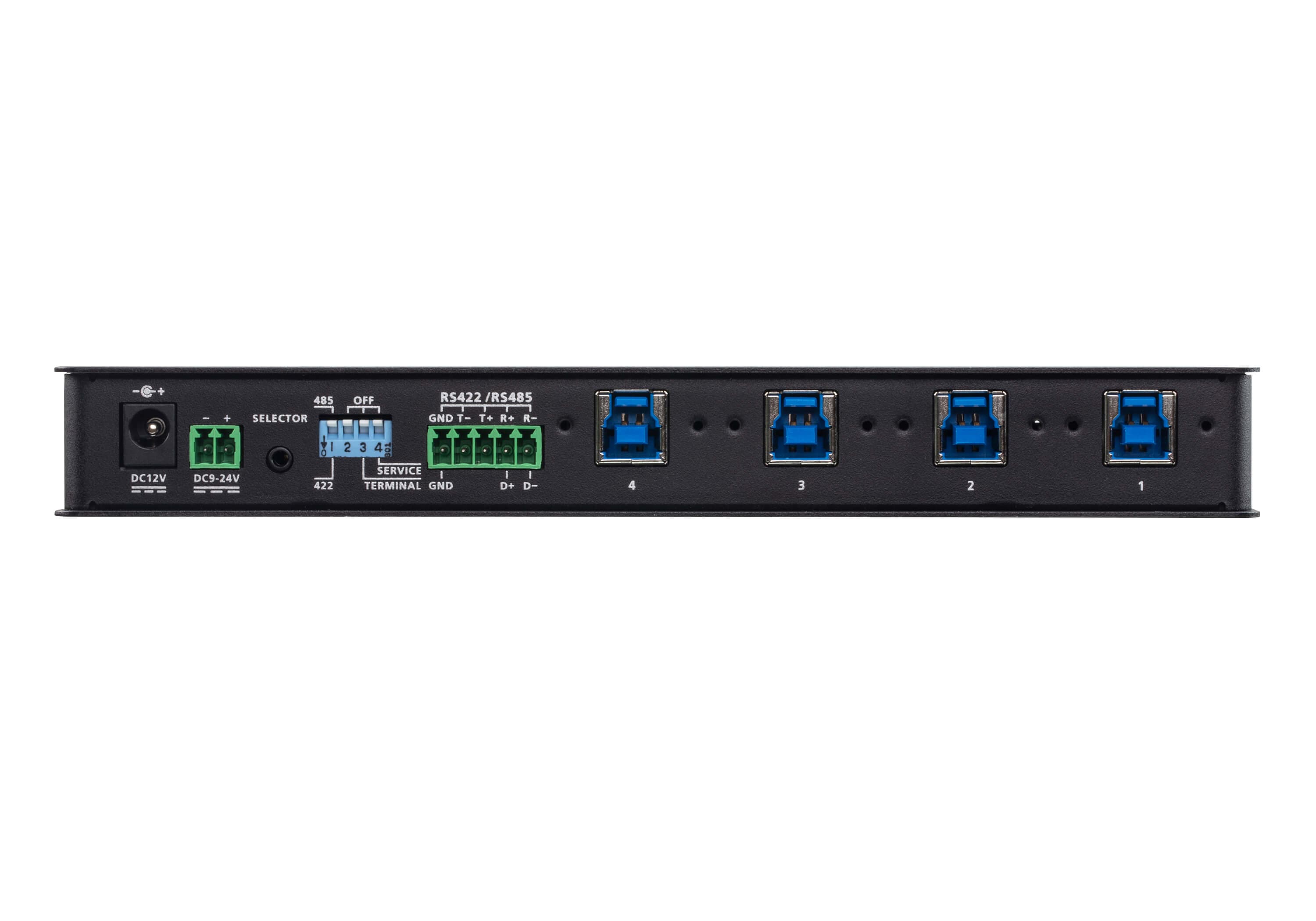

Computer: 4 x USB Type B Female (Blue)
Device: 4 x USB Type A Female (Blue)
Serial: 1 x 5-pin Terminal Plug (Green)
Power: 1 x 2-pin 9-24V Terminal Plug (Green)
Power (Optional): 1 x 12V DC Jack Female (Black)
Power Consumption: DC12V:0.376W:117BTU/h DC24V:0.48W:117BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power Mode: Terminal Block / DC Jack Power Adapter* *DC Jack Power Adapter is available for purchase separately from your closest ATEN dealer. Part No.: 0AD8-8012-33M1
Port Selection: Remote port selector / Serial command

LEDs

Selected: 4 (Green)
Serial: RS422 (Orange ) RS485 (Green )

Cable Length

USB Cable: 2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.2M 2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.8M
Remote Port Selector: 1.8 m

Environmental

Humidity: 0–80% RH, Non-condensing
Operating Temperature: 0–50°C
Storage Temperature: -20–60°C

Physical Properties

Housing: Metal
Weight: 0.51 kg ( 1.12 lb )
Dimensions (L x W x H): 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
Note: According to updates from the USB-IF, USB 3.1 Gen 1 is now referred to as USB 3.2 Gen 1. On this website, the product is presented using the updated naming. However, the product unit may still be labeled as USB 3.1 Gen 1, based on the naming used at the time of development. Both refer to the same specification, supporting data transfer rates of up to 5 Gbps.
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
