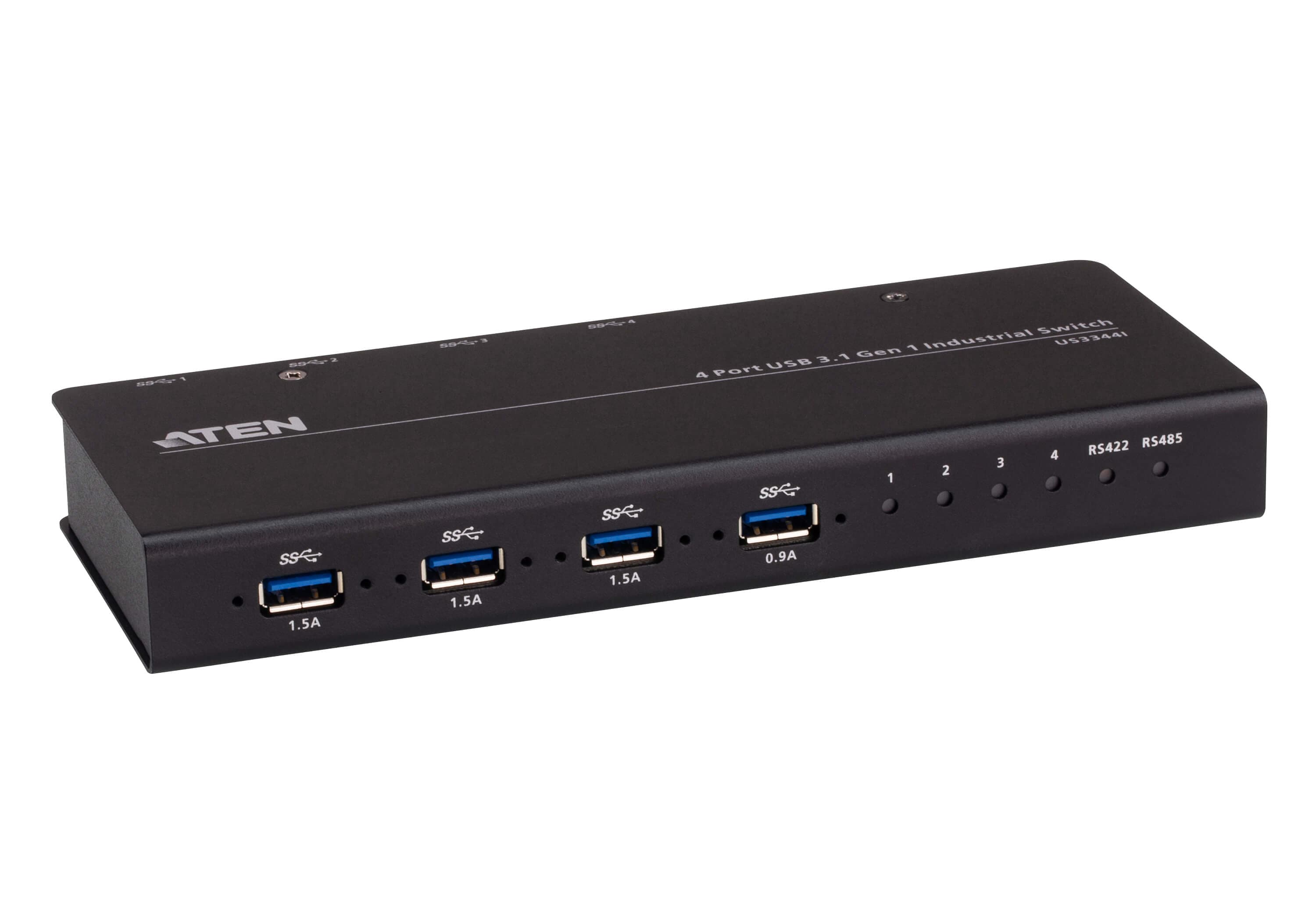

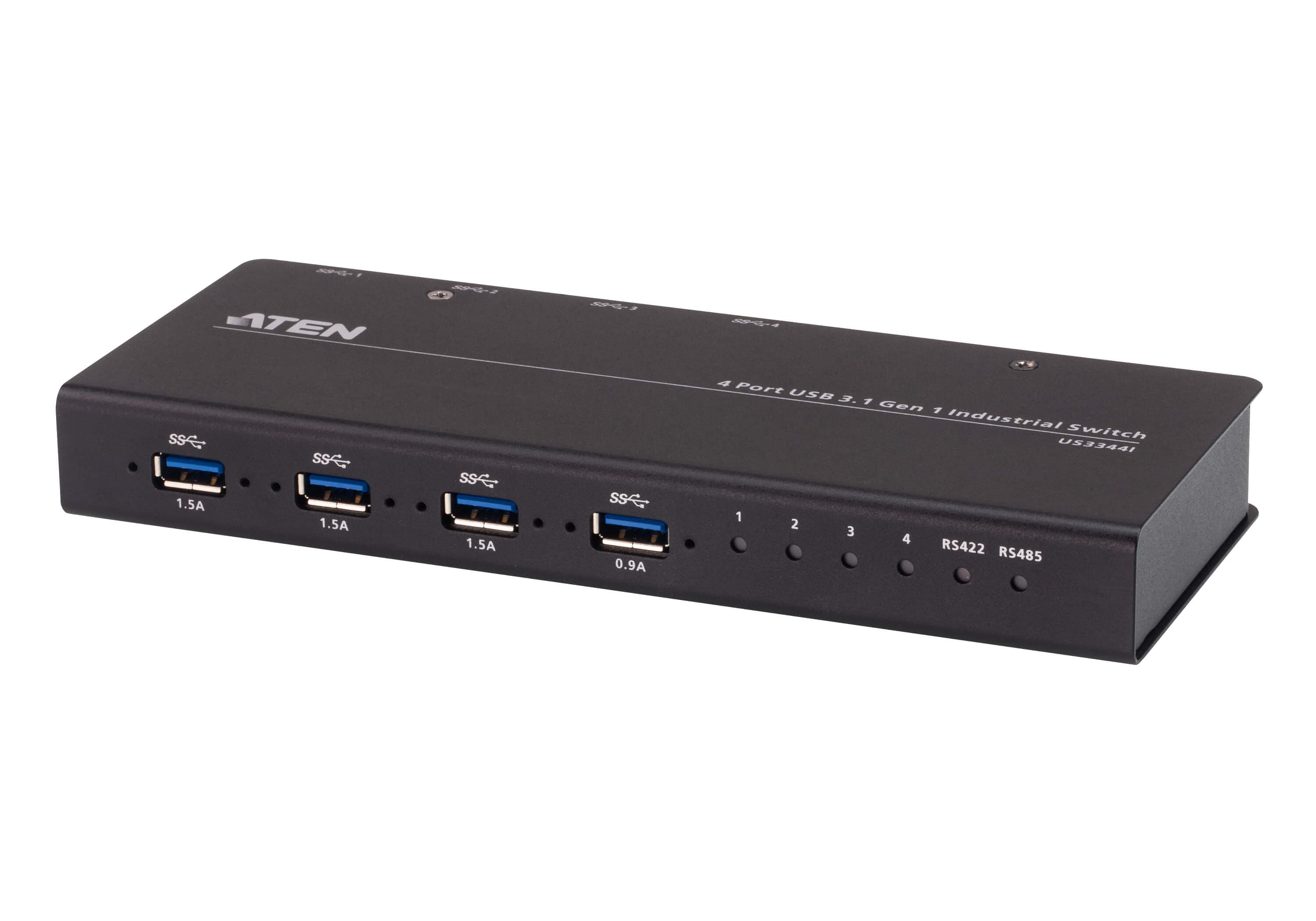

4 x 4 USB 3.2 Gen 1 Industrial Sharing Switch
US3344I
Индустриален комутатор, чрез който 4 компютъра споделят 4 USB устройства при до 5 Gbps (USB 3.2 Gen 1). Захранва се с 9-24V през терминален блок — за производствени линии.
Характеристики
- Enables four computers to share USB peripheral up to four devices
- USB 3.2 Gen 1 compatibility with maximum data transfer rates up to 5 Gbps
- Multiplatform support - Windows, Mac and Linux
- Displays port focus via LED indicators
- Metal mechanical cassis with wall mountable design
- Supports aftermarket USB M2 screw locking cable

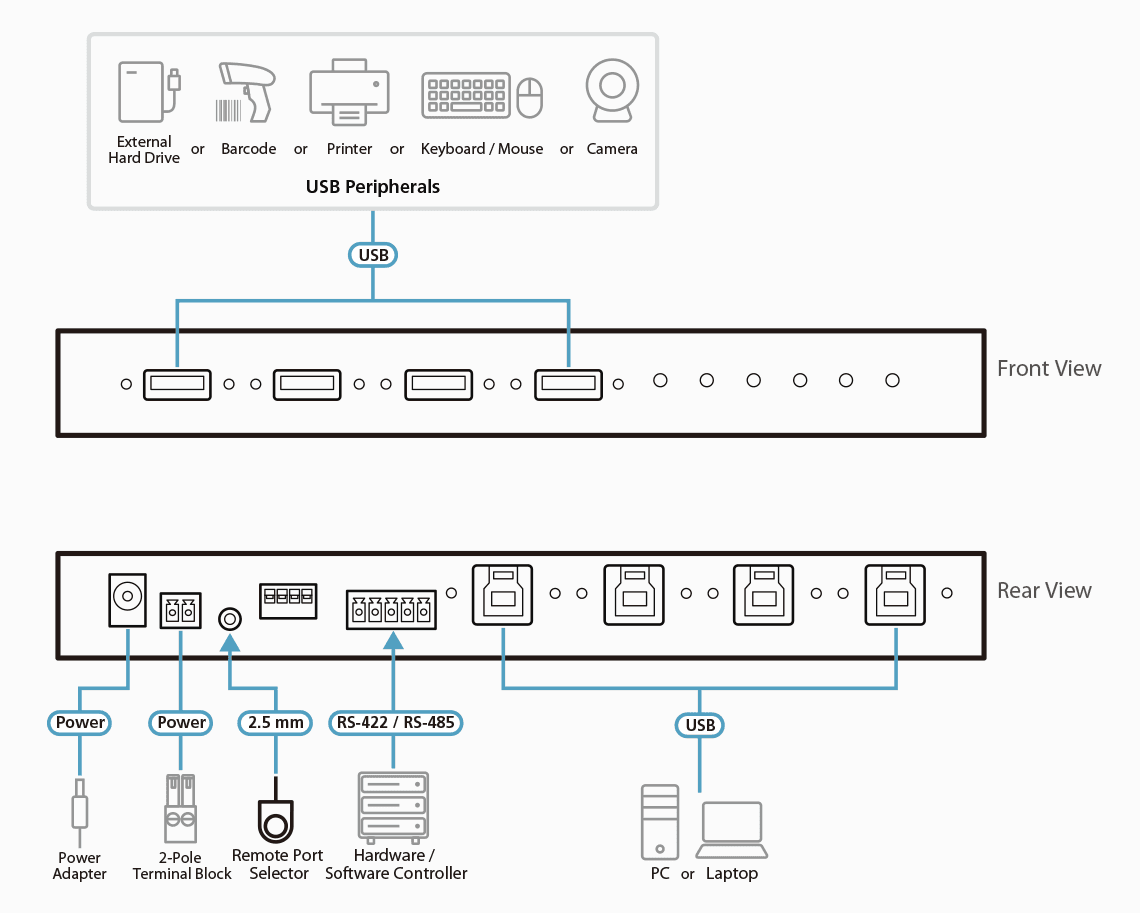

- Supports port selection via remote controller or RS-422 / RS-485 link through 5-pin terminal block
- Supports hot plugging
- Supports DC 9 - 24V power input through terminal block*
- Supports USB BC 1.2 and over current protection
- Power on detection – The computer focus automatically switches to a newly plugged-in or powered-on computer – The computer focus automatically switches to port 1 when the focused computer is unplugged or powered-off
- Firmware upgradable *Supports either of the following, power supplies: 1. DC terminal block 2. DC power jack (available for purchase separately from your closest ATEN dealer.Part No.: 0AD8-8012-33M1)
Спецификация
- Връзки към компютри
- 4

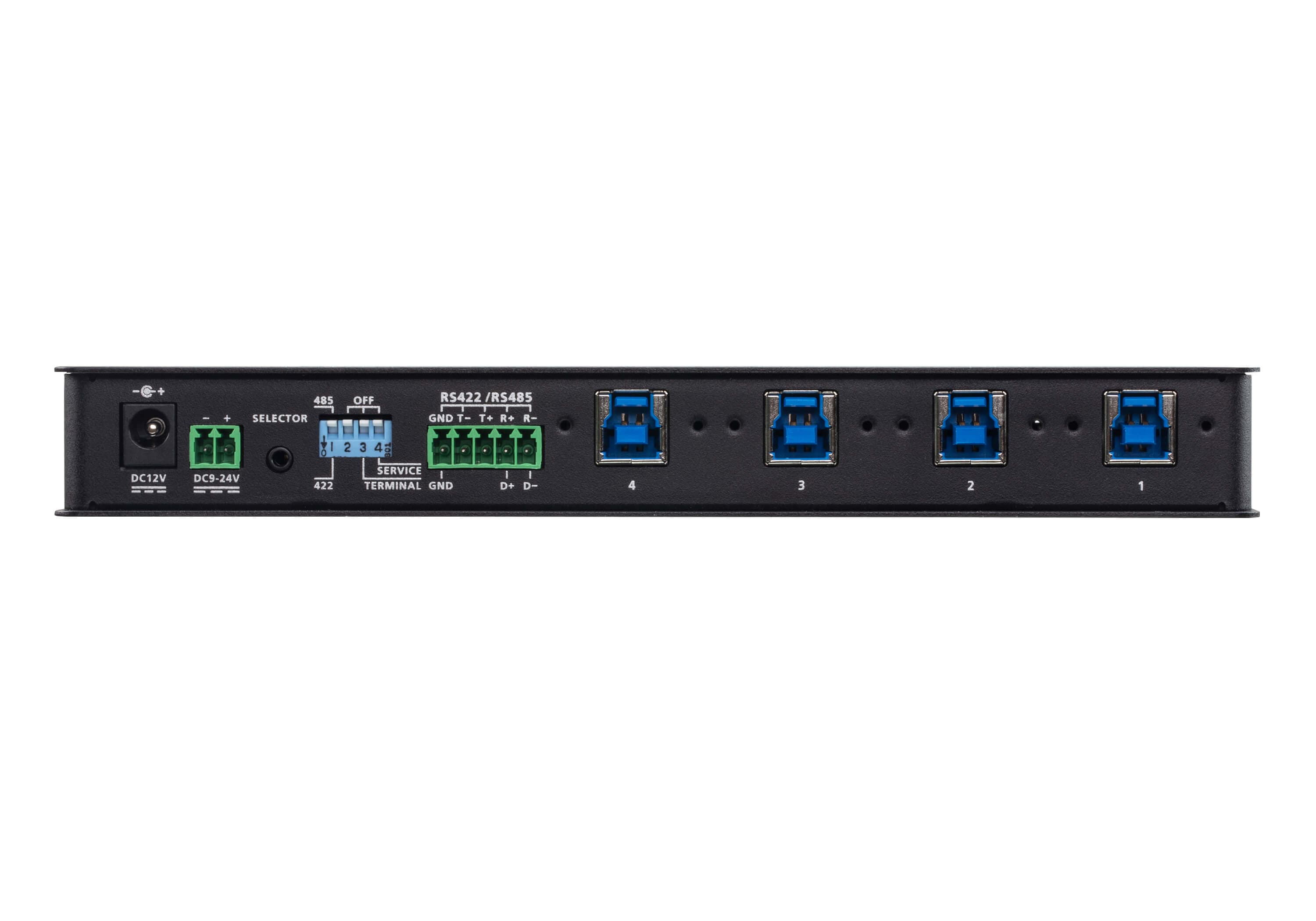

Конектори
- Компютър
- 4 x USB Type B Female (Blue)
- Устройство

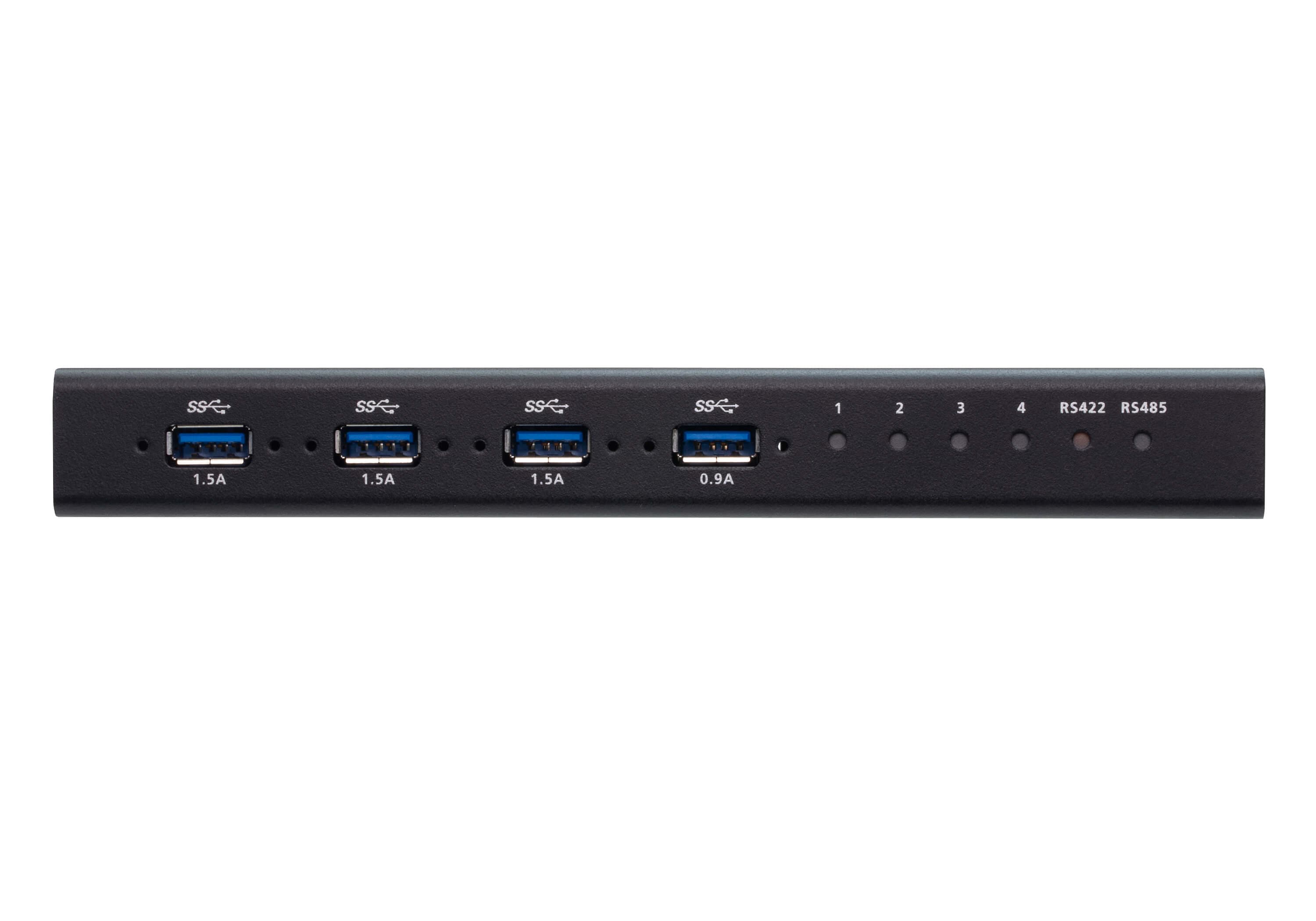

- 4 x USB Type A Female (Blue)
- Сериен
- 1 x 5-pin Terminal Plug (Green)
- Захранване
- 1 x 2-pin 9-24V Terminal Plug (Green)
- Захранване (опция)
- 1 x 12V DC Jack Female (Black)
- Консумация
- DC12V:0.376W:117BTU/h DC24V:0.48W:117BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Режим на захранване
- Terminal Block / DC Jack Power Adapter* *DC Jack Power Adapter is available for purchase separately from your closest ATEN dealer. Part No.: 0AD8-8012-33M1
- Избор на порт
- Remote port selector / Serial command
Индикатори
- Избран
- 4 (Green)
- Сериен
- RS422 (Orange ) RS485 (Green )
Дължина на кабела
- USB кабел
- 2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.2M 2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.8M
- Дистанционен избор на порт
- 1.8 m
Работна среда
- Влажност
- 0–80% RH, Non-condensing
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.51 kg ( 1.12 lb )
- Размери (Д x Ш x В)
- 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
- Забележка
- According to updates from the USB-IF, USB 3.1 Gen 1 is now referred to as USB 3.2 Gen 1. On this website, the product is presented using the updated naming. However, the product unit may still be labeled as USB 3.1 Gen 1, based on the naming used at the time of development. Both refer to the same specification, supporting data transfer rates of up to 5 Gbps.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
