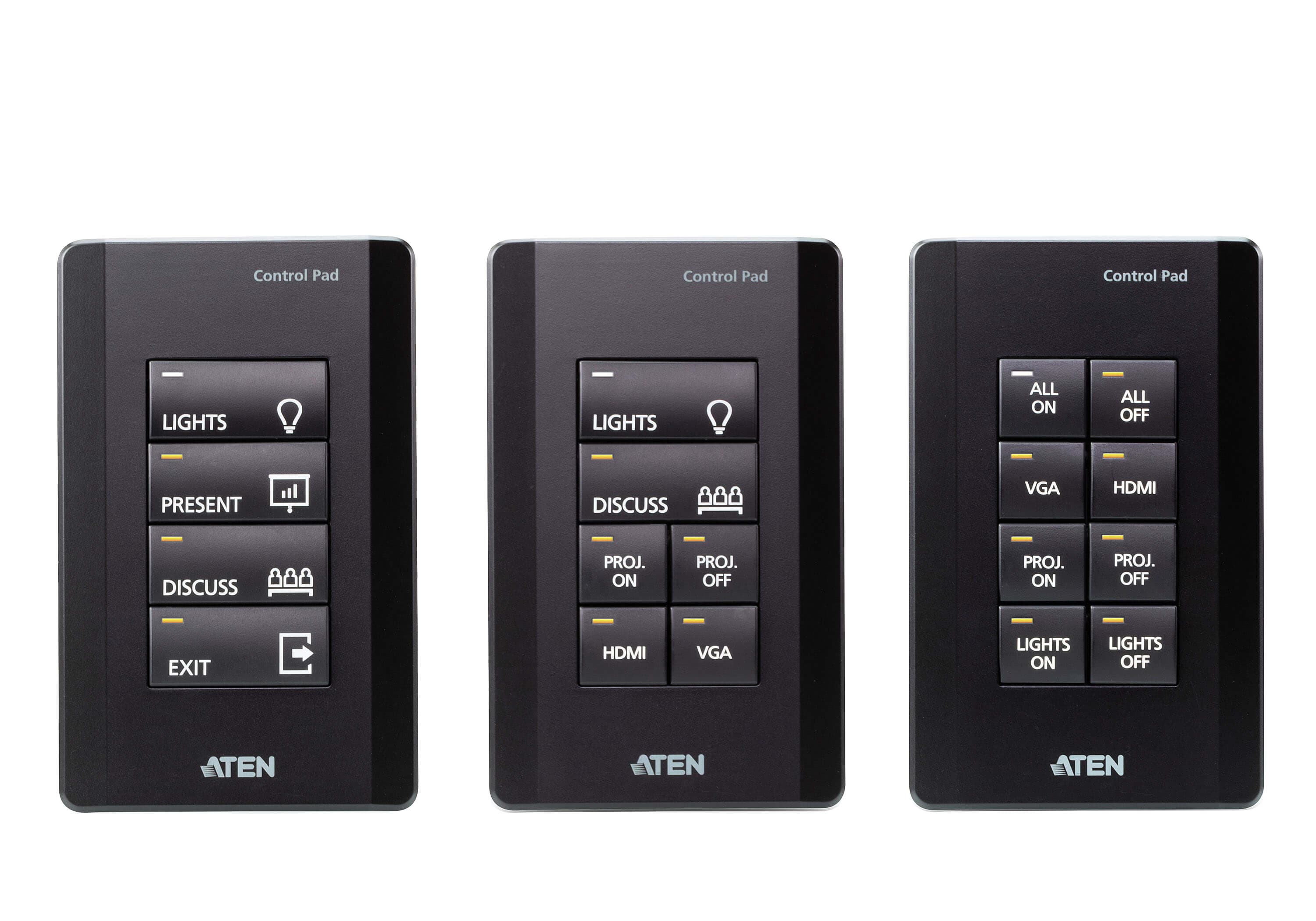

ATEN Control System - 8-button Control Pad (US, 1 Gang)
VK0100
Контролен пад с 4 до 8 бутона в 14 подредби за управление на оборудване в зала. Има 2 RS-232 порта, 2 релейни канала и Ethernet; за единична (1 gang) US кутия.
Характеристики

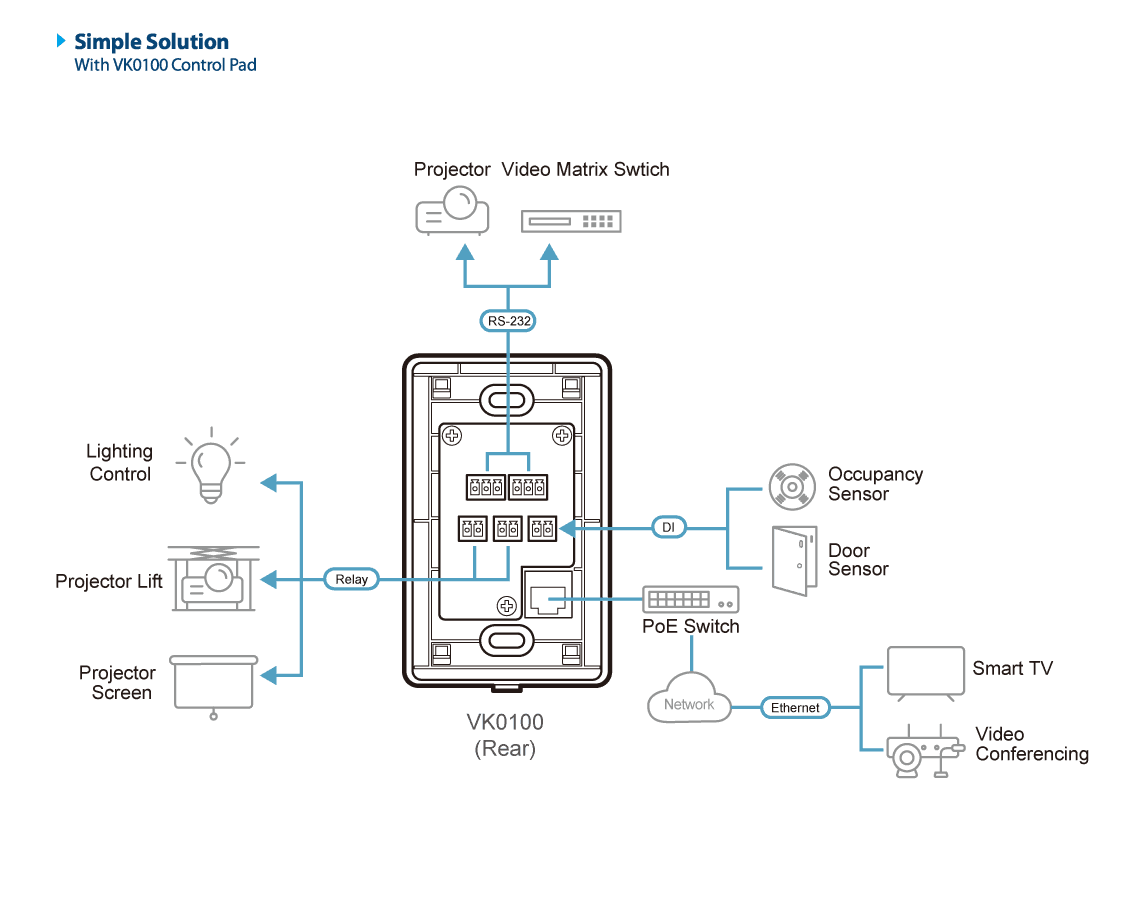

- Supports various interface connections: • 2 x RS-232 ports • 2 x Relay channels • 1 x Digital input channel • 1 x Ethernet port

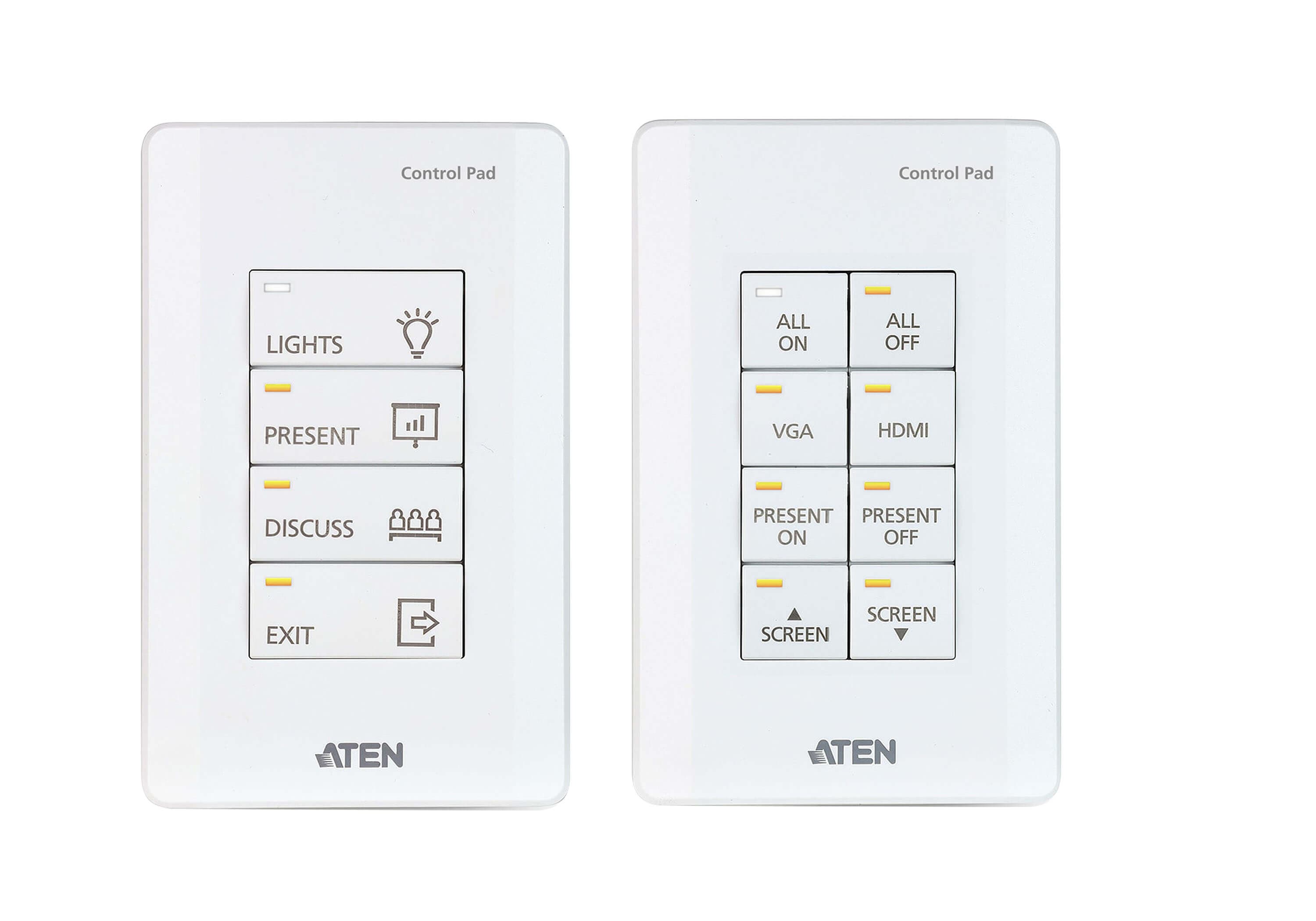

- Fully customizable with 14 layout combinations of 4 to 8 buttons

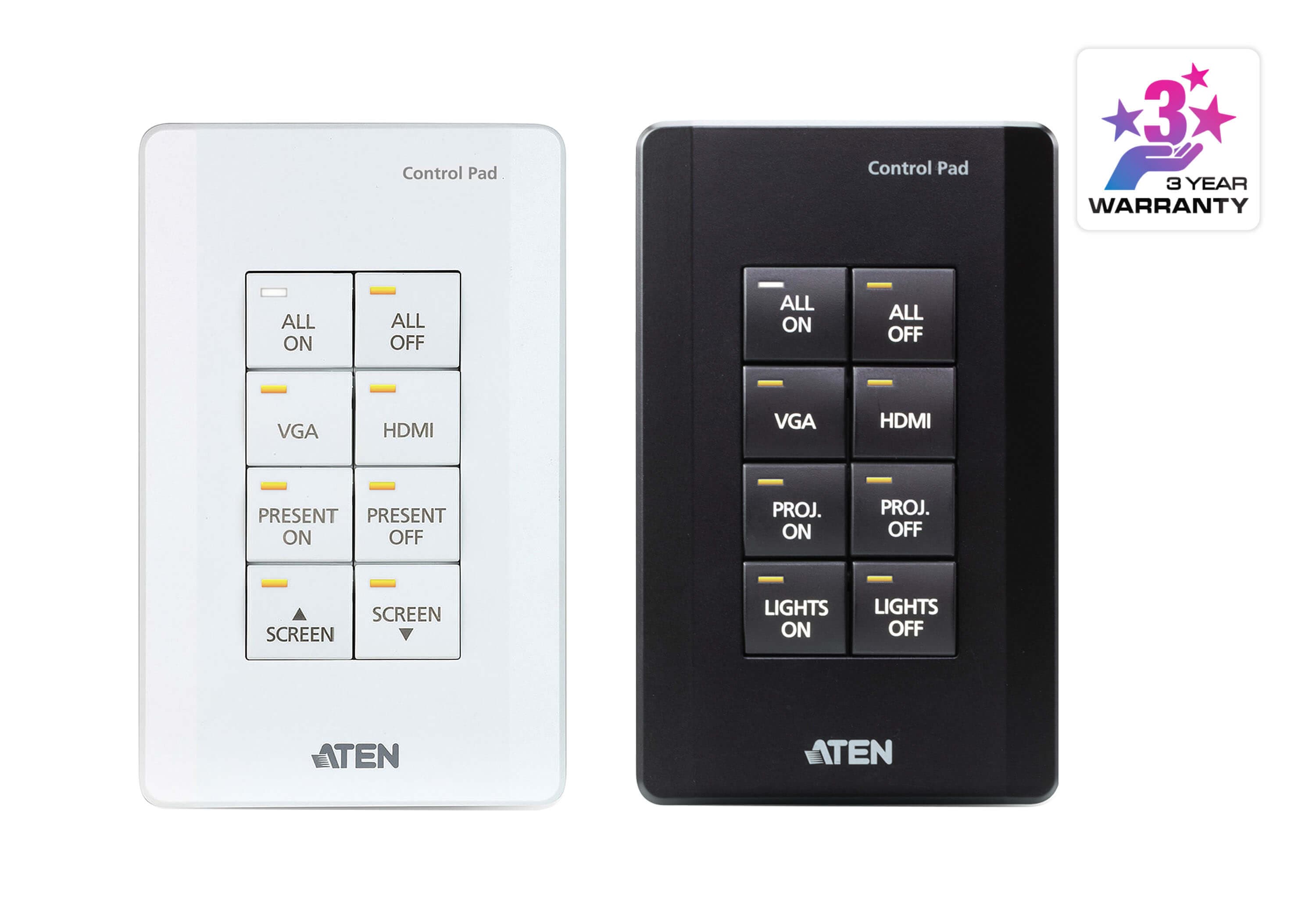

- Available in black or white color
- Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
- Supports IEEE 802.1x authentication protocol for enhanced network security
- Supports native KNX IP for building management systems
- TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
- Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- Supports project file backup1
- Web GUI for easy system configuration
- Supports SSH communication for data monitoring2
- LED indication of connection and hardware status
- Dual-color LEDs for clear indication in dark environments
- Redundant power supplies – Power over Ethernet (PoE) and DC 5V (optional)
- Customized button engraving service
- Allows for remote control via mobile device3

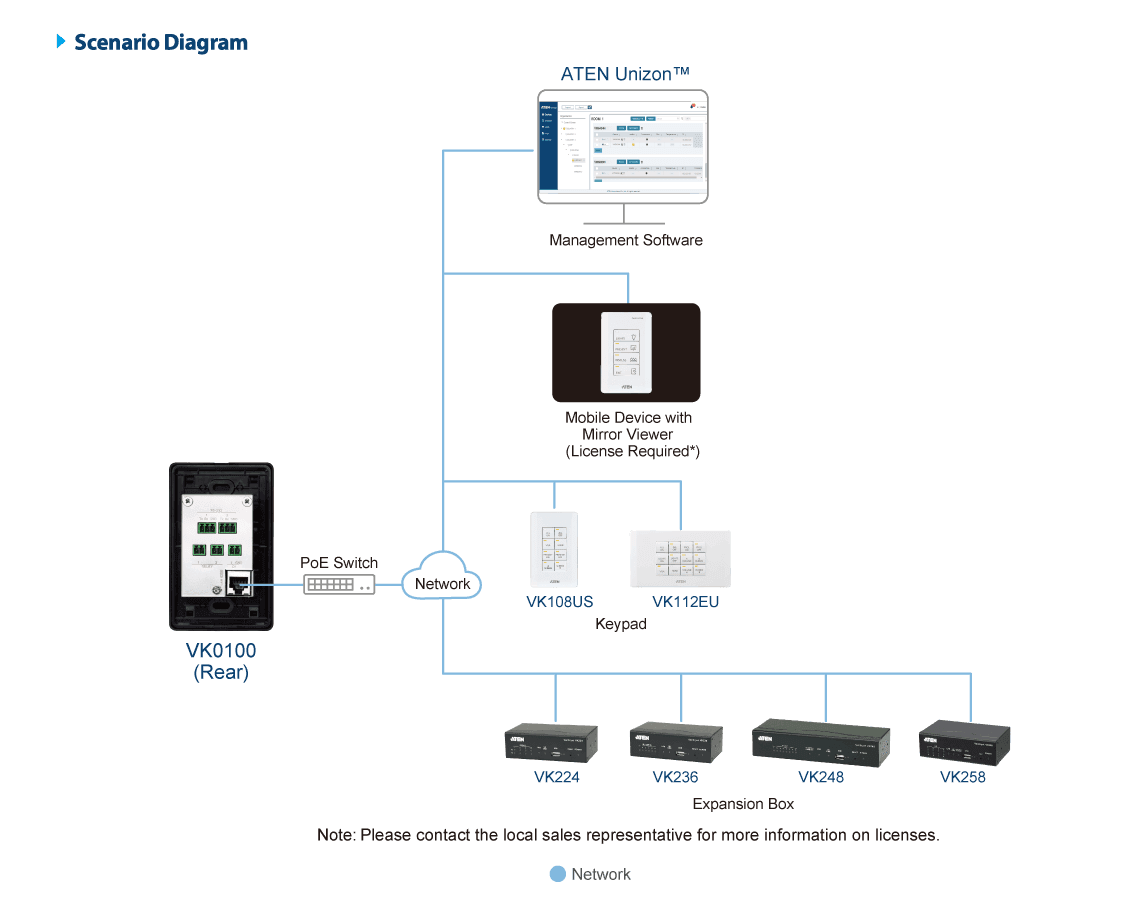

- Supports centralized control and management by ATEN Unizon™
- Flexible installation made easier with VK101 tabletop kit, allowing for device mounting on the table or to the wall4 Note: 1. Each ATEN Control Box is capable of backing up one project file. 2. The SSH protocol can be used for monitoring the receiving/transmission data of the Control Pad. 3. Mobile device control requires a license. Please refer to the Specifications or contact your local sales representative for more details about licenses. 4. When the VK0100 is mounted on the VK101, power is supplied only through PoE.

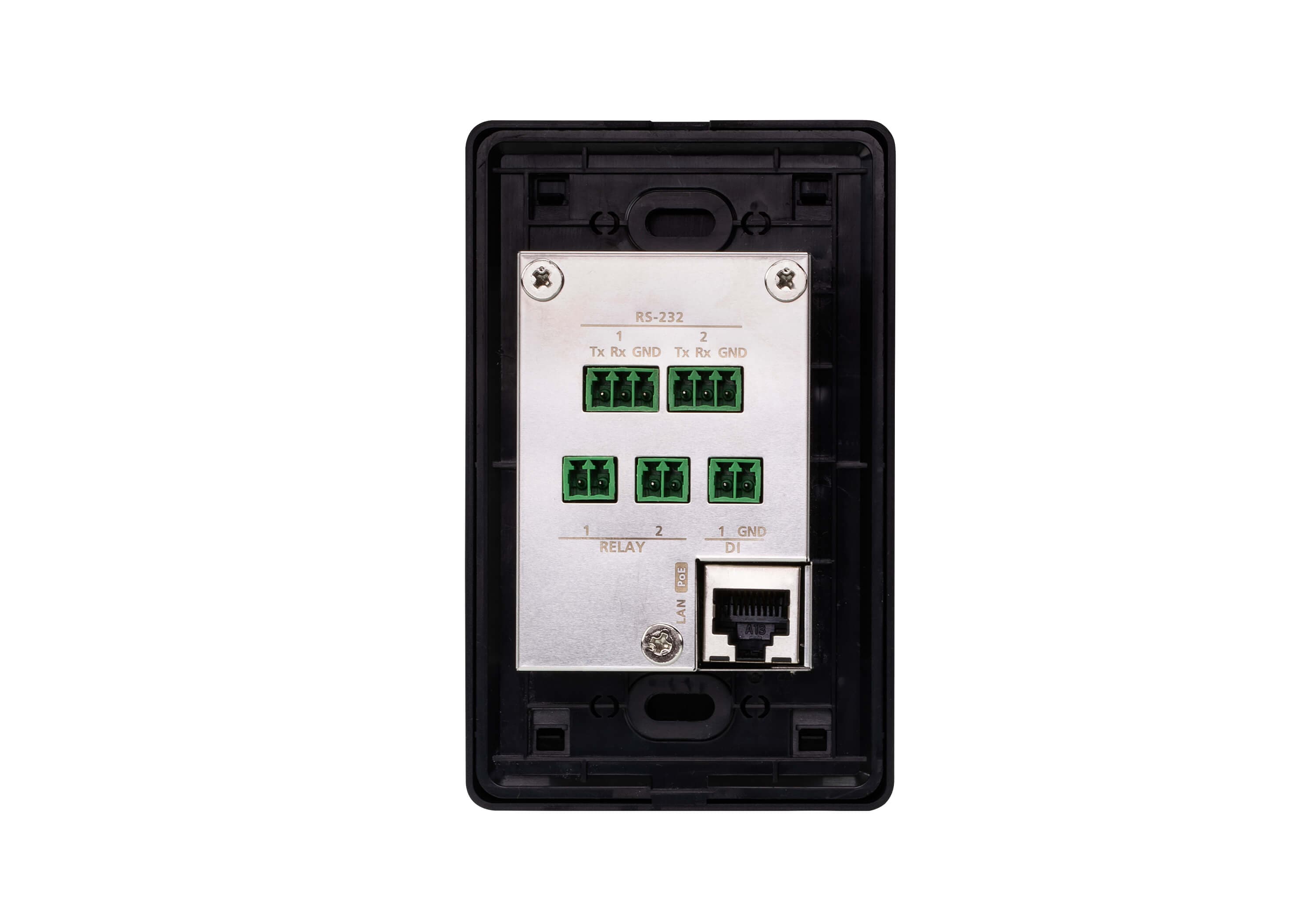

Интерфейси
- Подредба на бутоните
- 4~8 buttons customizable in 14 keypad layouts
- Сериен
- • 2 x Bi-directional RS-232 Port (2 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), even or odd
- Реле
- • 2 x Relay Channel (2 x 2-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 1A
- I/O
- • 1 x Digital Input Channel (1 x 2-Pole Terminal Block Connector); – VDC Mode Input Voltage Range: 0 to 5 VDC; Programmable Range: 1 to 5 VDC; – Dry Contact Mode Pull-up 2k ohms to + 5 VDC
- Ethernet
- • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Бутони и превключватели
- ID на контролера

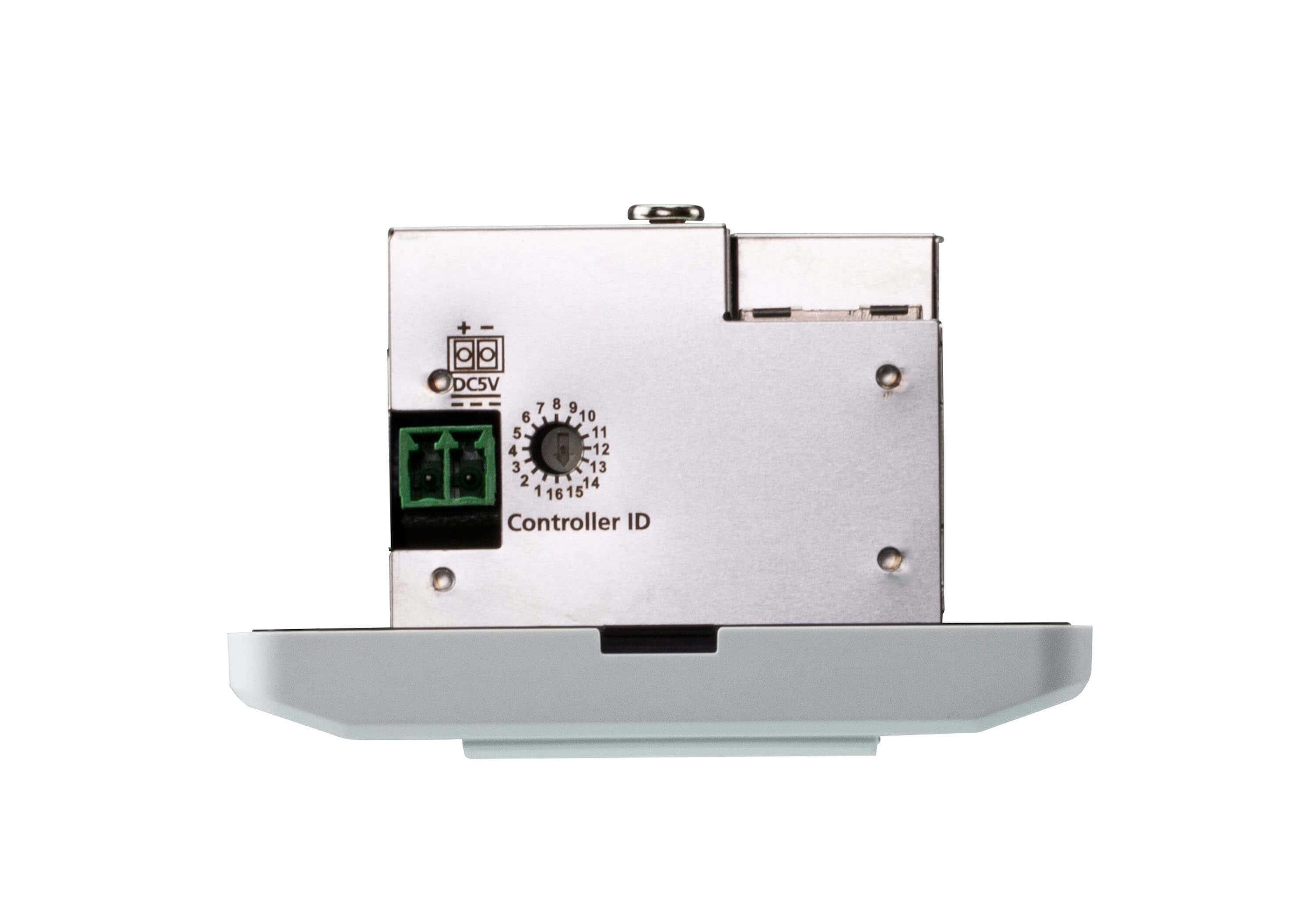

- 1 x 16-segment Switch
- Бутон за нулиране
- 1 x Semi-recessed Pushbutton
- Консумация
- DC5V:1.1W:5BTU/h POE:1.375W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- –20 – 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.16 kg ( 0.35 lb )
- Размери (Д x Ш x В)
- 11.63 x 7.06 x 4.80 cm (4.58 x 2.78 x 1.89 in.)
Лиценз
- Макс. допустим брой
- 10 licenses
- Забележка
- Each time a mobile device connects to an ATEN Control Pad for remote control, one license on the Control Pad will be occupied. To purchase and add additional licenses to your ATEN Control Pad, contact your local sales representative for more information.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
