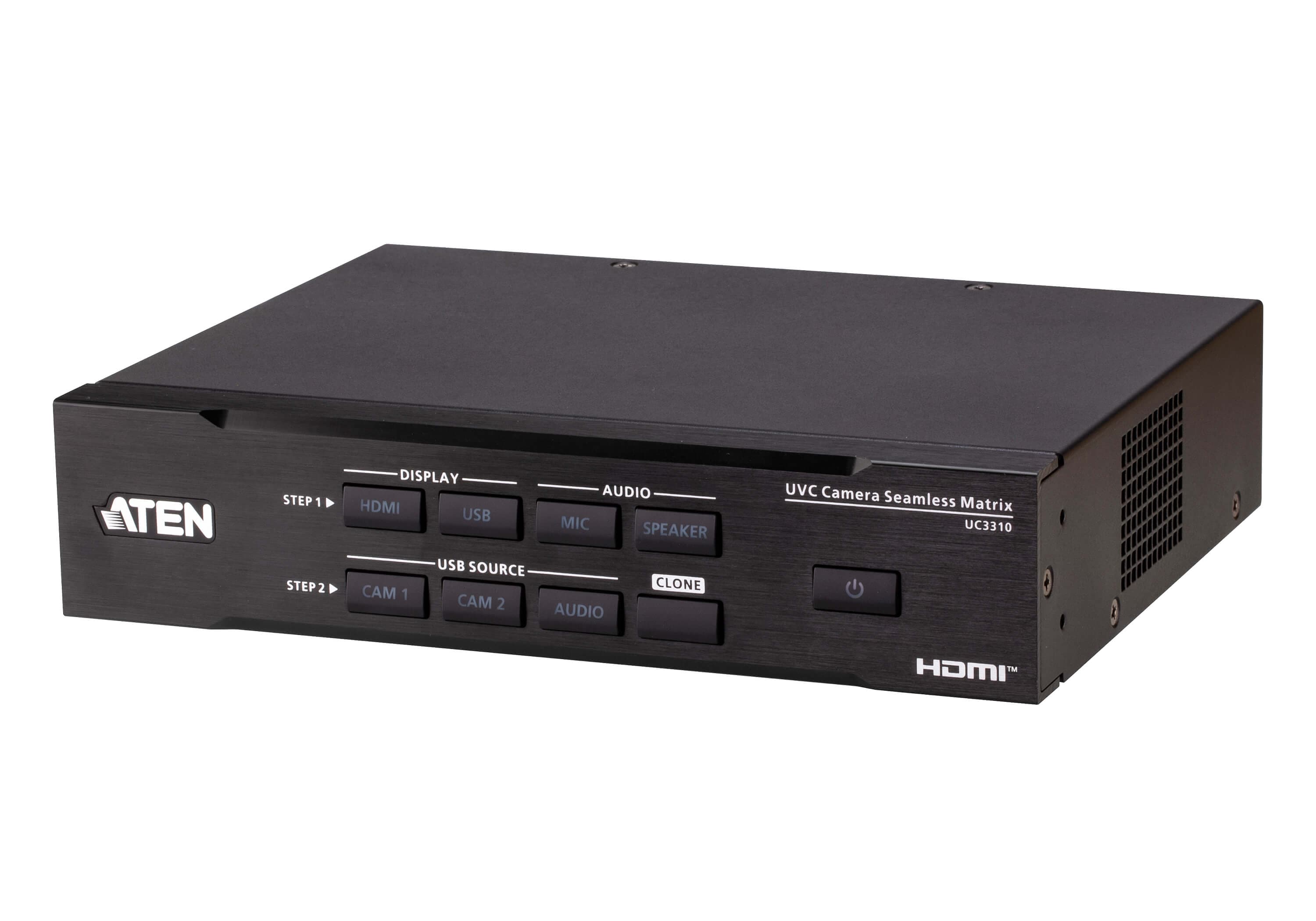

CAMLIVE MX UVC Camera Seamless Matrix

Name: CAMLIVE MX UVC Camera Seamless Matrix
Brand: ATEN
SKU: UC3310

UC3310

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

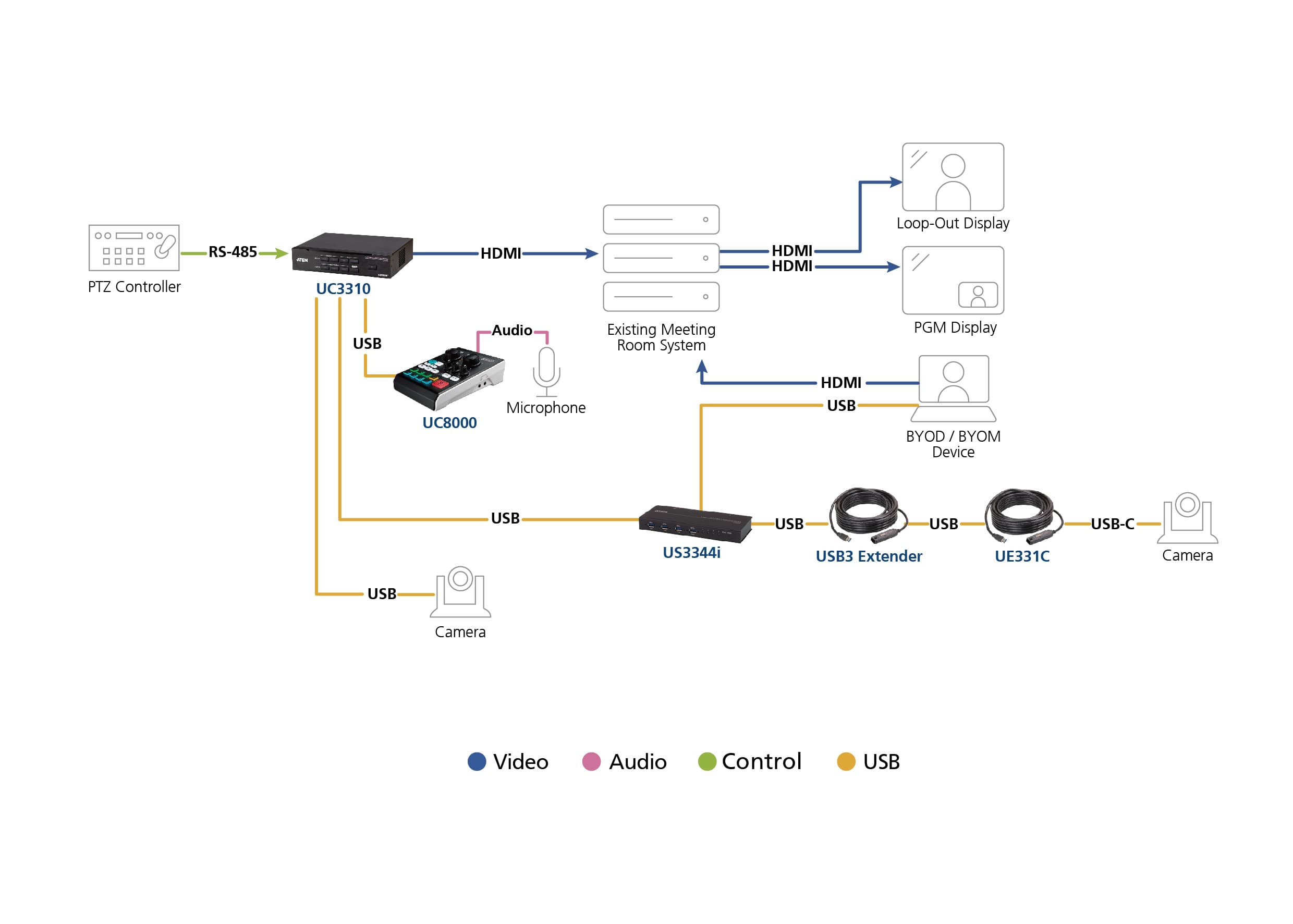

Matrix switcher for UVC cameras that converts up to two 4K at 30 USB camera inputs into one HDMI output and streams 4K UVC simultaneously to apps such as Teams or Zoom.

Features

Converts up to two 4K@30 USB camera inputs into one HDMI
Supports USB audio in / out for matrix switching
Support 4K @ 30 UVC output simultaneously for live broadcasting on popular streaming software (Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch)

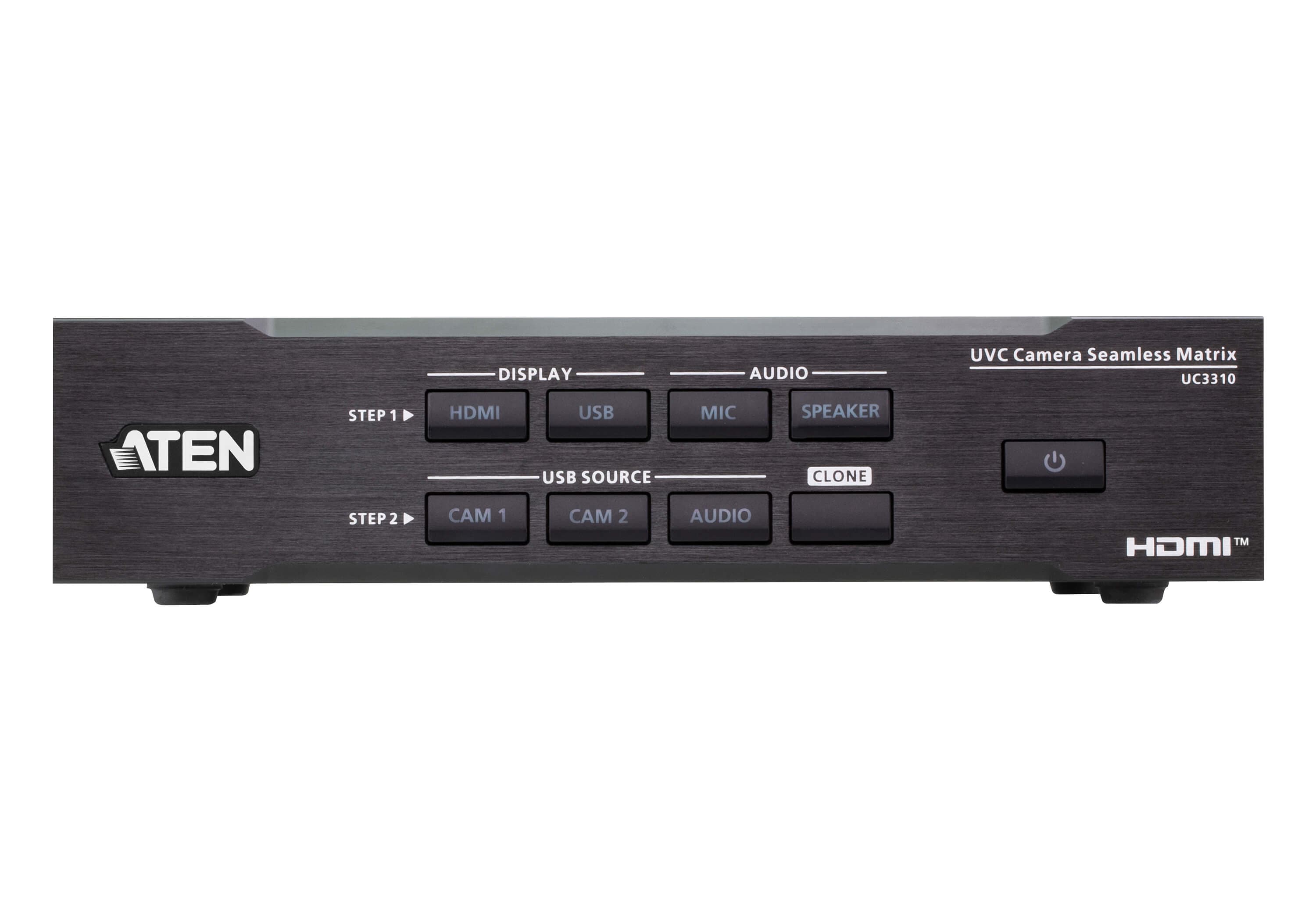

Pushbuttons on the front panel allow quick and intuitive signal selection and assignment
RS-232 connection enables integration with ATEN VK Control System
Built-in RS-485 interface to support VISCA protocol for PTZ camera controller connection

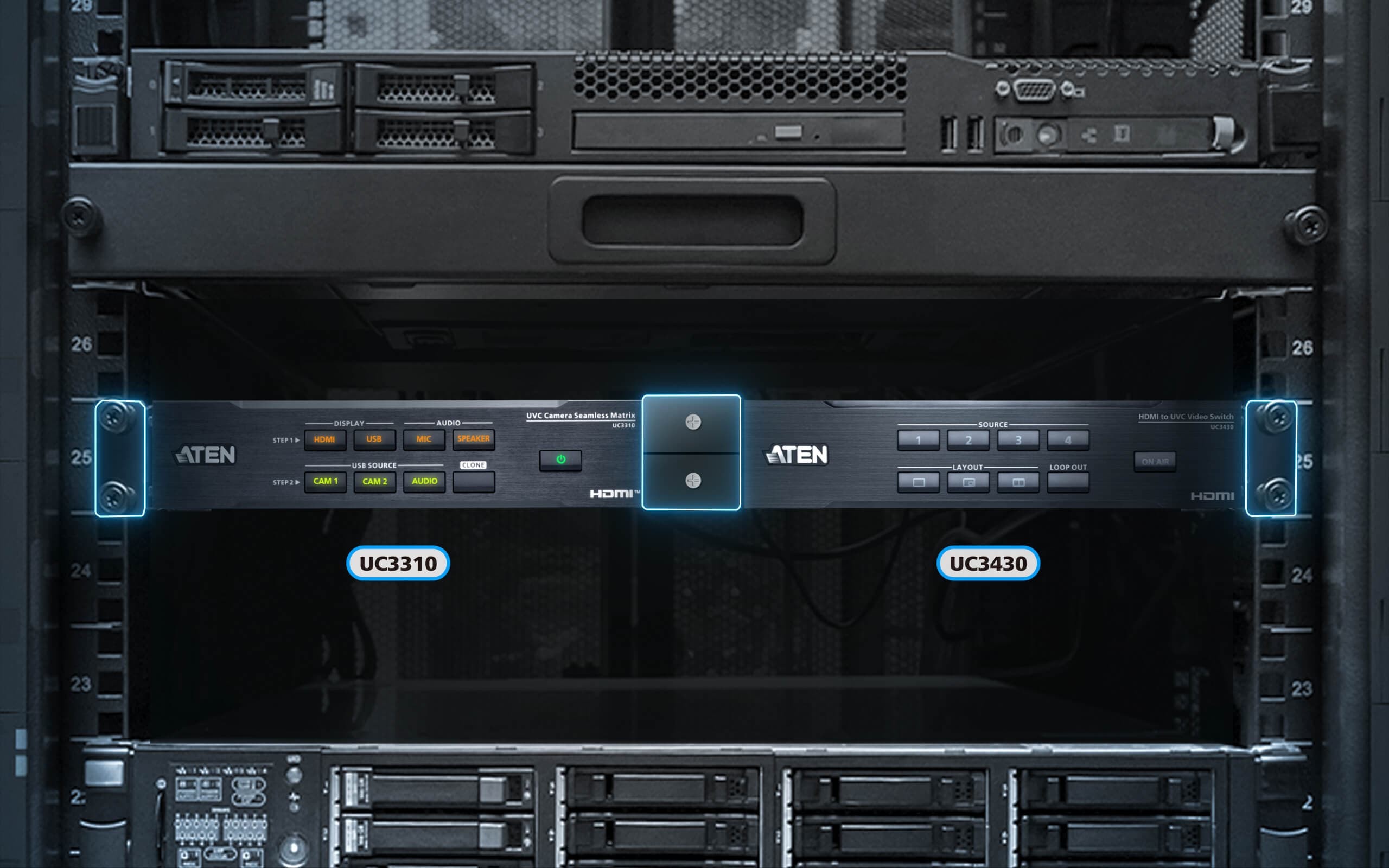

Optional rack mount kit gives installation flexibility in media cabinets or DIT stations
Plug-and-play convenience with no software drivers needed
Supports all major operating systems including windows 10 and macOS 10.13

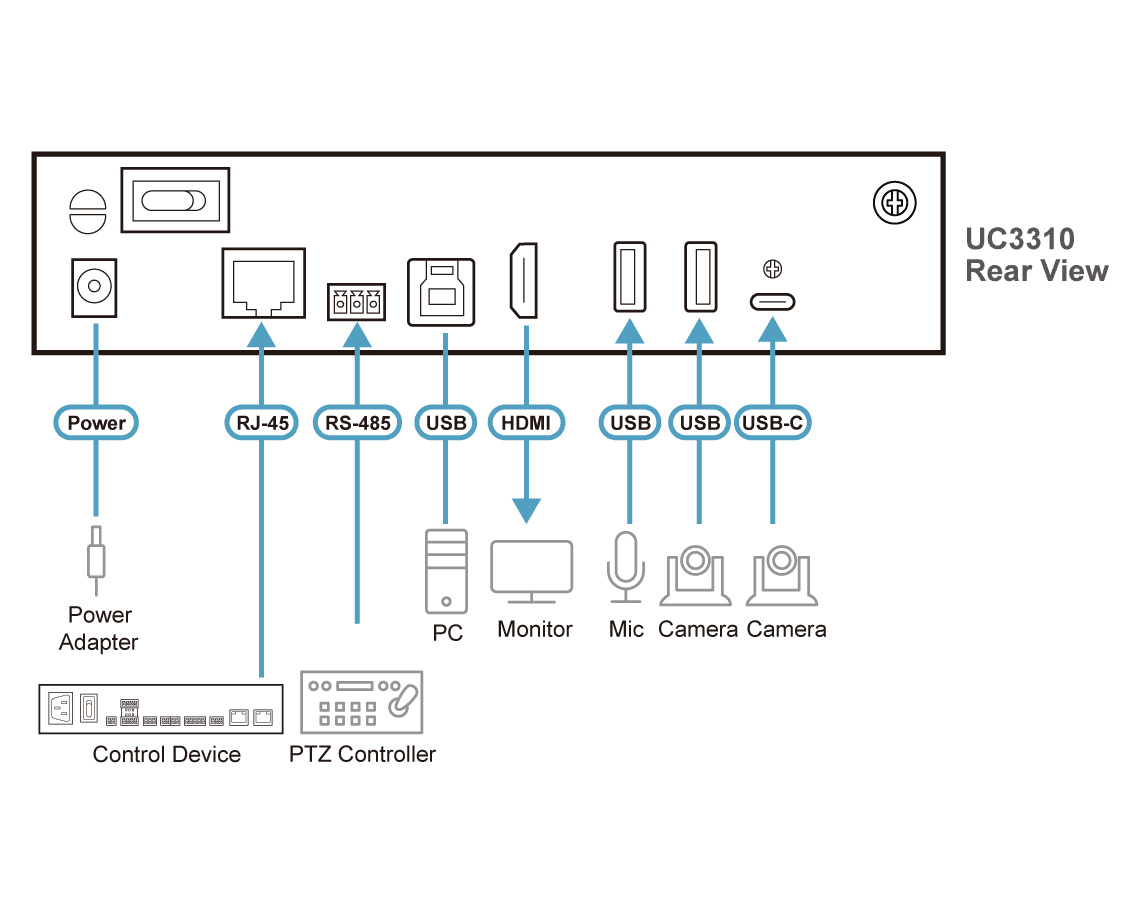

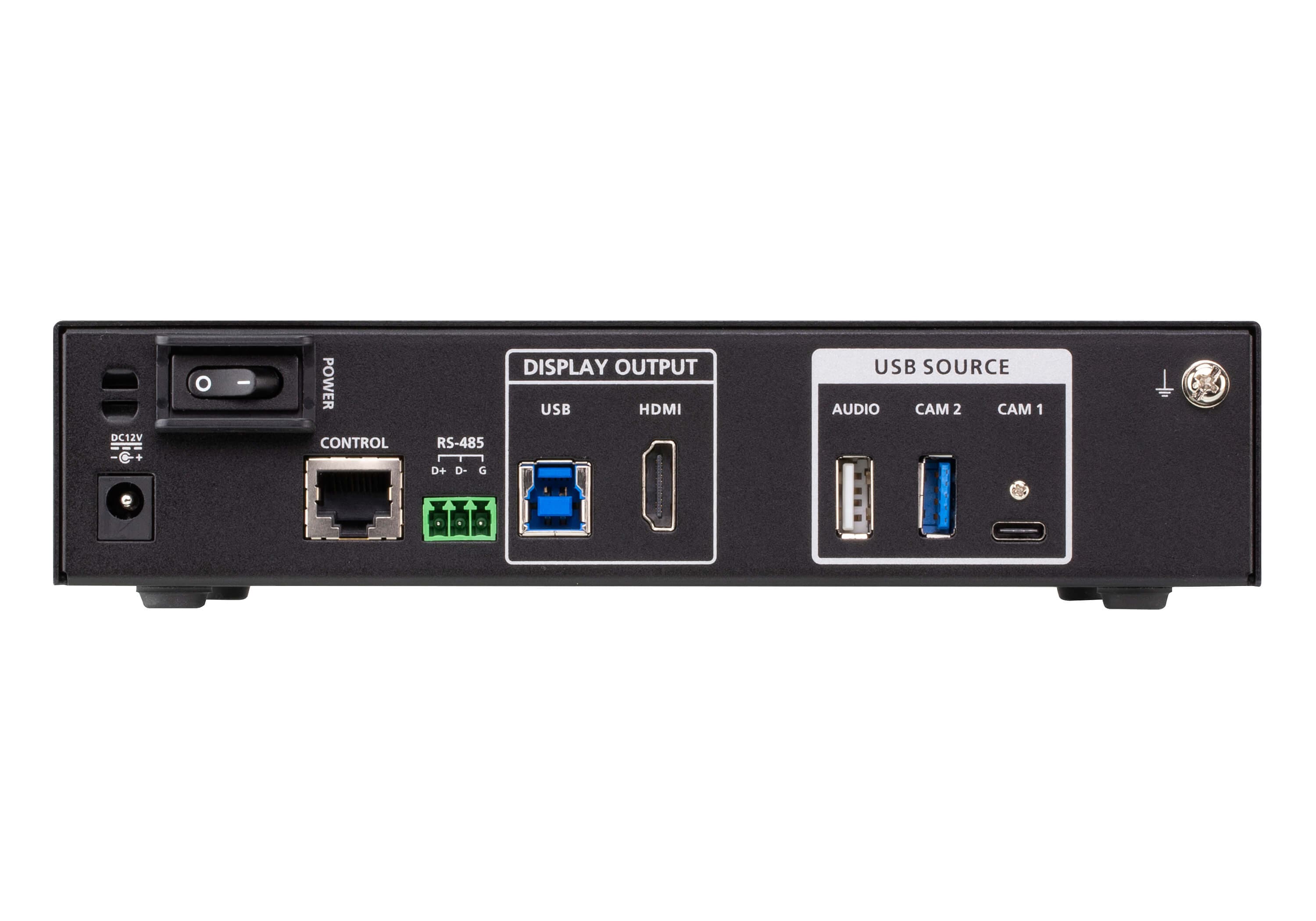

Connectors

Video In: 1 x USB3.2 Gen1 Type A Female (Blue) 1 x USB3.2 Gen1 Type C Female (Black)
Audio Inputs: 1x USB2.0 Type A Female (White)
Video Output: 1 x HDMI Type A Female (PGM Video, Black)
USB Port: USB 3.2 Gen1 Type-B Female (Blue) (USB-B to USB-A cable package included)
Video Resolution: USB camera input: 720p24, 720p25, 720p30, 720p50, 720p60 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 2160p24, 2160p25, 2160p30 PGM HDMI output: HD Video Standards 720p24, 720p25, 720p30, 720p50, 720p60 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 Ultra HD Video Standards 2160p24, 2160p25, 2160p30 USB video output: 4Kp30 (MJPEG) 1080p30, 720p24, 720p25, 720p30 (MJPEG)
Color Space: NV12
Audio Sampling: 16-bit PCM audio, 48KHz

Control

RS-232: Interface : RJ-45 Bit rate : 50bps~921.6Kbps (Default: 9600bps) Stop bit : 1 stop bit Data bits: 8 bits Parity : no parity Signal : TxD, RxD, GND
RS-485: PTZ Control Support Protocol : VISCA Interface : Terminal block Flow Control N/A FIFO 64 bytes Bit rate : 50bps~115200bps (Default: 9600bps) Stop bit : 1 stop bit Data bits: 8 bits Parity: none Signal : Data+(B), Data-(A), GND Protection IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power1 kV Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF

Environmental

Operating Temperature: 0 - 40 ºC
Storage Temperature: -20 – 60 ºC
Humidity: 0 - 80% RH, Non-Condensing
Minimum Hardware Requirements: PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more 1 x USB-A interface
OS Support: Windows 10 and above Mac OS 12 and above

Physical Properties

Housing: Metal
Weight: 0.98 kg ( 2.16 lb )
Dimensions (L x W x H): 16.46 x 20.00 x 4.40 cm (6.48 x 7.87 x 1.73 in.)

Power Inputs

Power Adapter: DC power adapter with Power cable IEC C13, 100-240 Vac
Power Consumption: DC12V:6.50W:92BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
