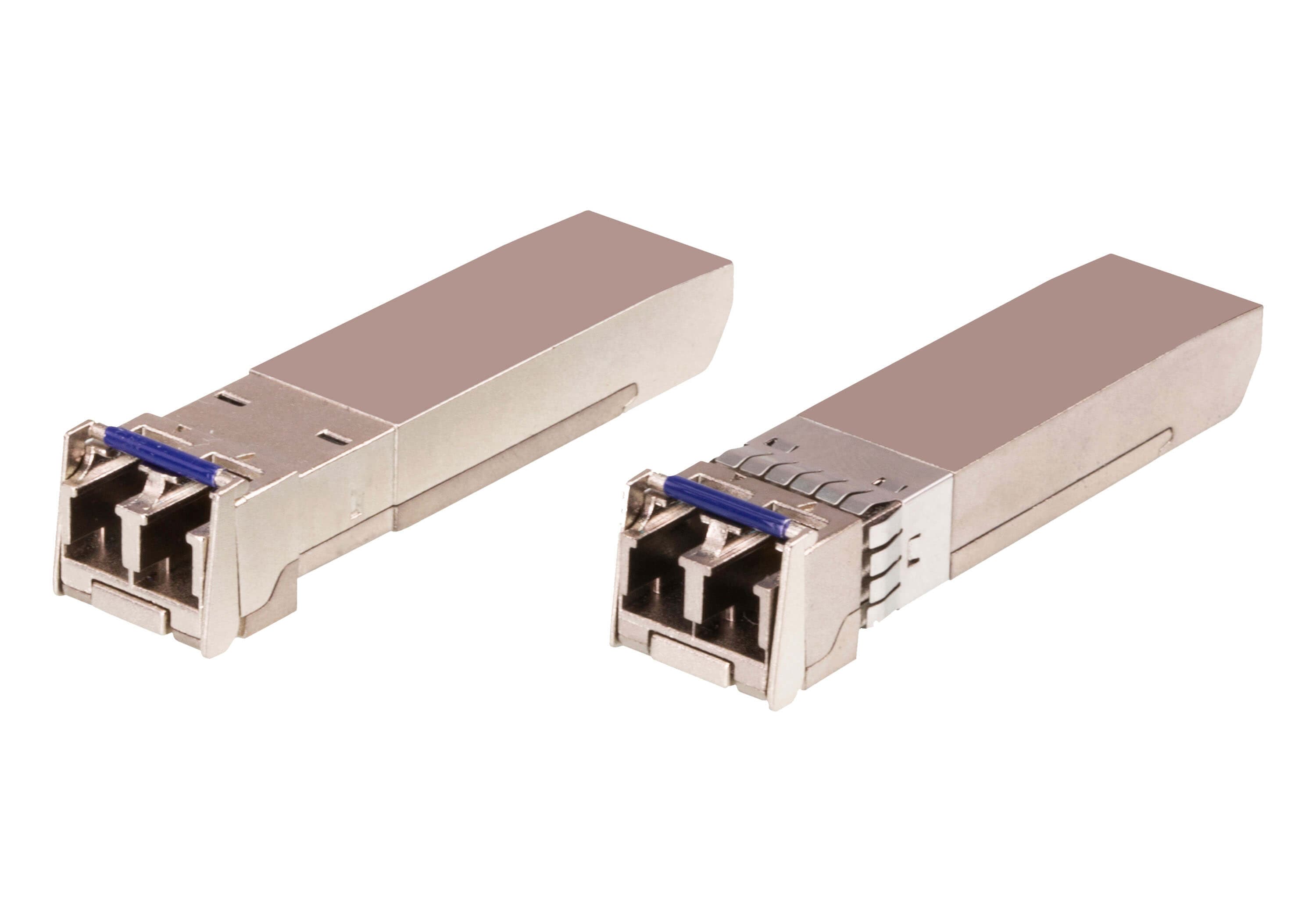

SFP+ module for 10 Gbps links over single-mode fiber with LC connectors, reaching 10 km. Hot pluggable, with DDM support; complies with IEEE 802.3ae.
Features
- Extend your network connectivity up to 10 kilometers
- Compliant with IEEE 802.3ae standards
- Compliant with SFF-8431 MSA Digital Diagnostic Monitor (DDM)
- Hot pluggable
- Low power consumption
- Operation Temperature from 0° C to 70° C
- RoHS compliant
Fiber Optics
- Data Rate
- 10 Gbps
- Operating Distance
- 10 km
- Fiber Type
- Single Mode
- Connector Type
- LC
- DDM
- Yes
Environmental
- Operating Temperature
- 0-70°C
- Storage Temperature
- -40-85°C
Physical Properties
- Weight
- 0.02 kg ( 0.04 lb )
- Dimensions (L x W x H)
- 5.59 x 1.46 x 1.30 cm (2.2 x 0.57 x 0.51 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
